glass shell tube heat exchanger
Get Price Quote
Shell and tube heat exchanger provides a versatile alternative to the coil-type heat exchanger described in previous pages. Shell and tube heat exchanger is particularly suitable for applications where large heat transfer area is required in relatively confined spaces. It is equally suitable for heat transfer between two liquids or gases. Shell & tube heat exchanger is available in single-pass as well as multi – pass.Both versions are available with glass or mild steel shells in combination with glass tubes as standard. Consequently, there are three basic models. SALIENT FEATURES Universal corrosion resistance Outstanding heat transfer Space-saving arrangement by installing in horizontal or vertical position Simple replacement of inner tubes for repair and cleaning Low maintenance cost Available in wide range of HTAs. CONSTRUCTION FEATURES The glass tubes are individually sealed in the PTFE tube plates using threaded bushes. The special construction ensures permanent tightness and easy replacement and cleaning of tubes, Baffles on shell side ensure improved heat transfer by increased turbulance.Sealing principle similar on all methods : Metal Cover (Bonnet) PTFE Tube Plate (Tube Sheet) Threaded Bush Glass Tube Baffle Glass Shell PTFE Tube TaiRod in PTFE Cast Iron SS Flange Springs Screwed Rod or Nut Insert Flat Washer OPERATING RANGE : The maximum permissible operating conditions in borosilicate glass 3.3heat exchangers are detailed in the table below.
Corrosion Resistant Heat Exchangers
Get Price Quote
We provide an ample assortment of superlative Corrosion Resistant Heat Exchangers, Glass Heat exchangers, which are highly efficient and durable. We have firmly positioned ourselves as one of the salient Corrosion Resistant Heat Exchangers Suppliers from India. We make them available in wide assortments of choice viz. shell & coil type heat exchangers, immersion heat exchangers, shell & tube heat exchangers, bayonet type heat exchangers and u-tube tubular heat exchangers. Our Cost-Effective Corrosion-Resistant Heat Exchangers are designed to provide quality solution to the requirement of our client. These equipments perform all necessary duties like condensation, cooling, heating, boiling & evaporation. They are manufactured in standard modular designs. Shell & Coil type Heat Exchangers Immersion Heat Exchangers Shell & Tube Heat Exchangers Bayonet type Heat Exchangers U-Tube Tubular Heat Exchangers Material of construction comprise of combinations of highly corrosion resistant materials including Borosilicate 3.3 Glass , SS, SiC, Fluoropolymers & Exotic metals ( Ta, Ti, Hastelloy, etc.) Optimum Solution for every requirement with a range of designs available & in modular construction Wide range of duties namely ; Condensation, Cooling, Heating, Boiling & Evaporation Fabricated with all major internationally prevalent buttress design and having a very high reliability of the strong and high-duty coupling system used for all components Non-standard & special custom designed can also be supplied to special order .
Best Deals from Tube Heat Exchangers
U Tube Bundle Heat Exchanger
Get Price Quote
1 Piece (MOQ)
We are a well-known Manufacturer, Exporter & Supplier of U Tube Bundle Heat Exchanger. Inter Fitment being a crucial point, we manufacture U Tube Bundle Heat Exchanger either as per the specifications laid by the customers or we send our engineers to take the actual dimension of the existing Tube Bundle and the Shell. For the making of U Tube Bundle Heat Exchanger, we have a set of fixtures for 3/2" & 1" OD Tubes. The minimum Bending Radius carried out by us so far is 1.5D. U Tubes manufactured by us meet the TEMA Acceptance Norms of 16 % thinning & 10 % Ovality. The U Tube Bundle Heat Exchanger is generally used for Inter-Coolers, Re-Boilers, Oil Coolers, Strippers, etc. Note : If Client gives us the Existing/Dummy Shell for the testing purpose then Existing/Dummy Shell is used or else Dummy Shell is fabricated for the same and supplied along with Tube Bundle after carrying out the testing.
Glass Tube Heat Exchanger
50,000 - 150,000 Per Piece
1 Piece(s) (MOQ)
The shell & tube heat exchanger is a type of heat exchanger. It is the most common type of heat exchanger used in variuos chemical and pharmaceutical companies. It is suited for higher-pressure applications. This type of heat exchanger consists of a glass or metal shell (a large pressure vessel) with a bundle of tubes inside it. One fluid is passed through the tubes, and another fluid passes over the tubes (through the shell) to transfer heat between the two fluids. The set of tubes is called as tube bundle, and may be composed of several types of tubes.
Shell and Tube Heat Exchanger
40,000 Per Piece
1 Piece (MOQ)
Shell and Tube Heat Exchanger
Get Price Quote
Glass Shell and Tube Heat Exchangers
85,000 - 16,000,000 Per Set
1 Set (MOQ)
UD Technologies is a manufacturer and designer for Glass Shell and Tube Heat Exchangers for various duties such as: Heating Cooling Single component Condensation Multi-component condensation Thermosyphon reboiler Falling Film Evaporators Falling Film Absorbers Waste Heat Economisers along with adjoining pipelines and equipment Glass Shell And Tube Heat Exchanger-Visual Process Control In order to cement our position, we are successfully presenting a wide and quality assured gamut of Glass Shell And Tube Heat Exchanger. Offered heat exchanger is designed well by our capable professionals. Available in several technical specifications, provided heat exchanger is greatly demanded in the market for its brilliant feature like hassle free performance, low maintenance and precision-designed. In addition to the classical Glass heat exchangers in the coil or shell and tube construction form, UD offers you a variety of process-specific Equipment. Our Process engineering division would be happy to help you with a layout design Shell and tube heat exchangers: Our Heat Exchangers are designed and built such that nearly all removable Parts like Shell, Tube Sheet, Tubes, Bonnet Glass Shell and Tube Heat Exchangers are available upto 40 Sq. Mt Heat transfer Area Metal Shell and Glass Tube Heat exchangers are Avialble up to 50 Sq. Mt area Heat transfer Application Condensation on Shell Side Condensation on tube Side Falling Film Evaporator Thermosyphon Reboiler Waste heat Economiser Heating -Cooling Application Climbing Film Evaporator or Recirculatory Evaporation Falling Film Reactor and Absorber We also offer Shell and Graphite tubes heat exchangers with Shell options of Glass – MS-SS. Bonnets are also available with Glass –Graphite – Metal as per process requirements Salient Features : Universal Corrosion Resistance Outstanding heat transfer Space-saving arrangement by installing in Horizontal or Vertical position Simple replacement of inner tubes for repair and cleaning Low Maintenance cost Coil type heat exchangers: Flexibility to increase Heat Transfer Area by adding more modules UD Technologies Manufacturers Coil Heat Exchangers from 0.2 Sq. Meter to 4 Sq, Meter Heat transfer Area UD technologies Designs ,Manufacturers ,Supplies Heat Exchanger for Highly corrossive Environments and different Process requirements like condnesation ,Thermosyphon Reboiler ,Heating-Cooiling and vaporization UD Selects MOC from Borosilicate Glass-Graphite-PTFE and Some Exotic metals Like Tantalum Offers from Smaller Heat transfer Area 0.2 Meter Square to 30 Sq, Mt
Shell and Tube Heat Exchanger
Get Price Quote
Shell and Tube Heat Exchanger is most common type of heat exchanger in oil refineries and other large chemical processes, and is suited for higher-pressure applications. Shell Tubes Heat Exchanger are classified into fixed and Floating type Heat Exchangers. Shell and tube heat exchangers consist of a series of tubes. One set of these tubes contains the fluid that must be either heated or cooled. The second fluid runs over the tubes that are being heated or cooled so that it can either provide the heat or absorb the heat required. In this type, the tube sheets are completely welded to the shell and acted as shell flanges. Fixed type Heat Exchangers are used there are absolutely no chances for inter mixing of two fluids. The Floating type Heat Exchangers has the advantages of removability of tube bundle and access for cleaning both inner and outer side of tubes and shell. Shell Tube Heat Exchanger is widely used in variety of application as a cooling solution. Common amoung them is for cooling of Hydraulic Fluid and oil in engines, transmissions and hydraulic power packs. With right coimbination of materials they can also be used to cool or heat other mediums, such swimming pool water or charge air. One of the big advantages of using a shell and tube heat exchanger is that they are often easy to service, particularly with models where a floating tube bundle (where the tube plates are not welded to the outer shell) is available. Can also be used on fixed tube sheet heat exchangers.
Glass Shell and Tube Heat Exchanger
Get Price Quote
Shell, Tube Heat Exchanger
Get Price Quote
We bring forth shell and tube heat exchanger that is manufactured as per international standards. The shell and tube heat exchangers are widely used for condensation of vapours, vaporization, cooling and heating of liquid. We offer shell and tube heat exchanger in various combinations of glass/metal, metal/frp in shell & headers. Moreover, these heat exchangers can be used predominantly under full vaccum, provided the differential pressure does not exceed 3 bar gram.
Tube Heat Exchanger
Get Price Quote
We are a prominent organization, which is engaged in manufacturing, supplying and trading a wide array of Tube Heat Exchanger. The offered range of glass shells is manufactured by our experts in accordance with the industry laid standards. We are offering these glass shell heat exchangers in various specifications to meet the exact requirements of the customers. Further, clients can also avail customization solutions from us for these glass shell heat exchangers. It is also known as Glass Shell Heat Exchanger. Remarkable features of these glass shell heat exchangers are mentioned below: High performance Reliable operation Easy installation No maintenance

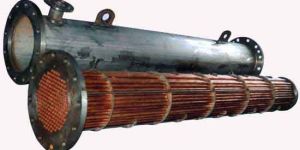

Tube and Shell Heat Exchangers
Get Price Quote
We design develop and provide heat exchangers for applications across various industries. Our heat exchangers are based on latest technology and are fabricated with qualitative raw material to ensure durability and chemical resistance. Some of our range encompass of tube heat exchangers, shell heat exchangers, vertical heat exchangers etc. We offer vertical heat exchangers (Shell and Tube Type) for efficient cooling of air. Air enters the shell side and cooling water circulates in tube side. Baffles are provided inside the shell to increase the residential time for air. A dampener also provided at the air inlet to reduce the pulsations.

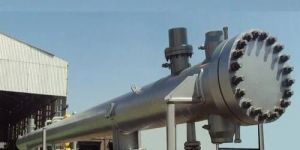

Tube Heat Exchanger
Get Price Quote

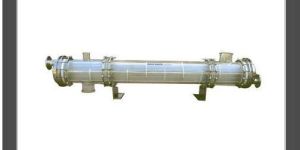

Tube Heat Exchanger
Get Price Quote
Owing to our skilled professionals and latest machinery available, we are offering highly efficient Tube Heat Exchanger in the market. Easy to install, our Tube Heat Exchanger is manufactured using high-grade metal. The Tube Heat Exchanger, offered by us, ensures excellent finish, efficient performance and elegant design. We are engaged in manufacturing and supplying Tube Heat Exchanger with unmatched quality. Features Smooth finish Cost-effective Longer service life

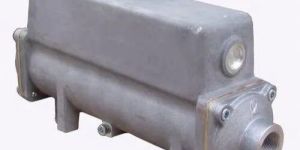

Marine Tube Heat Exchanger
65,000 Per Piece
Shell Tube Heat Exchanger
Get Price Quote
Our Shell Tube Heat Exchanger finds application in diverse industries. The Shell Tube Heat Exchanger manufactured by us is capable of handling high temperature and pressure application and therefore it is preferred by most of the industries. FeaturesHigh performanceCompact and light weightLow maintenance costLow installation costHigher temperature differentialsFlexible designEasy selection ApplicationsHeating SystemsChilled Water SystemsGround Water SystemsResidential UseDistrict Heating Systems Maximum Working Pressures Details of Construction DN 150 DN 225 DN 300 Max. MinMax. MinMax. MinShell Side Glass Shell 2.0 bar.g Vacuum 1.0 bar.g Vacuum 0.7 bar.g Vacuum Steel Shell 3.5 bar.g Vacuum 3.5 bar.g Vacuum 3.5 bar.g Vacuum Tube Side Glass Tubes Single Pass 2.0 bar.g Vacuum 1.0 bar.g Vacuum 0.7 bar.g Vacuum Glass Tubes Single Pass 2.5 bar.g Vacuum 2.5 bar.g Vacuum 2.5 bar.g Vacuum Maximum Differential Pressures Between Tube Side and Shell Side DN 150 DN 225 DN 300 ZONE 1 3.5 bars 3 bars 2.8 bars ZONE 23.1 bars 2.7 bars 2.3 bars ZONE 32.8 bars 2.4 bars 2 bars ZONE 42.1 bars 1.8 bars 1.4 bars
Shell Tube Heat Exchanger
Get Price Quote
50 Piece(s) (MOQ)
We are designing,detailing and fabricating of shell and tube from 2 m2 to 500 m2 in carbon steel, s.s.304,304l,316,316l in bulk contity. Design presser from 1 kgcm2 to 10 kgcm2 and temp.erom 100 deg.c to 600 deg.c
Shell Tube Heat Exchanger
Get Price Quote
Shell Tube Heat Exchanger, chemical condensers, air eliminators
Shell and Tube Heat Exchanger
Get Price Quote
Industrial Centrifuge Machine, Industrial Agitators, agitator assembly
Tube Heat Exchanger
Get Price Quote
Tube Heat Exchanger, industrial glasses, ptfe teflon bushes
