Heat Exchangers Dealers in Vadodara

BEV undertakes design, manufacture, testing, certification and code stamping of shell and tube heat exchangers, air cooled heat exchangers, air cooled condensers etc. to ASME Sec VIII Div 1, TEMA, API 660 / API 661. Also we design and manufacture plate fin heat exchangers such as steam coil air preheaters. Various applications include process gas coolers, lub oil coolers, HP / LP Heaters, Condensers etc. to customer specifications. BEV holds ASME ‘U’ and U2 Stamps and National Board ‘NB’ and ‘R’ Stamps. The plant is approved by Hartford Steam Boiler UK Ltd. (Notified Body) for manufacture of pressure vessels under Pressure Equipment Directive PED 2014/68/EU of the European Union, Module H1 and H. Heat exchangers for steam related application such as HP Heaters can be manufactured under IBR Stamp. BEV has a team of competent design engineers, design associates and draftsmen experienced in the field. Thermal design of heat exchangers can be performed using either proprietary software like HTRI or custom developed spread sheets. Generally PV Elite supplemented with custom developed spread sheets is used for mechanical design and latest version of Autocad for drafting. Finite element analysis, stress analysis, vibration analysis etc. can also be carried out by our design associates.   Materials of construction range from carbon steel through stainless steel including exotic metals like SMO (6% Mo), Duplex/Super Duplex Stainless Steel, Hastelloy, Inconel, Incolloy, Titanium, Cu Ni etc. For material preparation, we have a CNC profile cutter with plasma and oxy fuel torches. We can roll shells up to 85 mm thick and 3.2 M wide. Cold working is maximized with CNC band saw, Universal Steel Worker etc.   We have a wide range of welding manipulators such as column and boom 4 M x 7 M, heavy duty rotators up to 50 tons and positioners up to 3 tons. We have the entire range of welding gear viz., SAW, SMAW, GTAW and FCAW welding machines. We also have BugO Speed Weaver welding oscillator for GTAW / FCAW and custom developed jigs for tube to tube sheet welding. There are also baking and holding ovens for welding electrodes and flux, apart from portable quivers for welders and welding operators. For stainless steel and exotics, there is a purpose built, segregated area.   We have a well equipped machine shop with a 3 Axis CNC Vertical Machining Centre Hartford PRO 3210 imported from Taiwan with bed size 3150 mm x 2100 mm with 70 bar through coolant BT50, 6000 rpm spindle, 20 tools ATC, right angle milling head and Fanuc controller. Tube sheets and baffle plates drilling, facing and gasket grooving can be accomplished with high precision and minimum turnaround time. We also undertake job work on tube sheets and baffle plates. The machine shop also has a radial drill and 3 gap bed centre lathes. Exotic metals are handled using stringent material control and handling procedures and work is carried out in controlled environment. We carry out post weld heat treatment / stress relieving in temporary purpose built temporary furnaces within our facility or in gas fired furnaces at a specialist subcontractor’s premises of pressure vessels. Semi automatic and manual FCAW is used for welding of saddles, supports and stiffeners.   Heat exchanger tubes, plain and finned, straight as well as U tubes are available from local suppliers. There are reputed manufacturers in our approved suppliers list, including some with R/D 1.0 bending capability. For tube expansion, we have state of the art digital wattage controller and sets of expanders and mandrels of various sizes. Tube end facing, beveling can be done using portable ID mounted machines.   Hydro testing up to 600 bar can be done with or without chart recorders. Pneumatic testing and / or helium leak testing could also be done.   For ASME Code Stamped jobs, we have an Authorised Inspection Services Agreement with Hartford Steam Boiler Inspection and Insurance Company of Connecticut. Hartford Steam Boiler International GmbH is the Notified Body for PED certification jobs. We also have a second AIA services agreement with Lloyds Insurance Inc. GOST-R certification for Russia or GOST-K certification for Kazakhstan can also be arranged through duly accredited certification bodies.   Country specific compliance certification such as that for Malaysia, Singapore, Australia etc. can also be arranged through authorized third party inspection agencies such as Bureau Veritas. This would facilitate seamless integration of our equipment into the project in the country of installation.   We have an extensive range of WPQRs to ASME Sec IX and EN ISO 15614 covering a wide range of materials, thicknesses, processes and other variables. All our WPQRs are witnessed and certified by third party inspection agencies such as Bureau Veritas, TUV Nord etc. Welders could also be qualified in presence of third party inspection agencies if it is a requirement. If Client requires us to appoint an independent third party inspection or certification agency, it could be arranged.   We have a totally enclosed steel grit blasting facility complying with Euro III norms imported from Hodge Clemco, UK. Its size is 16M (L) x 8 M (W) x 5 M (H). Items bigger than this are blasted under custom built canopies using 200 litres blast pots and copper slag as abrasive medium. Painting facility is fully equipped with air less spray painting machine as well as cup guns. Special erosion resistant internal coatings can be applied using Belzona or Ceramkote products. Non destructive testing such as radiography, ultrasound etc. and material testing at NABL accredited testing facility is available within reach.

We offer Coil Type Heat Exchanger which is widely used for efficient heating of the oil with continuous filtration system in various industries. It is manufactured using premium quality raw material and is equipped with latest technology. FeaturesSwift, even external heating of cooking oilResistance to heat and rustRobustly constructedCompact vertical design saves floor spaceRemovable stainless steel coil ApplicationsHeating SystemsChilled Water SystemsGround Water SystemsResidential UseDistrict Heating Systems Specifications Cat Ref. DN d/DN1 L L1 L2 Type Actual H.T.A Free Cross Area Cm2 Max Coolant Rate Kg/hr. Jacket Cap Liter HE1.5/2 401660010085A 0.24.5 7501 HE2/3.5 501660010090A 0.30 51300 1.25 HE3/3.5 801660010090A 0.35513002 HE4/5 10019600100120A 0.530 24004 HE4/6 100197501.00 120A 0.630 24006 HE6/10 15025600100150B 0.75226009 HE6/15 15025850100150B 1.25 52260011 HE9/25 22525800100180B 2.00 125330018 HE12/25 30025600125250B 1.6175 570025 HE12/40 30025900125250B 3.1175570035 HE16/40 40025600125265B 3450620060 HE16/50 40025700125265B 3.80 450620070 HE18/60 45040750150325C 4.20 8204800100 HE18/80 45040900150325C 5.58206200110

The entire range, we offer, is manufactured under the strict guidance of the quality experts ensuring zero defect's at buyer's end. As a trusted name, we make use of only premium packaging material to pack the products in order to ensure their complete safety during transit. Moreover, our packaging experts strictly check the same.

CATS manufactures ammonia air cooled condensers for the industrial refrigeration industry. Air cooled condensing with ammonia eliminates costly water usage, water treatment, and sewerage associated with evaporative condensers. ACVA condensers are available in almost any configuration and footprint thanks to our parametric design system. Standard features include aluminum tubes and fins with corrosion resistant galvanized steel housing. CATS patented Bimetallic Couplers (BiM) eliminate the need for flange union connections traditionally used to transition on aluminum coils to transition from aluminum to steel pipework. Low speed, fully guarded fans insure quiet operation.

Features :- Efficient, Trouble free & Affordable Cooling Octagonal Shaped Cooling Chamber No Death Corner Improved Moisture control & Low-shock, tempered Cooling S.S. Feeder for Uniform Feeding Large Access Door for Maintenance/Cleaning Purpose Height Adjustable level sensors to modify cooling time Reciprocating fence for discharge

We are one of the major manufacturers and exporters of Heat Exchangers in the Industrial Market. Our Heat Exchangers are fabricated using the best quality raw materials and highly efficient providing flawless service with desired heat transfer areas. Manufacturing standard followed - TEMA / ASME. Used in :1) Chemical plants2) Pharmaceutical3) Power plants4) Petrochemical plants5) Refrigeration and Air conditioning

A heat exchanger is a device used to transfer heat between two or more fluids. The fluids may be separated by a glass wall to prevent mixing. They are widely used in chemical plants, petrochemical plants, petroleum refineries & natural-gas processing.

Kaori brazed plate heat exchangers kaori bphe (brazed plate heat exchanger) can be utilized for a wide range of non-fouling liquid media and gases. applications include: # hvac heating and cooling # hot-water producing plant (central heating) # district heating systems # condensers and evaporators in chillers and heat pumps # industrial and chemical processes # hydraulic oil cooling # heat recovery from hot waste streams # boiler blowdowm # radiant floor heating # snow melt operations advantages: # compact unit, low weight # less space required # low cost for same result # no gaskets, no leaks # high heat transmission rate # high operation temperature and high working pressure # sus316 (aisi 316) stainless steel for effective corrosion resistance # easy installation and replacement, low maintenance requirements materials: # plate material: sus316 (aisi 316) # solder material: 99.9% copper # test pressure: 40 bar # working pressure: max. 30 bar # working temp.: -195oc ~ 225oc

With desire to cement our reputation in the market, we are engaged in offering an excellent range of Heat Exchangers. Keeping in mind the diverse industrial requirements, this exchanger is manufactured by our competent professionals employing top quality raw material and modify tools. Distant from this, our quality checkers act upon a sequence of test on the offered exchanger ascertaining its aptness.

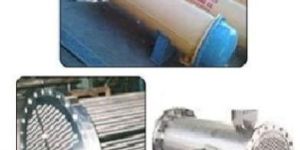

we are offering shell and tube heat exchanger. heat exchanger we bring to our clients an extensive array of heat ex changer that are available from simple plate units to large shell and tube ex changers with exotic alloys based on client's needs. the brazed plate heat ex-changers are economical, compact for easy heat recovery, light process services or water heating. these ex-changers use a series of dimpled plates to form a huge heat transfer area in relation to the units’ overall size. the stacked plates are brazed with either nickel or a copper vacuum brazing process for sealing the plates. the end product is a sturdy heat ex-changer with a marginally low cost.
