Electric Control Panels Dealers in Vadodara

We manufacture, design, and maintain Panel Boards meant for power & control systems and have gained expertise in the field. Our Panel Boards are known for high performance as we manufacture them from best quality components. These Panel Boards are properly tested under stringent industry parameters and are available at affordable prices. Applications DairiesPlastic IndustriesRefrigeration PlantsBatching PlantsChemical plantsCattle electrical systemTransformer manufacturing units Types PCCMCCAPFCR PanelsRTCC PanelsMarshaling KiosksAMF Panels Product Range Mild Steel (M.S.) & Stainless Steel (S.S.) PanelsPower D.B. Etc of capacity from 63 amps to 6000 amps.APFCR panels, RTCC panels, AMF panels and other Control Panels Motor Control Centers, Power Control Centers, Bus Ducts, Lighting D.B. Panel boards have position as an important component in big projects from any industry and we have proficiency to design and supply Panel Boards according to client load requirement or to any customized requirements and simply as per the norms of industry. Applications In Plastic Machine Industry- used as Main Motor Control Center, Drive System, Special control Panel having timers, Proximity Sensors, Heaters and Limit Switches.In Dairies, Feed Projects & Chemical Plants- used as Power Control Center, Several Motor Control Centers & Remote Control Centers which are customized.In Batching, Mixing & Weighing systems industry- used as PLC operated Control Panels & Motor Control Centers.In Automatic Power Factor Control Systems industry- used for designing, manufacturing, supply and maintaining of power factor.In Transformer industry- used as Power factor.In Transformer industry- used as Power Transformer Control Panels, Remote Tap changer cubicle and Marshalling Kiosks.In Refrigeration Systems- used as Main Motor Control Center consisting of electrical & precise controls involving Thermostats, Deferred Loading Mechanisms, Digital Temperature Scanner, etc. To inquiry about the desired product(s), just check the box and then click �Enquiry Now� button which is provided below.

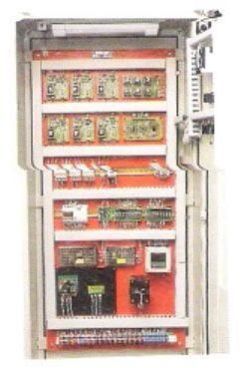

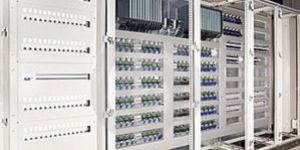

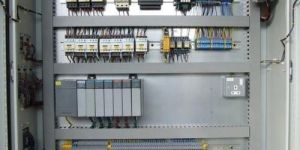

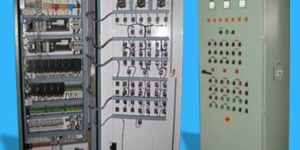

PLC Control Panel or commonly known as programmed logic control automation system panel are used in industrial machines where there are certain pre-programmed or already loaded functions to be performed on instruction. It is very helpful in large scale industries where intricate work is to be carried out efficiently and in a defined time window. We supply a wide range of high quality PLC control panel at a reasonable price.

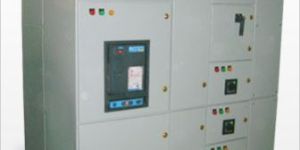

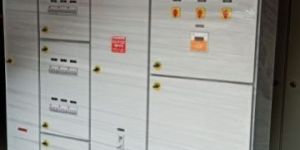

Manufacturer of extensive range of APFC Rellay Panel that means automatic power factor control panel. These panels are designed and fabricated in such a way that these are capable of saving maximum power and energy. APFC Rellay Panel are highly efficient in accurately monitoring the reactive power in power systems for saving energy. We have used capacitors in these panels with series reactors that minimize the harmonic current. It can alter the system voltage and current as well.

• Industrila Control Panel: PLC Control Panel

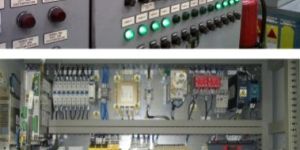

A Square E Systems, We are Vadodara based firm and leading suppliers of instrument control panel, involved in offering an excellent quality range of Automation Industry Control Panels to our most valued clients. These Automation Industry Control Panels are made by using modern technology and superior grade raw material. We also offer Control Panel solution from design to material procurement, wiring, logic development, programming, testing, installation and commissioning at client end. The process include Panel Layout Designing, PLC programming, Instrument Logic Development, Hardware and Software testing and installation. The control panel manufacturer as per customer requirement and control logic. The major Control Panels Include: PLC Control Panel AC DrivesVFD Control Panel Instrument Control Panel Process Control Panel Furnace Take Up Panel Motor Control Panel (MCC) MIMIC SCADADCS Control Panel

• Power I/P: 230 V. AC/24 V. DC
• No. of Zone: 8 to 48 zone
• End of Line: 2K 2
• Power Consumption: 45 Watt/450 Watt (Normal/Fire)
• Weight (without Batt.): 15 Kg.
• Dimensions: 16.5” x 14” x 5”
• Detection: 24 V DC
• SKU: SKU16848

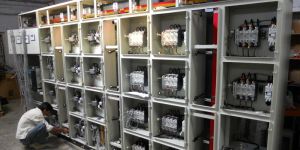

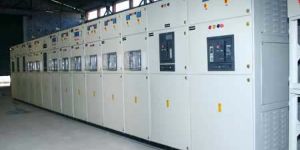

we are offering power control center panel.pcc ( power control center ) we are acknowledged as one of the prime lt panels manufacturers, exporters and suppliers in international markets. made using high grade raw material, our lt switchgear panels ensure high tensile strength and resistance to adverse conditions. lt panels also find applications in various industries. moreover, customers are eased with the availability of the lt panels at industry leading rates. we are also capable of manufacturing lt panels as per the specifications and drawings provided by the clients’. unique features: robust construction ,reliable performance, resistant to corrosion ,abrasion resistance ,easy to operate, low maintenance cost ,long functional life

The company provides a wide range of control panel in the industry. They are widely used in different kinds of industries including both small as well as large scale industry. We are among the leading Industrial Control Panel Suppliers in India. We are also engaged in Wholesale Control Panel in different regions of the country. The Switch Control Panel supplied by us is high on demand among our valued customers. Our range of control panel is as bellow: MCC Panel PCC Panel Control Desk Starter Panel Mimic Panel Drive Panel PLC Panel APFCR Panel

• Type: Dcs Panel
• Application: Industrial Use
• Input Voltage: 220V, 380V, 440V
• Body Material: Mild Steel
• Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Driven Type: Electric
• Power Source: Electric
• Phase: Double Phase, Single Phase, Three Phase
• Warranty: 1 Year

Our company is a reliable Supplier of AC & DC Control Panel. The range of well-designed AC & DC Control Panel offered by us is designed to suit various electrical applications. AC & DC Control Panels are manufactured using steel sheets, aluminum sheets, alloy, metal and brass. We offer these AC & DC Control Panels at market-leading prices.

• Type: PUF Panel
• Brand Name: Any Brand, as per customer required
• Material: PUF
• Application: Cold storage industry-Food processing industry-Clean Room-Telecom Shelters-Fruit & vegetable storage

High load bearing capacity. Thermal insulation. High Water and Vapor barrier. Easy erection,  Low Maintenance xcellent panel joining and sealing. Design flexibility

• Size: As per Design
• Type: Electrical Control Panel Board
• Application: Electrical Control
• Color: As per Specification
• Voltage: 110V, 220V, 380V, 440V
• Body Material: Mild Steel, G.I
• Power: As per Load Required
• Power Source: Electric
• Phase: Single Phase, Three Phase
• Warrenty: 1 Year
• Autoamatic Grade: Automatic, Fully Automatic, Manual, Semi Automatic
• Country of Origin: India

• Type: Outdoor/ Indoor
• Feature: Completely Tested, Robust Design
• Material: Metal
• General Use: Controlling of the incoming power supply voltage and its distribution among the other appliances
• Rating: MCCB/ACB
• Suitable for outdoor for HT: VCB/LBS. Transformer and LT Distribution

Approvals : ERDA Tested, Gujarat Electricity Board, Gujarat Electrical Inspector Approved.  RMU 12KV 630 AMPS  IEC -62271-1, 62271-100-200, 60265-1  The Insulation Level is 35 KV RMS/95KVP  Rated Short Time With Stand Current 21KA/3 Sec. Rated Making Capacity 52.5 KA Insulation medium SF6 Operating cycle 0-0.3 sec co.min-co ARC extinguishing medium vaccum

• Size: Available in many sizes
• Shape: Plain, Zig Zag
• Thickness: 4.5-5mm
• Color: Multicolor
• Feature: Durable, Fine Finish
• Finishing: Polished

In order to maintain high-quality standards in our offerings, we make use of the finest grade raw material. Also, we ensure that the material is sourced from the reliable places only. We keep the globally accepted packaging guidelines in consideration so that the products that we deliver are packed well and are safe from the external environmental factors such as shock, compression, temperature.

• Phase: Three Phase
• Type: Low Voltage
• Material: Mild Steel
• Frequency: 50 Hz
• Voltage: 440V
• Brand Name: StepTrone
• Power Source: AC
• Size: Coustmize
• Built Design: As per Rquirement
• I Deal In: New Only

Solid state circuits efficient and dependable performance and are cost effective. Also provide for fireman operation, digital position indicator with updown arrow and many other customized operation. Advanced diagnostic & remote monitoring are only some of its many intelligent features. Micro Controller based controller is used for versatile programmable and quick in action having solid state operation and suitable for variable voltage and frequency drive (VVVF Drive).

• Material: Metal
• Shape: Rectangle
• Application: Industries
• Frequency: 50Hz
• Feature: Fire Resistant, Light Weight, Shock Proof
• Voltage: 240 volt

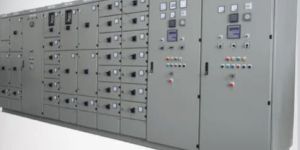

Avail from us, first rate Power Control Centre Panels at industry leading prices. These Power Control Centre Panels are available in different capacities, and are feature enough safety measures to ensure any kind of mishap. These Power Control Centre Panels are designed to withstand unfavorable climate, and has reliable control features. We offer these Power Control Centre Panels at the best prices.

• Simple to Use Supply: AC/ DC
• High Speed Output: 2-Asex 100KHz
• High Speed Input (Counters): Up to 6 high speed counters, Max. 60 KHz.
• Output Types: Relay/Transistor.Input Types – Sink / Source.
• Memory: 16,000 Steps EEPROM (Program capacity is 4,000 Steps.
• Built-in Communication: RS-422 / USB

Details Compact size to saves panel spaces. Base Unit I/Os – 10 , 14 , 20 , 30 & Max 30 I/O. Performs simple Logic , timing ,counting and Real-time operations. Expand card – Analog card and communication - Ethernet / RS-485.

• Color: White, Brown, Grey
• Voltage: 440V, 220V
• Power: 3-6kw, 9-12kw
• Power Source: Battery
• Warrenty: 1 Year
• Condition: New
• Uses: Hospitals

Automated Control Panel is a panel attached to 2-4 banks having multiple gas cylinders. Automated Control Panel System contains analog pressure meter for displaying pressure of each incoming bank and main line gas pressure. As soon as the gas in one bank runs below set pressure, it sounds an alarm and switches to the other bank. Specific colored LED lights indicate the bank in use and the bank on standby. The device also indicates whether the gas pressure is in normal or low along the banks and the mains. The Digital Automated Control Panel displays actual pressure in each bank. The feature of parallel system is available in which multiple displays are placed at different locations (or floors) which also show the same indicators as in the main System. These panels come with RS—485 Modbus interface for BMS connectivity. Provision is made for adding external NO/NC interface for each bank individually. GSM Gateway can monitor the status of each Automated Control Panel and report status as desired.

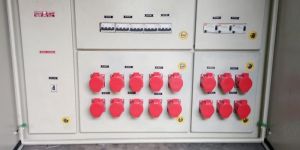

• Type: Power Distribution Panel
• Application: Industrial Use
• Feature: Proper Working, Water Proof
• Condition: New
• Frequency: 50hz, 60hz
• Phase: AC Single Phase, AC Three Phase
• Warrenty: 1yr
• Type: Terminal type Box
• Application: Substation switchyards Placed between the DCS system panel and field instruments.
• Construction Type: Non- Compartmentalize/Cubical
• Rated operated voltage: 440V
• Degree of Protection: IP65
• Fabrication: MS CRCA sheet steel or SS304 Structure,door, cover: 1.6 mm thick Gland plate: 3mm thick
• Inspection and Testing: Routine Test Mechanical endurance Test HV Test Megger Test Continuity Test
• Ambient temp: Design Ambient temp. standard 40°C Operated 45°C & 50°C

  We hold industry expertise for offering a comprehensive Control Panel, which finds extensive application in diversified industries. Owing to design expertise, we offer clients with a customized solution of control panel as per their choice. It is highly demanded in the market owing to its high performance and durability.

We are leading manufacturing of control panel accessories like panel knob, panel handle, nutral link, barrier terminal, fuse base, fuse link, panel breather.
