Pressure Relief Valves Dealers in Vadodara

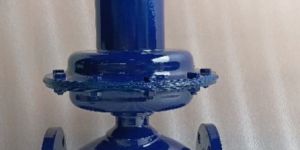

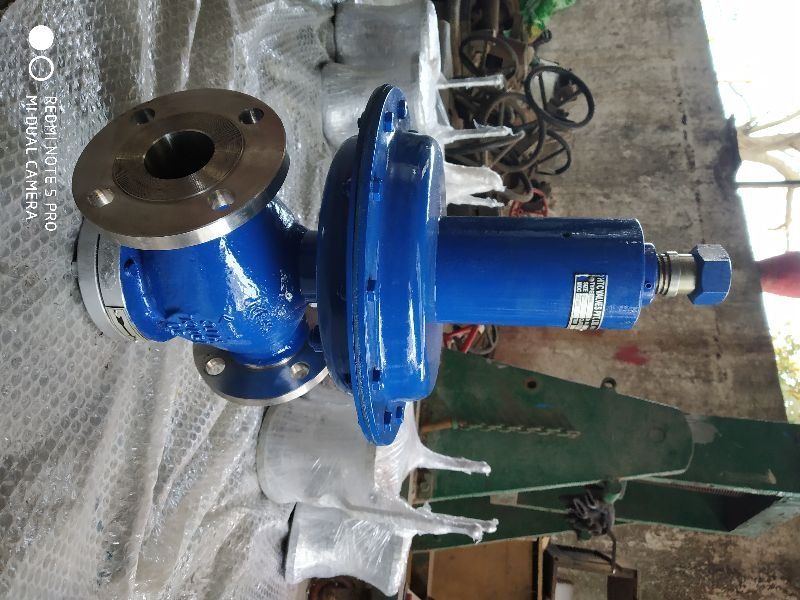

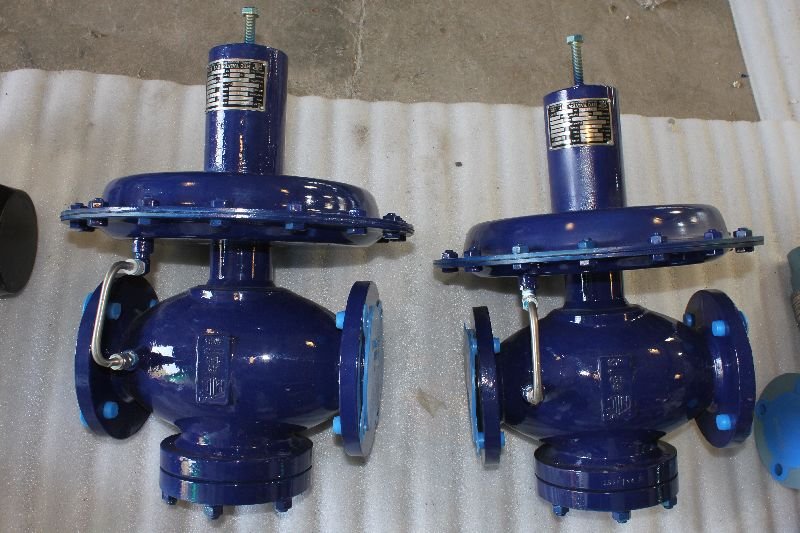

Like other pressure relief valves (PRV), pilot operated relief valves (PORV) are used for emergency relief during overpressure events (e.g. a tank gets too hot and the expanding fluid increases the pressure to dangerous levels). The distinction between PORV and conventional PRV is that pilot valves use system pressure to seal the valve. APRV typically uses a spring to hold the disc or piston on seat. The essential parts of a PORV are a pilot valve (or control pilot), a main valve, a pilot tube, the dome, a disc or piston, and a seat. The volume above the piston is called the dome.         The pressure from the pilot tube to the dome is routed through the actual control pilot valve. Thereare many designs but the control pilot is essentially a conventional PRV with the special job of controlling pressure to the main valve dome. When the pilot valve reaches set pressure it opens and releases the pressure from the dome. The piston is then free to open and the main valve exhausts the system fluid. The control pilot opens either to the main valve exhaust pipe or to atmosphere.         Snap Acting: At set pressure the valve snaps to full lift, it can be quite violent on large pipes with significant pressure. The pressure has to drop below the set pressure in order for the piston to reseat.         Modulating: The pilot is designed to open gradually, so that less of the system fluid is lost during each relief event. The piston lifts in proportion to the overpressure. Blowdown is typically short.         The PRECON Pilot Operated Relief Valve is used to replace weight-loaded or spring loaded valves in many applications to increase efficiency and reduce evaporation losses. Several advantages are obtained over the traditional type. For example, the process pressures may be closer to the set pressure than would be considered prudent and safe with the traditional valve. Additionally, greater conservation is obtained due to minimum product loss which in turn provides increased profits.         Product Features         Sizes 2" through 12" Choice of aluminum, carbon steel, stainless steel, or special materials for the main body Ease of precision settings Only the pilot needs to be set Lower profile and weight than spring operated models for high settings Full open at less than 10% overpressure Modulating action conserves product since valve opening is proportional to overpressure Soft seats seal tight to conserve product and minimize valve wear which improves reliability               Pressure & Flow Control Industries Manufacturers, Exporters, Traders, Importers, Suppliers ofPilot Operated Pressure Relief Valves

Contact Malekpur Hydraulics to avail a huge assortment of Pressure Relief Valve. The Pressure Relief Valve offered by us is manufactured using the finest grade material and cutting-edge technology. The Pressure Relief Valve we supply is precisely constructed by our skilled engineers and is acclaimed for its robustness, durability and anti-corrosive finishing. Further, we make available the Pressure Relief Valve to the clients in varied specifications at fair prices.   Proportional Pressure Relief & Flow Valve : The Proportional relief timing valve is connected by proportion relief valve and proportional valve It controls flow by inlet throttle control type to reduce system power waste Because inlet pressure follow loading pressure for small pressure difference System pressure and output flow can be proportional control quickly by input electricity signal on valve proportional solenoid

Our clients can avail from us a quality-approved range of Pneumatic Fittings. Latest machines and advanced technology are employed in the manufacturing process following industry set guidelines. Customers can avail these pneumatic fittings from us in a spectrum of dimensions, sizes and shapes at most competitive prices.

Design, mfg. & tested as per api, 520, 521, 526, 527 standards models comply to "asme sec.viii" of boiler & pressure vessels code. Registered under indian boiler regulation (ibr). Also approved by chief controller of explosives department(ccoe) conventional balance bellows design. Complete teflon® (feppfa). Lining for highly corrosive services. Soft—seat arrangement for tight shut-off.

Ball Valves, PTFE Lined Ball Valves, Lined Butterfly Valv

Fittings, Flanges, Pipes, Refiner

Fittings, Pipes, Export Marketing Services, Boiler Quality Plate

Fittings, Hydraulic Cylinders, Hand Operated Piston Pump

Vacuum Pressure Relief Valve, Breather Valve, Blow off Valv

Fittings, Centrifugal Pumps, Dairy Equipment

Fittings, Ball Valve, Multi Louvers Dampers, Piping, Skids, Vessel

Fittings, Alloy Steel Pipe, Steel Flanges, Steel Elbow

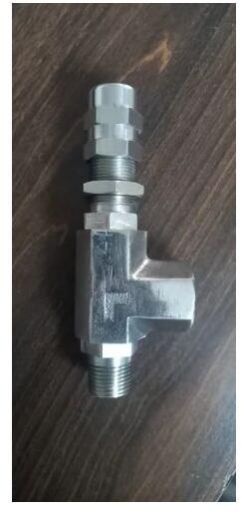

We are offering pressure relief valve prv t-3 & t-6.

Fusible Plugs, Journal Pads Bearings, Tilting Pad Journal Bearing

Fittings, CFL Bulb

Fittings, Industrial Electrical Items, Lighting Fixtures, Mcbs, Steel Bar

Fittings, Switch Gear, Cable, Wires, Fan

Fittings, Automotive Parts, Bright Bars, Metal Products, Pipe

Fittings, Valve Automation Systems, Quick Exhaust Valve, Solenoid Valve

Fittings, Industrial Safety Shoes, Industrial Safety Gloves, Pipes, Flange
