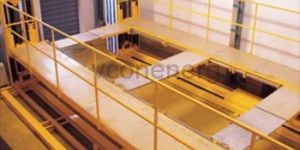

Working platform is accessories for improvement of transformer assembly process. The working platforms are ideal, convenient, fast and cost effective method for coil assembly or coil preparation.   Various configuration of working platforms Single coil, Two Coil & Three coils suitable designs Heavy duty execution Flexibility in design to customize solution

Wire tensioner/wire brake unit is responsible to create wire tension to wind the coils effectively & firmly. Wire tensioner have various conductor configurations as per the requirement of customer. Flat wire tensioner consist of   Flat wire support roller Wire Separator unit Wire tensioner/Brake unit Various configuration  & models of wire tensioner Various winding forces generator

Wire De-reeler or Wire unwinder, is useful accessory for handling the flat wire drum during winding operation. The various type and size of wire drum namely.. CTC, PICC, PITBCC etc, with various sizes and load capacities upto 6500 kgs.   Heavy duty wire unwinder Customized configuration of wire de-reeler ( unwinder) Various tension control characteristics. Single fold, double fold, 8 fold, 16 fold, 24 fold, 32 fold, 48 fold designs Horizontal to vertical unwinder plane Universal design to suit for Horizontal to Vertical in common unwinder

Various sizes of winding formers for Power Transformer, Distribution Transformer & SPT. Winding former/mandrel are design to suit particular range of coil accommodation and length.   Various sizes of winding former. Suitable for maximum coil length of 3500mm & maximum coil ID of 3200mm. Suitable for Horizontal or Vertical winding. Easy and fast collapsible winding former range. Flexibility in top support materials. Upto maximum coil ID of 3200mm and Coil Length 3500mm. Diameter measurement system- optional Electrical or Hydraulic- easy former collapsing/opening system- optional

The Above floor type vertical coil winding machines are best suitable for making transformer coils. V-CON winding machines are heavy duty and robust in construction. Vertical winding machine is a special equipment for making high voltage and super high voltage helical disc winding of transformer.  Due to various benefits of above floor type execution of vertical coil winding machine such as, No pit formation, Ideal for workshops where underwater/land problem arise frequently and Ideal for medium and heavy duty transformer. Winding machines can be customized to suit your individual requirements and various accessories with standard or customized winding torque characteristics.   Winding machine suitable for load of 3T to 35T coil Winding. Semi-automatic coil winding machine Customized speed and torque characteristics Wire Tension/Brake unit Wire De-reeler/ Wire Un-winder Touch Programmation

V-CON winding machines are heavy duty and robust in construction. The winding machines are best quality constructed, designed and provides best configuration of machine.  Horizontal coil winding machines are used to wound wire for making coils for power transformer. The machine is used for all winding types commonly used like disc, layer winding.  The machine has basic parts such as basic winding head wire tensinoers/Wire brake unit de-reeler unit optional wire pressing system other accessories…. etc. Various options and configuration are offered to suit the requirement and customization.

    This core coil assembly station is ideal, convenient, fast and cost effective method of coil assembly or coil preparation.   Work station suitable for One, Two or Three coils Work station suitable for One, Two or Three coils Accommodation of maximum coil diameter and coil heights Flexibility in design User Friendly design

The coil gripper or Coil Cross is useful accessory for handling coils inside shop floor with help of customer’s existing material handling facility.   Various models  of coil cross with coil variations and coil lengths. Minimum coil weight to maximum coil weights upto 35 Tons. Suitable for Coil Maximum OD, Coil Minimum ID, Coil minimum Length & Coil maximum length. Flexible and easy to operate

Coil upender ( coil tilting unit) is a ideal solution for upending the coils, already wound over the horizontal winding machine. Post winding, the coils shall be shifted to coil upender and loaded in horizontal ( 0 deg position) and with help of Coil tilting unit, the coils can be easily made vertical ( 90 deg position) quickly. Capacity Range: from 3T to 35 T Coil diameter range: upto 3000mm diameter Coil Length Range: upto 3500mm diameter Various customized solution for upending application.
