Measurement Gauge Dealers in Valvada, Vapi

(30 products available)

All IndiaVapiDelhi Mumbai Pune Ahmedabad Chennai Bangalore Faridabad Kolkata Vadodara

Gidc

Explore More

DIFFERENTIAL PRESSURE GAUGE CAPSULE

Get Price Quote

Accuracy±2.5% of F.S
MODEL NUMBERMODEL PDD
Standard FollowsEN 837-3
Nominal Dial Size (mm)100, 150
Range0 to 16 kg/cm²
Mounting TypeBottom / Back / with Bracket
Connection Size2 x 1/2
Wetted PartDiaphragm (Duratherm) - AISI 316L SS
Case & BezelBayonet AISI 304 SS
PointerAluminium, Black
MovementBrass Nickel Plated
Window (Glass)Shatterproof Glass
Static PressureMax up to 20 kg/cm²
OverloadMax up to 20 kg/cm²
OptionsWith Chemical Seal Other connection available With Swivel Adaptors

Applications Flow measurement Petro-chemical industry Filter applications General industry Oil and gas industry Shipping industry off shore

...more
Nesstech Instruments Pvt. Ltd.

Valvada, Vapi

14 yrs

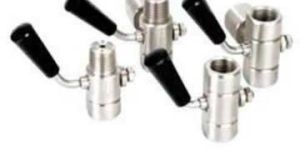

Gauge Cock

350 / Piece

Materialss cs
Brand NameSMIPL
SHREEMARUTI INSTRUMENTS PVT.LTD.

Valvada, Vapi

GST 9 yrs
+3

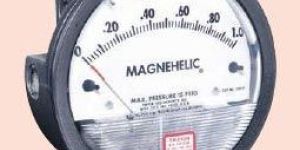

Differential Pressure Gauge Magnehelic Gauge

Get Price Quote

Number Of FlowerMagnehelic
MaterialMetal
ShapeRound

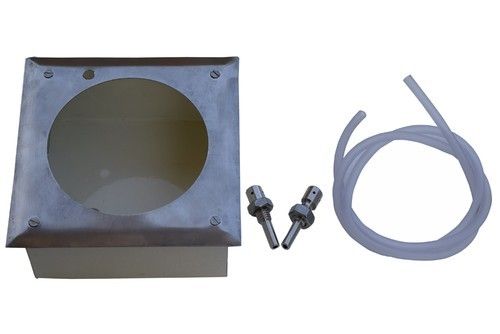

Mounting - A single case size is used for most models of Magnehelic® gages. They can be flush or surface mounted with standard hardware supplied. Although calibrated for vertical position, many ranges above may be used at any angle by simply rezeroing. However, for maximum accuracy, they must be calibrated in the same position in which they are used. These characteristics make Magnehelic® gages ideal for both stationary and portable applications. A 4-9/16 hole is required for flush panel mounting. Complete mounting and connection fittings, plus instructions,are furnished with each instrumentSpecifications : Service : Air and non-combustible, compatible gases (natural gas option available). Note: May be used with hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi. Wetted Materials : Consult factory. Housing : Die cast aluminum case and bezel, with acrylic cover. Exterior finish is coated gray to withstand 168 hour salt spray corrosion test. Accuracy : ±2% of FS (±3% on - 0, -100 Pa, -125 Pa, 10MM and ±4% on - 00, -60 Pa, -6MM ranges), throughout range at 70°F (21.1°C). Pressure Limits : -20 in Hg to 15 psig† (-0.677 to 1.034 bar); MP option: 35 psig (2.41 bar); HP option: 80 psig (5.52 bar). Overpressure - Relief plug opens at approximately 25 psig (1.72 bar), standard gages only Temperature Limits - 20 to 140°F* (-6.67 to 60°C). -20°F (-28°C) with low temperature option. Size - 4 (101.6 mm) diameter dial face. Mounting Orientation - Diaphragm in vertical position. Consult factory for other position orientations. Process Connections : 1/8 female NPT duplicate high and low pressure taps - one pair side and one pair back. Weight : 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g). Standard Accessories : Two 1/8 NPT plugs for duplicate pressure taps, two 1/8 pipe thread to rubber tubing adapter, and three flush mounting adapters with screws. (Mounting and snap ring retainer substituted for three adapters in MP & HP gage accessories.) Agency Approval : RoHS. Note : -SP models not RoHS approved.

...more
Westec Process Instrument

GIDC, Vapi (4.1 km from Valvada)

GST 13 yrs 4.0 (1)
Magnetic Level Gauge

11,500 / Piece

MOQ1 Piece
MaterialStainless Steel
ApplicationChemical Industries
Measuring Range300 To 6000 Mm
BrandBaumer
Mounting OrientationTop
Model Name/NumberLD
Process ConnectionFlanged
Scale MaterialAluminum
Centre Distance300 to 6000 mm
Operating Pressure10 kg / cm2
Temperature Resistant-20 to 150 DegreeC

...more
whyus technicals

Gidc, Vapi (4.1 km from Valvada)

11 yrs

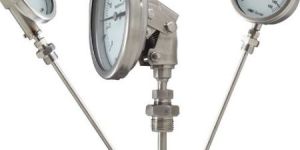

Temperature Gauge

Get Price Quote

LUX-TG-1001 - TEMP Bimetal thermometer- Temperature gauge Principle Bimetallic thermometer’ temperature element is made of bimetallic strip which is bent into a coil, one end will expand when it is heated, meanwhile drive the pointer rotate, which will show the corresponding temperature of medium. Features >Measure process temperature of liquid or gas >Temperature element: bimetallic strip >Temperature range: -80 ~ 40 ℃; -40 ~ 80 ℃; 0 ~ 50, 100, 150, 200, 250, 300, 400, 500℃ >Accuracy: 1.6% of Calibration range >Dial size: 65mm, 100mm, 150mm, 200mm >Case material: SS304 / SS316 >Process connection material: SS304 / SS316
...more

Hind Electrical Co.

Gidc, Vapi (4.1 km from Valvada)

21 yrs
Coating Thickness Meter

Get Price Quote

Display4 Digit 10mm LCD
Thickness Range0 – 1000 Microns / 0 – 40 mil
Accuracy(Resolution)±1
Material SelectionAuto / Manual
Min Base Thickness0.3mm
Min. Measuring Area6 mm Dia.
Min Radius3mm Convex / 50mm Concave
PC InterfaceRS 232 Output Provided (Cable & Software Optional)
AccessoriesCarrying case, Two base block, Calibration Foil set
Power OffAuto / Manual
Aux. Supply:4 x 1.5V AAA Size Battery
Cabinet Size125 X 69 X 25mm ABS Plastic
Sensor TypeIntegrated Eddy Current / Magnetic Probe

We are supplier and exporter of this product.
Source1 Instruments

Gidc, Vapi (4.1 km from Valvada)

9 yrs
DIGITAL PRESSURE CUM VACUUM GAUGE

Get Price Quote

Accuracy±0.3% of Full Scale at +25°C
Display ofPressure or Differential Pressure
DisplayFull Icon LCD
Pressure Range0-5psi or 0-15psi or 0-30psi or 0-100psi
Max. Pressure Range0-20psi or 0-30psi or 0-60psi or 0-150psi
Repeatability±0.2% (±0.5% Max.)
Response Time0.3 Seconds
Combined linearity and hysteresis±0.29(Max ±1.0)%FSO
Unit Selectionbar, mbar, psi, kPa, inHg, mmHg, ozin2, inH2O, ftH2O, kgcm2
Special FunctionsData Hold, Backlight, Auto Power Off
Battery9V Battery
Memory RecallMax. /Min.
RS232 OutputProvided (Software & Cable Optional)
Serial FormatBaud rate 2400 Baud, 1 Stop bit, 8 Data bits. PXXX.XX
Cabinet Size72 x 182 x 30 mm
Carrying CaseProvided

...more
Source1

GIDC, Vapi (4.1 km from Valvada)

21 yrs
Reflex Level Gauge

Get Price Quote

Number Of FlowerReflex Level Gauge
MaterialSS / CS
Brand Namenema
Fluid Typeoil / water / gas
Centre Distance300mm to 6000mm
Measuring Range500mm to 6000mm
Pressure TypeHigh Pressure
Drain ConnectionNeedle Valve
Operating temperature-20 to 400° C
Operating Pressure20bar to 200 bar

...more
Nema Switch Gear

Gidc, VAPI (4.1 km from Valvada)

15 yrs
Laser Diameter Gauge

200,000 / Piece

MOQ1 Piece
Measurement Range0.8 - 35 mm.
Velocity156 m/s
Resolution+/- 1 micron.
Accuracy+/- 2 micron or +-%0.3 of reading value.
Scan Rate416 /s
Operating Temperature0-45o C
Relative Humidity0-95% non condensing
Power supply220 VAC +- 40 VAC
Item CodeDia
FeaturesHigh & low Value Alarm, out of Range Alarm, Alarm on-off selection.Automatic correction of Line spee

...more
99 Instruments

Gidc, Vapi (4.1 km from Valvada)

GST 10 yrs
Pressure Gauge

Get Price Quote

With the assistance of our modern transportation facilities, we are able to deliver the orders on time. Following strict industrial norms and guiding principle, we strictly conduct quality examinations for the raw materials and the final product range. Thus, you can rely on us.
...more

PMD Technocrats

Gidc, Vapi (4.1 km from Valvada)

9 yrs
Water Pressure Gauge

Get Price Quote

Water Pressure Gauge, Hydraulic Pressure Gauge, Low Pressure Gaug

ITEC MEASURES PVT. LIMITED

Imran Nagar, Vapi (4.0 km from Valvada)

12 yrs
Fire Extinguisher Pressure Gauge

Get Price Quote

Fire Extinguisher Pressure Gauge, Pulsation Snubbe

Baumer technologies india pvt ltd

Gidc, Vapi (4.1 km from Valvada)

10 yrs
Float Board Level Indicator

Get Price Quote

Float Board Level Indicator, Motor Operated Valve, Motorized Control Valv

K- Engineers

GIDC, Vapi (4.1 km from Valvada)

10 yrs
Gauge Blocks

Get Price Quote

Gauge Blocks, Smoke Meter, Non Contact Tachometer, Mathematical Apparatu

Instrumentation super store

Gidc, Vapi (4.1 km from Valvada)

12 yrs
IBR Water Level Gauge

Get Price Quote

IBR Water Level Gauge, Primary Air Fan, Boiler Dust Filter Bags, Ibr Valv

Venay Engineering

Gidc, Vapi (4.1 km from Valvada)

9 yrs
Magnetic Level Gauge

Get Price Quote

Magnetic Level Gauge, Flameproof Switch Socket with Plug To

Smart Tech Instruments & Controls

Gidc, Vapi (4.1 km from Valvada)

9 yrs
Pressure Gauges

Get Price Quote

Thermocouple, RTD Sensors, Thermowell, Industrial Heaters, Level Sensor

accurate labs research&measurement unit

Gidc, Vapi (4.1 km from Valvada)

7 yrs
Commercial Pressure Gauge

Get Price Quote

Commercial Pressure Gauge, Gas Actuated Thermomete

Umiya Instrument

Gidc, Vapi (4.1 km from Valvada)

9 yrs
Electric Contact Pressure Gauge

Get Price Quote

Electric Contact Pressure Gauge, Pressure Transmitters, Table Top PH Mete

Whyus Technicals

Gidc, Vapi (4.1 km from Valvada)

9 yrs
Pressure Gauges

Get Price Quote

Pneumatic Butterfly Valves, Pneumatic Valve, Fire Hydrant Syste

india valves & automation

Gidc, vapi (4.1 km from Valvada)

12 yrs
Gauge Cocks

Get Price Quote

Gauge Cocks, Syphon Tube, Syphon, Thermocouple Ceramic Tube

TECHIN GAUGES AND INSTRUEMNTS PVT

Dungra, VAPI (2.5 km from Valvada)

9 yrs
Board Type Level Indicators

Get Price Quote

Board Type Level Indicators, Board Level Indicator

K- Engineers

GIDC, Vapi (4.1 km from Valvada)

12 yrs
Elongation Gauge

Get Price Quote

Elongation Gauge, Needle Vibrato

DNH Projects Limited

Silvassa Road, Vapi (3.0 km from Valvada)

9 yrs
Level Gauge

Get Price Quote

Level Gauge, Valv

Cesare Bonetti India Private Limited

Karambele, Vapi (0.2 km from Valvada)

11 yrs
Magnetic Level Indicators

Get Price Quote

Magnetic Level Indicators, Thermocouple, RTD PT-100, Thermowel

harsh automation

Dungra, Vapi (2.5 km from Valvada)

6 yrs
Pressure Ring

Get Price Quote

Pressure Ring, Micron Powde

Micron Engineers

Gidc, Vapi (4.1 km from Valvada)

9 yrs
Temperature Gauges

Get Price Quote

Temperature Gauges, Controller, Indicator, Industrial Heater, RTD Senso

Sensotech Instruments

Chanod, Vapi (2.7 km from Valvada)

16 yrs
PP Gauge Saver

Get Price Quote

PP Gauge Saver, Stainless Steel Diaphragm Pump, Diatel PP Tower Packin

Maxworth Marketing

Gidc, Vapi (4.1 km from Valvada)

9 yrs
Pressure Gauge

Get Price Quote

Pressure Gauge, Hydraulic Pump, Hydraulic Jack, Pneumatic Cylinde

vapi hydraulics

Gidc, Vapi (4.1 km from Valvada)

12 yrs
Gauges

Get Price Quote

Gauge

PI Controls Instruments Pvt. Ltd.

Gidc, Vapi (4.1 km from Valvada)

5 yrs
