Adinath International Nikol, Ahmedabad, Gujarat

After-Sales Service Provided : Engineers available to service machinery overseas

Material : Stainless Steel

Number Of Flower : Slat Conveyor

Brand Name : Adinath

Application : Pharmaceuticals

Number Of Flower : Labeling Machine

Number Of Flower : Granulator

Brand Name : Adinath

Adinath offers Water for Injection Plant built with AISI SS 316L materials which produces pyrogen free sterile water (Water For Injection) which meets the requirement of Indian, British & United States Pharmacopoeia.   Water for Injection Plant is available in capacity from 80 liters/hour to 3000 liters/hour. The WFI produced by these plants is quite economical due to low maintenance and low operational cost.     Salient Features       100% pyrogen free distilled water conforming to U.S.P./B.P. specifications.     High initial cost but low operational cost.     Saving up to 70% of energy as compared to single column stills.     Low on maintenance as no moving parts except feed pump.     The unit can be operated at a higher steam pressure to get upto 50% higher output.     Automatic dumping of sub-standard distillate.     Low level controls for feed water.     Conductivity meter to continuously monitor the quality of final distillate.

Material : All contact parts are made out of AISI 316 quality. All tubing is seamless

Description     Automatic External Vial Washing Machine is designed to wash the outer surface of round shaped Vials. Machine washes the outer sides of Vials and eliminates the particles that are formed on the vials, which are previously filled and sealed.     Salient Features     Complete cGMP model   Suitable for vial sizes from 5ml to 100ml without any change parts (No change parts required)   “No Vial – No Washing” system eliminates wastage of water & air   Easy cleaning & maintaining   Machine is equipped with PLC system.   Stops supply of water & air when acrylic doors opened during operation.   Indication & alarm in PLC.   Normal water required for washing & no hot water required   When there is no vial on conveyor, it stops the water & air supply. Infeed & outfeed Turn Tables.   Imported Gear motor for main drive, unscrarnbler and scrambler   Variable A.C frequency drive for main drive, unscrambler and scrambler Acrylic cabinet for machine.   Process Operation     Form the in feed Turn Table the vials are fed into the External the Vial Washing Machine conveyors. The machine consists of two conveyors on which the vials are properly fed and transported from in feed Turn table for the washing operation. Two Operations are carried out on this machine. First the vials are washed by water jet and then dried by air jet. On the conveyor a set of spray nozzles are fitted on each on each conveyor for water Jet. One set of knife blocks are provided on each conveyor for air. The air sprayed through this knifes . The knifes are fitted in a inclined manner which ensures that is sprayed reaches each corner of the vial which are previously washer. After washing and drying the vials are guided to the out feed turn Table. Before reaching the out feed Turn Table a special arrangement is provided to dry the vial from the bottom side . A set of Syringes are provided on the sides of each conveyor at the exit end which sprays the air jet on the bottom part of vial resulting in the drying of the vials This machine is completely operated by PLC . A covering of Acrylic cabinet is provided in the machine which when opened up during the operation immediately stops the supply of water &air and shows the indication which alarm in the PLC.

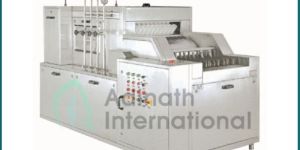

Multijet Ampoule & Vial Washing Machine is a simple, compact, versatile and a reliable ampoule & vial Washing machine, with the latest GMP demand. The machine is enclosed in stainless steel construction with flexibility to wash 1ml to 20ml ampoules and 2ml to 100ml glass vials with the help of suitable change parts. The standard unit is having mechanical motorized cam operated valve system for observing total six washing in one cycle. Alternatively timer operated solenoid valve system or microprocessor controlled timer sequences can be in-corporate upon specific customer request. Multijet Ampoule & Vial Washing Machine is widely use in medium & small scale injectable organizations.     Salient Features     Positive & pressurized jets through washing needle for pressure cleaning at minimum usages for washing media.   Sound design concept of pressure tank for reverses & continuous supply of washes medias.   Both internal & external washing ensuring absolutely & continuous ampoule / vial after sequential washing.   Acrylic top cover for clear view of washing events taking place in the machine   On-line poly carbonates housing with P.P. replaceable filter cartridge of 5 OR 10 micron of water for best possible washing.   All contact parts of washing media are of S.S.   In the event of acrylic cover lifted during cycle operation, the machine will automatically stop and re-start from the point when cover is pushed down.   Process Operation     The dump loading procedure may be used, if ampoules/vials are received in ready to dump boxes, which will have exactly into the same number of ampoule/vial and the pitch, as loading tray. Alternatively, each ampoule/vial has to be arranged into the tray. The loading tray/s is placed directly into the machine & the handle bar is lowered for ampoule/vial for automatic centering of washing needles into the ampoule/vial mouths. The top cover is also lowered & switch is operated for automatic sequent

Application : Vial Washing Machine

After-Sales Service Provided : Engineers available to service machinery overseas

Brand Name : Adinath

Number Of Flower : Drying Machine

Number Of Flower : Linear Vial Washer

Automatic Grade : Automatic

Number Of Flower : Labeling Machine

Packaging Type : Vials

Certification : ISO 9001 2015

Power : 0.5 H.P.

Country of Origin : 220 volts

Availability : 250 kgs. approx.

Application : Pharmaceuticals

Vial Filling and Sealing Machine Machine is made in pleasing matt finished stainless steel materials suitable for filling, rubber stoppering and cap sealing of glass vials. The basic unit consists of turntable, Stainless Steel Stat conveyor belt, unique eccentric pre-gassing, filling and post-gassing. Highly efficient and precision built Stainless Steel 316L Syringes, non- toxic synthetic rubber tubing and easy reach compact panel. The minimal distance between filling and stoppering units reduces the risk of contamination. The machines are designed for operation in a sterile area and for use under laminar flow protection. The un-scrambler itself has been redesigned to eliminate dead ends and difficult-to-clean spots.Suitable for the filling Volume of 2ml to 100ml, Piston pumpPeristaltic pump aseptic filling, Easy to validate filling system for smalllarge batch production, All Contact Parts Made from Stainless Steel 316L & framework by Stainless Steel 304, The filling unit consists of Filling Head, Syringes & Nozzles which are used for liquid filling. The syringes are made of Stainless Steel 316L construction and both, glass as well as Stainless Steel syringes can be used. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided for ''No Vial-No Filling'' operation. Syringes are mounted on eccentric block and driving through bottom main gear box. Volume can be either increased or decreased by increasing or decreasing stroke length of piston as per filling size. Syringes is having non return valve for sucking and delivering situation to avoid volume variation.

Certification : ISO 9001 2008

Automatic Grade : Automatic

Condition : New

Brand Name : Adinath

Packaging Type : Vials

Country of Origin : 440 Volts

Number Of Flower : Filling Machine

Power : 1 H.P.

Availability : 250Kgs.

Automatic Grade : Automatic

Condition : New

Packaging Type : Vial

After-Sales Service Provided : Engineers available to service machinery overseas

Brand Name : Adinath

Power : 1 H.P.

Driven Type : Electric

Certification : ISO 9001 2015

Power : 1 H.P.

Country of Origin : 440 Volts

Condition : New

After-Sales Service Provided : Engineers available to service machinery overseas

Number Of Flower : Filling Machine

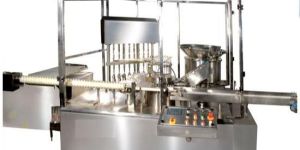

Description     Automatic Vial Liquid Filling Machine is made in pleasing matt finished stainless steel materials. The basic unit consists of turntable, Stainless Steel Stat conveyor belt, unique eccentric pre-gassing, filling and post-gassing. Highly efficient and precision built Stainless Steel 316L Syringes, non- toxic synthetic rubber tubing and easy reach compact panel. The minimal distance between filling and stoppering units reduces the risk of contamination. The machines are designed for operation in a sterile area and for use under laminar flow protection. The un-scrambler itself has been redesigned to eliminate dead ends and difficult-to-clean spots.     Salient Features       Suitable for the filling Volume of 2ml to 250ml.     Piston pump/Peristaltic pump aseptic filling.     Filling accuracy of ±0.5% to ±1%.     No cross contamination     Easy to validate filling system for small/large batch production.     All Contact Parts Made from Stainless Steel 316L & framework by Stainless Steel 304.     Variable A.C. frequency drive for speed adjustment.     Digital Vial Counter for counting production output.     In-feed Turn Table/ Unscrambler for automatic feeding of objects.     On-line Mechanism.     “No Vial - No Filling” System.     “No Vial - Machine Stop” System.     IQ/OQ documentation can be provided.     PLC system with Graphical User Interface. (Optional)   Process Operation     The incoming dry vial (sterilized & siliconised) are fed through the unscrambler and suitably guided on the moving delrin slat conveyor belt at the required speed of the correct placement below filling unit. The filling unit consists of Filling Head, Syringes & Nozzles which are used for liquid filling. The syringes are made of Stainless Steel 316L construction and both, glass as well as Stainless Steel syringes can be used. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided for ''No Vial-No Filling'' operation. Syringes are mounted on eccentric block and driving through bottom main gear box. Volume can be either increased or decreased by increasing or decreasing stroke length of piston as per filling size. Syringes is having non return valve for sucking and delivering situation to avoid volume variation. Liquid will reach to filling nozzles through silicon transparent pipe. Nozzle will be having Up and Down movement with help of cam mechanism and it will come down when vial will be hold by starwheel for filling operation and starts filling when it starts to move up and after completion of filling operation, starwheel delivers six vials together on conveyor for rubber stoppering operation. Stoppering unit consist of Starwheel, Vibrator unit and Bowl. The sterilized and siliconised rubber stoppers stored in the vibrator bowl moves vertically to the rubber stopper chute. The vial is hold firmly by starwheel, which will be in continuous rotary motion and vial which is coming from filling unit get in to starwheel and move in rotary direction along with starwheel, during movement it will pick up the rubber stopper from the exit end of the chute and rubber stopper will be pressed by fix single pressing roller, which is spring loaded. Then vial further move on conveyor and collected on out feed starwheel for next sealing operation.

Filling Range : 2ml to 250ml

Automatic Grade : Automatic

Availability : 250 kgs.

Power : 0.5 H.P.

Brand Name : Adinath

Packaging Type : Vials

Condition : New

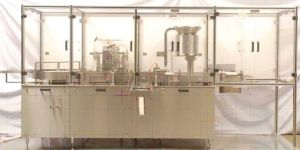

Description     Automatic Vial Filling Stoppering & Capping Machine is made in pleasing matt finished stainless steel materials suitable for filling, rubber stoppering and cap sealing of glass vials. The basic unit consists of turntable, Stainless Steel Stat conveyor belt, unique eccentric pre-gassing, filling and post-gassing. Highly efficient and precision built Stainless Steel 316L Syringes, non- toxic synthetic rubber tubing and easy reach compact panel. The minimal distance between filling and stoppering units reduces the risk of contamination. The machines are designed for operation in a sterile area and for use under laminar flow protection. The un-scrambler itself has been redesigned to eliminate dead ends and difficult-to-clean spots.     Salient Features     Suitable for the filling Volume of 2ml to 100ml.   Piston pump/Peristaltic pump aseptic filling.   Filling accuracy of ±0.5% to ±1%.   Time, Cost & Labor saving as all three operations (Filling, Bunging & Cap Sealing) on single platform.   No cross contamination.   Easy to validate filling system for small/large batch production.   All Contact Parts Made from Stainless Steel 316L & framework by Stainless Steel 304.   Variable A.C. frequency drive for speed adjustment.   Digital Vial Counter for counting production output.   In-feed Turn Table/ Unscrambler for automatic feeding of objects.   On-line Mechanism.   “No Vial - No Filling” System.   “No Vial - Machine Stop” System.   IQ/OQ documentation can be provided.   PLC system with Graphical User Interface. (Optional)   Process Operation     The incoming dry vial (sterilized and siliconised) are fed through the unscrambler and suitably guided on the moving delrin slat conveyor belt at the required speed of the correct placement below filling unit. The filling unit consists of Filling Head, Syringes & Nozzles which are used for liquid filling. The syringes are made of Stainless Steel 316L construction and both, glass as well as Stainless Steel syringes can be used. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided for ''No Vial-No Filling'' operation. Syringes are mounted on eccentric block and driving through bottom main gear box. Volume can be either increased or decreased by increasing or decreasing stroke length of piston as per filling size. Syringes is having non return valve for sucking and delivering situation to avoid volume variation. Liquid will reach to filling nozzles through silicon transparent pipe. Nozzle will be having Up and Down movement with help of cam mechanism and it will come down when vial will be hold by starwheel for filling operation and starts filling when it starts to move up and after completion of filling operation, starwheel delivers six vials together on conveyor for rubber stoppering operation. Stoppering unit consist of Starwheel, Vibrator unit and Bowl. The sterilized and siliconised rubber stoppers stored in the vibrator bowl moves vertically to the rubber stopper chute. The vial is hold firmly by starwheel, which will be in continuous rotary motion and vial which is coming from filling unit get in to starwheel and move in rotary direction along with starwheel, during movement it will pick up the rubber stopper from the exit end of the chute and rubber stopper will be pressed by fix single pressing roller, which is spring loaded. Then vial further move on sealing station. Aluminium caps kept in vibratory bowl automatically orient caps in right direction before entering the delivery chute. Vial during its rotation movement with infeed starwheel picks up aluminum seal from the retaining finger of delivery chute and correctly position on the vial before entering sealing turret. Vial now moves on the spring loaded sealing platform, where free spinning sealing rollers moves gradually inside to complete the sealing operation during rotational movement of sealing platform turret. Now sealed vials are transferred to exit starwheel pocket and further moves out on to the flat conveyor belt. Duly sealed vials are collected on out-feed collection tray.

Automatic Vial Filling Stoppering & Capping Machine is made in pleasing matt finished stainless steel materials suitable for filling, rubber stoppering and cap sealing of glass vials. The basic unit consists of turntable, Stainless Steel Stat conveyor belt, unique eccentric pre-gassing, filling and post-gassing. Highly efficient and precision built Stainless Steel 316L Syringes, non- toxic synthetic rubber tubing and easy reach compact panel. The minimal distance between filling and stoppering units reduces the risk of contamination. The machines are designed for operation in a sterile area and for use under laminar flow protection. The un-scrambler itself has been redesigned to eliminate dead ends and difficult-to-clean spots.     Salient Features     Suitable for the filling Volume of 2ml to 100ml.   Piston pump/Peristaltic pump aseptic filling.   Filling accuracy of ±0.5% to ±1%.   Time, Cost & Labor saving as all three operations (Filling, Bunging & Cap Sealing) on single platform.   No cross contamination.   Easy to validate filling system for small/large batch production.   All Contact Parts Made from Stainless Steel 316L & framework by Stainless Steel 304.   Variable A.C. frequency drive for speed adjustment.   Digital Vial Counter for counting production output.   In-feed Turn Table/ Unscrambler for automatic feeding of objects.   On-line Mechanism.   “No Vial - No Filling” System.   “No Vial - Machine Stop” System.   IQ/OQ documentation can be provided.   PLC system with Graphical User Interface. (Optional)   Process Operation     The incoming dry vial (sterilized and siliconised) are fed through the unscrambler and suitably guided on the moving delrin slat conveyor belt at the required speed of the correct placement below filling unit. The filling unit consists of Filling Head, Syringes & Nozzles which are used for liquid filling. The syringes are made of Stainless Steel 316L construction and both, glass as well as Stainless Steel syringes can be used. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided for ''No Vial-No Filling'' operation. Syringes are mounted on eccentric block and driving through bottom main gear box. Volume can be either increased or decreased by increasing or decreasing stroke length of piston as per filling size. Syringes is having non return valve for sucking and delivering situation to avoid volume variation. Liquid will reach to filling nozzles through silicon transparent pipe. Nozzle will be having Up and Down movement with help of cam mechanism and it will come down when vial will be hold by starwheel for filling operation and starts filling when it starts to move up and after completion of filling operation, starwheel delivers six vials together on conveyor for rubber stoppering operation. Stoppering unit consist of Starwheel, Vibrator unit and Bowl. The sterilized and siliconised rubber stoppers stored in the vibrator bowl moves vertically to the rubber stopper chute. The vial is hold firmly by starwheel, which will be in continuous rotary motion and vial which is coming from filling unit get in to starwheel and move in rotary direction along with starwheel, during movement it will pick up the rubber stopper from the exit end of the chute and rubber stopper will be pressed by fix single pressing roller, which is spring loaded. Then vial further move on sealing station. Aluminium caps kept in vibratory bowl automatically orient caps in right direction before entering the delivery chute. Vial during its rotation movement with infeed starwheel picks up aluminum seal from the retaining finger of delivery chute and correctly position on the vial before entering sealing turret. Vial now moves on the spring loaded sealing platform, where free spinning sealing rollers moves gradually inside to complete the sealing operation during rotational movement of sealing platform turret. Now sealed vials are transferred to exit starwheel pocket and further moves out on to the flat conveyor belt. Duly sealed vials are collected on out-feed collection tray.

Number Of Flower : Vial Filling Line

he minimal distance between filling and stoppering units reduces the risk of contamination. The machines are designed for operation in a sterile area and for use under laminar flow protection. The un-scrambler itself has been redesigned to eliminate dead ends and difficult-to-clean spots. Salient Features Suitable for the filling Volume of 2ml to 100ml.Piston pumpPeristaltic pump aseptic filling.Filling accuracy of ±0.5% to ±1%.Time, Cost & Labor saving as all three operations (Filling, Bunging & Cap Sealing) on single platform.No cross contamination.Easy to validate filling system for s

After-Sales Service Provided : Engineers available to service machinery overseas

Power : 1 H.P.

Number Of Flower : Filling Machine

Driven Type : Electric

Packaging Type : Vials

Country of Origin : 440 Volts

Automatic Grade : Automatic

Certification : ISO 9001 2008

Rated Power : 0.5 H.P.

Certification : ISO 9001 2008

Country of Origin : 220 Volts

Condition : New

Packaging Type : Vials

Application : Liquid

Brand Name : Adinath

We are the main supplier of this product.

Application : Powder

Description     Multijet Ampoule & Vial Washing Machine is a simple, compact, versatile and a reliable ampoule & vial Washing machine, with the latest GMP demand. The machine is enclosed in stainless steel construction with flexibility to wash 1ml to 20ml ampoules and 2ml to 100ml glass vials with the help of suitable change parts. The standard unit is having mechanical motorized cam operated valve system for observing total six washing in one cycle. Alternatively timer operated solenoid valve system or microprocessor controlled timer sequences can be in-corporate upon specific customer request. Multijet Ampoule & Vial Washing Machine is widely use in medium & small scale injectable organizations.     Salient Features     Positive & pressurized jets through washing needle for pressure cleaning at minimum usages for washing media.   Sound design concept of pressure tank for reverses & continuous supply of washes medias.   Both internal & external washing ensuring absolutely & continuous ampoule / vial after sequential washing.   Acrylic top cover for clear view of washing events taking place in the machine   On-line poly carbonates housing with P.P. replaceable filter cartridge of 5 OR 10 micron of water for best possible washing.   All contact parts of washing media are of S.S.   In the event of acrylic cover lifted during cycle operation, the machine will automatically stop and re-start from the point when cover is pushed down.   Process Operation     The dump loading procedure may be used, if ampoules/vials are received in ready to dump boxes, which will have exactly into the same number of ampoule/vial and the pitch, as loading tray. Alternatively, each ampoule/vial has to be arranged into the tray. The loading tray/s is placed directly into the machine & the handle bar is lowered for ampoule/vial for automatic centering of washing needles into the ampoule/vial mouths. The top cover is also lowered & switch is operated for automatic sequent

Brand Name : Adinath

Number Of Flower : Filling Equipment

After-Sales Service Provided : Engineers available to service machinery overseas
