Chamunda Pharma Machinery Pvt. Ltd. Vatva, Ahmedabad, Gujarat

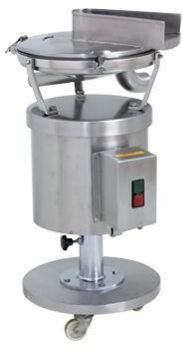

We are offering vibro de duster gmp model ■ special design on vibratory motor principal ■ compact & elegant, well acclaimed design. ■ noiseless & maintenance free unit. ■ electric power required less than other machines of its kind. ■ all contact parts made of ss 304. (ss 316 optional) ■ all contact parts can be easily washed and / or sterilized. ■ efficient de-burring & de-dusting and full suction of excess powder. ■ machine in fitted with the castor wheels for easy mobility

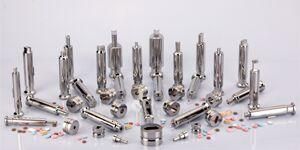

We are offeromh Dies & Punches. Dies and Punches for Tablet Compression Machine Types of Dies and Punches:- 1) Dies and Punches for Round Shape Tablet 2) Dies and Punches for Tablet with Hole- Polo Type Tablet 3) Dies and Punches for Odd Shape Tablet 4) Multi Tip Punches and Dies 5) Dies and Punches for Bolus / Slug Tablet 6) Types:- “D”, “B”,“BB” and “DB” Tooling 7) Dies and Punches can be supplied with NICKLE PLATING, PLASMA COATING on Request Outstanding Features:- 1) Punches and Dies are Made of OHNS - Oil Hardened Non-shrinking Steel/ HCHC - High carbon High chromium steel/ SS440C 2) Carefully matching of Material and Hardness 3) Ease in Fitting and Removal 4) Manufactured to the smallest tolerances. 5) High precision finish Benefits: 1) Longer life of Tooling hence less downtime for the machine 2) Punches and dies for continuous production 3) A better cost to output ratio Standard: 1) Dies and Punches as per Euro Standard/ TSM / IPT Standard Individual Engravings: 1) Bisects 2) Flat 3) Convex 4) Beveled 5) Logos • Tooling Maintenance Kit can be supply on request.

Brand Name : Chamunda Pharma Machinery Pvt. Ltd.

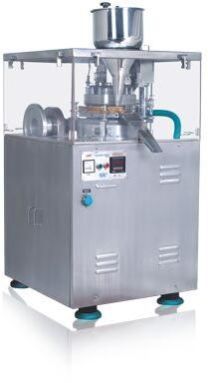

We are offering Single Rotary Tableting Machine GMP Model. ■ In compliance with cGMP guidelines ■ Output up to 57,960* Tab/Hr (Max) ■ Main compression pressure up to 100 kN ■ Higher turret speed up to 42 RPM ■ Variable speed pulley drive ■ Overload pressure release arrangement ■ Interlocking at Upper guards ■ Dust nozzle with clamp ■ Auto Lubrication (optional) Tooling: D" "D" "B/D" No. of Stations: 16, 20, 23.

Brand Name : Chamunda Pharma Machinery Pvt. Ltd.

We are offering Sieving & Grading Machine GMP Model. ■ Simple & Compact construction. ■ Faster Separation ■ Double & Triple deck screens with outlet and hopper for bottom deck available on request. ■ Lesser Maintenance and Power Consumption than the Conventional Sifter. ■ Easy dismantling and cleaning facility

Brand Name : Chamunda Pharma Machinery Pvt. Ltd.

We are offering sieving & grading machine gmp model (vibro sifter) ■ simple & compact construction. ■ faster separation ■ double & triple deck screens with outlet and hopper for bottom deck available on request. ■ lesser maintenance and power consumption than the conventional sifter. ■ easy dismantling and cleaning facility

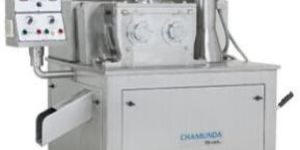

We are offering Roll Compactor GMP Model. ■ In compliance with cGMP guidelines ■ Contact parts are made of S.S. 316 except rollers ■ All covers are designed to obtain dust-free operation ■ Feed screw is steplessly driven through variable frequency drive. ■ Hard chrome plated & mirror finished compacting rolls made of tools steel ■ Pre-compaction chamber guides the product to rolls without any slippage or leakage. ■ Electrical interlocking between main roll drive and feed screw drive ■ Water Jacketing arrangment (optional) ■ Hydraulic Power Pack system (optional) ■ ACVF Drive for rollers (optional) ■ PLC system as per 21 CFR part 11 (optional).

Brand Name : Chamunda Pharma Machinery Pvt. Ltd.

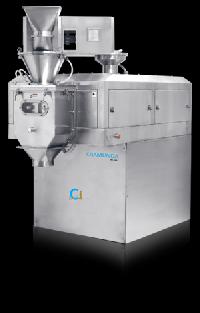

We are offering Cantilever Roll Compactor. ■ Cantilever roll design ■ Comply with all cGMP requirements ■ Contact parts S.S. 316 without roll ■ Feed Screw and roll speed through ACVF Drive ■ Technical and production Area Separate. ■ Water Jacketed (Optional) ■ Flame Proof Controls (Optional) ■ WIP Systems with tank equipped with heating arrangement. (Optional) ■ Vertical & Horizontal Feed Screw with De aeration system to avoid air trapping (Optional) ■ PLC with touch screen (Optional) ■ PLC with tough screen (with Automation Features) (Optional) ■ 21 CFR Part 11 Compliance. (Optional)

Brand Name : Chamunda Pharma Machinery Pvt. Ltd.

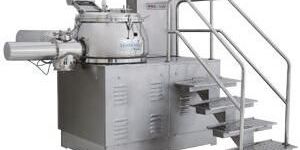

We are offering Rapid Mixer Granulator. ■ In compliance with cGMP guidelines ■ Modular Design ■ Mixing of substances uniformly and homogeneously with special design Mixer & Chopper blades. ■ Electro-Pneumatic Operated Discharge ■ Effective sealing ■ Easy to clean machine ■ Fully Automatic Operation through Programmable Logic Controller (Optional) ■ Binder addition system (Optional) ■ Inline co-mill for uniform granuals. (Optional) ■ Flameproof Construction (Optional) Gross Volume Ltr: 25 ltrs to 1200 ltrs.

Brand Name : Chamunda Pharma Machinery Pvt. Ltd.

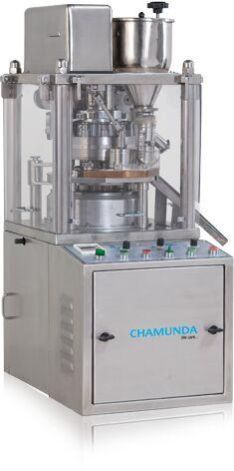

We are offering Pilot Press GMP Model. ■ Available in "B" & "D" Tooling in both models. ■ Turret speed up to 42 RPM ■ Force feeder with A.C Drive (Pilot Press-II only) ■ A.C Inverter Drive for main motor ■ Inbuilt pre-compressoin (Pilot Press-II only) ■ Adjustable upper punch penetration (Pilot Press II only) ■ Low noise level ■ User friendly access ■ Operator safety through upper guard interlocking ■ PLC system as an optional feature (Pilot Press II only).

We are offering Triple Layer Tablet Press Machine. ■ Designed to produce tablets up to 3 separate layers. ■ Central drive system ■ Separate drive section from tablet compression zone. ■ Three piece turret with SS die plate. ■ Three point mounted force feeders with individual motorized drive along with AC Drive. ■ Adjustable upper punch penetration ■ Main and pre-compression force through hydraulic power pack ■ Tablet compression zone with transparent enclosures and safety interlocking system ■ Indicator lamp for proper positioning of weight adjustable bracket ■ Removable weight adjustment system for faster changeover of lower punches and dies. ■ Main tablet parameter controls at front for operational ease ■ ACVF drives for main and force feeder motors ■ Ejection system for removal of individual layers for physical inspection or weight checking purpose. ■ All contact parts made of SS 316 Turret speed 8 to 32 RPM Max. Compression Load 10 Tons (100 KN) Pre-Compression Load 1 Ton (10 KN) Output-Tablets / Hour* 14880-59520 Max. Tablet size 25 mm Upper punch penetration 3 to 6 mm Depth of fill(Available for) • 1st Layer: 1 to 7 mm • 2nd Layer: 1 to 11 mm • 3rd Layer: 1 to 15 mm Force feeder speed 20 to 120 RPM

Brand Name : Chamunda Pharma Machinery Pvt. Ltd.

We are offering pearl coat ci ■ in compliance with cgmp guidelines ■ modular design ■ accurate batch consistency with high production effficiency & effective spraying with special design anti bearding type guns ■ accurate temperature control within ± 2 ºc ■ quick accessibillity for maintenance & cleaning ■ quick release of plenums for clening of pan and plenums ■ effective sealing of doors ■ fully automatic operation through programmable logic controller ■ sugar coating system (optional) ■ interchangeable pans up to ci 900 model (optional) ■ flameproof construction (optional) inbuilt wip system.

We are offering Octagonal Blenders. ■ In compliance with cGMP guidelines ■ Effective blending with help of mixing baffles. ■ Quick Dismantling of mixing baffles for easy to clean bins and baffles. ■ Fully Automatic Operation through Programmable Logic Controller (Optional) ■ Flameproof Construction (Optional).

Brand Name : Chamunda Pharma Machinery Pvt. Ltd.

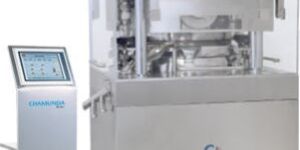

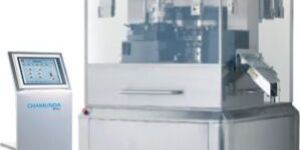

We are offering Tableting Machine. ■ Double rotary high speed tableting machine ■ Output up to 5,83,200* Tab/Hr. ■ Fully Automatic Controls - Supervisory Control & Data Acquisition System (SCADA) with computer interface. ■ Main moter and Force Feeder motor driven through ACVFD. ■ Dial-less machine provided with drive motors for tablet parameter setting. ■ Audit trails and summary reports. ■ Batch data reporting and printing. ■ Adjustable Upper Punch Penetration. ■ Safety Interlocking for Upper and Lower Guards. ■ All contact parts out of SS 316 and non contact parts made out of SS 304. ■ Three Piece Turret with SS 316 Die Table. ■ User-friendly operations with utmost care for operator safety. No. of Stations: 51, 61, 75, 81 Max. Pressure: 10 Tons Max. Pre Compression: 1 Tons Output Tab/Hr* upto 5,83,200

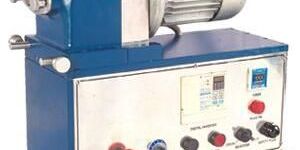

We are offering multi purpose equipments based on a powerful main drive to be selected from: - 1 horizontal drive cpmhd gmp model. 2 vertical drive cpmvd gmp model an array of attachments can be mounted on the main drive by a means of flange coupling system for operation like: - planetary mixer dry granulator double cone mixer sieve shaker coating pan coating pan with drying v- blender cube � mixer polishing drum ball mill (std.) pelletizer semi automatic dosing filling for ointments mini ball mill homogenizer lab kneader wet granulator powder mixer [ ribbon mixer ] agitator semi automatic dosing filling for liquid triple roller mill drum hoop mixer counting & filling attachment for tab. & capsule laboratory mixer filling, molding, suppositories and lipsticks lab. Mass mixer

We are offering Multi Mill GMP Model. ■ Direction of beaters can be changed by reversible switch. ■ Machine is designed for continuous operation. ■ Cylindrical screen for higher output. ■ Castor wheels provided for mobility. ■ Flameproof electrical components can be provided at extra cost. ■ Beaters and scraper blades of S.S. 304 material. ■ All contact parts can be easily and quickly dismantled and cleaned. ■ S. S. Perforated Screens: (Optional) 0.5, 1.0, 1.5 mm Hole Dia. 2, 3, 4, 5, 6 mm Hole Dia. 7, 8, 10, 15, 20, 25 mm Hole Dia. ■ S. S. Wire Mesh Sieve:(Optional) 4, 6, 8, 10, 12, 14, 16, 20, 24, 30, 40, 50, 60 Mesh. 80, 100 Mesh.

Brand Name : Chamunda Pharma Machinery Pvt. Ltd.

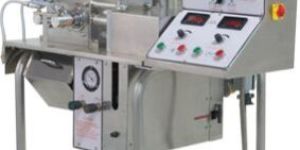

We are offering Mini Roll Compactor GMP Model. �  In compliance with cGMP guidelines �  Major contact parts S.S 316 �  The basic model is supplied with water-jacketing �  Compact & portable design �  Rolls & Feed screw are driven through ACVFD �  Mechanical & Electrical safety devices are included for operator's safety �  Inbuilt Hydraulic power pack

Brand Name : Chamunda Pharma Machinery Pvt. Ltd.

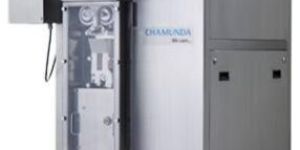

We are offering Mini Roll Compactor (Cantilever) with cake crusher & granulator. �  Cantilever rolls design �  In line roll compactor with cake crusher & 2 stage granulator �  Comply with cGMP requirements �  WIP Provision �  Water jacketed �  Contact parts S.S.316 without roll �  Machine mobility �  PLC system �  21 CFR part 11 compliance. (Optional).

Brand Name : Chamunda Pharma Machinery Pvt. Ltd.

We are offering Mini Rapid Mixer Granulator GMP Model. ■ In compliance with cGMP guidelines ■ Modular Design ■ Mixing of substances uniformly and homogeneously with special design Mixer & Chopper Blades. ■ Electro-Pneumatic Operated Discharge ■ Quick Interchangeable Pots (2 Ltr, 5 Ltr & 10 Ltr) ■ Easy to clean machine ■ Fully Automatic Operation through Programmable Logic Controller (Optional) ■ Binder addition system (Optional)

Brand Name : Chamunda Pharma Machinery Pvt. Ltd.

We are offering Mega Press GMP Model. ■ Double Sided Tableting Press in compliance with cGMP guidelines suitable for large batch production. ■ Higher output up to 439,200* Tab/Hr. (Max) ■ Hydraulic pressure with hydraulic power pack ■ A.C. drives for main and feeder motors with elctro magnetic clutch. ■ Force feeder drive from the bottom cabinet. ■ Front and easy outside controls for machine and tablet parameters. ■ Interlocking at Upper Guards. ■ Auto lubrication ■ 3 types of filling cams ■ PLC system (optional) ■ Hydro-Pneumatic system (optional).

Brand Name : Chamunda Pharma Machinery Pvt. Ltd.

�  Single rotary high speed tableting machine �  Output up to 3,66,000* Tab / Hr �  Interchangeable Turret with change over time under 60 Minutes �  Swing type equal sized pressure roll with equal Pre and Main Compression Force up to 10 tons We are offering Tableting Machine. �  Fully Automatic Controls - Supervisory Control & Data Acquisition System (SCADA) �  Main moter and Force Feeder motor driven through ACVFD �  Dial-less machine provided with drive motors for tablet parameter setting �  Audit trails and summary reports �  Batch data reporting and printing �  Adjustable Upper Punch penetration �  Safety Interlocking for Upper and Lower Guards

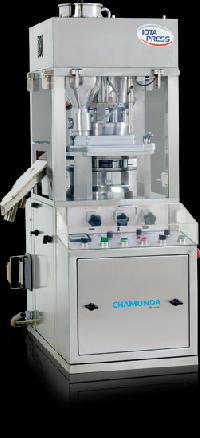

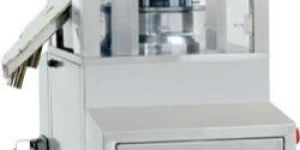

We are offering IOTA Press GMP Model. ■ Special R&D application, GMP machine with the provision of combined "B" & "D" Tooling ■ Machine with Pre-compression ■ Front controls with adjusting dials ■ Higher Tablet output upto 19,200* Tab/Hr ■ User friendly with operator's safety ■ A.C.V.F.D. for Force Feeder and main motor ■ Adjustable upper punch penetration ■ PLC Control (Optional).

Brand Name : Chamunda Pharma Machinery Pvt. Ltd.

� Dial-less machine provided with drive motors for tablet parameter setting � Output upto 19200* Tab/Hr. � Combination Tooling 'B' & 'D' available to suit the R & D requirements � Turret speed - 40 RPM and force feeder - 96 RPM � Major contact parts and turret die table in SS316 � Force Feeding System � AC variable frequency drive for Main Motor and Force Feeder Motor � Main compression of 40 Kn/4 ton We are offering IOTA Press. � Pre-compression of 10 Kn/1 ton � Adjustable upper punch penetration � Upper guard interlocking � Lower cam for two different filling depth � Monitoring of individual Punch Force Data with graphical representation � Audit trails and summary reports. � Batch data reporting and printing � User friendly operations with utmost care for operator safety.

Brand Name : Chamunda Pharma Machinery Pvt. Ltd.

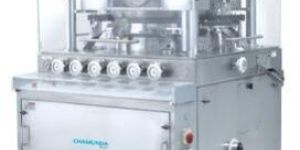

Advanced Double Sided High Speed Tableting machine for large batch production In compliance with CGMP guidelines Higher output up to 583,200* Tab/Hr. (Max) Excellent accessibility for quick cleaning Front controls Main motor & force feeder motor driven through ACVFD Force feeder drive from bottom Improve tablet quality due to pre-compression system Hydraulic Power Pack system Auto Lubrication Upper punch penetration Safety interlocking for upper guards PLC system (optional) SCADA system with computer interface (optional) Hydro-Pneumatic system (optional) No. of Stations: 51,61,75,81 Max. Pressure 10 Tons and 6.5 Tons Pre-Compression 1 Tons

Brand Name : Chamunda Pharma Machinery Pvt. Ltd.
