Fire Alarm System Dealers in Ahmedabad

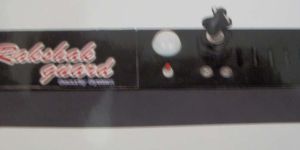

We are offering multiple micro features: ï�¶ suitable for any type of shutter, door or grill. Ï�¶ inbuilt fire sensor ï�¶ temper proof system. Ï�¶ micro processor base . Ï�¶ easy to install.

Microprocessor based Fire Alarm Panel with PA amplifiers system Modular design, plugin in type solid state. Expandable up to 2 to 50 zone fire alarm panel. Each zone with fire open short indication & sound. Mains, AC fail, Rev. Battery, fuse blown,fault indication. Associate with PA system, talk back system etc. Battery charger & Battery Box Gacility. DVD player attachable facility. Gooseneck Microphone attached Compatible with any make smoke & heat detector.

Owing to our rich expertise and strong connections with the celebrated manufacturers, we are capable in making available quality tested Fire Alarm Detection System. We are a well-known Supplier of Fire Alarm Detection System from Gujarat, India. For safe and swift deliveries, we make all the specific arrangements. With us, price is no more a hurdle as you will get the best at the best!   Details : Critical Condition Monitoring Elevator Telephone Monitoring Holdup or Panic Alarm Monitoring Open-Close Signal Tracking, or Supervision Alerting in fire safety at home, hotel or public spaces. 24-hr. Operators verify the event and immediately alert the Police and authorities.

Honeywell UV Detector with 6' cable , Mounting 1"-11-1/2 NPSM Internal Threads, Amb. Temp. -18 to 121 C, Pressure Max. 5 PSI.

All Fire Alarm Systems essentially operate on the same principle. If a detector detects smoke or heat or someone operates a break glass unit (manual break point), then alarm sounders operate to warn others in the building that there may be a fire and to evacuate. It may also incorporate remote signaling equipment which would alert the fire brigade via a central station. Fire Alarm Systems can be broken down into few categories: Conventional Analogue Addressable Wireless systems Conventional Fire Alarm System In a Conventional Fire Alarm System, a number of call points and detectors are wired to the Fire Alarm Control Panel in Zones. A Zone is a circuit and typically one would wire a circuit per floor or fire compartment. The Fire Alarm Control Panel has a number of Zone Lamps. The reason for having Zones is to give a rough idea as to where a fire has occurred. This is important for the fire brigade and of course for the building management. The accuracy of knowing where a fire has started is controlled by the number of Zones a Control Panel has and the number of circuits that have been wired within the building. The Control Panel is wired to a minimum of two sounder circuits which could contain bells, electronic sounders or other audible devices. Each circuit has an end of line device which is used for monitoring purposes.   STANDARD FEATURES Complies to IS 2189:1999 and Tested by ERTL (N) & System Sensor. 2 x 16 character backlit LCD display. (4 x 20 character, optional) 64 / 128 / 256 Events logging facility with real time clock and keypad. (optional) 2 Wire Communication facility via RS 485 Port. (For Repeater Panel) (optional) BMS attachment Lamp test features. Complete with integral power supply and battery charger for SMF battery. NO/NC contacts for both fire and fault. Switches to enable on board operation. LCD and LED Indication for open, short circuit, Isolate, Fire in each zone. Maximum nos. of Detectors in each zone is 25

We are offering fire detection system fire takes hardly three minutes to spread. We have solutions for big godowns, server rooms, laboratories over and above general fire alarm systems.

Addressable fire alarm systems are the most modern type of system and its components have individual unique identifiers.  When one of the system’s components initiates, it indicates the component’s address on the fire alarm panel. Large facilities utilize these systems because they can quickly pinpoint where the trouble signal originated. This saves a lot of time because it eliminates the need to search for the component that produced the signal. After you decide what type of system would work best in your facility speak with a fire alarm installation company.  They’ll evaluate your building, work with the Authority Having Jurisdiction, and the local building code requirements. They’ll follow the codes and determine which fire alarm components are necessary, how many are required, and where they need to be placed throughout the facility. The fire & life safety firm will ensure that the new fire alarm system meets all the local requirements and NFPA standards.

  A fire alarm system is number of devices working together to detect and alert people through visual and audio appliances when smoke/fire is present. These alarms may be activated from smoke detectors, and heat detectors. They may also be activated via Manual fire alarm activation devices such as manual call points or pull stations. We have all brands fire alarm system in ahmedabad, gujarat based. Types of systems There are generally two types of fire alarm systems, Collective and Addressable Collective On very simple terms, a collective fire alarm system is one that comprises one or more circuits, with detectors connected in parallel. An alarm signal is received at the fire panel when the current on a circuit increases due to the alarm operation of one of the detectors on that circuit. In modern detectors there is may also be fitted an alarm status indication, often a light emitting diode or LED. One of the limitations of a collective systems is that the control panel is unable to identify the status of each detector of the circuit. Another way to describe this is that the control panel is only able to display the alarm or fault status of a circuit, not each detector on the circuit. Addressable The alternative is an addressable fire alarm system that comprises one or more circuits with detectors connected in parallel, andeach detector has a unique identification (address) on the circuit. When the conditions for an alarm signal are satisfied at the detector, an alarm signal is transmitted via the circuit to the fire indicator panel. In an addressable system, each detector has the ability to identify itself and its current status. Over the years, the level of sophistication of detectors and systems has greatly increased. This includes collecting more information about the conditions surrounding each detector including the many bi-products of combustion and other environmental factors. There are many advantages of addressable systems including the ability to more effectively handle contamination over time that leads to nuisance (false) alarms, improved detection of fires and the ability to identify the precise location of a detector and its current condition or state. While we have described the two types of systems there exists variations to these basic types including fire panels that include both collective and addressable features. Generally these systems are addressable systems with additional c.i.e to provide collective functionality. Harihar Vision Solution will provide you all types of solution and design fire alarm system on ahmedabad gujarat based.

Product Description: Riding on unfathomable volumes of industrial expertise, we are actively committed towards providing world class Heat Detector Fire Alarm System. Features: Dual LEDs for 361:1= visibility Durability Auto reset (AR) function for security system.

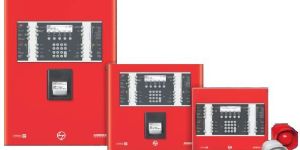

L and T –Schrack make fully addressable fire alarm system which can be installed & commissioned in shorter time & simpler way. It is 100% redundant & thereby increasing its reliability. The Panel can be adapted to growing demands in a cost-effective way in the same housing from 2 to 16 Loops.

Fire Alarm Systems It is a systems, which detects fire early, where in all loop devices in the systems are individually addressed to provide the panel with absolute unique identification of each devices. The fire alarm systems monitors any changes caused by dust or smoke and then adjusts the calibration accordingly to maintain each sensor at its original sensitivity. The systems carries out a self-test automatically every 24 hours, as well as separate adjustment for day and night. The system can be integrated along with building management systems, CCTV and Access Control Systems ensuring total safety and security at one monitoring station.Fire Suppressions Systems Fire hydrants are most commonly used water-based suppression systems for general fire fighting requirements. Automatic water sprinklers are used where quicker responses are required. Automatic gas-based systems are used to protect expensive industrial equipment. CO 2 and FM200 are commonly used for fire extinguishing gases. Larger applications also employ foam based suppression technique. Cease promotes the appropriate usage of these systems for greater risk coverage and minimum damages due to a hazard.

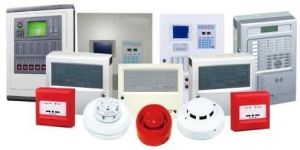

Fire Alarm System is used for detecting fire and helps in protecting several lives. Our Fire Alarm System covers all the aspects related to fire like sprinkling water, loud alarm, etc. Fire Alarm System that we offer is extensively demanded in offices, shopping complexes, hotels, hostels, and various other places. Our Fire Alarm System is acknowledged for easy installation, low maintenance and excellent performance.

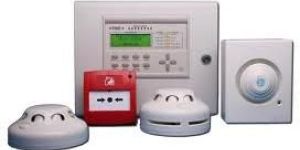

Fire Alarm System automatically detects and warn people through visual and audio signals by devices such as Detectors, Horn, Horn Strobe. The system can also be activated manually by MCP or pull stations.
