Fluid Bed Dryer Dealers in Kathwada, Ahmedabad

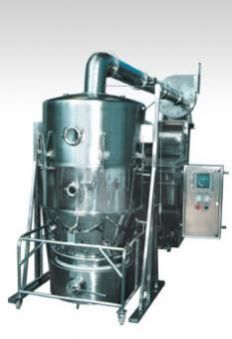

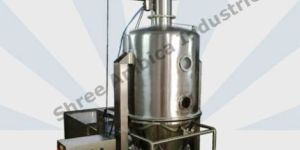

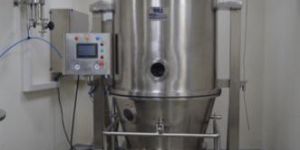

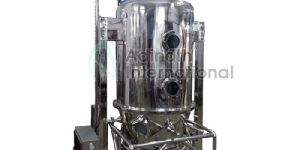

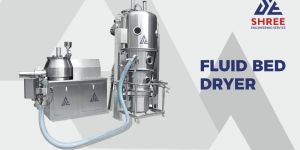

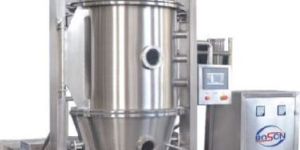

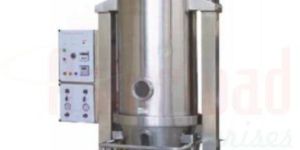

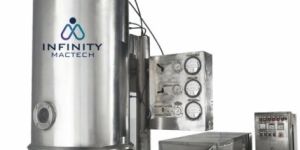

The fluid bed dryer machine is made to use in the Pharmaceutical, chemical and food industry for drying and cooling of granules, crystalline, coarse and similar materials. The use of fluid bed dryer is to cool and dry the particles by exposing them to a stream of hot dry air. The machine can be also used for post drying of spray granules or particles with a low moisture content. The FBD has replaced the old tray drying machines. The machine is manufactured in a single piece with integrated expansion chamber made up of stainless steel. Process of Drying The moist particles or granules are fed into a shaking perforated sheet. A stream of fluid bed drying air is passed through the perforated sheet. The hot air comes in contact with the particles on the sheet and they are lifted slightly. The shaking of the sheet leads to transportation of the materials along the length of the dryer. The moisture is carried away by hot air thereby drying the solid material. The fine particles are agglomerated to large granules. The temperature and volume of the air is maintained throughout the process. After drying the granules are passed through a cooling air zone to cool them to the required temperature. Characteristic features The contact parts are made of AISI 316 & non-contact parts of AISI 304. Fluidized bed dryer incorporates the Drying capacity of 30 kg to 500 kg Silicon rubber tube for sealing of Filter Bag and Product container Auto pneumatic filter bag shacking system Automatic Temperature controls for Inlet Air and Process cycle Built in Explosion vents & valve protection

*Batch Size depends upon the product Bulk Density. (above@O.5 grams / cc) **The Blower motor of higher capacity will require in machine supplied with Hepa filter. ***Electric Heater provided up to 60kg max without FLP machine.   Construction as per GMP standards. All contact parts in SS 316. Closed Temperature control for consistency of process. Explosion relief vent to withstand up to 2 bar pressure. Pneumatic Shaking for filter bags & Pneumatic bowl lifting  air control damper at inlet & outlet for consistent &  controlled fluidzation pattern.

We offer Pharmaceutical Machinery like fluid bed dryer. Category : Pharmaceutical Machinery ( product )

Salient Features   Uniform drying with reduced drying time. For fast & efficient drying of granules, powders & medium sized pellets. Dries by continuous diffusion of hot air throughout the material & not by surface contact only.  Electrical / steam or oil heating is provided as per customers requirement. Pneumatically sealing of product container, filter beg shaking manually. Auto shaking will provided on demand Control panel with all digital electric switches/controls PLC control will be provided on customer’s requirement

The “Amesto PharmaTech” Fluid Bed Dryer Has Adopted New Concept Of GMP Regulation With Improved Performance (drying Time Is Much Less Than The Conventional Model) Minimum Involvement Of Manual Labour Simplified Maintainance And Utilise Modular Construction Techniques To Provide Flexible Installation Options. The Process Unit Is Two Piece Made Of SS-304 / 316 Stainless Steel. Through Mixing Of Dry Powders, Agglomeration And Drying Are Carried Out In One Unit Of “Azesto Pharmatech” Fluid Bed Dryer. SALIENT FEATURES:- Process Unit The Process Unit Is Two Piece, Made Of Stainless Steel Of SS-304 GRADE.  All Process Contact Parts Are Made Of SS-304 Grade.  The Finish Employed Externally Will Be All Welds Ground Back And Polished Into The Surrounding Materials.  All Of The External Surfaces Of The Dryer And All Non Contact/sight Parts Will Prepared With A Uniform Fine Texture Matt Finish.  All Of The Product Contact Surface (SS-304) Are Mirror Finished.  Particular Attention Has Been Paid To Reduce Any Source Of Material Entrapment By Mirror Polishing Flush All Welds To Create Crevice Free Profiles Both Internally And Externally.  The Expansion Chamber Containing The Filter Finger Bags & Dished End Are Made Of Single Piece Construction From SS-304 / 316 Quality Steel. Below That Is The Retarding Chamber Made Out Of S.S. 304 Retarding Chamber Is Locked With The Explosion Chamber By Means Of Clamps.The Length Of The Retarding Chamber Is Such Designed , Thereby Providing Extra Large Heat Exchange Are Which Exposed Each And Every Particle Or The Charged Batch In The Fluidized Air Resulting In Instant Drying  Specially Designed Base Is Provided For Air Vortex Effect And To Give Added Strength.  A Central Drain Is Provided In The Base To Release Wash Water. Bowl / Pro Duct Container Product Bowl Is A Conical Shaped Manufactured Form SS-304 Grade Stainless Steel Having Stainless Steel Mesh Support Along With Fine Finish Air Mesh.  The Product Container Trolley Is Of Tubular Construction Made Form SS-304 Pipe Mounted On Polypropylene Castor Wheel (2nos Fixed & 2nos. Swivel For Maneuverability ) Which Imparts Rigidity To Carry The Product Container With The Charged Load.  The Batch Loading Capacity Is Always Higher In Case Of “Azesto Pharmatech” Fluid Bed Dryer, Because Of Better Fluidisation By Varying The Frequent Shaking Of The Finger Bags. Shaking Period Vary Depending On The Nature Of Products. Rubber Gasket A Solid ‘D’ Shaped Food Type Silicon Rubber Gasket Is Provided In The Groove Of The Flanged Joint (between The Product Container And The Retarding Chamber) To Prevent Any Leakage Of Air With Fines During Operation. Uniform Lifting Of Container Product Container Is Lifted By Specially Designed Arrangement With The Help Of One Centrically Fitted Pneumatic Cylinder Which Ensures Uniform Lifting Throughout The Periphery Of The Container Which Ultimately Gives Uniform Upward Pressure To The Solid ‘D’ Shaped Rubber Gasket, Thereby Preventing Any Leakage During Operation. Auto Shaking Device Pneumatic Cylinder Is Used For Auto Shaking Device Of The Finger Bags Is Mounted On The Body And Is Fitted With A Wire Rope Made Out Of S.S. 304 Guided By Pulleys Thus Rendering The Shaking Extermely Efficient. It Also Brings Down The Finger Bags To Such A Level That These Can Be Inspected Very Easily Form The Bottom Of The Retarding Chamber. If The Shaking Is Not Efficent , The Particles Will Be Retained In The Finger Bags And There Will Be No Proper Fluidisation Resulting In Formation Of Lumps In The Products Container. Air Handling Unit Blower And Filter With Heating Arrangement Are Housed In The Rear Chamber . They Can Also Be Housed The Services Zone To Avoid Sound Pollution As Well As To Avoid Interference Of The Maintenance People In The Production Zone. Blower Centrifugal Type Blower Fan With Dynamically Balanced Impeller And Backward Curved Blades. All Stainless Steel Construction. Direct Coupled Non—flameproof Electric Drive. Anti – Vibration Mounting And Independent Sub-supportframe. Air Filter Free Standing Unit Constructed From Aluminium Anodisedl Frame Work (SS-304) With Doubled Skinned Panels. All Wallpanels Are Cross Based For Added Strength . Quick Release Panels Provided For Inspection And Maintenance Access.The Air Intake Section Has A Full Face External Flange For Attachment Of Angle Intact, Or And Extended Inletair Duct.Inlet System Comprssiong Of 20Micron Washable Filter. Followed By 5 Micron Prefilter, Then Pass Through , Heating Coil Section Containing A Full Air Duct Steam Operated Heater Battery, Constructed With Stainless Steel Tubes And Headers And A Steel Casing (SS-304). The Moving Process Air Passes Through The Steam Heater To Achieve The Desired Temperature. To Match The Inlet To The Processing Unit. PT 100 Temperature Sensing Probe Will Be Fitted Into The Air Transtion Duct And Will Be Connected Upto The Control Panel. Explosion Vent As Per International Practices The Equipment Is Provided With A Rapture Disc As Measures Of Explosion Vent, Tested At 2 Bar Pressure, Mounted On The Side Of The Dryer. Earthing Device A Std Designed Earthing Device Spring Type Is Provided With The Dryer However Intrincically Safe Earthing Device With Low Voltage Relay Is Also Available. Electro Pneumatic Control Panel A Free Stading Steel Control Panel Having The Following Controls. Inlet Air Temperature Controller.  Exhaust Air Temperature Indicator  Product Bowl Lifting & Lowering Valve.  Process Air Damper Regulation  Blower Motor, Start & Stop.  Compressed Air Pressure Quages.  Filter Bag Shaking Timer  solenoid Valves Etc. Programme Logic Control System Semi-automated And Fully Automated PLC And PLC / PC Control System Are Available For Selection At An Appropiate Level Of Additonal Cost. (OPTION)

DESCRIPTION :   FBD 30 FBD 60 FBD 120 FBD 200 FBD 250     Capacity Of Dryer In kg/lt :     At 0.6 Bulk Density 25 -40 50 - 70 120 -150 200 - 220 250 - 270     Working Capacity of :     Product Container In Lit 50 100 200 330 415     Total Volume Of Product :               Container in ltr 100 200 400 600 800     Blower Motor HP 5hp 10hp 15hp 20hp 25hp     Heater Load 18kw 36kw 54kw  54kw  54kw     Steam 25kg  55kg 110kg 180kg  240kg     Consumption Kgs Heating :     Capacity In KCL/HR 11610 23220 38700  77400 96750     Space Required App 5(L)x 5(L)x 6(L)x 6.5(L)x  6.5(L)x     (Dimension In Feet) 3.5(W)x 4(W)x 5(W)x 5.5(W)x 5.5(W)x     Hight 9 10 11 13 15

Fluid Bed Dryer, Oscillating Granulator, Mass Mixer, Drying Machine

Fluid Bed Dryer, Vibro Sifter, Mass Mixer, Coating Machiner

Chemical Fluid Bed Dryer, SS Vessels, Fly Ash Bulke

Continuous Fluid Bed Dryers, Sparkler Zero Hold Up Filter Pres

Fluid Bed Dryer, Pharmaceutical Machinery, Rapid Mixer Granulator, Blender
