Globe Valve Dealers in Gandhinagar Highway, Ahmedabad

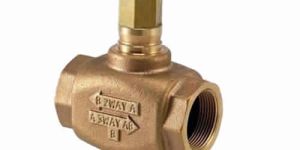

The V5013P is a three-way threaded globe valve that controls hot water, cold water, and glycol solutions (up to 50 percent concentration) in heating or cooling HVAC applications. The valve is used for mixing service to direct flow from one of two inlets to a common outlet in twoposition or modulating control systems. FEATURES• Red brass body with BSPT-threaded connections.• Stainless steel stem and brass plug.• Low seat leakage rate (≤0.05 percent of Cv).• Spring-loaded, self-adjusting packing.• 50:1 rangeability per VDI/VDE 2173.• Constant total flow throughout full stem travel.• Accurate positioning to ensure state of the art temperature control.• Sizes range from 1-1/4 in. to 2 in.• Suitable for pneumatic or electric/electronic actuation.• Repack and rebuild kits available for field servicing. SPECIFICATIONSIMPORTANTThe specifications given in this publication do not include normal manufacturing tolerances. Therefore, an individual unit may not exactly match the listed specifications. Also, this product is tested and calibrated under closely controlled conditions and some minor differences in performance can be expected if those conditions are changed.Models:V5013P Valve: Three-way mixing valve for water or glycol. BSPT-threaded pipe connections. Constant total flow. Push down valve stem to close bottom (B) port.Pipe Connections: Internal BSPT-threaded connections.Seat: 1-1/4 in. to 2 in.: Integral brass (upper), replaceable brass (lower).ANSI Body Class: 300 psi.Stem: Stainless steel.Plug: BrassStroke: 3/4 in. (20 mm).Approximate Leakage Rate: 0.05 percent Cv.Rangeability: 50:1 per VDI/VDE 2173.Body Material: Red brass.Packing: Spring-loaded, carbon fiber reinforced PTFE Vrings. Pressure-Temperature Ratings:Water: 36°F to 248°F, 217 psi (15 bar).248°F to 337°F, 185 psi (12.8 bar).Maximum Water Differential Pressure: 230 psid (15.8 bar).Maximum Differential for Quiet Water Service: 20 psid.Valve Flow Characteristics:Port A-AB: Equal percentage.Port B-AB: Linear.NOTE: Movement of the valve stem at any point of the flowrange does not significantly change the total flowrate at the AB outlet port (constant total flow).Valve Design Life: 250,000 full cycles at maximum rated temperature.

Globe Valve, Gate Valve, Check Valves, Industrial Valv

Globe Valves, Gate Valves, Steam Valve

Strainer Valves, Gate Valves, Pulp Plate Valves, Swing Check Valve

Globe Valve, Manual Valv

Globe Valve, Check Valve, Pulp Valve, Pinch Valve, Pneumatic Valv

Globe Valve, Check Valve, Gate Valv

Globe Valve, Pipe Fittings And Valves, Globe Valve
