Hem Technologies Satellite, Ahmedabad, Gujarat

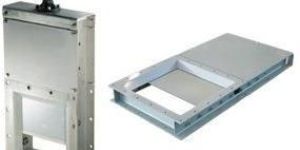

We offer manually, pneumatically operated slide gates with actuators.

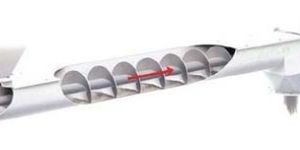

Product Features :   Screw conveyors are used for horizontal, inclined, or vertical transport of bulk and granulated materials. Our Screw Conveyors are designed for inclined transport (up to 8°) of material with temperatures below 300° C. and a conveying capacity up to 650 m3/h and are manufactured up to 50 m length. An 0.30-0.35 degree of filling is recommended, depending on the material. The screw pitch is individual for each of the ten conveyor sizes to attain lowest power consumption and smooth transport. The screw is completely enclosed, so the conveyance is weatherproof and dust-free. End bearings take up axial as well as radial stresses. They are of the heavy roller type and are grease packed.

Our Rotary airlock are designed for rugged applications that require an outboard bearing style unit where contamination and /or an abrasive product cannot be handled with an inboard bearing style RAL. The HEM Technologies is Designed for use in high pressure pneumatic conveying systems, with 4000F application temperatures where more of an effective seal is required due to high or excessive wear that is experienced with a simple dust collector RAL   Benefits Superior seal design for prolonged life. Select from five sizes to fit most applications. Suitable for all dust collection applications. Operating temperatures to 400°F. Used in positive pressure pneumatic conveying systems.   Features  Outboard bearings Multi-Seal Round or square flange available Heavy duty oversized shaft Pressure differentials to 12 PSI Housing: Cast Iron / Fabricated Rotor: 8 Vane, open end Close

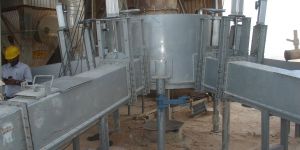

Multi feeding system for controlled flow silo for lime stone powder or cement.

We offer Idlers, Idlers Frame. Idlers for Belt Conveyors, Like Impact, Carrying, Return, Self Alingment etc

Product Features :   Standard atmospheric (Gravity Flow) or pressure (pneumatic conveying) designs Manual, Pneumatic or electric actuation Structural & carbon steel constructions. High temperature or High pressure clearances. Quick disassembly Features for Frequent cleaning.

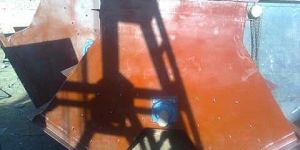

We offer y-type diverter for diverting material from one place to another place.

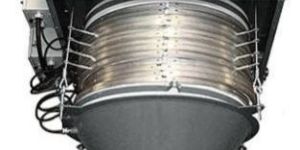

We offer Bulk Loading Spout. Bulk Loading Spout for Loading Truck and Bulker for Cement Fly-Ash or any Powerd form material

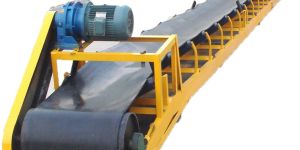

Any Width and Capacity Belt Conveyors, for Material Handling and Conveying.

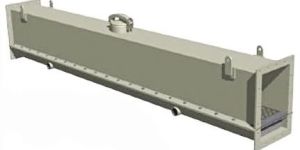

Airslide Manufacturing Standards   Heavy-gauge steel sections with bent flanges. Air slide are shipped in standard section lengths of 2.5 Mtr. Standard widths of fluidized area is 100 to 850mm. Bolted airtight flanges. There is no conveying length limitation to the Air slide based upon availability of headroom and proper slope. Airslide Operation   Air-activated Gravity Air slide Fluidization of material on the Air slide media. Fluidization reduces the angle of repose causing flow. Example: A material with a normal angle repose of 45° with fluidisation may flow like a liquid on a 5 ° to 6 ° slope.

Air Slide of Any Width and Capacity and any Length.
