Industrial Mixer Dealers in Gidc Vatwa, Ahmedabad

We have earned a sterling reputation in the industry for manufacturing and supplying Ribbon Blending Machine, which has been highly appreciated by our clients. The offered equipment is used for the blending of powders in various industries. It provides with a uniform distribution of substances. Being resistant to corrosion, energy efficient and user friendly, it is extensively demanded.

We offer rib plough blender. Plough shear mixer is a typical mixer for mixing highly viscous materials where the ploughs are breaking the lumps and gummy materials to separate and again mix them with other particles. Sometimes ploughs are in different shapes according to particular requirement. We add the Ribbon with plough for better mixing. Application In: Food, Pharma, Chemical, Minerals, Guar Gum Starch Cellulose etc.

Nauta Mixer is Ideal mixer to mix various small lots to make uniform one lot or to mix many large proportions of powders to a uniform product. This should be perfect choice. The Nauta mixer offers low operative cost than any other types of mixers. A planetary rotating screw near the wall of cone not only mixes the powders but also breaks the lumps. Silent equipment offers you trouble free operation. The sizes of Nauta mixer available are 500 liters to 20000 liters.Application In:Food, Pharma, Chemical, Minerals, Guar Gum / Starch / Cellulose etc.

Sigma Mixer / Kneader Mixer- Z Blade Uniform Kneading & Mixing Process Application & Process : The Sigma Mixer is used for mixing and kneading for mixing, kneading of highly viscous mass, sticky and dough like products, Mixing of pastes, rubber, and heavy plastic masses, applications in Food, Rubber, Pharmaceutical, Chemical and agro industries, Dry powder to wet phase mixing. This mixer is most suitable for highly viscous material and dough like masses. The sigma kneader is a double arm mixer, the two "Z" blade rotate towards each others at same or different speed inside a W- shaped product container. The twin screw basin kneading machine with two horizontally arranged kneading blades, which are deeply geared into one another and strip themselves reciprocally. Each blade moves the material in opposite direction thereby providing excellent cross mixing of all raw materials. The blades pass the trough walls and each other at close clearances resulting in good mixing. The close clearance produces a shearing and tearing action that is beneficial to the size reduction of solids. Selection of appropriate blade shape and speeds result in excellent mixing Salient Features : Design is cGMP - Current Good Manufacturing Practices compliance. All Product contact parts AISI 316/ 316L & non contact parts AISI 304 or M.S.Painted.. Mixing, Blending and kneading of high Viscosity Materials, with a combined action of Bulk Movement, Kneading, stretching folding, dividing and Recombining. High Mixing Precision, Short Batch Time, Problem free Cleaning and Residue Free Discharge. Automated mixing and granulating process in single bowl. Available in Capacity from up to 1000 Kg Industrial Productions. There are different types of blades: Sigma-"Z" blade, Spiral blade, and Naben blade. Selection of appropriate blade shape and speeds result in excellent mixing. Hydraulically lifting device with power pack for unloading. Optional Features : Jacketing Bowl for heating and cooling. Spraying system. PLC Controls with HMI touch screen, Flame Proof Electrical. Safety Features : Total drive transmission system enclosed Limit switch installed in the top lid ensure lid is closed Air pressure switch installed to ensure pressure is in limit. Limit switch installed at discharge to ensure product container underneath of discharge. Overload relay Protection and Emergency stop button

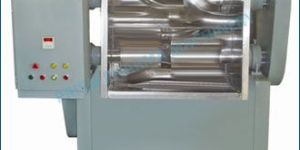

Sigma Mixer :   SIGMA MIXING MACHINE is a heavy-duty mixer specially designed to produce uniform mixing, blending & kneading of highly viscous, paste & dough type materials. Sigma mixer is used for kneading of putty, epoxy, paints, pigments, adhesives, gums, battery pastes, welding electrode flux, catalysts paste, plastic compounds, rubber compounds, papad, chocolate, bubble gum, etc. The tangential action of mixing and kneading is thoroughly obtained by two 'Z' shaped kneading blades, which rotates very accurately at different speed towards each other causing the product to be transferred from one blade to the other. The mixing action is a combination of bulk movement, stretching, folding, dividing, and recombining of the material. The shearing & tearing action of the material against blades and the side walls causes size reduction of the solids.   Sigma Mixer Operation   Sigma mixer, the tangential action of mixing and kneading is thoroughly obtained by 'Z' (SIGMA) shaped kneading blades, which rotates very accurately at different speed towards each other causing product to be transferred from blade to blade. Discharge of the mixed product is achieved by tilting the container or through the valves at the bottom or by means of an extrusion screw below the container if provided   Sigma Mixer Options   GMP / Non GMP / models.   Discharge in sigma mixers is done by tilting container / bottom sliding valves / bottom gates / flush bottom gate valves.   Tilting in sigma mixers is done by hand liver / hand wheel with lead screw / electrical arrangements / hydraulic systems.   Lifting of lead either manually, with help of counter weights or hydraulically.   'Z' Type Spiral blade / Naben / double naben blades to circulate hot / cold water in cases of heavy masses.   Jacketed shell for heating or cooling by steam, oil, water etc. with fiber glass insulation over the jacket.   Spray system for liquid addition / gas purge. Flame proof / Non-flame proof electrical controls.   Salient Features Sigma Mixer is a Batch type Mixer In sigma mixer, Mixing Trough and Blades are fabricated from mild steel, stainless steel 304 and 316 grade. Blades of sigma mixers are designed to obtain thorough mixing of high viscosity materials. Sigma Mixers Blades are machined to keep minimum equal gap between through walls and blades. Sigma mixers have fixed with Heavy-duty gears to sustaion of load of Kneading. Shaft sealing into the stuffing boxes is provided by Teflon Chevron Rings / PTFE breaded gland rope to prevent leaking from blade ends. Safety Guards and Grills are provided for maximum safety in sigma mixers.

We are offering mass mixer has been well-designed to facilitate through mixing of dror damp materials and is specially suitable for tablet granulation. Technical specifications model vmmm 50 vmmm 100 vmmm 200 capacity : 50 kgs. : 100 kgs. : 200 kgs. Over flow capacity : 110 liters : 220 liters : 440 liters working capacity : 88 liters : 156 liters : 309 liters speed of stirrer : 35 rpm : 35 rpm : 30 rpm motor : 440v3hp 50hzac : 440v5hp 50hzac : 440v7.5hp 50hzac

This is due to our streamlined packaging system that we are able to meet the customized and standard packaging requirements of the clients. Moreover, we ensure complete safety of the products. Available with us in different grades and specifications, our products stand high on the counts of quality.

We ultra febtech - an iso 9001:2008 certified company engaged in manufacturing for nauta mixer industrial mixer machinery and equipment.nauta mixer is ideal mixer to mix various small lots to make uniform one lot or to mix many large proportions of powders to a uniform product. This should be perfect choice. The nauta mixer offers low operative cost than any other types of mixers. A planetary rotating screw near the wall of cone not only mixes the powders but also breaks the lumps. A silent equipment offers you trouble free operation. The sizes of nauta mixer available are 500 liters to 20000 liters.

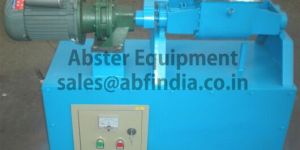

Sigma Mixer The Laboratory Z Blade mixer , Sigma mixer is ideal for mixing, kneading and blending of materials for development. The lab mixers sizes, ease of use, and quality of mixing makes the development of new formulations a simplified process. laboratory Sigma mixer machines for all your laboratory mixing needs. Applications- Laboratory mixing machines, perfect for product research and development. Ideal for developing: Adhesives, Sugar pastes, Rubber solutions, Mastics, Soaps, Metal powders, Energetics, Detergents, Ceramics, Confectionery Pharmaceuticals, Fibreglass doughs, Chewing gums, Brake linings, Sealants, Flavour development. Please contact us and we will assist you in developing the right solution for you.   Process Equipment Sigma Kneader, Reaction Vessel, Horizontal Ribbon Blender, High Speed Paint Disperser, Three Roller Grinding Mill ,Stainless steel Colloid Grinder, Complete Unsaturated Polyester Resin Production Line

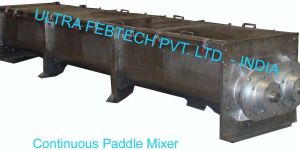

We Ultra Febtech - An ISO 9001:2008 Certified Company Engaged in Manufacturing of continuous mixers for industrial mixing machine.This continuous mixer is use for solid-solid and solid-liquid mixing for medium to large production on continuous basis. This mixer has a single or double shaft with adjustable mixing paddles. In Horizontal mixer the mixing purpose can be solved with interned impact and up-down movement. The output production range of this mixer is 100 Kgs. to 20000 Kgs.

We offer High Speed Heater Mixer. Perfect height to dia ratio of vassel. Precise Peripheral speed of mixing tool. Least down time, so payback period is higher Unmatched Pneuma seal Capsule Technology. Proper design of impeller. Computerized balancing of rotating parts. Best quality material of all key components. Unique design of bottom & discharge valve. Very prompt after sales services. Experience of manufacturing highest number of high speed

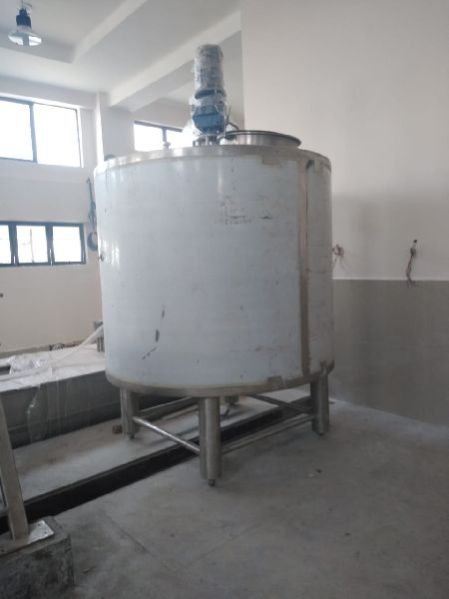

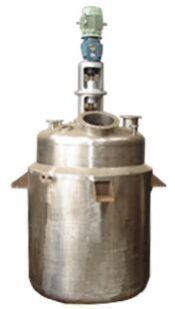

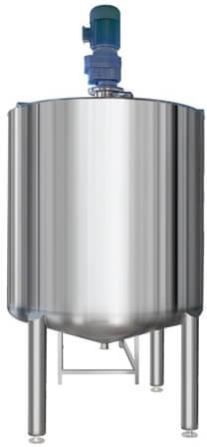

Our company is the trustworthy Manufacturer, Exporter and Supplier of Pressure and Mixing Vessel from Gujarat (India). Produced using top of the line quality basic material such as steel, aluminum, etc., our Pressure and Mixing Vessel is sturdy, durable and corrosion resistant. Also, our Vessel is known for its high performance. Talk of price, we are known all over the world for providing the best quality at the most discounted prices.

This continuous mixer is use for solid-solid and solid-liquid mixing for medium to large production on continuous basis. This mixer has a single or double shaft with adjustable mixing paddles. In Horizontal mixer the mixing purpose can be solved with interned impact and up-down movement. The output production range of this mixer is 100 Kgs. to 20000 Kgs. Application In: Chemical, Minerals, Fertilizers, cement, Guar Gum / Starch / Cellulose etc.

We offer a wide variety of industrial mixers for our clients to choose from. Known for durability and high tensile strength, these mixers are used numerous applications in various industries. We offer these mixers in custom-made specifications as per the client’s requirements. Flanged Mixer Low Speed Fixed Mixer Portable Mixe

We ultra febtech - an iso 9001:2008 certified company engaged in manufacturing of nauta mixer to mixing machinery.nauta mixer is ideal mixer to mix various small lots to make uniform one lot or to mix many large proportions of powders to a uniform product. This should be perfect choice. The nauta mixer offers low operative cost than any other types of mixers. A planetary rotating screw near the wall of cone not only mixes the powders but also breaks the lumps. A silent equipment offers you trouble free operation. The sizes of nauta mixer available are 500 liters to 20000 liters.
