Industrial Mixer Dealers in Chennai

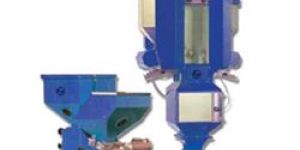

VOLUMETRIC BLENDER • Consistent dosing brush less motor• PLC supported control• Saving on additives• Inclined Screw Setting for accurate dosing• Optional: Loader mounting provision GRAVIMETRIC BLENDER • Precise Dosing of pellets• PLC with touch panel• Saving on additives• Up to 100 Receipe storage• Dedicated PLC Module for Load Cell• Inventory Management• Selection of Volumetric / Gravi Mode• Intelligent self optimising control

Horizontal Blenders can be customized to meet each individual customers needs. Available in Commercial Duty, Standard Duty, Heavy Duty and Extra Heavy Duty construction. Each Blenders is sized and engineered to meet our customers specifications. The units are available in carbon or stainless steel construction and optional seal, spray lines and gate designs can be recommended. Jacketed units are manufactured to meet heating and cooling requirements.   APPLICATIONS   Pigments and Resins Chemicals Detergents additives Herbicides Insecticides Teflon Flakes Roofing Products Architectural Coatings Detergents additives Hazardous Waste Stabilization Cement and Grout Brake Lining Compounds Compounds Carbon Black and Graphite Wood Flour and Pigments Tobacco Products Tea Leaves Coffee Spices Baking Ingredients Cereal Ingredients Vitamins Pharmaceuticals

Adhisakthi is a superior name in the domain of manufacturing liquid, manufacturing plants, wherein liquid soap plant machine is one of our best products. We are trusted as the Liquid Soap Plants Manufacturer from India, having commitment towards highest quality standards. We keep pace with the market innovation all over the global arena through our research wing. It enables us in ensuring latest technologies in every component of liquid soap plant machine such as: Main Mixing Vessel Phase Vessel Storage Trolleys Working Platform Mixing Capacities: 50 Kgs /100 Kgs /250 Kgs / 500 Kgs /1000 Kgs /2000 Kgs / 5000 Kgs. Manufacturing Vessel: 3 agitation assemblies are supported by top dish Geared motor is the fuel for agitator It is balanced by 3 legs that are at an equal distance and 120 deg angles It is insulated with mineral wool with SS 304 cladding It is jacketed for circulation or cold water and steam Product contact points are made of SS 316L, Class 4 B (mirror finish) SS 316 L anchor stirrer consists of plates rotating at a speed of 50 rpm Top dish is provided with the following 400 mm dia manhole / 100 mm dia light glass / 25 phase vessel inlet / 50 mm dia Butterfly discharge valve / 10 mm dia temperature sensor Phase Vessel: It is insulated with mineral wool with SS 304 cladding It is made of SS 304 and jacketed for circulation or cold water and steam Product contact points: SS 316L, Class 4 B (mirror finish) Propeller type agitator rotates at 960 Rpm Batch Storage Trolley It has 40 mm butterfly discharge valve and a flat top lid Product contact points have SS 316 L as material of construction to class 4 B SS 304 finished covers, with class 2 B stain finish The vessel is mounted on 3 legs and castor wheels This cylindrical trolley has 3mm thick conical bottom vessel Optional Accessories Circulation pump Steam lines Transfer pipe lines Working platform

Vertical Screw Blenders are excellent design alternatives for product applications that are shear sensitive, voluminous and also where space on the plant floor is at a minimum.   Nauta mixers are widely used for mixing dry materials, paste, cream and lotions. The principle of blending is based on the differential travel speeds of product particles in the conical section of the vessel. The material from the bottom section of vessel is lifted by the screw and spread over the upper sections.   Design Highlights The screw agitator turning on its axis produces a lifting action as it spirals the material in an upward flow At the same time the screw orbits the tank , the screw removes material away from wall and deflects it into the centre of the tank setting up a spiral current throught the batch The material lifted by the screw gravitates downwards thoroughly intermixing with material being spiralled upward. This results in most intimate intermingling of all ingredients   When compared to horizontal blenders this design has several advantages The blending action of the slow turning screw is far gentler than that taking place within the horizontal blenders. Since the active blending volume at any given time is a lot lesser than the horizontal blenders, it results in a lower power requirement. The large handling capacity coupled with low power requirement makes it one of most effective and efficient Blender within the family.

Contra Rotary mixer – Heavy duty is a main manufacturing vessel for paste making It efficiently combines liquid and solid particles to paste/gel under Vacuum Set of blades rotating opposite to each other gives turbulence for effective mixing Materials may be either charged open cover or by vacuum feed. Large quantities of material from phase vessel is sucked efficiently by vacuum Supported on 3 legs : 2 ” Size located at 120 deg equal angles Main Agitator motor : driven by suitable motor with both sets of blades Motor: Crompton/Kirloskar make – FLP and Gearbox – Radicon/Elecon/Shanthi Shaft is supported through a heavy duty bearing housing with mechanical seals Speed of the agitator: 11 to 40 External and 20 to 60 Internal provided with VFDs Bottom discharge valve is pneumatically operated and CIP optional extra

The pellets & crumbs are usually screened to separate fines & over size particles before final packing. For removing fines only, we require single deck screener. For removing both the over size & fines, we need double deck screener. Our screeners are fitted with separate frames over which wire mesh is clamped and are designed for quick change of different mesh screens.

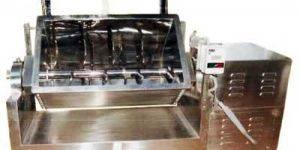

We have carved a niche in the industry as the Manufacturer and Supplier of Mass Mixer from Chennai, Tamil Nadu. Our machine is widely appreciated for its consistent mixing of materials, reliable operation and less maintenance requirement. Customers can contact us for acquiring our range of Mass Mixer at highly competitive rates.   Mass Mixer is a pharmaceutical machine, specially designed for thorough mixing of wet as well as dry or lump material. It is suitable for tablet granulation process. The Mass Mixer Machine is basically mixing a assembly wherein the mixing stirrer is in horizontal position in the container & have a single speed, simple rotation. The stirrer rotates around itself at a very slow speed inside the bowl and thereby achieving intimate mixing of dry or wet materials of Tablet Granulation, Powder, Chemicals, Food & Confectionaries Materials.   Special Features : All contact parts of mass Mixers are made out of S.S.316 or 316L quality material as per cGMP Compact design requires comparatively smaller floor space. Single stirrer with single speed for dry & wet mixing. As stirrer's sealing’s comes in contact with product, there may be any black particle contamination problem, after sealing bush got wear & tear. All non contact parts in the mass mixers (general structure) are made out of mild steel and claded with SS304. Contact parts are polished to the mirror finished and non contact parts are polished to the matt finished in GMP Model. All safety guards & covers made out of SS304 material in GMP model & made out of mild steel & painted in standard model. All moving parts are enclosed with safety guards. Thrust bearings are provided to carry out rigid thrust load. Easy for cleaning & operating. Simply designed SS304 dust cover provided with one port for material charging & inspection. Interlocking system with top dust cover, to avoid accident, during process. The container tilting system provided for easy unloading of material and easy cleaning. Specially design all moving parts provided with provision of easy lubrication. Conventional efficient mixing through paddle type blades welded to the main shaft horizontally mounted in the container & has single speed, simple rotation. Easy for cleaning and operating. Safety Plastic dust cover provided for apparently seeing the mixing process. Interlocking system at plastic dust cover is provided to avoid the accident. The tilting device provided by means of hand wheel for easy unloading of the material. Specially designed self adjusting sealing arrangements to ensure no black particle enter into the mixing drum.   Model : (Capacity 200 ltrs to 7000 ltrs)

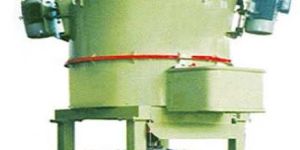

Intensive sand mixer is specially designed for mixing core sand and similar materials. The s type impellers are fabricated and hard spot welded. The wear plates are exchangeable. Pneumatic door opening is provided. This is advanced design for big and small foundries.The breakers are also provided to break the heterogeneous mass.

Static mixer is a precision engineered device for the continuous mixing of fluid materials. Normally the fluids to be mixed are liquid, but static mixers can also be used to mix gas streams, disperse gas into liquid or blend immiscible liquids. The energy needed for mixing comes from a loss in pressure as fluids flow through the static mixer. The design of static mixer is the plate-type mixer and the other device consists of mixer elements contained in a cylindrical (tube) or squared housing. Mixer size can vary from about 1 inch to 4 inches diameter. Typical construction materials for static mixer components S.S 316.
