Industrial Switches Dealers in Ahmedabad

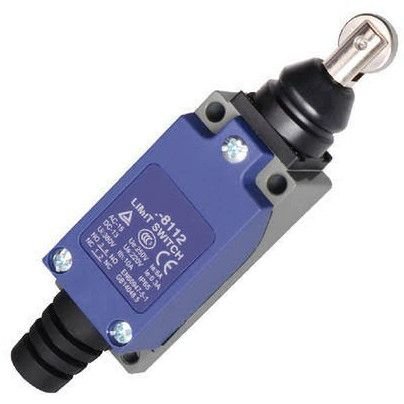

  Jai balaji & Co manufactures a wide range of JaiLimit switches tested to rigid quality standards.Jai switches are ISI marked as per IS 13947 / Pt 5 / Sec - 1 Jai Limit Switches with wide range and high quality are used for Import substitution. The range includes:  Standard oil tight type BC-9 Micro adjustable type JW Precision type JOB Heavy duty JB 2700 Extra Heavy duty type JC -1125 General Purpose Type CEE EM 45   SPECIAL  FEATURES   Completely oil & water tight and dust & damp proof, Ample wiring space for easy termination Flame retardant thermoplastic barriers; between terminals to prevent short circuit. Serrated terminal to give firm grip to straight wire.

The limit switch normally remains closed and cuts off power to stop the motor of the crane. The Lever limit switch operates when it reaches a predetermined position when the lever is moved over a projecting member fixed on the girder. The series limit switch is fitted with four sets of contacts which cuts off two phases of the motor in either direction and is suitable for 500v.a.c. 50 cyclessec. supply system. The limit switch contacts are automatically reset when the lever returns to zero position due to spring action. The Limit Switches are made in IP 54 enclosure. The housing is made of Cast Iron Cast Aluminium. The base and cover have machined surface to protect against dirt and dust.

Specifications : Sensor : Phosphor Bronze Bellows Wetted Parts : Copper Alloy Enclosure : PVC; Weatherproof to IP 32 Ambient temperature : – 20 °C to + 70 °C Process temperature : Max 100 °C Operating pressure : 75% of the Scale Value Process Media : Air, Oil and Water Scale Accuracy : ±5% of F.S.R Repeatability : ±2% of F.S.R Differential : Field Adjustable Switch : 1 SPDT Contact System Mounting : Direct / Panel Process Connection : 1/4” BSP (F) Contact Rating : 15A 110 / 220 VAC, 10A 24V DC res. Switch : Snap Action Microswitch Applications :Food & beverage, pharmaceutical, cryogenics, chemical & petrochemical industries, conventional & nuclear power Plants, pumps, hydro-cleaning machines, presses, engine Compressors, turbines, diesel engines & refrigerating plants.

0350 81 881 860 - DK 780, 803, SF 123, SF 125, MPM & HSR For low pressure application, Medium : Air and non corrosive gass Diaphragm : Silicon LSR Range : 0.2 - 50 mbar (20-5000 Pascals) Over Pressure : 75 mbar, Lowest turn on pressure 0.2 mbar Pressure connection class IP - 54 with cover. Differential Pressure Switch in ventilation ducts fro control of filter and fans, primary and secondary control systems for air dampers. Protection of hating coils from over heating. Protection against frost in heat exchangers and industrial cooling circuits  Smallest Switching Differential

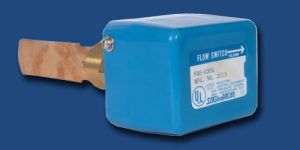

Flow Switches offered finds application in meeting the demands of flow control/cut-off protection when flow reaches setting volume. Providing for automatic operations, these switches also allow for adjusting the setting point. Some of its features include suitable for use in mediums like water, oil and other non-hazard liquids, available in different NPT connection standards, comes with maximum working pressure of 10bar, choice of different paddles to fit different diameter pipes, can be made available in different OEM specifications as demanded by the customers.   Specific applications: Superior performance Slim structure Robust construction

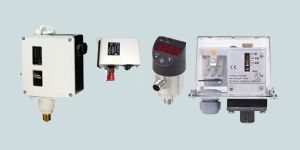

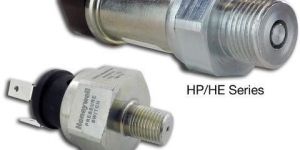

We bring forth a wide range of Pressure Switches for our customers in the market. We have been long been recognized as the manufacturers and suppliers of these Pressure Switches. These Pressure Switches are used in various industrial processes to maintain pressure. They function by switching off the current supply to the industrial set up when the pressure reaches threshold. These temperature Pressure Switches are available in a range of designs as per specific purposes for different industrial processes. We are providing these Pressure Switches to our customers at affordable prices.

A pressure switch is simply a device that reacts to the changing pressure in a system. As it reacts to that pressure change in the system the pressure switch generates or drops an outgoing signal that is used to initiate another action. In the case of an air compressor, the "another action" is to turn on or turn off the electric motor. Because there are so many different types of air compressors, electrically driven, rotary screw, reciprocating and natural gas, a dependable air compressor pressure switch is key to the delivered service. An unloader valve that senses line pressure and provides a control signal to system valves is a feature to make sure your air compressor pressure switch is equipped with. When considering an air compressor switch look at these different suggestions before purchasing; operating pressure range, type of fluid: gas or liquid, sensor mechanism for the pressure switch and the operating temperature. A disconnect metal lever is also recommended in manually turning off the compressor. Other features to look for are a no drift pressure setting, corrosion proof covers and a pulsation dampener.

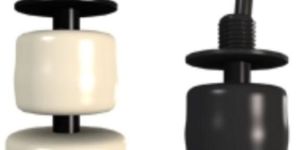

As a quality-oriented organization, we are focused to provide our clients excellent quality Float Level Switch. Our offered gamut is thoroughly tested on certain parameters under the supervision of our expert team of quality controllers. Due to accurate results, optimum functionality, long working life and high efficiency, this assortment is extremely valued by our clients. With the use of technologically-advanced machinery, our vendors manufacture this switch as per the defined industry standards. Features: Reliability Easy to install Shock resistance

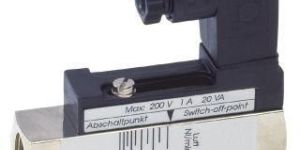

We offer excellent quality Flow Switch of SIKA brand to the clients. These Flow Switches are highly reliable and safe in use. Our tested Flow Switches are used for purposes like maintaining the minimum flow rate and starting a technical procedure at the beginning of the flow. Our Flow Switch is perfect for maintaining the flow of water to lubricating oils and thus prevents the machines from getting dried. Brand Name Sika Demanded For Instant responseHigh repeatabilityLow pressure dropBoth liquids and gasesAdjustable switching pointSwitching function dependent on flow rate alone, not on temperature or pressure
