Gate & Sluice Valves Dealers in Bapu Nagar, Ahmedabad

Stainless steel cladding knife gate valve is an uni-directional for industrial service applications this body and seat assures non-clogging shut off on suspended solids in industries.

We are offering gate valve. technical detail manufacturing std : api:600 testing & inspection std: api:598 face to face : ansi b 16.10 end connection : flanged ends as per ansi b 16.5 & 26” and above ansi b 16.47 series a & b butt weld ends : as per ansi b 16.25 shell wall thickness : ansi b 16.34 special feature with gear operation if the torque exceeds 350n with limit switch arrangements for open & close position with electrical actuator with stelliting with ibr certification with nace mr 0175 with position indicators with locking arrangement

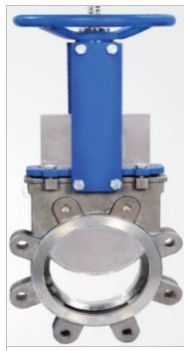

The knife edge gate valve is specially designed industrial valves, which makes sure that there is minimum contact between the valve parts which helps to reduce wear & tear. Usually the knife gate valves are unidirectional and act as a brilliant hopper isolation valves as these valves have the ability to cut through flowing media and closed by dislodging any material in the seating area.

ypes Of Gate ValveWCB/CS Gate Valve FEFCS Gate Valve 800# SEKnife Edge Gate ValveGate Valves, Gate Valves Manufacturers, India

SEALMECH Gate Valves are Bolted Bonnet, Rising Spindle, Outside Screw & Yoke Type construction. SEALMECH Gate valves are available with Solid wedge, Flexible wedge, Split wedge, and Parallel wedge designs offer maximum flexibility and option to clients for their suitable selection. SEALMECH Gate Valve having Deep stuffing box, which provides assure tightness and maximum packing life. Separate properly machined and lapped back seat facilities are provided for replacement of Gland packing when valve is in stream under pressure. SEALMECH also offer extra long, extended bonnet Gate valve for low temperature and cryogenic services. Antifriction thrust bearing is provided in yoke sleeve for higher sizes and classes. SEALMECH Gate valves are available under any Third party inspection. SEALMECH Gate Valves are also available with Gear, Pneumatic Cylinder, Electrical Actuator operated along with accessories like Solenoid, Limit Switch, Air Filter Regulator etc.

STARTEK Valves have been designed to meet the requirements of API-6D ISO 14313 ASME B16.34,Face to Face and End to End dimensions conform to ASME B16.10 ISO 5752 BS 2080 DIN,End flange dimensions conform to ASME B16.51S0 7005-1 API 6051BS 3293DIN,Butt weld end dimensions conform to ASME B16.25,Slab type gate to avoid jamming associated with wedge gate,Pressure energized floating seat rings with PTFE inserts,Weather proof operating system,Through conduit piggable passage

Pressure regulating valve, DESIGN FEATURES pressure reducing valve MAXIMUM INLET PRESSURE – 250 psig. MAXIMUM OUTLET PRESSURE – 200 psig. MINIMUM OUTLET PRESSURE – 5 psig. MAXIMUM WORKING TEMPERATURE – 450oC Salient Features Self-actuating, Pilot operated for enhanced accuracy, High Quality Stainless Steel Diaphragm Maintain Constant outlet pressure, Irrespective to changes in Inlet Pressure Suitable for medium & Low, Pressure of Steam, Gas, Air & Liquid. Adjustable spring in different range. Interchangeability of the pilot valve component parts simplifies maintenance Reduced pressure accuracy 1% from full flow to 10% of flow.

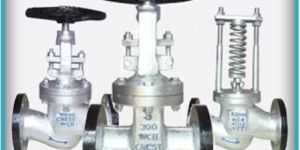

Gate ValveAbiding by ethical norms of the industry, we are engaged in offering a broad array of Gate Valves, which is also known as sluice valves that is a valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid. The offered gate valves are widely recognizer for their sealing surfaces between the gate and seats are planar, owing to which these are often used when a straight-line flow of fluid and minimum restriction is needed. Shape of offered gate valves can be a wedge shape and parallel. These gate valves are widely used for the purpose of permit or prevent the flow.

We offer gun metal safety valves open discharge as well as in enclosed body also known as angle type safety valve or pressure release safety valve, which are ideal for compressible fluids like steam, gas, or vapor. Safety valves are suitable for application areas where high pressure and capacity is required. Our precision engineered safety valves are appreciated for high capacity level, durable finish, and industry competitive price. features: high capacity level durable finish

Gate Valves are Outside Screw, Rising Stem, Bolted Bonnet Construction, threads are away from the line fluid and easy to lubricate. We make Gate Valve body ports are streamlined, permitting unobstructed flow, reduces turbulence, results in lower pressure drop and lower erosion. J.D Gate Valves bonnet castings are of one piece design, where the yoke is integral with bonnet up to 6 Size. The body bonnet joint for all class of Gate Valve is in Circular Round Shape. In Gate Valve from 150# Rating body & bonnet joint have male-female type joint with a gasket.

NOTES: The sliding discs & seats tested for anti-seize Operation. Operation by Rack & Pinion gives full opening with half turn of the Box key. Locking arrangement in the gland is devised in such a way that the Box key can not be removed while the valve is open. All the Working Parts of S.S. Also Available as per TABLE-‘J’ on Request. TABLE-‘J’ for working steam press. Above 250 up to 350 Lbs/sq.inTEMP. 8000 F (427 C)

AQUA Gate Valves.We manufacture Gate Valves also known as 'Knife Valve' or 'Slide Valve' are linear motion valves in which a flat closure element slides into the flow stream to provide shut-off. Gate Valves and Knife Valves are designed to minimize pressure drop across the valve in the fully opened position and stop the flow of fluid completely. With very handsome prices to offer you for the quality material purchase, we introduce ourselves as the leading manufacturer and exporter of  Gate Valves.Gate Valve Avaliable in :  ( 1 ) Rating - 150# , 300#, 600#                       aa         : ( 2 ) Forged Steel Rating - 800#Applications : Water, Steam , Oil , Chemicals etc.Types : Rising Spindle, Bolted Bonnet TypeAccording to Standards :BS 1414 / BS 5352 / BS 6755 / ASME B 16.34 / API 600 /                                      API 602 / API 602 / API 6D/ API 598Size : 2” TO 24”

Ductile Iron Valve, Cast Iron, Cast Iron Valve, Cast Steel Valv
