Gate & Sluice Valves Dealers in Dudheshwar, Ahmedabad

We are offering oswal gate valves. Oswal gate valves are heavy duty, outside screw & yoke type, bolted bonnet, rising stem with non rising hand wheel. Straight through bore design assures minimum turbulence, erosion and resistance to flow. The most advanced design features provides the ultimate in dependable, economic flow control. They are available in wide range of sizes and weights. These are widely suited for high pressure and temperature and variety of fluids. Gate valves are adequate for all service media along with hydrogen service, oxygen service, hydrocarbon service and nace applications. Other optional features like live loading, lantern ring, bleed holes, purging lines and other features are available on request.

The Gate Valve offered by us conforms to API-600 and 6D and provide with smooth machined full bore. Full opening of wedge eliminates additional pressure drop across the valve. Long screwed-in replaceable seat rings ensure perfect tightness for a longer period of service. In case of high temperature and high-pressure valves seat rings are either integral with body or seal-welded for maximum perfection and safely. The Gate Valves are provided with properly machined and lapped backseat to facilitate replacing of gland packing in stream while fully open. Availability of solid wedge designs offers maximum option for suitable selection. Gasket and gland packing material are desired considering service condition like temperature, corrosion, pressure/vacuum, and other applications. The Gate Valves ensure smooth operation, tight shutoff, reliability, maximum safety and longer life and are vailable with varied operation options like hand wheel, manual gear and electrical actuator.

AMTECH manufacture angle type safety valve threaded or flange type in various materials for wafet/ air/ compressure/ vacuum system , and any other specific field for customer requirements. Angle Pattern, Enclosed Discharge, Screwed Male Threads at Inlet and Screwed Female Ends at Outlet to BS 21 OR bsp-MxF ,npt-M x F design as well as flanged end design. We are providing soft seated and metal seated valves. The soft seat from rubber- viton /silicon / Teflon seated. We also prove Hard face in seat material like stellited ST6.   Specification

Pressure regulating valve, DESIGN FEATURES pressure reducing valve MAXIMUM INLET PRESSURE – 250 psig. MAXIMUM OUTLET PRESSURE – 200 psig. MINIMUM OUTLET PRESSURE – 5 psig. MAXIMUM WORKING TEMPERATURE – 450oC Salient Features Self-actuating, Pilot operated for enhanced accuracy, High Quality Stainless Steel Diaphragm Maintain Constant outlet pressure, Irrespective to changes in Inlet Pressure Suitable for medium & Low, Pressure of Steam, Gas, Air & Liquid. Adjustable spring in different range. Interchangeability of the pilot valve component parts simplifies maintenance Reduced pressure accuracy 1% from full flow to 10% of flow.

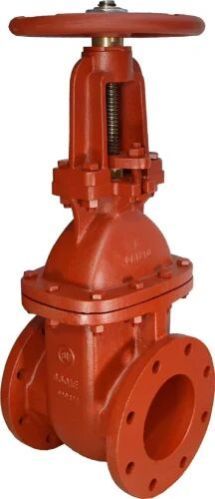

Steel Cast Gate Valve, Cast Iron Gate Valve, Cast Iron Valv

The company is a leading Manufacturer, Exporter and Supplier of SS Bar Stock Gate Valves in Ahmedabad. Manufactured as per the drawings and samples of the clients as well as in the standard forms, the SS Bar Stock Gate Valves are widely demanded owing to their quality. The SS Bar Stock Gate Valves can be availed in various sizes at highly competitive prices. Size : ½� to 24� Pressure Rating : up to 600# Materials Used SSCIWCBGMAlloysDuplexInvestment casting or as per the project orders� requirement End Connections Flanges endScrewed endSocket weldGroovedTriclover or as per the clients� requirement

Gate Valves valve -150 to 600 class in Flanged end , 800 to 2500 class in Threaded / buttweld/ socket weld end.Gate valves are generally designed to serve as isolation valves. In service, these valves are either fully open or fully closed. When Gate valves fully opened , the media which flows through the valve in a straight line with very little resistance. Gate valves must not be used in the regulation or throttling of flow media because of accurate control is not possible. Also , high-flow velocity of media in partially opened valves may cause erosion of the discs and seating surfaces area. The Vibration of wedge may also result in chattering of the partially opened valve disc. Gate valves are also operated by chain pulley when they mounted at height in plant. The Gate valves are used in thermic fluid with high temprature upto 350 degree

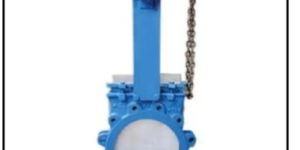

These valves have discs in the shape of knife and are particularly applied to regulate the flow of dense viscid fluids and semisolids in the industries. This type of special knife design enables it cut through the fluids and semisolid material flowing. We are the leading Knife Edge Gate Valves Manufacturer of India. The special design of our valves made by our expert professionals make them highly preferred for regulating very abrasive & viscous fluids in the chemicals industries, the paper and pulp industries, sewage treatment plants, Textile as well as cement industries across the world.   These are preferred because of their perfectly smooth closure &tight shutoff functionality. We manufacture them making use of high grade basic materials as well as components sourced from the most reliable vendor of the market. These are made as per the latest technology at our state-of-the-art manufacturing unit. These are made in strict adherence to the industrial standards. These are made in standards as well as customized specifications as required by our clients. Our products are guaranteed for their flawlessness because these are quality tested and verified absolutely by our experts. We are also the leading Knife Gate Valve Exporter of India.

Brass Gate Valves, Industrial Gate Valve, Gun Metal Gate Valv

We are offering mvs knife edge gate valves are specially designed for tough applications. Mvs knife gate valves features a single piece full port cast stainless steel fully lugged body which is very robust in construction to cater to the extreme demanding applications and ensure greater flow capacity and minimal pressure drop. Mvs knife edge gate valves incorporate gates made of stainless steel and other superior alloys are ground with super surface finish on both sides to assure positive shutoff. The machined and highly finished gland pockets ensure a leak proof gland packing and perfect stem seal. Mvs high performance knife edge gate valves are available in uni-directional bi-directional design which provide better value and performance with many standard features which others lack.

India is a country with rapidly growing industries. With booming industries, control valves like Butterfly Valve, Pinch Valve, Diaphragm Valves, Knife Edge Gate Valves, Pulp Valves are highly in demanded. For efficient and durable performance control valves must be made in compliance with the industrial norms. Also they should be fabricated utilizing latest techniques and machineries to have features and aspects that are intensely demanded by the industries. Our valves are highly preferred in the market because of their quality, performance and durability.

Pressure gauge valves are used as shut-off and throttle device between pressure gauge and pressure line for high operating pressures and temperatures. finishing : buff polished chrome plating nickel plating material used: finest quality gun metal size available: 18” bsp ¼” bsp 38” bsp ½” bsp ¾” bsp 1” bsp hydraulic test pressure: 60 to 200 psi as per requirement.

We are listed at the apex in the list of the dependable Gate Valves Manufacturers and Suppliers in India. The unmatched quality and unsurpassable performance has made the Steel Gate Valves ideal for various industrial applications. High durability, tensile strength and resistivity to adverse conditions have also played a vital role in the enhancement of the demand of Industrial Gate Valves in the marker. Further, Gate Valves are available in varied specifications in terms of sizes and dimensions.

Safety Valv

Safety Valve, Cooks, Ball Valve Automation Syste

Forged Stee

Gate Valves Globe Valves, Mineral Water Jar Washing Machin

Brass Gate Valves, Brass Ball Valve, Y Type Flush Bottom Valv
