Gate & Sluice Valves Dealers in Kathwada, Ahmedabad

Our range of high pressure valves varied with its field of usages. High pressure valves are used to protect the pipes and equipments. Our high pressure valves are available for different temperature range. We offer 2 ways, 3 ways, 4 ways and 5 way types’ valve. We have also developed fire safety design as per API 607. Locking device can be provided on demand.

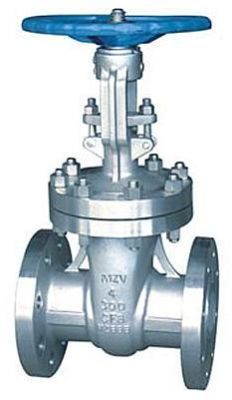

We are offering gate valve. gate valve features design api 600 / api 6d / api 603 / bs 1414 face to face asme b 16.10 / api 6d flanges asme b 16.5 / mss sp 44 / asme b 16.47 butt welding asme b 16.25 testing api 598 / api 6d material astm specifications flexible wedge construction except for 2"#150 trims varieties of combinations optional electrical geared drive bypass arrangement, floor stand note oval flat body bonnet joints for 150 lbs. male female body bonnet joints for ratings >300 lbs. rtj joints on request. rtj body bonnet joints for ratings > 1500 lbs (standard). features design std. as per api 6d,api 600,bs 1414 face to face as per asme b 16.10 flange end as per asme b 16.5 testing std as per api 598, iso 5208 size 15 to 600 m.m. Seat replaceable material body wcb,cf8,cf8m etc gate ca-15,cf8,cf8m etc trim 13% cr., ss 304,ss 316 dimensions 150 # 300 # size m.m. f/f h øwh wt * f/f h øwh wt * 15 108 200 76 8 152 200 76 10 20 175 220 89 10 178 220 89 12 25 127 250 102 13 203.2 250 102 17 40 165 305 121 17 228 305 121 22 50 178 375 216 20 216 409 216 30 65 190 455 216 27 241 500 216 45 80 203 472 230 31 282 506 230 60 100 229 577 255 51 305 605 254 95 150 267 808 310 75 403 842 380 150 200 292 978 380 132 419 1030 460 235 250 330 1178 460 205 457 1295 510 330 300 356 1416 510 290 502 1472 560 490 350 381 1566 560 370 762 1659 610 780 400 406 1780 610 500 838 1856 700 985 450 432 2012 700 673 914 2028 700 1280 500 457 2242 700 845 991 2310 800 1828 600 508 2620 800 1250 1143 3060 1100 2500 dimensions 600 # 900 # 1500 # 2500 # size m.m. f/f h d wt * f/f h d wt * f/f h d wt * f/f h d wt * 50 292 418 216 37 368 510 255 93 368 546 255 93 451 450 255 110 65 330 510 230 49 419 620 310 125 419 555 300 135 508 700 300 145 80 356 538 254 61 381 670 310 140 470 689 380 160 578 660 380 175 100 432 644 310 112 457 760 380 178 546 800 460 250 673 845 460 280 150 559 905 510 215 610 1030 560 360 705 1140 610 580 914 1275 700 620 200 660 1332 560 365 737 1550 700 570 832 1360 700 1000 1022 1500 1100 1100 250 787 1410 700 682 838 1760 700 1020 991 1650 1100 1200 1270 1700 1300 1480 300 838 1740 700 975 965 1960 800 1450 1130 1880 1300 2300 1422 2050 1600 2600 *nett. Kg. Aprox (with out any obligation)

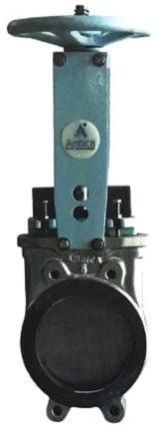

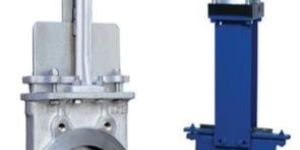

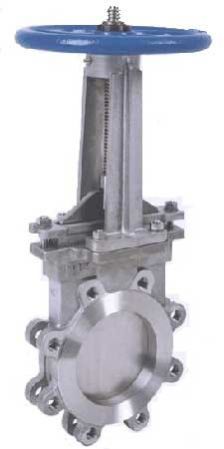

Knife Edge Gate Valve is the specific design. This design ensures minimum contact between the parts of the Valve, Reduces the Wear & Tear. The high-performance Knife Gate Valves feature. Non-Sliding Motion, Avoid Sliding Contact between Body & Gate allow flushing of media form the Valve interior. A wide variety of hardened trim options are available on Gate, Seat and Wear Ring. Batten edge of the Gate (Knife-Edge) allows the tight shut off even when solid particles settles at the bottom of the Body. The valves are regularly used for applications to handle, pulp in pulp mill, slurries, powder such as coal, ash, dry and wet powder in power houses, pneumatic conveying systems, dust collecting systems and material handling equipment’s. For liquid slurries and fiber applications with low-allowable leakage the valves are most commonly used. Pneumatic, Manual, Gear and Hydraulic equipment devices are provided for operation of the Valves. For elevated mounting, chain driven Valves are also provided. Our product range covers valves of sizes up to 36” [900mm] and ASME classes up to 150, PN 10 and PN 16. Based on customer requirements, valves in different pressure classes, larger sizes and other materials are also offered. We manufacture this Valve according to MSS SP – 81 designing and manufacturing standards. Uni-directional Type Knife Gate Valve Bi-Directional Type Knife Gate Valve Square & Rectangle Type Knife Gate Valve Fabricated Type Knife Gate Valve

Bonnet valves is available with different bonnet options like fully welded bonnet, bolted bonnet and fully welded bonnet. Spiral gasket is provided for the sealing of the bonnets. Along with all kinds of customized specifications, we offer standard size range from 10 NB to 50 NB. It is available with full or regular port opening. It is available with pressure rating from ASME 800# to 2500#.

"Flow-Tek" is designed primarily for high pressure steam service commonly found in power plants, refineries, pulp and paper mills, and other high pressure process applications. Since high pressure superheated steam is routinely used for power generation (turbines), a pressure regulator capable...   APPLICABLE STANDARD   Design Standard : MFG. STANDARD Face to Face : MFG .STANDARD End Connection : Flanged End to suit ANSI / DIN / BS / JIS / IS etc. Testing Standard : API 598 / CONTROL VALVE ANSI-FCI-70-2-2006 STD

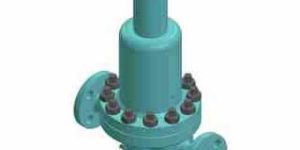

Pressure Reducing Valve - BTPR 100: Brightech™ Self-actuating, Internally pilot & piston operated, Globe type, Full lift, Spring & diaphragm actuated, Pressure reducing/regulating valve, also known as Down-Stream Pressure Control Valve.Size Range (BTPR 100 F): 15mm to 150mmPressure Rating (BTPR 100 F): Class 150 & 300Size Range (BTPR 100 T): 15mm to 25mmPressure Rating (BTPR 100 T): Class 150 & 300 Feature & Benefits Brightech™ series BTPR-100, internally pilot & piston operated pressure reducing valves are very compact in design & versatile type for accurate regulation with the widest possible range of flow The full lift type main valve assembly & Globe type body design is capable of delivering very high flow rates with greater accuracy The internally pilot controlled pressure reducing valves are best suitable for use in continuous distribution application The constant outlet pressure (Down stream pressure) is accurately maintained right up to maximum rated discharge capacity of the valve and is unaffected by changes in inlet pressure or flow rate A positive tight shut off ensured by accurate guiding of the pilot & the main valve assembly   Application The Brightech™ Pressure regulator is assembled with stainless steel trims to use for Steam, Air & Gas applications for low and medium pressure range The Non Metallic (Teflon/Elastomer) trims are provided to ensure tight shut off (class VI Leakage) for air & gas application, where as, Stallited Stainless steel trims are provided for High pr

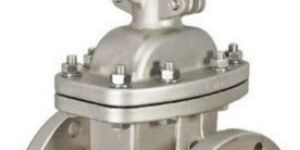

This valve has inside a gate that moves up-down perpendicular to the flow of the service. In the up position it will open and vise versa in the down position it will be closed. The flow is straight through, and does not lend itself for use as a metering valve. The Gate valve is also available different types of Disc-Gate such as Double Disc Gate, Solid Gate, Flexible Gate, Parallel Slide Gate, Conduit Gate etc. to suit industrial various applications. The gate valve is used mainly as an on /off valve. This Gate Valve is also called as a Bi Directional Gate Valve. Mostly API 600/603 standard Gate valve contructions are bolted bonnet with rising spindle Pressure seal design bonnet design used for high pressure application from class 900 pressure rating. Rising StemOutside Screw & Yoke (OS & Y) design keeps the stem threads outside the valve and is recommended where high temperatures, corrosives, and solids in the line might damage the stem threads inside the valve. When Gate Valve will open, the stem extends above the hand wheel indicates the position of the gate. Valve TrimA trim means internal working parts of valves. In Gate Valves the Stem (Spindle), Seat Ring, Back Seat Bush, Gland Bush is trim. Integral SeatThese types’ seats are integral with body casting. Machined into the body casting. Renewable SeatSeparate Seat Rings that screw into the valve body, which is called as Renewable Seats. Nivz Gate Valves are Outside Screw, Rising Spindle, Bolted Bonnet design, threads are away from the line fluid and easy to lubricate. Gate Valve body ports are streamlined, permitting unobstructed flow, reduces turbulence, results in lower pressure drop and lower erosion. Nivz Gate Valves bonnet castings are of one – piece construction, where the yoke is integral with bonnet up to 6” Size.Our manufacturing range also cover Half and Full Jacket Thermic Fluid Hot Oil Jacketed Gate Valve & Steam Jacketed Valve for sticky, viscous, molten sulphur, bitumen, asphalt application. In full jacketed gate valve flange size will be higher then valve bore size. As like in 3" (DN80) gate valve flange dimensions as per 4" (DN100), face to face distance as per ANSI B 16.10 Standard, valve size 3" (DN80). Nivz An ISO 9001, ISO 14001 & OHSAS 18001 certified company Gate Valve Manufacturer, Alloy 20, Duplex Steel, Hastelloy, API 600, API6D, API 603 Standard Gate Valve Exporter, Supplier, Stockist, Importer. Rising Stem, Bolted Bonnet, Austenitic Stainless Steel Gate Valves, Flanged - Butt Weld End.

Disc A 240 SS 304 316, Yock ASTM A 216 GR. WCB, Thrust Washer BRASS, Seat O - Ring NBR, Bearing Housing ASTM A 216 GR. WCB CF8 CF8M, Wheel Nut STEEL, Bearing Housing Bolt STEEL.

Close Bonnet safety valve is another popular type of safety valve which contains the fluid entirely and helps to discharge it in the system. This fluid is not vented to the air. For different types of power vessels these vents are mostly used. The spring enclosure is widely used and considered useful for valves with small screw. At present these valves have become quite common and different ranges of such valves are available in the market.  The ranges of spring valves mainly depend on the steam and discharge of fluid. The fully closed bonnets are becoming extremely popular in recent days. We being the leading distributor of this product have it in various sizes and ranges to cope up with the exact need of the customer Long life High performance Best in quality

We are offering forged steel gate valve, jupiter controls valves forged steel gate valves are bolted bonnet, outside screw and yoke type, rising stem design. Jupiter controls forged valves body and bonnet made from high quality forgings. Jupiter controls offer forged steel gate valves in size 12” (dn15) to 2” (dn50) to suit various critical, non-critical applications and pressure rating in 800 class. Jupiter controls forged steel gate valve manufacturing range covers regular port and standard port both types of valve. Regular port gate valves have fast delivery or ready stock, for standard port gate valve do manufactuing on order basis. jupiter controls offer forged steel gate valve in wide range of body materials like astm a 105 - forged carbon steel, astm a 182 f 304304l316316l - forged stainless steel 304304l316316l, astm a 182 f 1122 - alloy steel to suit industrial application. Jupiter controls forged steel gate valves are available under any third party inspection also. For high pressure & temperature application stellited f6 face seat & gate available. Forged gate valve available is threaded end, socket weld end, butt weld end and flanged end connection. For flanged end forged gate valve flanges will be a welded with a valve body not integral forged. In haryana manufacturer trading & exporter of wide range of industrial forged steel gate valves rising stem forged steel gate valve (regular port) non-rising hand wheel, bolted bonnet forged gate valve (regular port)

Industrial Gate Valves, Industrial Globe Valves, Industrial Ball Valve
