Binocular Microscope Dealers in Saha, Ambala

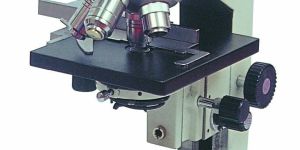

1. Binocular head 45o inclined 2. 360 degree rotatable head 3. QuadrupleQuintruple Ball bearing Nose piece. 4. Co-axial Coarse & Fine focussing with focussing lock graduated to 1Div=.002mm 5. Low Drive Co-axial control, Ball Bearing type mechanical stage, having X & Y movement 6. Movable Abbe Condenser N.A. 1.25, with iris Diaphragm 7. Built in Illumination 3W LED with intensity control. (Battery backup optional)

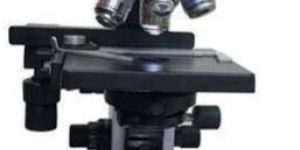

We are offering binocular microscope. A rigid and heavy stand, observation binocular head inclined at 45º and rotatable through 360º assembled from high quality prisms to ensure highly accurate collimation for stain free observation. Adjustable interpupillary and dioptric distance. Focusing system : our co-axial focusing system is based on four stage gear reduction system traveling on ball bearing guidways which provides the highest degree of sensitivity, free for any back lash in operating the fine focussing of optical system. Operating knobs are of extra large size which provides a soft & sophisticated touch of the microscope. Ball bearing quadruple nose piece with click stop. Fixed stage size 140 x 125 mm with precision co-axial mechanical stage for x and y moment of slide up to 50 x 75 mm. Optics : only best quality objectives and eye piece are supplied to provide finest performance. These are parafocalised and pre-centered with each microscope after the most stringent tests. Illumination : by 6v 20w halogen lamp operated through built in solid state transformer with electronic regulator. also provide with plano concave reflecting mirror attachment for day -light use. Condenser : abbe n.a 1.25 with iris diaphragm moving up and down by rack and pinion. Din objectives : 45x, 10x, 4045x, (sl) and 100x (sl) o.i all imported. Eye-pieces : 10x w.f and h5x or h15x (any two pairs)

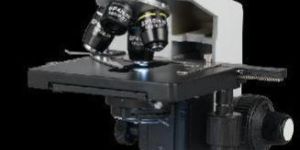

ALPHA CHEM- 1008 Binocular Microscope Binocular Microscope : Specifications of body as above but provided with Binocular observation head inclined at 45° rotatable through 360° and with inter-pupillary adjustment.   With Hygenian eye-pieces 10X, 15X (Paired) Achromatic   Objectives : 5X, 10X, 45X & 100X - oil immersion (spring loaded) detachable mechanical stage Magnification : 50X to 1500X

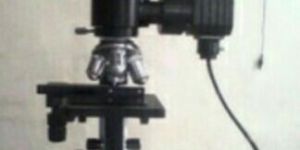

With built in illumination system(Swift pattern). Same as above but with Binocular Research Microscope for General Laboratory Research Hospital Pathology, Hematology Bacteriology and Medical Work having optics combination of four objectives 5x, 10x, 45x or 40x (SL) and 100x (SL) oil immersion and three eye pieces, 5x, 15x or 10x W.F.(Paired).

Frame-All aluminum pressure diecasted body.Paint-Powder coated, available in various desired shades.Nosepiece-Quadruple ultra smooth nosepiece. Binocular/Monocular head-360* rotate able and 45* inclined head with all anti-fungus coated prisms. Focusing system-Separate knobs for cores and fine motion having least count of .002 mm. Stage-Cxl mechanical stage works on dovetail slides.(other stages also available). Condenser Bright field sub stage condenser having 1.2 N.A. Eyepieces & objectives-Set of 4x, 10x, 40x, and 100x and a paired set of 10x wide field eyepieces. Illumination-6v, 20w halogen lamp needs 220v and 50Hz supply. Instruction Manual, Dust cloth, Dust cover.

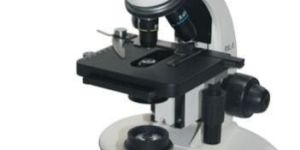

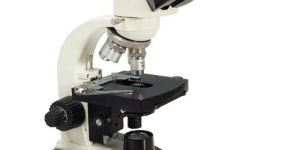

Binocular Research Microscope RXL-5 Stand - Robust, ergonomically designed with stability having anti-mould and hard coated design. All objectives, eyepieces, optics & observation tubes are having anti fungal treatment with universal infinity corrected optical system. Viewing Head - Sidentopf Binocular Head inclined at 30º & 360º rotatable, Inter-pupillary distance 50-75mm with dioptric adjustment.Nosepiece - Quadruple/Quintuple inward facing nosepiece with click stops mechanism.Objectives - DIN Semi-Plan Achromatic 4X/0.1 WD 20mm, 10X/0.25 WD 6.5mm, 40X SL/0.65 WD 0.4mm and 100X SL Oil /1.25 WD 0.2mm.- DIN Plan Achromatic 4X/0.1 WD 20mm, 10X/0.25 WD 6.5mm, 40X SL / 0.65 WD 0.6mm and 100X SL Oil / 1.25 WD 0.2mm.   Eyepieces - High point wide-field eyepiece WF 10x / FOV 20mm paired. Stage - Right handed, co-axial, low positioned, Double plated mechanical stage 135mm x120mm with a cross travel range of 50x57mm. Scale Division : 0.1mm, Double Slide Holder.Focus Adjustment - Coaxial, coarse and fine focus adjustment knobs. Coarse range 25mm, Fine focusing range 2mm / rotation, each division 0.002mm with torque and focusing adjustment. Condenser - Bright field Abbe Condenser N.A. 0.9-1.25 with inbuilt Iris-diaphragm and swing - out filter holder on rack & pinion arrangement. Illumination - 6Volt 20W Halogen Lamp or LED Light source operated on 220 Volt / 50 Hz.Power Source - Built- in SMPS 110 - 220Volt 50Hz AC Input.Approvals - BIS Standard ISI marked & CE approved.Standard Accessories - Spare Halogen Lamp, Fuse, Vinyl Dust Cover, Power Cord, 10ml. Oil Immersion and user operating manual.Optional Accessories - Eyepieces : (H/WF) 5x, 6x, 15x & 20x, Objectives : 3x, 5x, 20x & 60x, Phase Contrast Attachment, Dark Field Attachment, Polarising Attachment, Micrometer Slide 1/100mm, Micrometer Eyepieces, Pointer Eyepieces, Spare Graticules, Imaging Cameras, Analysis Softwares, Multiviewing Attachment, Rackless mechanical stages. LED with battery backup, Wooden storing cabinet

1. A Straight binocular stereoscopic microscope with simple base. 2. Flat sharp image erect and unreversed. Wide field eye pieces. 3. Long working distance and large field of view. 4. Direct measurement on specimens with optional eye pieces. 5. Sturdy rack and pinion for focusing. Objective Fixed : 2 x (W.D. 90mm, Field of view-9mm) Eye Pieces : wf 10x or wf 15x Magnification : 20x or 30x 6. Optional trans-IL- Lumination base is also available.

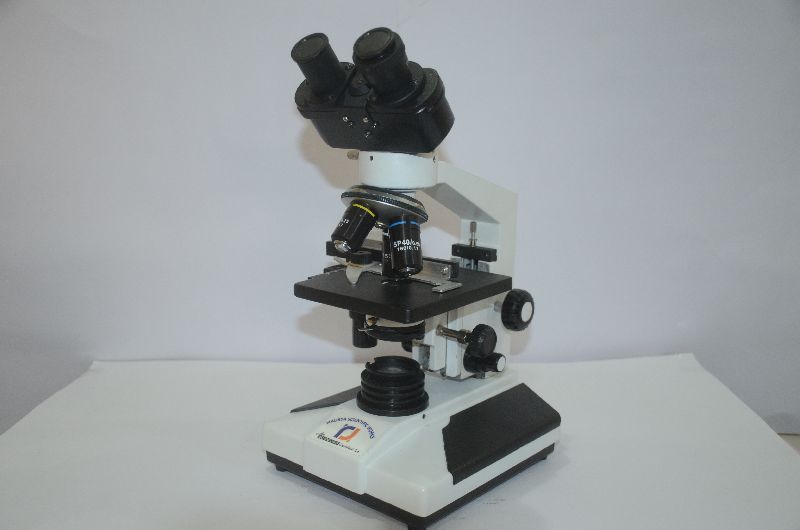

Binocular research microscope complete with objective 4x, 10x, 40x,100x oil immersion spring loaded and eye piece 10x pair wide field with halogen lamps.

With built in illumination system(Swift pattern). Same as above but with Binocular Research Microscope for General Laboratory Research Hospital Pathology, Hematology Bacteriology and Medical Work having optics combination of four objectives 5x, 10x, 45x or 40x (SL) and 100x (SL) oil immersion and three eye pieces, 5x, 15x or 10x W.F.(Paired).

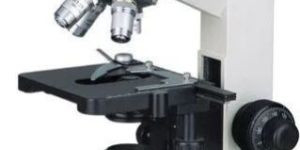

Binocular observation head inclined at 45°, rotateable through 360°, interpupilary distance adjustment ring 54-74mm, dioptric adjustment ring on the left having adjustable dioptric scale. All part die cast to provide long life & good mechanical strength. Coaxial focusing control with ball bearing guide way & large knobs. Pre focusing auto focusing lock & tension adjustment ring, High eye point wide field 10x, (f. N. 20) or 15x paired.

We are actively engaged as manufacturer and supplier of Coaxial Binocular Microscopes in Ambala, Haryana. Sophisticated in design, our Microscopes assure high reliability and excellent magnification for studying specimens. We provide them in premium packaging to assure safe transportation and delivery. These devices are generally light weight, high strength, corrosion resistant and the material they are made of, is suitable for diverse environment.
