Automatic Flute Laminating Machine Dealers in Amritsar (9 products available)

length : 800 mm

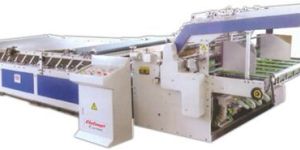

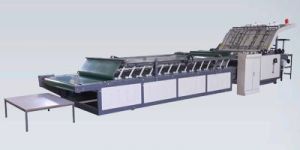

Semi Automatic Flute Lamination Machine Normal front feeding of top sheet designed to make the feeding more convenient and lamination more accurate. With flexible front positioning which avoid bottom sheet exceeding the top sheet and adjustable fore-and-left lamination between bottom sheet and top sheet.Movable lengthened pressing part is alternative for lamination of corrugated cardboard thicker than Flute-B whose length is above 800 mm.

Max. Size : 1600×1100mm

Min. Size : 350×350mm

Laminate Precision : =+-1.5mm

Speed : 80m/min

Total Power : 5Kw

Length : 8x2x1.3M

Total Weight : 6.5 T

Functions and features automatic feeding bottom paper, frontage, pushing face paper, feeding paper fest and lower work intensity. localization bottom never go beyond, suitable for laminating tha paper board together and for laminating the paper board with the a/b/c/d/e corrugated cardboard together. bottom paper and face paper can fore-and-art adjustment, easy to laminate together. feeding glue system are automatically controlled by liquid relay, thickness of glue can adjust. Gluing uniformaity lower glue cost. control panel, electromagnetism clutch with out touch point relay, position is monitored by photoelectrio switch, digital automatic counter. high precision laminate, the finished products are of smooth surface edge and of high intensity. whole structure is compact, with beautiful appearances and high work efficiency.

Type : 1300

Max. cove : 1300mmx1100mm

Min. cove : 350mmx350mm

Machiner : 0-90m/min

Electric M : 7kw

Area : 8mx1.98mm

Packing size : 1.97mx2.0mx1.0mx   4.58mx1.98mx1.52m

Weight : 4.5T

Automatic feeding bottom paper, front pushing face paper, it has easy shortcut for feeding paper, lower work intensity. Front orientation bottom paper never leading, suit jointing of paperboard to paperboard, paperboard toA, B, C, D, E style corrugating cardboard. Jointing of bottom paper to face paper can fore-and-aft adjustment, easy opposite joint. Feeding glue system are automatic control by liquid relay, thickness of sub o adjust equality glue, lower glue cost. Electric machine adopt non polar shift, electromagnetism clutch adopt without touch point relay, journey position adopt photo electricity switch detect, electron automatic count and empty sheet photo electricity automatic control.   Technical Specifications

SPECIFICATIONS Tumup bridge plate is convenient for cleaning, discontinuos wate-circulating system ensures washing cleam. Automatic feeding for bottom sheet manual feeding fortop sheet (feeding from side for top sheet is optional) manual feeding fortop sheet (feeding from side for top sheet is optional) Flexible font register, bottom sheet is not exceeding the top sheet and itis adjustable for the front and rear lamination between bottom sheet and top sheet. Bottom sheet can be paperboard more than 350 gsm, A/B/C/D/E/F corrugated cardboard. Lnedilligent control and compacted energysaving and controlling play from the stack of paper Using height-precision plastic block device sace glue

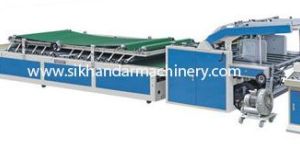

FLUTE LAMINATOR SEMI AUTOMATIC, Die Punching machines

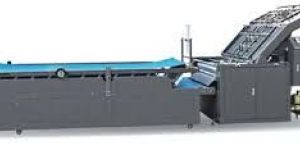

Automatic Flute Laminating Machine, Edge Squaring Machine

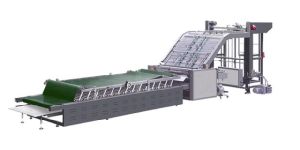

Automatic Flute Laminating Machine, Auto Stacker Machine

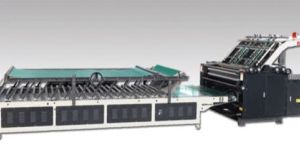

Semi Automatic Flute Lamination Machine, granulator blades
