Submersible Pumps Dealers in Bangalore

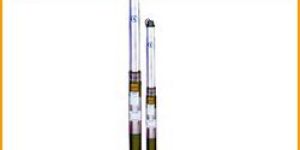

For centuries 80 mm bore wells are being operated by hand pumps. Single phase electric supply has reached almost all places, there was need to have submersible pump to pump out water from 80 mm bore wells. BATLIBOI introduces V-3 submersible pump suitable for 80 mm bore. This is unieuq in design and different in construction. You can depend on its performance for longer period.

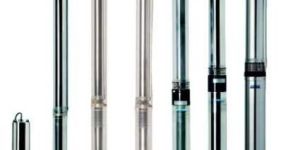

We are offering borewell submersible pumps. Features stainless steel motor, housing for longer life high quality imported carbon thrust bearing to work at lower voltages stainless steel shaft with coupling high quality noryl impellers, diffuser and pump casing applications high discharge with low power consumption houses, flats, hospitals, hostels and marriage halls industrial applications agricultural

SAER Submersible Pumps are renowned for their high efficiency and reliability throughout the range. Made entirely of corrosion-resistant stainless steel, SAER submersible pumps are ideal for a wide variety of applications.   Radial Submersible Electric Pumps Operation Condition   Operation Condition Max Head  : 955 M (3133 ft.) Max Capacity : 210m3/ Hr Pumps size : 4” 6” 8” 10” Temp of Pumped Liquid  : 0oC to 40oC RPM  : 2900 Maximum immersion depth : 200 m under liquid level Max pressure : 22 bar Grain size of  silt : 200gm/m3   Pumps Construction Impellers : Polycarbonate loaded with fiber glass. Diffusers :  Noryl (techno polymer) loaded with fiber glass. Shaft : AISI431 stainless steel (on request, AISI316), with grooved profile. Outlet and suction support : Brass or coated carbon steel (on request stainless steel AISI304) External shell : Stainless steel AISI304.   Other Materials Available on offer : Carbon Steel, Brass, SS-316, SS-304, Noryl, Cast Iron   Features  Complete unit of pump with electric motor oil bath range CL95  Hydraulic part to be connected with 4” submersible motors with coupling following NEMA MG1-18.388 The FS 98 series uses axial sliding floating impellers, which avoid the jam up of the pump even with the presence of sand. Outlet complete with non-return ball valve. Driving bushings in anti-wear rubber. Components realized with particular materials which assure a high wear resistance. This pump is an ideal solution in pumping water with suspended sand particles up to 300 g/m3.   Application Suitable for lifting, pressurising and distribution in Civil and industrial installations  Autoclave and cistern inlets Washing plants  Irrigation systems Draws from wells of min. diameter of 104 mm, tanks or natural basins.   Installation Vertical / horizontal (depending on power). Special Versions Range XFS98 with inlet and outlet in stainless steel AISI304 precision castings.   Semi-axial Submersible Electric Pumps   Operation Condition Max Head : 388M (1273ft) Max Capacity  : 725m3/hr Pump Size   :  6”, 8”, 10”, 12”, 14” Temp of Pumped Liquid : 0oC to 35oC Frequency : 50 Hz Rpm :  2900 Maximum immersion depth : 300 m under liquid level Max pressure : 45 bar Grain size silt  :  300gm/m3 Pumps Construction Impellers  : Cast iron EN-GJL-250 (brass for model K and X) or FeG450 steel. Diffusers :  Cast iron EN-GJL-250 or FeG450 steel. Shaft : AISI431 stainless steel, with grooved profile. Outlet : Cast iron EN-GJL-250 or FeG450 steel. Suction support : Cast iron EN-GJL-250 or FeG450 steel.  Materials Available : Carbon Steel, Brass, SS-316, Duplex Steel, Cast Iron   Features Complete unit of pump with electric motor. SP hydraulic part to be connected with 4” submersible motors with coupling following NEMA MG1-18.388 or 6” submersible motors with coupling following NEMA MG1-18.401- 18.413 Semi axial impellers. Outlet complete with non-return valve. Pump equipped with counter trust ring in anti-wear resin. Diffuser complete with wear ring in anti-wear rubber. Driving bushings in anti-wear rubber with metallic shell. Components realized with particular materials which assure a high wear resistance.   Installation  - Vertical.Special Versions XS and XVS Series entirely made of stainless steel SB series made of marine bronze (up to max 25 bar) Different tensions Version for horizontal installation. Application Suitable for lifting, pressurizing and distribution in Civil and industrial installations,  Autoclave and cistern inlets, Washing plants,  Irrigation systems.  Draws from wells of min. diameter of 158 mm, tanks or natural basins.

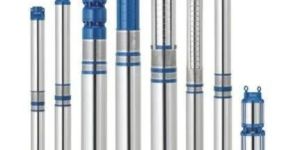

We bring forth high performance Submersible Pump Sets for our reputed clients. These Submersible Pump Sets are user-friendly and can be maintained very easily. The Submersible Pump Sets that we offer are extremely durable due to the use of high-grade raw materials in the production process. Apart from this, these Submersible Pump Sets are available at market leading prices. Why Our Submersible Pump Set? Easy installationHigh performancePowerful motorLow maintenance cost Used In Domestic sectorAgricultural Industries Range : V-4 range : 0.75 HP to 2.0 HP Up to 330 feet(100 meters)V-6 range : 2.0 HP to 15.0 HP Up to 770 feet(235mtrs)

POWER HP    :  0.5 - 10 HPSTAGE          :  4-50 DISCHARGE RANGE (LPM) : 15 - 520 HEAD RANGE (MTRS) : 6 - 300

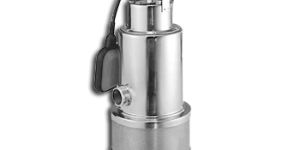

We have a range of models of submersible pumps. It comes in 2 materials, plastic and stainless steel. There are pumps that can be used for clean water and some that can be used for dirty water.

Sewage Pumps : Sewage Pumps are available at mieco pumps Bangalore. Sewage pumps are available in all new designs and parts related to sewage pumps are available. Every industry Establishment face a problem of effective way of pumping the waste generated each day. It may be in the form of chemicals, large quantities of water, water with solid particles or for clearing a flooded basement. These sludge pumps and sewage pumps are available in external type having semi open open impellers and submersible type with cutter facility which is ideal for pumping of soft solids mixed with water and have found their presence in Sewerage Boards.

A submersible pump is a device which has a hermetically sealed motor close-coupled to the pump body. The whole assembly is submerged in the fluid to be pumped.The main advantage of this type of pump is that it prevents pump cavitation, a problem associated with a high elevation difference between pump and the fluid surface. Submersible pumps push fluid to the surface as opposed to jet pumps having to pull fluids. Submersible pumps are used for drainage, sewage pumping, general industrial pumping and slurry pumping. They are also popular with pond filters.
