Tablet Compression Machine Dealers

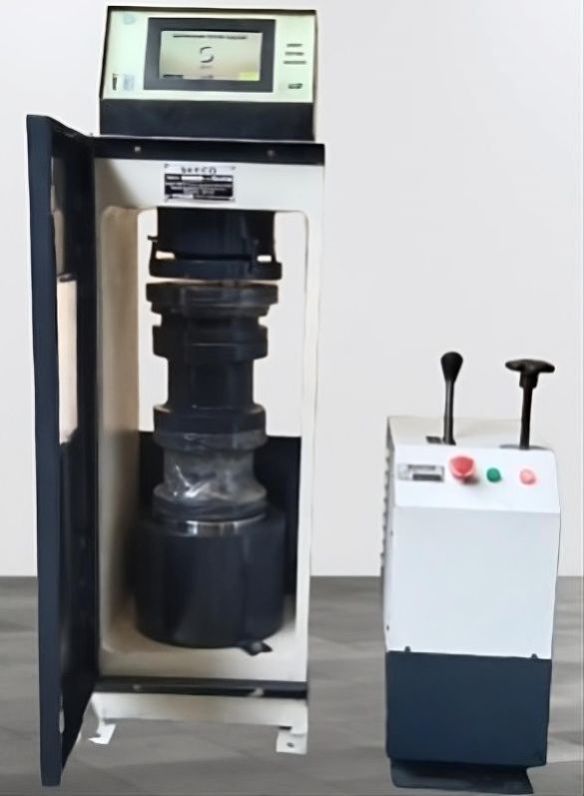

We are offering compression testing machine. Compression testing machine - (ctm-01) principal of operation: operation of the machines is by hydraulic transmission of load from the test specimen to separately housed load indicator. The hydraulic system is ideal since it replaces transmission of load through levers and knife edges, which are prone to wear and damage due to shock on rupture of test pieces. Load is applied by a hydro-statically lubricated ram. Main cylinder pressure is transmitted to the cylinder of the pendulum dynamo-meter system housed in the control panel. The cylinder of the dynamo-meter is also of self-lubricating design. The piston of the dynamo-meter is constantly rotated to eliminate friction. The load transmitted to the cylinder of the dynamo-meter is transferred through a lever system to a pendulum. Displacement of the pendulum actuates the rack and pinion mechanism which operates the load indicator pointer and the autographic recorder. Application : fie compression testing machine is designed for test materials under compression bending, transverse and shear loads. Hardness test on metals can also be conducted. Salient features features :the fie compression testing machine incorporates design features to enable high accuracy testing with economy, speed & versatility. Loading accuracy as high as + 1% straining at variable speeds to suit a wide range of materials. Continuous roll autographic recorder supplied as standard to enable study of the behavior of materials • motor driven geared shafts for quick effortless adjustment of cross-head-to facilitate rapid fixing of test specimen. • high reading accuracy due to large size and design of dial. Wide range of standard and special accessories, including load stabilizer. Large effective clearance between columns enables testing of standards specimens as well as structures.

To estimate the compression resistance of both corrugated and non-corrugated boxes, consider our superior Box Compression Testing Machine which comes at a price of Rs 90,000/ unit. Owing to its advanced digital displaying of load, our valuable customers highly prefer our product. We offer them in 600x600mm box having a load capacity range of 0 to 1000kgf and 1000x1000mm box with capacity ranging from 0 to 2000kgf.

Compression Machine, All Pharma Machineservicin

Hydraulic Compression Forming Machin

Compression Testing M / C Electrically Operated, Standard Spatul
