Tablet Compression Machine Dealers in Delhi

Product Code: EKE 305H-EKThe Digital Compression Testing Machine has been designed to meet the need for a simple, economic and reliable means to test concrete for its compressive strength. The design emphasizes simplicity, both of construction and operation, and makes the machine easy to use and maintain. The unit is compact, making it useful for site applications. The digital machines are provided with a pace rate indicator to indicate pace rate on a Bar Graph. With a little experience, the pace rate can be controlled manually while the test is in progress.The Complete unit comprises of Loading Unit :The loading unit is of fully welded construction having a cross head, base and solid side plates. The hydraulic jack is fixed to the base. The platens of the machine are hardened, ground and polished. The upper platen is provided with self-aligning action to facilitate testing of various size specimens, suitable size spacers are provided.Pumping Unit:The two speed pump facilitates rapid approach of the platens for daylight closure and also provides comprehensive control over the application of load. A control valve provides fine control over the loading rate for accuracy of pacing. The digital read-out unit, incorporates a 4-digit display, calibrated in kN and features integral load pacing in kN/Sec. Maximum load is held and retained for approx 15 min, unless cancelled, using the panel mounted reset switch. Pace rate set for running the test can be maintained manually with the help of a bar graph indicator. Logged data printing facility through a parallel port interface is provided in the machine. Readings upto 1000 complete runs/tests can be stored in the memory.

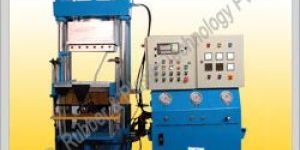

We are counted among the leading manufacturers and suppliers of hydraulic compression moulding machine. These hyd. Rubber molding machines are used for varied purposes. From thermosetting components to plastic sheets, ply boards, rubber sheets and from particle boards, medical parts, etc. To transmission belts, flap moulding belts, etc. These hyd. Compression molding machines are required. attributes smooth operationsrobust constructionperfect finishinglongevity used in conveyor beltstyre tube battery containersfootwearsole strapsoil seal compressioneva sheetsswitch gear

We are offering compression testing machine compression testing machine 2000 kn (200 tons) capacity (four pillar model) electrically operated fitted with dual display i.e load gauge 0-2000 kn x 10 kn/ division and digital load indicator 2000 kn x 1 kn/ division. The micro switch fitted in load gauge and relay contact in digital load indicator to protect the machine from overloading. The machine is suitable for operation on 440v, 3-phase, ac supply

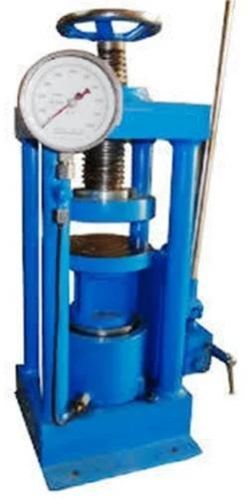

We manufacture and offer quality range of compression testing machines (Manually Operated, Manual Cum Electrically Operated Electronic)). These are widely used in construction, rubber, spring manufacturing and similar other industries where compressive strength of the material is required to be tested.

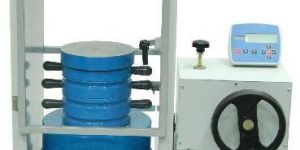

The Digital Compression Testing Machine has been designed to meet the need for a simple, economic and reliable means to test concrete for its compressive strength. The design emphasizes simplicity, both of construction and operation, and makes the machine easy to use and maintain. The unit is compact, making it useful for site applications. We bring for the clients Digital Compression Testing Machine of superior quality at affordable rates. Components LOADING UNIT : The loading unit is of fully welded construction having a cross head, base and solid plates/Two pillars for four pillars nut or welded type having a cross head, base model. PUMPING UNIT : The two speed pump facilitates rapid approach of the platens for daylight closure and also provides comprehensive control over the application of load. A control valve provides fine control over the loading rate for accuracy of pacing. The digital read-out unit, incorporates a 4-digit display, calibrated in KN and features integral load pacing in kN/sec. Maximum load is held and retained for approx 15 min, unless cancelled, using the panel mounted reset switch. Pace rate set for running the test can be maintained manually with the help of a bar graph indicator. Logged data printing facility through a parallel port interface is provided in the machine. Readings of runs/tests can be stored in the memory. Hydraulic jack is fixed to the base. The platens of the machine are hardened, ground and polished. The upper platen is provided with self-aligning action. To facilitate testing of various size specimens, suitable size spacers are provided complete with ball seating arrangement. Features Easy to controlCost-effectiveDurableResistance to rustSafeLow maintenance

We have in-depth expertise in designing and manufacturing a quality range of Vibrators & Compression Paver's Block Machine (Model No. R-03). The latest technology of these machines ensures high production capacity of 8000 blocks per shift. Some of the specifications of the range include the following:

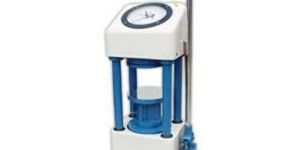

Compression Testing Machine Electrically-cum-hand operated. The machine embodies an Hydraulic system designed to meet the requirement of Indian Standards Specification 516-1959 for compression tests on concrete Cubes upto 5cm x 5cm x 5cm 7.06cm x 7.06cm x 7.06cm, 10cm x 10cm x 10cm and 15cm x 15cm and also concrete Cylinders upto 10 x 20cm, 15 x 30 cm height.

We are a well-known premium Manufacturer, Exporter & Supplier of Digital Compression Testing Machine based in Delhi, India. We are backed by a deft team of professionals who fabricate the Compression Testing Machine in accordance as per IS: 14858 2000 standard. Our Digital Compression Testing Machine is compact and reliable for testing concrete, cubes, etc., making it useful for site and laboratory applications.   Constructions : High stability Two / Four pillar load frame. Each frame tested for stability and alignment to avoid tension failure during a test and to ensure centre loading. A precise large diameter spherical upper platen for optimum results. Motorized hydraulic power pack or pumping unit with rapid approach and automatic over load protection. Comes standard with safety Guards on all four sides The Complete unit comprises a Loading Unit which is of Two / Four pillar model construction having a cross-head with a spherical seated platen. The lower platen is attached to the top of the piston. Pumping Unit attached to the loading unit by high pressure hydraulic flexible hose pipe. The pump facilitates rapid approach of the platens for daylight closure and also provides comprehensive control over the application of load. A control valve provides fine control over the loading rate for accurate pacing. Maximum load is held and retained for approx. 15 min, unless cancelled, using the panel mounted reset switch. Pace rate set for running the test can be maintained manually. Features : Separate displays for load indication and maximum range. Range for load indication corresponding to 4 – 20mA input digitally settable from front panel. Peak / Normal mode selectable. Up to 9 peaks can be recorded and recalled. Buzzer annunciation at Peak. Relay output for load limit detection with limit digitally settable. Digital tare provided to remove initial error. Non-volatile memory for saving configuration. Configuration lock at real to prevent tampering with Range. Aesthetically designed front panel with membrane switches.

This CTM is fitted with double plunger pump and hydraulic Load gauge of 200 mm dia. Portable Model. Top and bottom Fibre Cover. Available Model Model A : Capacity 1000 kN Model B : Capacity 2000 kN

Shake hands with us if looking out for Compression Testing Machine! We are a prominent Supplier and Exporter of Compression Testing Machine from Delhi, India. Compact design, Best in class and inclined functional life are the highlights of our Compression Testing Machine. We make sure that only flawless Compression Testing Machines are offered to all the buyers. It can be obtained from us at the economical prices.

Veekay Industries offers specifically designed Box Compression Testing Machine to quantify the container performance. This would ultimately cause the effect of various board mediums, closures and interior partitions to be plainly compared by means of Load & bend analysis. We proudly announce that our well designed Box Compression Testing Machine is manufactured and delivered to cater to the specific requirements of the various packaging industries. Features Digital display of the test numbering and initial pressure.Single phase power supplySpecific design

We offer portable and easy to operate Compression Testing Machine. These machines are suitable for mobile as well as field laboratories. We have designed this machine for test under compression bending, transverse and shear load. Features Simple controls for easy of operationsRobust staining frame of an extremely rigid constructionSafe operation ensured be means of safety devices Applications Test Physical strength propertiesMechanical strength propertiesPlasticsPackagingMedical devicesElectronic componentsTextilesMetals compositesPaper, etc. Compression Testing Machines (two Pillar Model)TICOM 501 :- Compression testing machine capacity 25,000 Kgf (250 KN), hand operatedTICOM 502 :- Compression testing machine capacity 25,000 Kgf (250 KN), motorised.TICOM 503 :- Compression testing machine capacity 50,000 Kgf (500 KN), hand operated.TICOM 504 :- Compression testing machine capacity 50,000 Kgf (500 KN), motorised.TICOM 505 :- Compression testing machine capacity 50,000 Kgf (500 KN), motorised with two pressure gauge of 25, 000 Kgf x 125 Kgf and 50,000 Kgf x 250 Kgf.TICOM 506 :- Compression testing machine capacity 100,000 Kgf (1000 KN), hand operated. TICOM 507 :- Compression testing machine capacity 100,000 Kgf (1000 KN), motorised with single pressure gauges.TICOM 508 :- Compression testing machine capacity 100,000 Kgf (1000 KN), motorised with single pressure gauges.TICOM 509 :- Compression testing machine capacity 100,000 Kgf (1000 KN), motorised with three Nos : pressure gauges.TICOM 510 :- Compression testing machine capacity 200,000 Kgf (2000 KN), hand operated.TICOM 511 :- Compression testing machine capacity 200,000 Kgf (KN), motorised with single gauge.TICOM 512 :- Compression testing machine capacity 200,00 Kgf (2000 KN), motorised with two Nos : pressure gauges.TICOM 513 :- Compression testing machine capacity 200,000 Kgf (2000 KN), motorised with single gauge.TICOM 514 :- Compression testing machine capacity 300,000 Kgf (3000 KN), motorised with single gauge.TICOM 515 :- Compression testing machine capacity 300,000 Kgf (3000 KN), motorised with three Nos. pressure gauges.

We are reckoned as the prime digital compression testing machine manufacturer, exporter and supplier in india. Our digital compression testing machine is provided with a pace rate indicator, which indicates pace rate on a bar graph. The pace rate can also be manually adjusted while the test is going on. comprises of loading unit : the loading unit is of fully welded construction having a cross head, base and solid plates. The hydraulic jack is fixed to the base. The platens of the machine are hardened, ground and polished. The upper platen is provided with self-aligning action. To facilitate testing of various size specimens, suitable size spacers are provided complete with ball seating arrangement.pumping unit : the two speed pump facilitates rapid approach of the platens for daylight closure and also provides comprehensive control over the application of load. A control valve provides fine control over the loading rate for accuracy of pacing. the digital read-out unit, incorporates a 4-digit display, calibrated in kn and features integral load pacing in kn/sec. Maximum load is held and retained for approx 15 min, unless cancelled, using the panel mounted reset switch. Pace rate set for running the test can be maintained manually with the help of a bar graph indicator. Logged data printing facility through a parallel port interface is provided in the machine. Readings upto 100 complete runs/tests can be stored in the memory.

Principal of operation: operation of the machines is by hydraulic transmission of load from the test specimen to separately housed load indicator. The hydraulic system is ideal since it replaces transmission of load through levers and knife edges, which are prone to wear and damage due to shock on rupture of test pieces. Load is applied by a hydro-statically lubricated ram. Main cylinder pressure is transmitted to the cylinder of the pendulum dynamo-meter system housed in the control panel. The cylinder of the dynamo-meter is also of self-lubricating design. The piston of the dynamo-meter is constantly rotated to eliminate friction. The load transmitted to the cylinder of the dynamo-meter is transferred through a lever system to a pendulum. Displacement of the pendulum actuates the rack and pinion mechanism which operates the load indicator pointer and the autographic recorder. application : fie compression testing machine is designed for test materials under compression bending, transverse and shear loads. Hardness test on metals can also be conducted. Salient Features FEATURES : The Compression Testing Machine Incorporates design features to enable high accuracy testing with economy, speed & versatility. Loading Accuracy as high as + 1% Straining at variable speeds to suit a wide range of materials. Continuous roll autographic recorder supplied as standard to enable study of the behavior of materials Motor driven geared shafts for quick effortless adjustment of cross-head-to facilitate rapid fixing of test specimen. High reading accuracy due to large size and design of dial. Wide range of standard and special accessories, including load stabilizer. Large effective clearance between columns enables testing of standards specimens as well as structures. Simple controls for easy of operation. Robust staining frame of an extremely rigid construction. Safe operation ensured be means of safety devices. Control Panel : The control Panel consists of a power pack complete with drive motor and an oil tank, control valves a pendulum dynamometer a load indicator system and an autographic recorder. Power Pack : The power pack generates the maximum pressure of 200 kgf/cm2 the hydraulic pump provides continuously non-pulsating oil flow. Hence the load application is very smooth. Hydraulic Controls : Hand operated wheels are used to control the flow to and from the hydraulic cylinder. The regulation of oil flow is infinitely variable incorporated in the hydraulic system is a regulating valve which maintains a practically constant rate of table movement. Load Indicator System : This system consists of a large dial and a pointer. A dummy pointer is provided to register the maximum load reached during the test. Different measuring ranges can be selected by operating the range selection knob. An overload trip switch is incorporated which automatically cuts out the pump motor when the load range in use is exceeded. Pendulum Dynamometer : This unit permits selection of favorable hydraulic ratios producing relatively small frictional forces. Pressurised oil in the loading cylinder pushes up the measuring piston proportionately and actuates the special dynamometer system. The piston is constantly rotated to eliminate friction. The dynamometer system is also provided with an integral damper and ensures high reliability of operation. The load transmitted to the dynamometer is transferred through a pendulum to the load indicator. Autographic Continuous Roll Load-Elongation Recorder : This unit is of the pen and drum type and is supplied as standard. The horizontal motion of the pen produces the load ordinate of the diagram and the drum rotation produces the extension ordinates in the ration of either 1:5 or 1:10. A continuous roll of graph paper is stored inside the drum and is easily replaced. Accuracy & Calibration : All FIE Compression Testing Machines are closely controlled for sensitivity, accuracy and calibration during every stage of manufacture. Every machine is then calibrated over each of its measuring ranges in accordance with the procedure laid down in BS : 1610 : Part 1 :1992 and IS 1828. An accuracy of + 1.0% is guaranteed from 20% from 20% of the load range selected to full load. Below 20% of the selected range, the maximum permissible error is 0.2% of the full load reading.

The machine is driven by 1 HP motor and is provided with S.S hopper. The compression pressure on the tablets, is controlled by adjusting a lever, the powder filled in cavity is controlled automatically by a moving feeder provided. The machine is complete with motor, Hopper, feeder, Tablets slider provided. The machine is supplied without dies punches
