Density Testing Equipment Dealers in Chennai

We are offering table top density meter. The rudolph table top density meter - ddm series are available in two models depending on their accuracy. It is available with video view™ bubble detection technique for accurate result while finding out the density of the sample is the basic function, there are many correlations for density including specific gravity, normality, brix%, baume%, hcl etc. The applications include pharma, food, beverage, chemicals, fine chemicals, petroleum, petrochemicals, lubricants etc

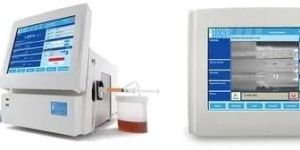

The density meter, also called the specific gravity meter, is an instrument used in laboratories and factories to measure the density of liquid samples. Of the many types of density meters available, the most popular and reliable version is the one based on oscillation of the U-tube. The underlying principle in this density meter is Archimedes’ principle in combination with microelectronics technology. How does a digital density meter work? The main component of a digital density meter is a U-tube. The liquid sample is injected into the U-tube and is subjected to excitation. The frequency of oscillation is measured by a piezoelectric or electromagnetic sensor.The frequency and duration of vibration enable determination of sample density. Since the vibration frequency and density have a linear relationship, measuring the vibration frequency of the oscillating U-tube gives you an accurate value of density. KEM’s DA-130N Kyoto Electronics Manufacturing Co., Ltd. manufacture their own line of portable instruments in Japan, with the portable density meter being an important product. The portable density meter, named DA-130N, is widely used by many major food producing companies because of its compact and ingenious design. The DA-130N can be used to analyze liquids with a viscosity of up to 2000 mPa*s. It has a port through which samples can be injected into the U-tube by means of a syringe. Being a microprocessor-controlled system, it weighs just over 350 gms with a working principle that is approved by the American Society for Testing and Materials (ASTM).  Calibrating a portable density meter Calibrating any instrument is a must, especially when used for quality control. Calibrating your instrument helps you take note of any error that would have crept into your instrument as a result of wear and tear over the years. Calibration is the process of comparing a known measurement, called the standard, with the measurement obtained using your instrument at hand. In the case of calibrating a portable density meter, the standard in most cases is distilled water. On dropping a few drops of distilled water onto the prism, the LCD display in the instrument must show a reading of 0.997 g/cm3, which is the density of distilled water. DA-130N feature highlights •Displays measurement of density, specific gravity, temperature compensated density, specific gravity, percentage of Brix, alcohol concentration, sulfuric acid concentration, API degree, Baume degree, Plato degree, and Degrees proof. •Operation can be performed in a single hand. •Separate housing of electronics which protects them from volatile samples and fumes from acids. •Auto-inactivity detection, which increases the life time of batteries.  •In-built data storage of up to 1100 values.  •Option to export data to personal computer via IrDA. Uses of portable density meters •Quality of petroleum and fuels. •Analysis of volatile liquid samples.  •Testing of batteries.

The DIMF series density/concentration meter is based on the oscillating element principle. The fluid to be measured flows through the oscillating element (a tuning fork for Type 1.3 and an oscillating tube for type 2.0) that is excited electromagnetically and will oscillate at its natural frequency. Changes in the density of liquid passing through will lead to changes in the oscillating frequency. Electronic transducers pick up these frequency changes and convert it in to a signal that is proportional to the density or concentration of liquid. FEATURES Density Range: 0 to 5g/cm3 Operational flow rate ranges: 0 to 50 l/min Measured variable available in standard 4-20 mA output signal or HART communication protocol Direct measurement of density, reference density or concentration Robust construction leads to long life and high reliability Very high accuracy and repeatability Simple installation Resistant to vibrations and pressure changes or flow rate changes Applications Major applications for DIMF series are process control and quality monitoring of fluids in all areas of industry. The device can be used for density mass flow conversion for custody transfer in connection with corresponding volumetric meters and flow computers.

Tap Density Tester, Dissolution Testers, Tablet Disintegration, Teste

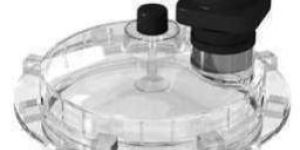

Sdi Kit, Pressure Tubes, Domestic Reverse Osmosis System
