Industrial And Commercial Heaters Dealers in Chennai

IHCO FLANGED IMMERSION HEATERS are designed to be attached to flat surfaces of tanks or mating flanges in order to heat liquids. The number of hairpin-shaped elements varies according to wattage and size of flange.   Construction and Features   FLANGE Material and rating- 150 pound Carbon steel (sizes available: 3″, 4″, 5″, 6″)   Elements   SHEATH MATERIAL Sizes available: .440, .315 HOUSING Incoloy for immersion in materials corrosive to copper and stainless steel and high heat environments (to1600o F) Stainless Steel for environments corrosive to copper (1200oF) Copper for water heating and Liquids not corrosive to copper (to 350o F) NEMA 1- without thermostat options TEMPERATURE CONTROL Thermostat option (see previous page) Thermocouple may be spot welded to element sheath CIRCUITS Single-phase: one or two elements Three-phase: three, six or nine elements Number of elements possible by Flange size: 3″- 1, 2 or 3 4″- 2, 3, 4 or 6 5″- 2, 3, 4, 6, 8 or 9 6″- 2, 3, 4, 6, 8 or 9

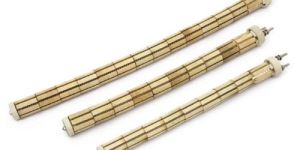

DIGIQUAL’S Bobbin type heaters Ceramic Cartridge Heaters are made of helically would resistance coil stretched and strung through series of open type ceramic insulators. The elements is centrally supported by SS 304 rod. For high temperature applications SS 316 (or) SS 310 rod are used for center support

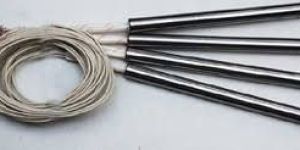

Elmec High Watt Density Cartridge Heaters are manufactured with most advanced technology and quality raw materials, enables usage with high watts in small spaces and advanced manufacturing process ensures our heaters are vibration proof and thus ensures excellent reliability in heavy duty working conditions (Like Plastic Processing, Printing, Packaging and automobile industries where the heaters are subjected to heavy vibrations). The high performance is achieved by correct installation of the cartridge heaters. The perfect fitness of the heater in the hole facilitates good heat exchange between the surfaces of heater and mass to be heated thus increases the heater life and reduces energy loss.

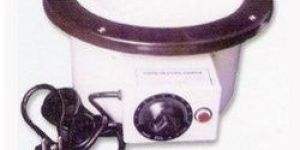

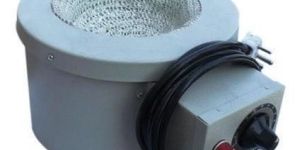

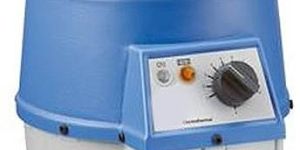

Heating mantles are made of thick gauge of spun aluminium with powder coated finish of attractive color. The heating elements out of Nichrome wire on helically wound coil form safety insulated by fibre glass sleevings which in turn is attached to knitted glass fabric, to give flexible support to the flask. The heating elements so, designed operates at black heat conditions, ensuring uniform heat transfer thus avoiding bumping of contents of flask. Mantles are duly insulated by glass wool. The mantle gives maximum surface temperature of 450 ºC. which is controlled by a energy regulator, suitable for operation on 230240V AC 50HZ.

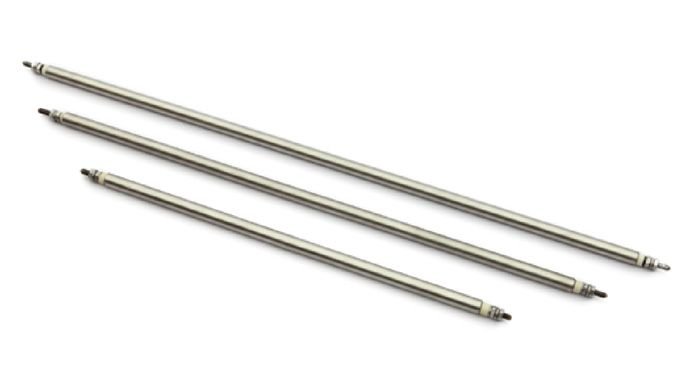

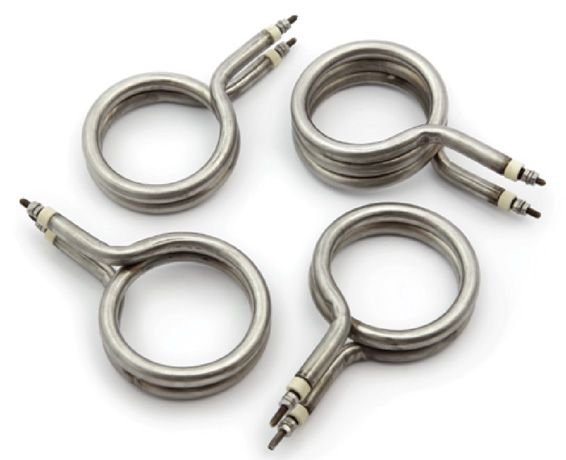

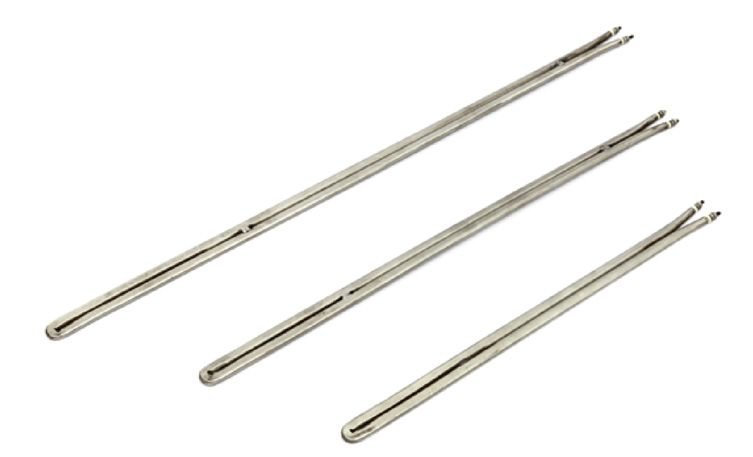

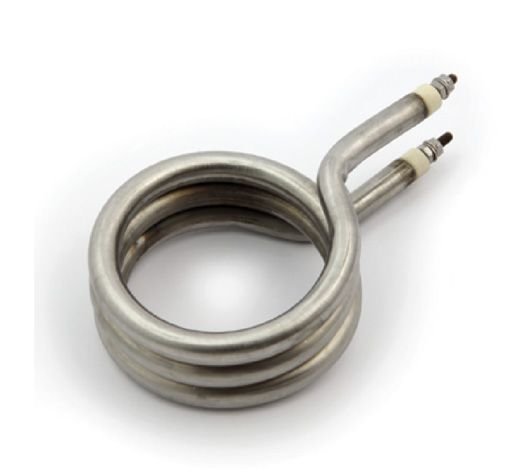

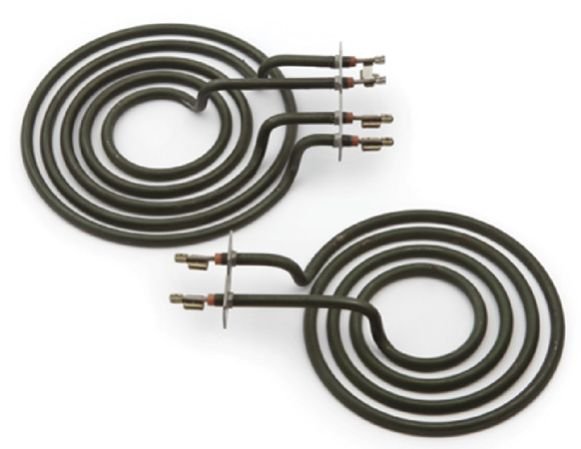

Highly compressed Tubular heaters are the most advanced heating solution for injection manifolds. The square section tubular heater allows excellent heat exchange between the surfaces of heater and manifold.

The aluminium casting heater, offered by us, is made from quality aluminum, brass & gunmetal material ensuring long service life. Our aluminium casting heater can be manufactured in different configurations to form any cast-in-heater shape. The aluminium casting heater, provided by us, offers efficient heat transfer and uniform surface temperature. why our aluminium casting heater? uniform heating can be formed into several configurationsuniform heat transfer efficient surface temperature available in aluminium, brass & gunmetalvariety of standard designs & styles

With three heat control and energy regulator. Maximum Temp. : 450° C.Capacity : 50ml, 100ml, 250ml, 500ml, 1 Liter, 2 Liter, 3 Liter, 5 Liter, 10 Liter, 20 Liter, 50 Liter, 100 Liter, 200 Liter.

Strip Heaters are typically used in clamp-on installations and convection-style air heating. Strip heaters are commonly bolted or clamped to a surface for freeze protection and moisture protection, tank and kettle heating, air heating, air ovens, load banks, and other applications involving dies, molds, plastic forming and sealing.

Mica Band Heaters are manufactured by using superior quality nickel chrome and advanced technology at our vendors’ end. They are offered in different sizes as per the needs of clients. Our Mica Band Heaters are high on performance, corrosion resistant, and have great tolerance capacity. Moreover, they give hassle free operation for a long time period. We offer Mica Band Heaters at economical prices.

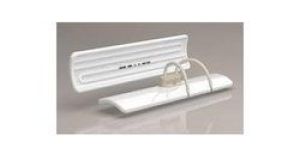

Micro Electric Corporations Ceramic infrared heating elements are efficient, heaters which provide long wave infrared radiation. They are used in a diverse range of industrial processes such as thermoforming, paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared applications Micro electric Corporations Ceramic elements operate in the temperature of 300°C to 700°C (572°F - 1292°F) producing infrared wavelengths in the 2 - 10 micron range. Most plastics and many other materials absorb infrared best in this range, which makes the ceramic heater the most efficient infrared radiant emitter on the market. A range of aluminised steel reflectors are also available to ensure that most of the radiation generated is reflected forward on to the target area. Our Infrared Heaters are designed to produce maximum output in form of heat energy. They are constructed by a firmly burnt-in heating coil. The heater incorporates highly heatproof resistance wire that provides safety against any damage. We supply Custom Wattage Infrared Ceramic Heaters as per the requirement of our clients.Longer service life is achieved since the resistance of the heaters is made to remain constant over the whole temperature range. The glaze used in this heater has excellent radiation properties therefore the radiation efficiency is also very high. This heater is available with Color Changing Feature as Yellow Ceramic IR Heater (CC FSR). Our Ceramic Infrared Heaters are available in two standard models1. Full Length 245mm(FSR) 60mm 250 to 1000W2. Half Length 122mm (FSR/2) 60mm 125 to 50
