Vibrating Feeder Dealers

We are offering vibratory feeder. electro magnet powered vibrator feeder developed by us contains high frequency reciprocating machine of light duty, capable enough for conveying bulk material from storage to processing or between processes at continuous controlled rate of flow. Vibrating feeders are used in processing industries for handling any type of material like hot, damp, lumpy, dusty or abrasive for various functions like flow of material from storage, proportioning, blending, packaging, mixing, weighing, sprinkling and batching. Vibrating feeders are available along with base mounted, over hanging or combined single magnetic drive or with twin or dual twin magnet drives or with multiple drives for serving as vibrating conveyors. These feeders have tray mounted on the drive units that is located beneath the tray consisting of two sets, leaf springs connected to the mounting bracket, an electromagnet with armature and solid cast iron base. When magnetic coil of feeders is energized it gives horizontal vibrations to the tray, which ensures free, smooth, uniform, volumetric flow to the material that is fully variable from dribble to surge by externally step less with the help of a knob provided in the control panel. The vibratory feeders we supply are available in variety of trough size and shapes as per is: 8723 – 1978. These feeders are supplied through half wave rectifier resulting into 3000 vibrations per minute at 50 hz. The amplitude of vibrations can vary to the feed rate externally with the help of variance provided in control panel. As there is no moving mechanical parts inside power unit such as gears, motors, eccentric weights, chains and bearing so it is absolutely maintenance free and no down time for process industries. The vibratory tray is heavily fabricated duly stiffened with angles. Wear resistance plate is also provided for varying abrasive materials in the tray that is made for individuals requirements. The best part is that it can be made dust tight. System is fitted with powerful electromagnetic coils, made from double fiberglass covered copper wire suitable for class h insulation for excellent result. The coil is molded in specially formulated resin to withstand any type of atmospheric condition.

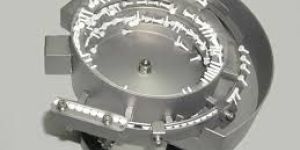

We manufacture Vibratory Bowl Feeders. Manufactured and specifically designed to effectively handle material requiring high feeding rates. Known for optimum efficiency and low maintenance requirement, incorporated with several advance features, these are reasonably priced and hence, demanded heavily across several industries.The Vibratory Bowl Feeder, offered by us, are highly appreciated by our clients, who are based all across the globe. While manufacturing these products we ensure to use high quality raw material, so the the feeders we deliver are in compliance with all the international quality standards. Some of the key factors of these feeders are as follows:Feeding components in orientationVibratory bowl feederLinear VibratorSmall parts ConveyorRotary FeederFor sorting & counting also

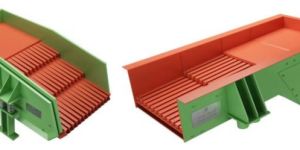

Precisely engineered, Grizzly Vibrating Feeder promises continuous, uniform feeding of raw material into the crusher in Mineral & Mining Industry, Construction materials, Silicate, Power sector, Steel sector, Cement Industry, Chemical Industry, and Foundries. Grizzly Vibrating Feeder is powered by Vibro motors for maximum efficiency & output. Features Custom designed & built Designed for maximum efficiency & output Heavy duty unbalanced Vibro motors Adjustable amplitude of vibration Heavy duty, rugged construction Stress Relieved Adjustable & replaceable grizzly bars Easy to maintain & operate Abrasion resistant lined bed and side plates Abrasion resistant grizzly bars Extend crusher life by reducing wear Increase crusher efficiency Reduce crusher power consumption Rugged single mass technology No exciter springs required No natural frequency tuning required Easily replaceable grid bars Stepped deck grids enhance screening efficiency Driven by world class electromechanical drives Designed to meet your exact requirements Wide range of achievable capacities Working Principle Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the further crushing, so screening purpose can be reached. Vibratory Motor The Grizzly feeder is suitable to feed primary jaw crushers, selecting the large sizes which require primary crushing, the smaller sizes and any fines which must be eventually rejected.The Grizzly vibro feeder consists of a very large vibraring body made of thick plate with inside lining of anti-abrasive plate. The Grizzly vibro feeder is driven by two or four vibrating motors. The vibro feeder(which may either be placed on a steel or concrete base) rests on spring Calculation of Grizzly Bar Section Area Required The area needed for the Grizzly Bar Section may be calculated from the following empirical formula and tables. The resulting figure provides a guide to the Grizzly Feeder model required. Grizzly Bar area (m2) = Tonnes per hour of undersize Capacity/m2 A x Factor B x Factor C Electrical Control Equipment Grizzly Feeder may be supplied complete with Variable Feed Rate Controllers. They incorporate the very latest frequency inverter technology for applications that require frequent adjustment of the feed rate.For other applications twin vibrator phase reversal braking starters which enable the unit to stop within seconds may be suitable. The number of stop/ starts that may be made per hour is limited depending upon conditionsConsult us about your Electrical Control Equipment requirements Industries Using Grizzly Feeders Power Mining Aggregates Recycling Concrete Quarries Key Benefits Robust construction Adequate springs are selected to withstand heavy shock loads due to feed material. Wear plates are provided on all exposed surfaces for long life. Heavy duty exciters to induce large stroke and high force required to deliver run of quarry from dump hopper. Simple eccentric drive system. Easy maintenance. Easy to adjust stroke length by adding or removing the weights Easy to adjust stroke angle Applications Metallurgy, Coal Mine, Mineral Separation, Gold Ore Processing, Artificial Sand, Building Waste Recycling, Building Material, Chemical Industry and Abrasive Industry, etc.

We offer vibrating feeders are most efficient and economical technique of conveying bulk materials and, what are more important the simplest and best means of controlling the speed of flow or feed. Our vibrating feeders are extensively utilized in iron and steel works, collieries quarries, mines, chemicals, ceramics, rubber, clay and glass industries for handling all kind of materials. Features high performance easy to install and maintain stable vibration, robust and reliable

Vibratory Bowl Feeder, Hydraulic Lifter, Bucket Handle

Vibratory Feeders, Bin Vibrator, Magnetic Separators, Metal Detector

Vibratory Feeders, Magnetic Roll Separator, Industrial Crushe

Vibratory Feeder, Metal Detector, Magnetic Separato

Vibratory Feeders, Magnetic Filters, Magnetic Pulley, Magnetic Equipment

Vibrating Feeder, Conveyors, Oil Skimmer, Pulverizers, Hammer Mil

Vibratory Feeder, Heating Furnaces, Mesh Belt Furnac

Vibrator Feeder, Metal Detector, Magnetic Separator, Magnet Plat

Vibrating Feeder, Magnetic Separators, Vibratory Motor, Vibrating Feeder

Vibratory Bowl Feede
