Static Cone Penetrometer (Hand Operated)  IS    4968 (Part III)  IT CONSISTS OF:  Penetration Cone, steel 600 angle 10cm2 base area with friction jacket- 1 No Mantle Tube, non-uniform, 36mm OD at the two ends and reduced dia in between with sounding rod working length 1m- 15 Nos. Load Measuring Head, with Automatic Cut   off valve and Oil Can, without Pressure Gauge – 1 No. Pressure Gauge 0-60 kg/cm2 – 1 No. Pressure Gauge, 0-160kg/cm2 – 1 No. Screw Anchor with Bolt- 4 Nos Anchor Driving Handle – 1No T-Rod – 1 No Spanner – 1No

Material : Steel, Non-uniform Mantle Tube

Packaging Type : Assorted

Packaging : Multiple Components

Usage : Soil Penetration Testing

Base Area : 10cm

Pressure Gauge Range : 0-160 Kg/cm

Available from 100 to 2000 Kn Capacity Load Frame Plate type heavy duty frame Pumping unit : powr pack (compact) with release & fine controlling of pressure. Load indicator with 0.1 kn least count available in 220/440 V

Material : Mild Steel

Automatic Grade : Semi Automatic, Fully Automatic

Driven Type : Hydraulic, Electric

Country of Origin : 440V, 220V

In these load frames “C” channels are used, they are welded at the top as well as bottom and with stand high loads. A hydraulic jack is fitted at centre of the base of the load frame, over which can be fitted lower platen and spacer block with the help of centering pin. A lead screw passes through the top of the frame.  To the lower end of this lead screw is fixed the upper platen with spherical seat for self alignment. The platens are accurately machined, hardened and polished. The lower platen grooves to correctly place the specimen. Note:The platens are normally rectangular on shape, but no special request square platens or circular platens can be supplied at an extra cost. Ranges: 50 kN to 2000 kN

Brand Name : ALE

Material : Mild Steel

Driven Type : Hydraulic

Automation Grade : Manual

Capacity : 50 to 2000 KN

Heavy Duty oad Frame Both digital & Analoge model available from 250 Kn to 3000 KN capacity available in 220v & 440 V Made in Inda

Capacity : 250 kn t0 3000 kn

Packaging Type : wooden

Power Supply : 220 or 440 V

Automatic Grade : Electrical

Brand Name : ALE

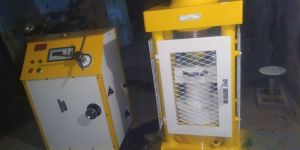

LOADING UNIT: The loading unit is of 4 Pillar type construction having a cross head, base and solid plates. The hydraulic jack is fixed to the base. The platens of the machine are hardened, ground and polished. The upper platen is provided with a heavy duty screw having spherical seating for self-alignment to facilitate testing of various size specimens, the screw can be moved upward or downward. PUMPING UNIT:The Electrical pump facilitates rapid approach of the platens for daylight closure and also provides comprehensive control over the application of load. A control valve provides fine control over the loading rate. The digital read-out unit incorporates a 5-digit display, calibrated in KN Maximum load is held after test completion. unless cancelled, using the panel mounted reset switch.Logged data printing facility through a parallel port interface is provided in the machine.

Brand Name : ALE

Material : Mild Steel

Driven Type : Hydraulic

Automatic Grade : Semi Automatic

Capacity : 0-3000kn

Country of Origin : 440V, 220V

Availability : 500 kg approx.

The load frame is made up of high quality steel construction with a fixed. Upper lead carrying a ball seated platen. 4 pillars /channel frames are fixed to the base and the top plate of the loading frame. The upper and lower plates are adjusted with the help of head screw on either side of the pillar. The ram dia of the machine varies from the requirements of the customer. The lower pattern are at the base of the frame above the ram and it is rectangular in shape. Sufficient clearance is provided between the platens to fit in the cylindrical/ cube moulds. Spacer provided to adjust cubes and cylinders.  3 pressure gauge 500 kn, 1000 kn & 2000 Kn, 20 cm dia pressure gauge with maximum load induction pointer is fitted on the top panel and in turn is connected to the hydraulic pressure pipe. On the right hand a console is fitted within which the electrical motor is fitted along with its coupling which inturn is connected to the pumping unit. A slow / fast loading rate regulator fixed on the top of the console for adjusting the rate of loading. The machine is duly calibrated and passed after inspecting.

Material : Mild Steel

Capacity : 0-500 KN, 0-1000 Kn, 0-2000 KN

Packaging Type : wooden

Power Supply : 220 or 440 V

Automatic Grade : Electrical

Brand Name : ALE

  TECHNICAL SPECIFICATIONS   •      Large key catching display - 7” touch Screen operation •      Capacity 100 KN - 3000 Kn •      Load Least Count 0.1 kN •      Spherical seating arrangement on upper platen for self-centering to apply load in equal proportion on the sample •      Type of pumping: Reciprocating Pump servo motor controlled for precise load •      Automatic Release the load after performed the Test through Software. •      accuracy of ± 1%  •      Pace rate controlled through dedicated software from 0.5 kn/s to20 kn/s. •              Facility to access data through USB •               Load v/s Time graph generating automatic on Touch Display directly •               Automatic report generation after test, hue storage capacity of 10000 logs •               Facility to insert different shapes and area in the Touch screen  controller to calculate direct reading in KN •               Comes with Flexural & Aggregate testing mode •      4 Pillar Type Heavy Duty Load Frame. •      Platen with hardness is 55 HRC and flatness tolerance 0.03 mm, 305 mm Gap between Platens.    SAFETY FEATURES   •      Max. pressure valve to avoid machine overloading·  •      Piston  travel limit switch, Travel limit 50 mm·  •      Emergency stop button.  •      And Door Close Safety Switch       LOADING FRAME   4 Pillar Type Heavy Duty Load Frame having a top cross head, base  with precision ground hydraulic piston fixed to the base    Heavy duty spherical seating arrangement allowing initial free alignment at the initial contact with the specimen and automatic jamming up to the end of test.   Hardened, ground & polished platens. Heavy duty upper platen with oil filled ball seating arrangement for high stability.

Brand Name : ALE

Finishing : Color Coated

Condition : New

Power Source : Electric

Automation Grade : Fully Automatic

Application : Industrial

Feature : Fine Finished, Good Quality, Good Strength
