Concrete Testing Equipment Dealers in Ashok Vihar, Delhi

We are recognized in the global market as one of a prominent Flexure Testing Machine Manufacturers, based in India. Using premium grade components, we have developed Flexure Testing Machine, which is ideal for testing mortar samples for flexural strength. We offer Flexure Testing Machine at the most discounted price in the Industry. Features : Rugged constructionPerfectly measures loadAptly transmits the applied loadTrouble free operationLow maintenanceCompetitive pricing Applications : Pharmaceutical IndustryResearch InstitutionsChemical Industry Flexure Testing Machine 100 KN For 100 x 100 x 500 mm & 150 x 150 x 700 mm Beam : Hand OperatedElectrically Operated

his is a double lever (leverage 1:12) loading machine and the load is applied by flow of lead shots, which automatically stops when the sample breaks. The load is applied at rate of 450 to 550 Nminute (45 to 55 kg minute) or 2000 Nminute (200 Kgminute) and the accuracy of load indication is �± 2%. The sample is mounted between rollers 40 mm dia or12 mm dia. Bearing Rollers can be placed at center distance of 150 mm, 200 mm, 250mm or 270mm as the case may be. Complete with 20 Kg lead shots

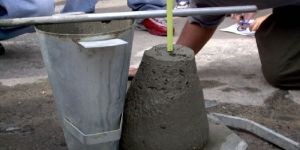

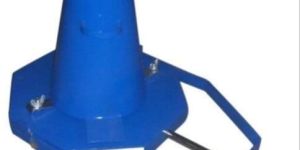

We manufacture superior quality Slump Test Apparatus conforming to BIS –7320. The apparatus is widely used for the determination of workability of concrete where nominal size of aggregate does not exceed 38 mm. It finds applications in various industrial tests. Slump Test Apparatus is designed with precision to offer the maximum efficiency and high performance speed. We design our Slump Test Apparatus to cater to the varied specifications of the clients. Features The apparatus comprises of a slump cone with foot pieces fitted on a base with wing bolts.A swivel carrying handle fitted with the base also serves as a datum for measuring the slump, when moved into vertical position perpendicular to the base.A graduated tamping rod is used both for compressing the specimen as well as measuring the slump of concrete.The slump cone is filled with freshly mixed concrete and is tamped with a tamping bar in three or four layers. Working The top of the concrete is leveled off with the top of the slump cone, the cone is lifted vertically up and the slump of the sample is immediately measured.

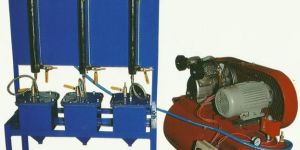

We are one of the prominent concrete permeability manufacturers, exporters, and suppliers, based in india. The direct shear test is carried out with an apparatus consisting of a square divided into two halves. The specimen, contained in the box, is subjected to a constant normal load while an increasing horizontal force is applied to one of the section of the shear box. This force causes a shear failure along the junction between the box sections. The shear force and the normal load are measured directly. The rate of strain is adjusted by the speed of the horizontal force applied. The loading unit has v-strips on which the shear box housing rests. Our direct shear machine is suitable for specimens of size 60 x 60 x 25mm. ref. Standard is:2720 (part 13), bs 1377, astmd 3080 ordering information concrete permeability apparatus, 3 cell model for 100mm cubeconcrete permeability apparatus, 3cell model for 100mm cylinberconcrete permeability apparatus, 3cell model for 150mm cubeconcrete permeability apparatus, I cell model for 150mm cubeconcrete permeability apparatus, 3cell model for 300mm cylinberconcrete impermeability apparatus, 3cell model for 150mm cube as per dlnstd to enquire about the desired product(s), just check the box and then click �inquiry now� button which is provided below.
