Concrete Testing Equipment Dealers in Delhi

Tile Flexure Testing Machine is used to determine the flexural strength of clay roofing tiles and cement concrete flooring tiles. We are one of the leading manufacturers of Tile Flexure Testing Machines. Our machines are manufactured using best raw materials to ensure good functionality and durability. Functionality :The Tile Flexure Testing Machine is a double lever loading machine where load is placed by a flow of lead metal that automatically stops as the sample breaks. The sample is mounted between rollers which are 40mm or 12mm in dia. Bearing rollers can be placed at center distances of 150, 200 or 270mm. The unit comes equipped with a 20 Kg lead metal.

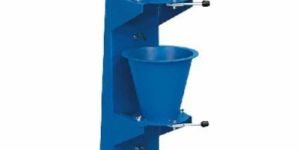

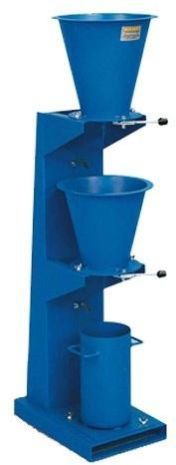

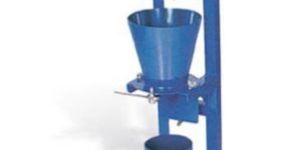

Product Code: EKE 337Standrad: IS:5515   A useful tool for workability determination of concrete mixes of very low workability such as those normally used with concrete, compacted by vibration. Concrete Mix having maximum size of aggregate not exceeding 38 mm, can be tested for workability. Apparatus is complete with hoppers and receiver assembly, EKE 345 Tamping Rod of 16 mm dia x 60 cm long, a Hopper and one plasterer's Trowel.

STI-1001 IS: 654, 1237,1706For clay roofing tiles (Mangalore Pattern) and Cement Concrete Flooring Tiles. This is a double lever (leverage 1:12) loading machine and the load is applied by flow of lead shots, which automatically stops when the sample breaks. The load is applied at rate of 450 to 550 N/minute (45 to 55 kg minute) or 2000 N/minute (200 Kg/minute) and the accuracy of load indication is ± 2%. The sample is mounted between rollers 40 mm dia or12 mm dia. Bearing Rollers can be placed at center distance of 150 mm, 200 mm, 250mm or 270mm as the case may be. Complete with 20 Kg lead shots Abrasion Testing MachineSTI-1002 IS: 1237, 1706The tile sample is pressed under a specified load against a grinding path, strewn evenly with an abrasive powder, revolving at the rate of 30 ± 1 rpm. At the end of 100 revolutions of the disc, the second parallel side of the tile is subjected to wear for an equal number of revolutions of the disc. The wear of the tile is measured using thickness-measuring device (which is supplied at extra cost). The abrasion-testing machine consists of a replaceable grinding path, fitted on to a disc rotating about its vertical axis. The rotating disc and the grinding path are enclosed by a circular tray. A bracket holds the specimen. The loading is by a counter-balanced lever. A funnel is provided to facilitate charging the grinding path with abrasive powder. Supplied complete with automatic preset revolution counter and one 7.5 kg weight, but without abrasive powder and thickness measuring device. Suitable for operation on 220V, 50 Hz, 1 phase, AC Supply. Optional ExtraThickness Measuring Device with Dial Gauge, having 25 mm travel and 0.01 mm least count

Rebound hammer test is conducted to find out the compressive strength of concrete by using rebound hammer. The rebound of an elastic mass depends upon the hardness of the surface when it strikes. When the plunger of rebound hammer is pressed against the surface of the concrete, the pring controlled mass rebounds and the extent of such a rebound depends upon the surface hardness of the concrete.

Veekay Industries is ranked among the prominent Concrete Test Hammer Manufacturers, Exporters and Suppliers. Our Concrete Test Hammer instrument is easy for quick and estimated measurement, of the resistance to pressure of the produced concrete products. The principle, on which our Concrete Test Hammer works, is based on the rebound impact of a hammer on a piston, which rests beside the surface of the concrete products. The greater the resistance of the concrete, greater will be the rebounded impact. By reading this rebound impact on a scale and relating it to curves on graphs supplied with the Concrete Test Hammer, the resistance to pressure in MPa or PSI can be found, with 20%.

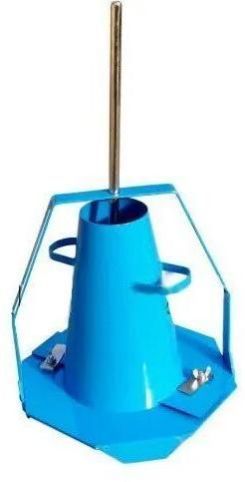

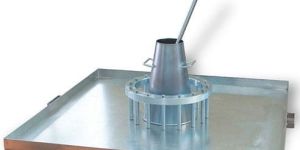

The J-Ring test is used for determining the passing ability, the flow spread and the flow time of self compacting concrete as the concrete flows through the J-Ring apparatus. The J-Ring narrow gap with ø18 mm x 16 smooth bars is manufactured from stainless steel. The Slump Cone is made from sheet steel protected against corrosion, with diameters; top 100 mm, base 200 mm and with a height of 300 mm. The Base plate is 900x900x3 mm square, made of stainless steel with engraved circles of 200 mm and 500 mm diameter conforming to EN 12350- 8. The Steel weighted collar is used to stabilize the slump cone on J-Ring or slump flow tests. Minimum apparatus for the J-Ring test are J-Ring with narrow gap and slump cone.

The Schmidt Hammer Digi-Schmidt was developed for the non destructive measurement of the concrete compressive strength and controlling the uniform concrete quality.

We are offering ultrasonic pulse velocity. Unbeatable pundit® lab features measurement performance; optimized pulse shaping, atomated transmission settings for optimum performance and a range of new, more powerful transducers ensure accurate, stable measurements. Integrated waveform display; allows analysis of the received signal and manual triggering directly on the instrument. On-line data acquisition; full remote control of all transmission parameters, data logging function and functionality that turns your pc into an oscilloscope. Usb interface and data analysis software; data analysis and export to third party programs. Open interface; control pundit lab using third party software such as lab view. new features in pundit® lab+ integrated gain stage; removes the need for an external amplifier when using exponential transducers and long cables. Compressive strength measurement; conversion curves for strength estimation can be created in the software and uploaded to the instrument to give instant strength estimations on site. 1combined estimates with rebound hammer; sonreb curves may also be uploaded onto the instrument for improved compressive strength estimates in combination with rebound hammer measurements. Time stamp; a real time clock has been integrated to provide a time stamp to every measurement recorded. Review list; saved measurements may be reviewed directly on site without the need for a pc connection. an extended range of transducers a complete range from 24 khz up to 500 khz for various applications including: • improved 54khz and 150khz transducers; a new design with improved performance to increase range and stability. • improved 54khz exponential transducers; a new design with improved performance. When used in combination with pundit lab+ no external amplifier is required. • 250khz shear wave transducers; for use in combination with standard p-wave transducers to measure the dynamic elastic modulus of the material under test.

This apparatus used for determining the slump of fresh concrete as a measure of its consistency. It consists of a pressure-tight flanged cylindrical measuring bowl, fitted with a removable flanged and a conical cover assembly with a seal in-between. The conical cover has an air valve and a petcock for bleeding off the water. A cylindrical standpipe, which is graduated in percent air content, is fixed to the conical cover assembly. Required pressure is applied to the specimen with the help of a pressure bulb. The recommended limits specified for the air content are between 3% and 6.5%.Each apparatus is supplied complete with a calibrating cylinder, pressure gauge, funnel, trowel and tamping bar.

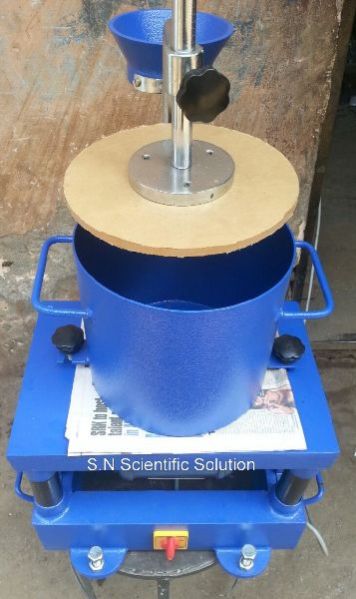

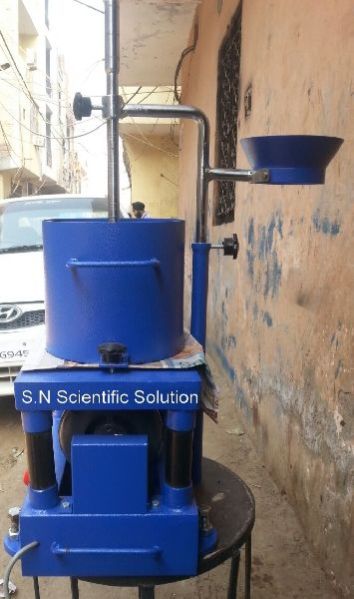

The Vee bee consistometer measures the remolding ability of concrete under vibration. The test results reflect the amount of energy required to remold a quantity of concrete under given vibration conditions. The Vee bee consistometer is applicable to concrete with slumps less than 2 inches. The apparatus, consists of a metal cylindrical container mounted on a vibrating table, which produces a sinusoidal vibration, a slump cone is placed in the center of the cylinder and filled in the same manner as in the standard slump test. After the slump cone is removed, a clear plastic disk is set atop the fresh concrete. The Vee bee table is started and the time for the concrete to remold from the slump cone shape to the shape of the outer cylindrical container is recorded as a measure of consistency. The sliding clear plastic disk facilitates the determination of the end of the test. Consists of: A vibrating table, size 380mm long and 260mm wide, resting upon elastic support at a height of about 305mm above the floor, complete with start/stop switch cord and plug A holder is fixed to the base into which a swivel arm is telescoped with funnel and guide sleeve. The swivel arm is also detachable form vibrating Table. A graduated rod is fixed on a swivel arm and at its end a plastic disc is screwed. The divisions of scale on the road record the slump of the concrete in millimeters. Supplied complete with a sheet metal. Container with lifting handles which can easily be fixed to the vibrating table. A slump cone open at both ends with lifting handles and a Tamping rod of size 16mm dia and 600mm long, rounded at one end. AS PER IS: 1199

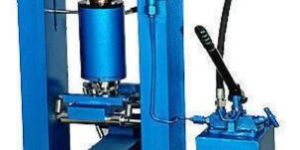

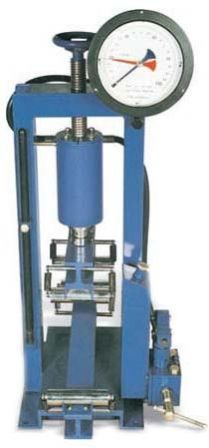

Our company is premium Manufacturer, Supplier and Exporter of Flexure Testing Machine from Delhi, India. The Flexure Testing Machine offered by us is in compliance with norms set by industrial regulatory bodies. Our machine is tested on stringent quality parameters to ensure that clients receive a defect free product. Customers can acquire small and bulk orders of Flexure Testing Machine from us at highly affordable rates. Features : Light weight, rugged high strength frame Double action hydraulic pump Self-aligning roller assembly Hydraulic jack provided with retraction spring For testing beams of 100x100x500mm and 150x150x700m Conforms to IS:516, BS:1881 AND ASTM C78   Models available : EKE 331 100kN Flexure Testing Machine with double action pumping unit manually operated. EKE 332 100kN Flexure Testing Machine with Electrically operated Pumping Unit, fitted with 1 H.P. motor, suitable for operation on 415 V. 3 phase A.C. Supply
