Concrete Testing Equipment Dealers in Sarai Rohilla, Delhi

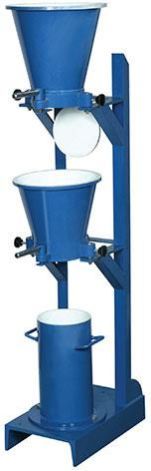

It consists of two rigid conical hoppers and a cylinder mounted on a rigid metal frame. The lower openings of the hoppers are fitted with hinged trapdoors having a quick release catches. A circular metal plate is provided to cover the top of the cylinder. Supplied complete with one plaster's trowel and one tamping rod, 16 mm dia x 600 mm long, both ends rounded.

Veekay Industries is a notable Vee Bee Consistometer Manufacturer, Exporter and Supplier from New Delhi, India. Our Vee Bee Consistometer is required for determining workability and consistency of fresh concrete. A slump cone and a graduated rod supplied with the Vee Bee Consistometer helps the operator to find out slump values and vibration table along with container. The acrylic disc of our Vee Bee Consistometer is used to find out workability of concrete expressed in vee bee degrees, which is defined in seconds to complete required vibrating at which the fresh concrete flows out sufficiently to come in contract of the entire face of acrylic disc. Specifications Vee Bee Consistometer comprises of a vibrating table of size 380mm long and 260mm wide, resting upon elastic support at a height of about 305mm above the floor, which is completed with start/stop switch, plug and cord. A holder is fixed to the base in which a swivel arm is telescoped with funnel and guide swivel arm is also attachable from the vibrating table. The divisions of scale on the rod record the slump of the concrete in millimeters. Our Vee Bee Consistometer is supplied with a metal container with lifting handles, which can easily be fixed to the vibrating table. A slump cone open at both ends with lifting handles and a tamping rod of size 16mm diameter and 600mm long rounded at both ends.

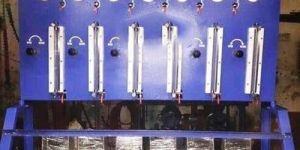

A concrete structure is considered to be of adequate durability if it performs in accordance with its intended level of functionality and serviceability over an expected or predicted life cycle. Concrete durability depends largely on the ease (or difficulty) with which fluids (water, carbon dioxide, oxygen) in the form of liquid or gas can migrate through the hardened concrete mass. Concrete is a porous material. Therefore, moisture movement can occur by flow, diffusion, or sorption. We are concerned with all three, but generally the overall potential for moisture in concrete by these three modes is referred to as its permeability. The set up consist of permeability cell, water reservoir and pressure lines, with glass bottles. Consists of a metal cylinder with a ledge at the bottom for retaining the specimen, a flange at the top, removable cover plate and a funnel. A rubber gasket is seated in matching grooves, between the cell and the cover plate, to render the joint water tight. Internal working size of the cell will be 100mm dia X 100mm height. Consists of a length of metal pipe, 50 to 100 mm in diameter and about 500 mm long. The reservoir fitted with a graduated side arm gauge-glass for admitting water and compressed air and a cock for drainage, bleeding and connection to the permeability cell. Heavy duty armored rubber hose with end fittings. Complete with glass bottles but without compressor. For specimen size 100 X 100 mm Concrete permeability tester for three specimen of (100mm dia x 100mm height) or (150mm dia x 150mm height) or (150mm cube) is also available. Relevant Standard: IS: 3085

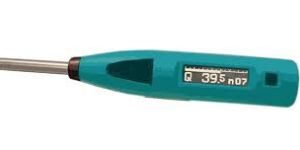

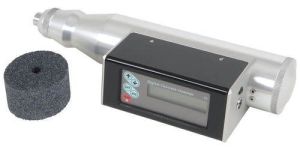

kEWIL Concrete Test Hammer Useful for non-destructive estimation of quality of concrete of a finished structure and its relative compressive strength. The instrument consists of a casing in which a hammer mass, special spring, hammer locking and release mechanism are housed. A spherical ended plunger projects at one end which, when pressed against the test surface, actuates the release mechanism of the hammer mass. It gives an impact on the plunger. The hammer mass rebounds after the impact and an indicator registers the amount of rebound on a linear scale. The compressive strength of the material can be computed from the calibration diagram supplied with each hammer. It gives results within +15% of actual compressive compressive strength.

WE are the leading Manufacturer, Exporter & suppliers of Shrinkage Bar Mould from india. Shrinkage Bar moulds for the determination of soundness. The change in length of the specimen is determined by Length Comparator listed in the concrete section, In addition to this we customized Shrinkage Bar Mould as per the requirement of the customer.

Ultrasonic Pulse Velocity Tester, Hardness Software, Abrasive Cut Off Wheel
