Die Cutting Machines Dealers in Delhi

It adopts high quality material and high tension of casting. It adopts four-shaft bevel wheel structure with steady operation, great cutting, low noise. It adopts air brake clutch with flexibility, reliability and safety. Connecting rod adopts 45# carbon steel with high strength. Sound and layout of its height, great angle of frame. It adopts micro-adjusting gear device with high precision. Electrical system is designed according to IEC standard. It has three functions for single slitting, successive slitting, time delay. Its scope can be adjusted. Safety protection system is reliable. Centralized lubricating system.

1: Feeding unit： Chain feeder, side baffle fixed position, electrical machine units separating and collecting, pneumatic locking, Relax, Alarm bell, Alarm light instruction counting, host motor speed adjusting control. 2: Printing unit Printing roller diameter is φ460mm(including printing plate diameter is 472mm) ,surface grinding hard-chrome plating, balance adjusting, crosswise movement ±7mm. Pressing line wheel is φ110mm, pressing roller diameter is φ180mm, Surface hard-chrome plating. Feeding rollers gap cross-shaped driving adjustment 2~11mm. Printing & pressing roller: diameterφ133.5mm, surface grinding, hard-chrome plating, balance adjusting, Printing & Pressing roller gap adjustment is automatic, distance is 0~10mm, Steel Anilox Roller diameterφ174mm, steel pipe surface grinding, pressing net lines, hard-chrome plating; can choose Net lines 180~220, Air pressure automatic go up and down device (When feeding, Anilox roller go down to touch the printing plate, when stop feeding, Anilox roller go up to separate the printing plate). Auto suction ink supplying device, Anilox roller rotate automatically cycling supplying ink, the surface will not dry when host machine stop, rubber roller diameterφ179mm, surface packed wear-resisting rubber, rubber roller special grinding, rubber roller gap adjustment is automatic, distance is 0 ~3 mm.

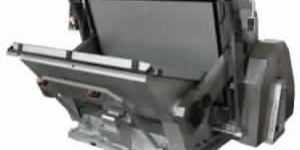

QI D 670 creasing die cutting machine is a semi-automatic machine for creasing and cutting ordinary paper board, card-board, corrugated board and plastic sheets. This flat press indentation line cutter is applicable for printing, packaging, plastic production, and so on. The creasing and cutting machine enjoys the advantages of compact structure, stable performance, high precision, convenient use and safe operation.   Features   The flat press indentation line cutter’s body adopts high quality materials with high strength and good rigidity. Flywheel has high torque and big cutting pressure. Sliding bearings of creasing and cutting machine are made of high quality cast copper alloy that features wear resistance and vibration reduction. Monolithic electromagnetic clutch is sensitive and reliable. This flat press indentation line cutter possesses single pressure cutting, continuous press cutting and opening delay. The delay range is adjustable. Creasing and cutting machine’s security system is adjustable. Design of the operation height is reasonable. The opening angle of pressure frame is big. Main part of this die cutter includes plain bearing, flywheel, body and monolithic electromagnetic clutch. This flat press indentation line cutter can be equipped with internal and external activity plate frame and centralized refueling device. (Standard configuration is the external activity plate frame) For maintenance of this creasing and cutting machine, we should remember to do centralized oiling and lubrication every day.

Our Die Cutter has been listed among the must have coin packing machines available in the market. The unique design and construction ensures easy to use nature and trouble free working of the Die Cutter Machines.

Die Cutting Machine or Platen Punching & Creasing Press particularly designed for Die Cutting, Scoring and Creasing Work on PAPER, LINOLEUM, CARD-BOARD, CORRUGATED BOARD, FIREBOARD, CORK, LEATHER, PLASTIC AND PVC MATERIALS etc. Most Handsome and compact patronized Model requires Minimum Flooe-Space. Minimum “Make-Ready” Time and provides sufficient hourly production. Basic Description The very sturdy construction of “FRIENDS” Die Cutting Machine or Platen Punching & Creasing Press guarantees for perfect works under heaviest conditions.Frame, Platen & Main Gears made of special high tensile Cast Iron are resistant to deformation even if subjected to greatest strain. The platen is driven from the ball bearing mounted shaft through a pair of reduction spiral gears protected by guards.The main gear shaft and connecting arms are mounted on Phosphor Bronze bushes.The reduction gear shaft is made of hardened high quality alloy-steel. Lubricated counter- pressure elements prevent the gears from deviating under the work pressure.

Creasing and Cutting Machines are special equipments for creasing and cutting ordinary cardboard, corrugated board, plastic and leather in general, applicable in printing, packing, decora- tion and plastic industries. Major Features:1. High strength due to one piece casting by using top quality materials for machine body. 2. Smooth running, big pressure and low noise are obviously remarked as 4-step helical gear mechanism is adopted. 3. Operational altitude is reasonably arranged.Moving-bed opens toits optimum. 4. Electrical system is designed in conformity with IEC standard. 5. Concentrated lubricating system.

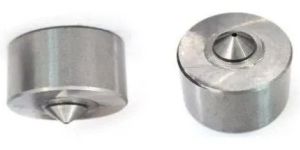

Ashirwad engineering india is a reliable name, which is acknowledged by clients for the manufacturing and exporting of die face cutters. We offer a wide range of die face cutters, which includes air cutting. The smooth performance and user-friendly nature of our die face cutters are is the prime factor of their consistently raising demand. Die face cutter range die face cutter(air cutting) die face cutter used for conveying negligible heat die face cutter made form alloy steel mild steel stainless steel die face cutter attributes maximum output utilizes water in cutting rubber and plastic cut softly hardest pvc precision engineered easy maintenance compatible with moisture free compounds

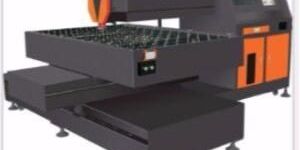

We offer die board laser cutting machine. Features: * imported 200w laser * dual ball-screw transmitting system, mitsubishi servo motor, provide high precison motion control * fixed beam passing system, panented by worldcut, allows for high accurate processing on the entire work area. * imported chiller, specialized for laser systems * touched auto following system adjust the focal posisiton following metal's uneven surface

This machine is the main processes in cardboard boxes production can be cardboard pressure, grooving Cutaway, drilling, a one-time die-forming hand-clasping (special-shaped cardboard boxes, cartons exception). Aircraft imported gifted of the blade arc (Yuen Yuen pressure used serrated blade) imports cutting knife pad (Yuen Yuen pressure to use the talents of plastic), which after processing the cardboard knife smooth, achieving Cutaway, grooving No Burr, burr.

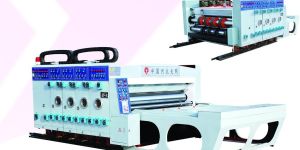

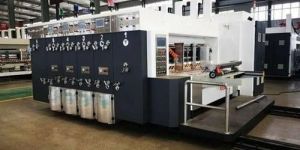

Printing slotting die cutting machine Completes the process of printing (up to 5 colours), slitting, die cutting, creasing, trimming, angle cutting, grooving and punching all at once Accurate colour extraction, low maintenance, easy operation, high automation, perfect printing pattern and rapid drying.Spray circulation in the oil panel in order to enhance the life of the machinery parts.

When it comes to Double Die H.M. Machine, the name of Laxmi Industries is recognized as a successful Manufacturer, and Supplier in market. We manufacture Double Die H.M. Machine as per laid industrial norms, thus this machine provides impeccable performance over period of time.

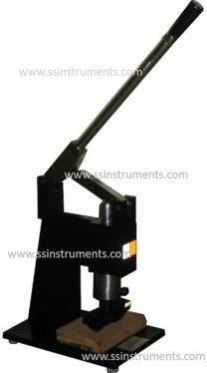

The company is a well-known Specimen Cutter Manufacturer, Exporter and Supplier in many parts of the globe. We are offering Specimen Cutter that is high on quality. Clients highly acknowledge our Specimen Cutter for its reliability, durability and efficient performance.
