Innovative Instrument Dwarka, Delhi

We are offering weighing balance.automatic internal calibration with built in weight · a built in under hook for below weighing · easy to read vfd display · density measurement for solid and liquid · standard rs 232 c interface · high resolution, quick weighing, accurate result · based on e.m.f.c. Technology · s.s.weighing pan, level indicator, adjustable fit · tare range upto max. Capacity of the balance.

We are offering water bath.our serological water bath is double walled and inside is made of stainless steel and outer is made of mild steel duly painted with backed enamel paint. Range 50c above ambient to 90°c & controlled by thermostat. Complete with mains indicator & perforated tray. Cover is provided at the top. inside chamber size 300 x 250 x 175 mm (2 racks) 325 x 300 x 175 mm (4 racks) 450 x 300 x 175 mm (6 racks) 600 x 300 x 175 mm (8 racks) optional accessories digital indicator cum controller and stirrer can be fitted

We are offering vacuum oven.our vacuum ovens are double walled, inside of stainless steel, outside of mild steel. Cylindrical inner chamber and the gap between outer chamber and inner chamber is filled with glass wool insulation. The door of vacuum oven has a thick toughened glass window of 7” dia that gives excellent visibility into the chamber and the same is sealed with rubber gasket. Digital temperature controller, vacuum gauge, thermometer pocket, stainless steel shelves with holes also provided with vacuum oven. Two valves provided for exhaust and entry of air. Electric heating by elements placed around the chamber. Temperature range 50 °c to 150 °c. Approximate vacuum achievable 740 to 760mm.

We are offering universal testing machine.innovative universal testing machines are designed and built to conduct tests on materials under tension, compression bending, and transverse and shear loads. The innovative utms are used for determining the tensile, compression, shear strength and elongation of variety of raw materials such as metals, rubber, leather , fabric, plastics, belts , wires etc. they are based on constant rate of traverse principle in which one end of the test specimen is held in a stationary grip, while the other end is made to move at a known fixed speed. The load exerted on the stationary grip indicated by a digital load indicator. The controller is microprocessor based and has the facility of over load protection, peak hold and auto calibration. The load directly indicated in kilograms or newton or kn. the elongation of the test specimen is measured on a linear scale (or digital indicator according to the model) fixed on the frame of the tester, which indicates the distance between the grips.the frame of the tester fabricated from mild steel to give the required rigidity and strength. the tester is finished in metallic painting/powder coated and bright chrome/ zinc plating to give the apparatus a corrosion resistant finish. It is supplied complied with electrical, which include micro-switches. Push buttons, and contactors for safe and convenient operation. features loading accuracy as high as ±1%. training roll autographic recorder supplied as standard to enable study of the behavior of materials. high reading accuracy due to large size and design of dial. wide range of standard and special accessories, including load stabilizer. Easy change from plain to threaded and screwed specimens. motorized loading and unloading cycle. large effective clearance between columns enables testing of standard specimens as well as structures. simple controls for ease of operation. safe operation ensured by means of safety devices. fully enclosed and protected pendulum.

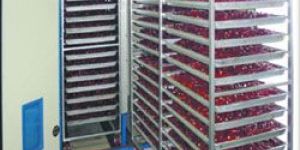

We are offering tray drying oven.innovative trolley/tray drying ovens are provided with trolleys for placement of products. These trolley/tray drying ovens are ideally suited for variety of thermal applications, such as component testing. These ovens are used for variety of purposes. materials can be loaded and unloaded easily. In trolley ovens, trolley with shelves are used for placement of product. In this oven, doors on two sides can also be provided and two trolleys can be used to increase the production and save the batch timings. Temperature range upto 3000c.

Application : Laboratory

We are offering test sieves.standard test sieves help in ascertaining possible frost action, determining graded, filters, selection of grating materials, designing of cement and asphaltic, concrete mixes etc. test sieves 20 cm dia are fabricated out of spun brass, without joint frame, double folded bottom, having beading at top, tightly fitting with each other (endcott pattern), with brass wire mesh. Three series are normally available: bss/astm/bis. test sieves 20 cm dia fine series ts/fs

We are offering Tensile Testing Machine. The designing of our digital tensile testing machine is done according to the astm d-638 along with confirming to other quality standards. Our range of digital / computerized tensile testing machine is offered as semi-digital, fully digital and as per the citations of our clients. These are used to perform tests such as flexural and compression test by adjusting the grip accordingly. along with research activities, following are some of the materials which can be tested on by our digital tensile testing machine: • composites and rigid plastics • low force materials • paper • films • rubber • textiles

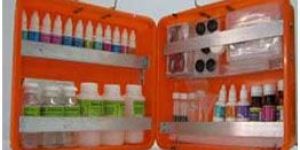

We are offering soil testing kit.in agriculture, a soil test is the analysis of a soil sample to determine nutrient content, composition and other characteristics, including contaminants. Tests are usually performed to measure fertility and indicate deficiencies that need to be remedied. evaluated by icar (indian council of agricultural research) cost effective and user friendly. Avoids wastage of time needed to carry the sample to a lab. All major nutrients of soil like, nitrogen, phosphorous, potassium and in addition ph and organic carbon can be tested. Near accurate results. Quick testing method. Unwanted usage of fertilizers can be avoided. Thus attributes to environmental preservation.

Material : Stainless steel

Country of Origin : 220 volts

Application : laboratory

Temperature Range : 35 degree to 60 degree

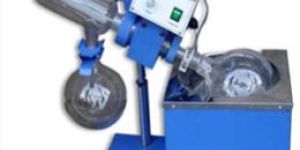

We are offering rotary vacuum evaporator.the rotary vacuum evaporated apparatus consists of an evaporated flask rotated by non sparking induction motor in a heating water bath. Vacuum distillation of solvent at high and low temperature is achieved quickly and efficiently by use of a fixed speed motor, which prevents foaming and bumping of the liquid (solvent) into the evaporating flask and also distillation under controlled atmosphere. The evaporating flask is pear shaped to give a large surface area of evaporation and is clamped to a glass duct which goes through the drive unit and protrudes about 120mm into the condenser. The condenser is fitted with standard joint at the top and the bottom for receiver flask. The unit is fitted with a quick action jack.

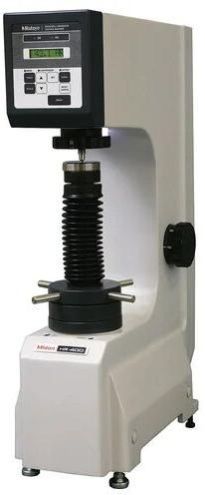

We are offering Rockwell Hardness Testers. Innovative rockwell hardness testers are used for testing hardness of metals and alloys of various kinds. These are simple in design and easy to use in labs, colleges, tool rooms and inspection departments. innovative hardness testers models are manually operated. All these models are suitable for testing hardness of metals & alloys of all kinds hard or soft, whether flat, round or irregular in shape. These testers strictly conform to is: 3804-1988, bs: 891 parts 1&2, astm:e18 for rockwell test, is: 2281-1983, bs: 240, astm:e10 for rockwell test & is: 5073-1988, astm:e18 for rockwell superficial test. model : automatic load selection with automatic zero setting dial gauge. Manual operation. model : semiautomatic operation for production testing. Drive motor single phase 230v 50 cycles.

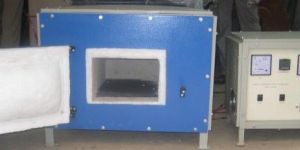

We are offering muffle furnace.we are leading manufacturer of wide range of general purpose bench top laboratory muffle furnace and industrial furnace, especially built for laboratories and production industries where accuracy and safety are foremost requirements. Our muffle furnaces are easy to install and operate. Our muffle furnace are designed for maximum temperature 950°c to 1500°c and working temperature of 900°c to 1400°c. Controlled by sunvic energy regulator, outer body is made of thick mild steel sheet, with gray enamel paint. The apparatus is complete with pyrometer, thermocouple and a silver fuse wire is also provided for the safety of elements in case temperature rises above maximum.

We are offering micro kjeldahl digestion apparatus.this innovative micro kjeldahl digestion apparatus is with 6 (six) glass receivers, flask with 100ml.the kjeldahl digestion apparatus is useful for estimation of nitrogen content in the substance by digestion in micro flasks of capacity 50/100 ml. The house is made of mild steel stand and pair of hangers etc.

We are offering laboratory incubator.laboratory incubator is a device used to grow and maintain microbiological cultures or cell cultures. The laboratory incubator maintains optimal temperature, humidity and other conditions such as the carbon dioxide (co2) and oxygen content of the atmosphere inside. Laboratory incubator are essential for a lot of experimental work in cell biology, microbiology and molecular biology and are used to culture both bacterial as well as eukaryotic cells. We are leading manufacturer of laboratory incubators in india. laboratory incubator construction : the unit is a double walled chamber, with glass wool / puf insulation. The interior of laboratory incubator is made of stainless steel and exterior is either made of mild steel finished in powder coating paint (powder coating on both sides of the mild steel) or stainless steel. The unit has full-length inner glass door and outside metal door with magnetic gasket and lock. The incubator is provided with perforated stainless steel trays. Forced air circulation for uniform temperature. Pu wheels for easy move ability.

Country of Origin : 220 Volts

Availability : 450 Kg

Country of Origin : 380V

We are offering impact testing machine.innovative impact testing machine is specifically designed for conducting izod & charpy test. Impact testing machine is suitable for testing raw material specimen as well as finished components. components & working of impact testing machine pendulum of the machine is mounted on antifriction bearings contains two starting positions, the upper one for charpy and the lower one for izod testing the pendulum on release swings down to break the specimen and the power absorbed in doing so is calculated as the variation between the height of drop before rupture & height of raise after rupture of the test specimen the output is read from the maximum pointer on the dial scale offered with self centering tong v - notch milling cutter u - notch milling cutter caliper gauge for checking v notch for izod & charpy depth notch gauge including v & u notch, angle & radius controls of pendulum the pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for charpy & the lower one for izod testing. On release, the pendulum swings down to brake the specimen and the energy absorbed in doing so is measured as the difference between the height of drop before rupture and the height of rise after rupture of the test specimen and is read from the maximum pointer position on the dial scale. (it is read on digital readout in case of electronic machines.) there are two strikers and one combined support available for lifting in to the pendulum and on to the base of the machine for izod, charpy test, changing from one striker to another is achieved simply by fixing the new striker into it's position. charpy test : the charpy test piece rests on alloy support anvils, fitted on the base of the machine rigidly held in position by allen screws. End stopper is provided for quickly and accurately locating the test piece centrally between the supports. izod test : the izod test is clamped vertically in izod support fitted on the base of the machine. The support is provided with a machined vertical groove to suit the test piece size. The front clamp piece and the allen screw enable clamping of the test piece in correct height with the help of izod setting gauge supplied.

We are offering hot air oven. hot air oven uses dry heat to sterilize articles. Hot air oven is a thermostat controlling the temperature. Hot air ovens are digitally controlled to maintain the temperature. the hot air oven is created from double-walled construction that is designed to hold in heat and reduce energy output. Double walled, inside stainless steel and outside made of mild steel finished in superior quality enamel paint, glass wool insulation 65 mm between the two walls ensuring maximum thermal efficiency. Heating elements are placed in ribs at the bottom & sides. Temperature range ambient to 250 °c. Sensitivity and temperature uniformity +- 0.5°c to +-1 °c. Dial setting approximate correct temperature is as read on thermometer. Suitable to work on 220 volts a/c. precise hot air drying & sterilization better mineral / glass wool / blanket insulation keeps the surface of the instruments from being burnt silent hot air blower, unique design of air circulation provide throughout uniform air movement & improved temperature distribution unique design of ventilation keep keep the surface of the instrument from being burnt even when the instrument i.e. Oven temperature maintained at above 2000c polish 304 grade s. Steel interior, corrosion resistant long life operation heaving adjustable shelves to make more space for different height kanthal a-1 super quality coil shaped heaters duly embedded / wound on the sides and bottom for better accuracy best quality bi-metallic hydraulic capillary thermostat, full features with digital temperature controller cum indicator
