Magnetic Level Switches Dealers in Delhi

(9 products available)
  • Premium
    Magnetic Float Level Switch +5

    Magnetic Float Level Switch

    4,500 - 50,000 / Piece

    • MOQ1 piece
    • Country of OriginIndia
    • Mechanical Life2 Year
    • Operating Temperature120 Deg. C (45 Deg. C For PP Models)
    • CertificationISO 9001:2008 Certified
    • UsageResidential, Industrial
    • Brand NameLFIA
    • Materialstealness steal
    • MountingTop
    • MOCSS304 / SS316 / PP
    • Operating Pressure10 kg/cm2
    • Switch Contact Rating1 Amp. Each
    • HousingAluminium/PP
    • ConnectionUpto 3000mm
    • Supply24V DC
    • Magnetic Float Level Switch units are housed tightly in SS or PP, and the permanent magnet is sealed into the middle of the specified float ball. The float up and down at the specified po-sition by graduating rings. When the float internal magnet approaches the reed switch, it will actuate the reed switch contact point to create an open or close cir-cuit. Sensors are available in SS/PP moc & made in different lengths for single or multiple levels sensing of liquids. SS are used in food grade and high temperature application. Application : Diesel, generator facilities, petrochemical, Condensate, acids, chemical, beverages, milk, juices, oil, cooling tower, etc. Features : Multiple point level switches in single level switch. Employing to power actuate the reed switch requires no power These float level switches are more cost effective than other level switches in terms of multiple points. The housing protection is at least IP65. The reed switch and lead wire are isolated with liquids absolutely. Magnetic Float Level Switch units are housed tightly in SS or PP, and the permanent magnet is sealed into the middle of the specified float ball. The float up and down at the specified po-sition by graduating rings.When the float internal magnet approaches the reed switch, it will actuate the reed switch contact point to create an open or close cir-cuit. Sensors are available in SS/PP moc & made in different lengths for single or multiple levels sensing of liquids. SS are used in food grade and high temperature application.Features: Multiple point level switches in single level switch Employing to power actuate the reed switch requires no power These float level switches are more cost effective than other level switches in terms of multiple points The housing protection is at least 1P65 The reed switch and lead wire are isolated with liquids absolutely. Applications: Diesel, Generator facilities, Petrochemical, Condensate, acids, chemical, beverages, milk, juices, oil, cooling tower etc
    ...more
    www
  • Premium
    Magnetic Level Switch

    Magnetic Level Switch

    Get Price Quote

    • ApplicationMagnetic Use
    • Voltage200VDC, 230VAC
    • Frequency50HZ, 60Hz
    • Power0-5Amp, 10-15Amp, 5-10Amp
    • Temperature0Dig C To + 60Dig C
    • Hole Diameter0-20mm, 20-40mm
    • Setting Range0-1500pF, 1500-3000pF
    • Malhotra Bros & Co. is a well-known Magnetic Level Switch Manufacturer and Supplier in Delhi. The Magnetic Level Switch goes through several quality-checks, which ensure its top-notch quality. The Magnetic Level Switch is an economical, maintenance free and reliable device used for high, low or intermediate point level switching. The Magnetic Level Switch is for tanks with inaccessible tops or bottoms and where insertion depths of top mounted models are exceeded. Construction & Operation Compact and rugged construction, consisting of a free moving float assembly and a switch enclosure in non-magnetic material to achieve undisturbed magnetic flux. It employs dual magnets- one carried out by the float arm and the other by the contacts carriers, housed in the switch enclosure. A change in the liquid level brings the like poles of the dual magnets opposite to each other, and resulting repulsion force ensures a change-over of contacts, of the switch housing. These Magnetic Level Switches come in various non-magnetic materials and construction styles to suit board range of medias/applications. It is designed to provide high repeatability and to minimize effects of shock, vibration & pressure. Installation Mounted internally or external through a chamber. External mounting is resorted to, where space is a limiting factor or mechanical devices like stirrers operate within the tank. Besides, in applications like boilers, reaction kettles etc., with external mounting, isolation are possible for regular servicing The switch is normally side-mounted; however for applications like slurry, vertical-installation is preferred On no account must a switch be used for the direct starting of burners, heaters, Motor-pumps, alarm, It is essential that the contacts are wired in series with the relay coil (N/V coil) in a contactor starter Applications Manual start & auto off in storage tanks Oil storage tanks to indicate high level, low levels or filling the tanks automatically Condensate receivers to control the operation of an electrically driven condensate pump Main water storage tanks to control the action of the pump used for filling or emptying the tank, automatically In baby boiler auto control of Pump motor & Electric Heater For the control and indication of liquid levels in vessels under vacuum In storage and service tanks on board ship to give indications in the Engine Room when the level in the tank is too high or too low Where a number of level switches are employed they can be supplied together with a suitable indicator and Alarm Panel embodying signal lights and an audible alarm system.
    ...more
    www
  • Side Mounted Magnetic Level Switch

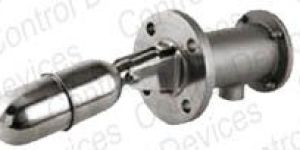

    Side Mounted Magnetic Level Switch

    Get Price Quote

    This system has a side mounted flange. Float is fabricated out of the material suiting the service or fluid in the vessel When the level rises above the actuation point The float buoys up along with the level rise and actuates the magnetic switch which is kept inside the stem. The closure of the switch can operate a contactor or relay to indicate the level rise or decrease. Advantages : • Simple and proven Design, operates in most liquid. • Minimum maintenance and trouble free operation, Low cost of owenership Application : • High Low level signals for alarm Annuciation. • Safety interlock circuits Automatic Pump Control • Solenoid Value Control • Prevention of tank overflows. • Pump safegaurd against dry running.
    ...more
  • Magnetic Level Switches

    Magnetic Level Switches

    Get Price Quote

    Magnetic Level Switches, Electrical Float Switche
  • Magnetic Switch SS-05 for Water Level Controller

    Magnetic Switch SS-05 for Water Level Controller

    Get Price Quote

    Magnetic Switch SS-05 for Water Level Controller, Magnetic Contact Switc
  • Magnetic Coupling Level Switch

    Magnetic Coupling Level Switch

    Get Price Quote

    Magnetic Coupling Level Switch, Labelling Machinery, Float Level Switc
  • Magnetic Level Switch

    Magnetic Level Switch

    Get Price Quote

    Magnetic Level Switch, Ancillary Parts, Boiler Part
  • Low Level Magnetic Switch

    Low Level Magnetic Switch

    Get Price Quote

    Low Level Magnetic Switch, Digital Card Based Water ATM, Magnetic Flow Mete
  • Magnetic Float Level Switch

    Magnetic Float Level Switch

    Get Price Quote

    Cirrus Magnetic float Level sensor is one of the versatile & efficient means of liquid Level controlling. It combines reliable design with wide range ...
