Vertical Switch Dealers

(8 products available)
  • Premium

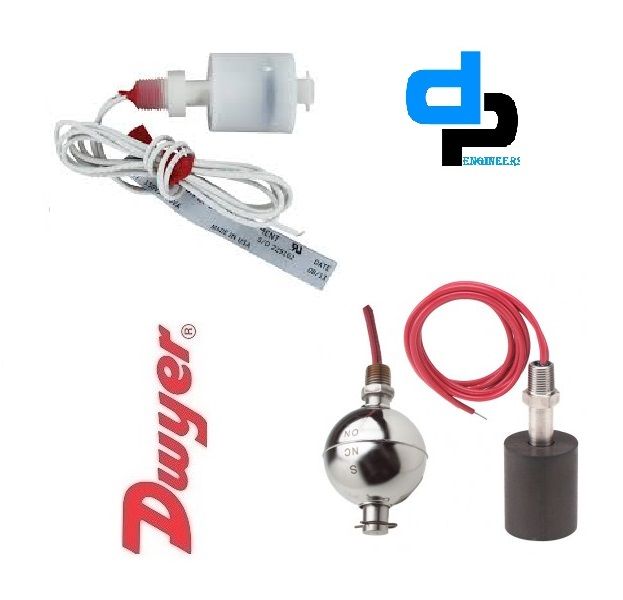

    Level Switches Vertical +6

    Level Switches Vertical

    Get Price Quote

    • Brand NameDWYER USA
    • CertificationYAS
    • UsageCompatible Liquids
    • TypeLevel Switches Vertical
    • Voltage0.08 A @ 240 VAC
    • Power0.08 A @ 240 VAC
    • Temperature31: 14 To 176°F (-10 To 80°C).

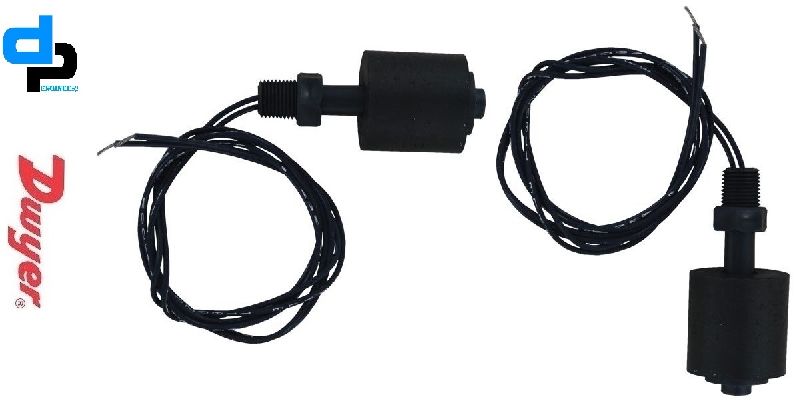

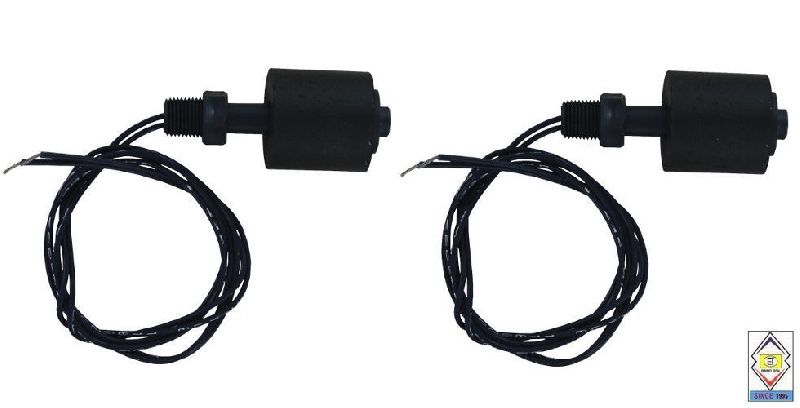

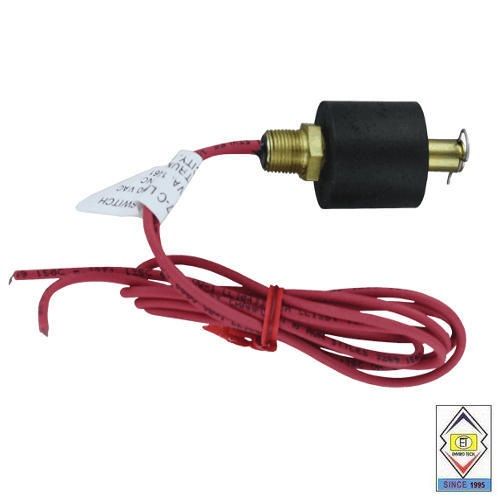

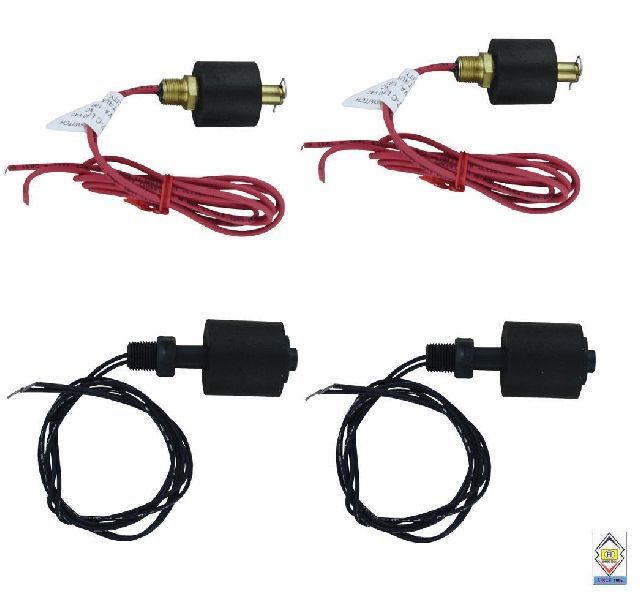

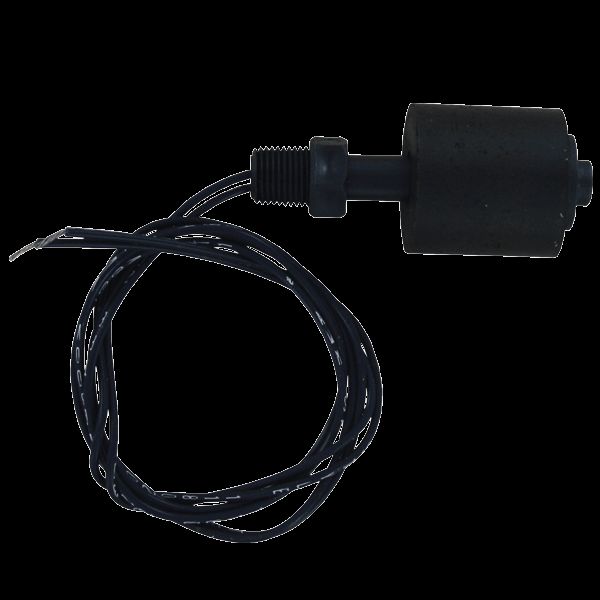

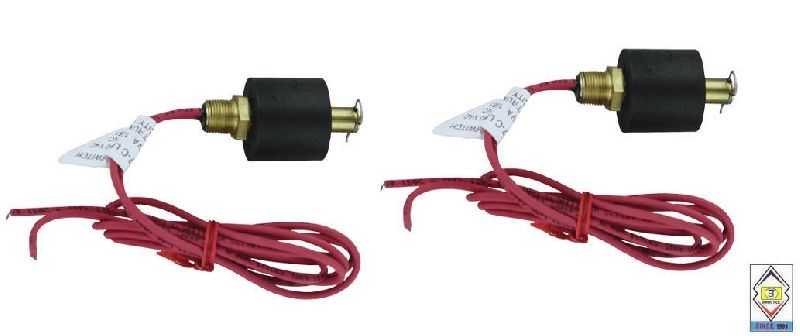

    • Level Switches Vertical Series F6 & F7 Level Switches - Vertical Low Cost, Reliable and Compact, Hermetically Sealed Contacts The Series F6 & F7 Vertical Level Switches are designed to be mounted at the maximum or minimum level point to provide level indication and control. Models are shipped with normally open switch contacts which close as the float rises toward the mounting threads. Product Applications Water level monitoring Oil level control Chemical level indication SumpsStand pipes Tank level control High viscosity liquids Specifications Series F6 Service:Compatible liquids. Wetted Materials:See model table on catalog page. Temperature Limit:F6-SS & F6-MHS: -4 to 257°F (-20 to 125°C). F6-HPS-11, 21, 31: 14 to 176°F (-10 to 80°C). Pressure Limit:F6-SS & F6-MHS: 218 psi (15 bar). F6-HPS-11, 21, 31: 116 psi (8 bar). Enclosure Rating:General purpose. Switch Type:SPST Hermetically sealed reed switch, reversible for NO or NC. Electrical Rating:20 VA: 0.17 A @ 120 VAC, 0.08 A @ 240 VAC. Electrical Connections:22 AWG, 11.811" (300mm) long. Process Connection:F6-SS: 1/8" NPT, HPS-21, 31: 1/2" NPT, F6-MHS, F6-HPS-11: M16*2. Mounting Orientation:F6-SS: vertical ±20°, F6-MHS/HPS: horizontal with index arrow pointing up or down. Specific Gravity:F6-SS: 0.65, F6-MHS: 0.85, F6-HPS-11, 21, 31: 0.6. Weight:F6-HPS-11, 21: 1.23 oz (38 g), F6-MHS-31: 1.41 oz (40 g), F6-MHS: 3.35 oz (95 g), F6-SS: 1.59 oz (45 g). Agency Approvals:CE. Series F7 Electrical Rating (Maximum):F7-SB, -SS2 AC: 25 VA, 1.0A, 200 V DC: 10 W, 1.0 A, 200 V F7-PP, -BT, -HSS, -MHS AC: 25 VA, 1.0 A, 200 V DC: 10 W, 1.0 A, 200 V F7-HPS-1, -2 AC: 25 VA, 1.0 A, 200 V DC: 10 W, 1.0 A, 200 V (F7-HSS is rated explosion-proof for Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III). Mounting Connection:1/8" NPTM (all vertical mount), 1/2" NPTM (F7-HPS-2, F7-HSS), M16 x 2 (F7-HPS-1), 1/2" x 13 thread (F7-MHS). Wire Leads:22 AWG x 18" (46 cm), vertical mount models; 22 AWG x 39" (1 m), models F7-HPS-1, -2; 22 AWG x 24" (61 cm), models F7-HSS, -MHS. Magnet:Alnico (F7-SB, -PP, -BT, -HPS), ceramic (F7-SS2, -HSS, -MHS). Weight:2 oz. (58 g), F7-SB; 1.2 oz. (34g), F7-SS2; 0.8 oz. (23 g), F7- PP; 0.7 oz.. (20 g), F7-BT; 1.5 oz. (43 g), F7-HPS-1; 2 oz. (57 g), F7- HPS-2 and -MHS; 3 oz. (94 g), F7-HSS. Features Combine low cost and reliability with fast, simple installation Hermetically sealed reed switches are actuated by magnets permanently bonded inside the float and can be easily adapted to open or close a circuit on rising or falling levels Easily reverse switch action by removing the float, rotating it end-for-end and replacing it on the stem Vertical models mount internally, oriented within 30° of vertical, or select optional fittings for external mounting Switch ratings are suitable for many solid state control systems and monitors or alarms Simple relay interfaces can be used for higher current applications
    ...more
    www
  • Premium
    Vertical Mounted Level Switch

    Vertical Mounted Level Switch

    Get Price Quote

    • UsageLevel Switches
    • Frequency (Hertz)60Hz
    • Float Diameter0-20mm, 20-40mm
    • Voltage200VDC, 230VAC
    • Power0-5Amp
    • Setting Range1500-3000pF
    • Our company has cemented its presence as a distinguished Manufacturer, Exporter & Supplier of Vertical Mounted Level Switches in Delhi, India. The entire series is designed and manufactured as per predefined industry norms and market requirements. These can also be personalized, accordingly. One can easily attain our Vertical Mounted Level Switches, at modest rices.
    ...more
    www
  • Vertical Float Switch

    Vertical Float Switch

    Get Price Quote

    • Number Of FlowerFloat Switches
    • ApplicationMagnetic Use
    • Frequency50HZ
    • Power0-5Amp, 10-15Amp
    • Hole Diameter0-20mm, 20-40mm
    • Setting Range0-1500pF
    • Maximum Switching Voltage230VAC
    • We are counted among the distinguished Manufacturers, Exporters, Importers and Suppliers of Vertical Float Switch. The Float Switches offered by us come with numerous advanced features. In order to cater the bulk and urgent requirements of the buyers, we maintain a large stock of the switches in our spacious warehouse.
    ...more
  • Vertical Float Switches

    Vertical Float Switches

    Get Price Quote

    • Reversible OperationNO or NC Contact option
    • Standard wire Lead1.5 mtrs Long
    • Contact Rating(10 W, 24V, 0.4 A) or (50 W, 240 V AC/DC, 0.2 A)
    • Material is usedSS 316

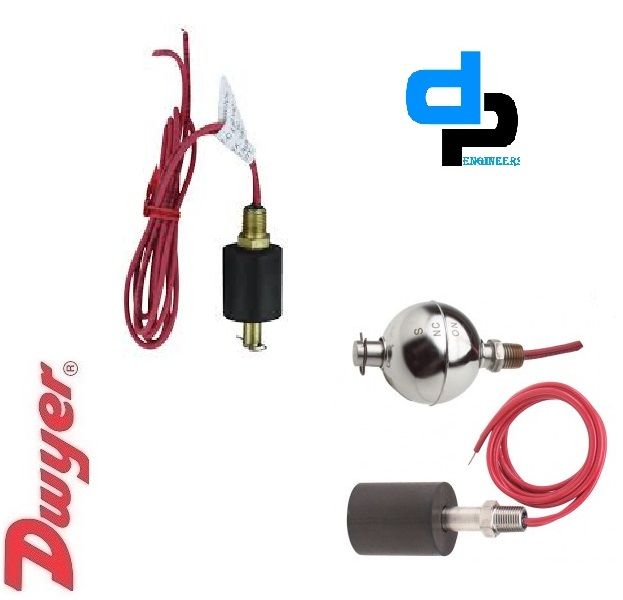

  • Level Switches Vertical (Series F6 & F7) +6

    Level Switches Vertical (Series F6 & F7)

    Get Price Quote

    • Brand NameDwyer
    • MaterialNBR, Nylon, PVDF
    • CertificationYes
    • UsageLevel Switches, Vibrating Rod
    • Frequency (Hertz)60Hz
    • Float Diameter0-20mm, 20-40mm
    • TypeLevel Switches
    • Voltage230VAC
    • Power10-15Amp
    • Temperature0Dig C To + 60Dig C
    • Setting Range0-1500pF

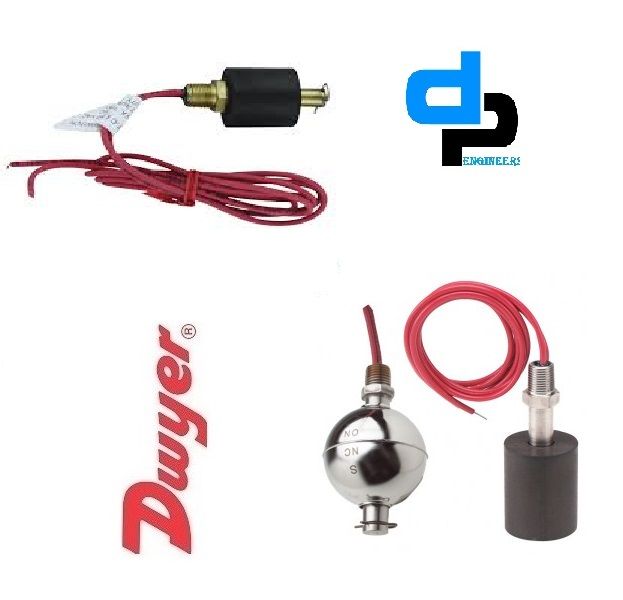

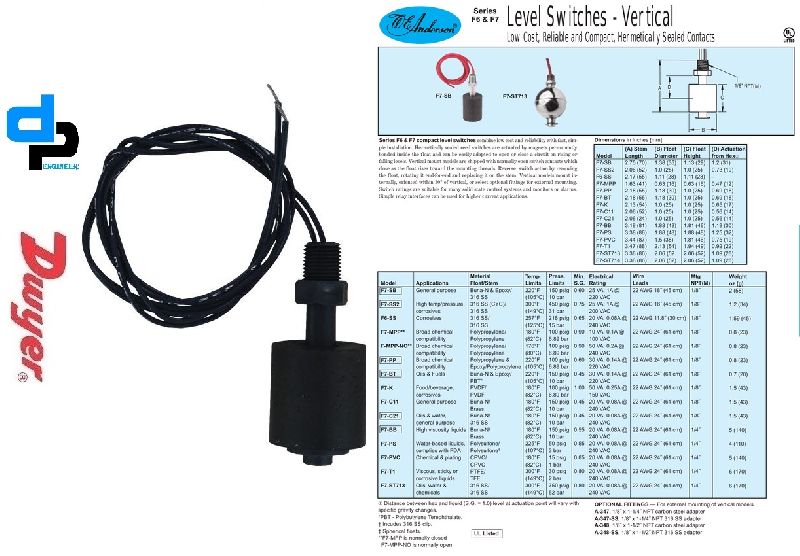

    • level switches vertical (series f6 & f7) series f6 & f7 level switches - vertical low cost, reliable and compact, hermetically sealed contacts the series f6 & f7 vertical level switches are designed to be mounted at the maximum or minimum level point to provide level indication and control. Models are shipped with normally open switch contacts which close as the float rises toward the mounting threads. product applications water level monitoring oil level control chemical level indication sumpsstand pipes tank level control high viscosity liquids specifications series f6 service:compatible liquids. wetted materials:see model table on catalog page. temperature limit:f6-ss & f6-mhs: -4 to 257°f (-20 to 125°c). F6-hps-11, 21, 31: 14 to 176°f (-10 to 80°c). pressure limit:f6-ss & f6-mhs: 218 psi (15 bar). F6-hps-11, 21, 31: 116 psi (8 bar). enclosure rating:general purpose. switch type:spst hermetically sealed reed switch, reversible for no or nc. electrical rating:20 va: 0.17 a @ 120 vac, 0.08 a @ 240 vac. electrical connections:22 awg, 11.811" (300mm) long. process connection:f6-ss: 1/8" npt, hps-21, 31: 1/2" npt, f6-mhs, f6-hps-11: m16*2. mounting orientation:f6-ss: vertical ±20°, f6-mhs/hps: horizontal with index arrow pointing up or down. specific gravity:f6-ss: 0.65, f6-mhs: 0.85, f6-hps-11, 21, 31: 0.6. weight:f6-hps-11, 21: 1.23 oz (38 g), f6-mhs-31: 1.41 oz (40 g), f6-mhs: 3.35 oz (95 g), f6-ss: 1.59 oz (45 g). agency approvals:ce. series f7 electrical rating (maximum):f7-sb, -ss2 ac: 25 va, 1.0a, 200 v dc: 10 w, 1.0 a, 200 v f7-pp, -bt, -hss, -mhs ac: 25 va, 1.0 a, 200 v dc: 10 w, 1.0 a, 200 v f7-hps-1, -2 ac: 25 va, 1.0 a, 200 v dc: 10 w, 1.0 a, 200 v (f7-hss is rated explosion-proof for class i, groups a, b, c, d; class ii, groups e, f, g; class iii). mounting connection:1/8" nptm (all vertical mount), 1/2" nptm (f7-hps-2, f7-hss), m16 x 2 (f7-hps-1), 1/2" x 13 thread (f7-mhs). wire leads:22 awg x 18" (46 cm), vertical mount models; 22 awg x 39" (1 m), models f7-hps-1, -2; 22 awg x 24" (61 cm), models f7-hss, -mhs. magnet:alnico (f7-sb, -pp, -bt, -hps), ceramic (f7-ss2, -hss, -mhs). weight:2 oz. (58 g), f7-sb; 1.2 oz. (34g), f7-ss2; 0.8 oz. (23 g), f7- pp; 0.7 oz. (20 g), f7-bt; 1.5 oz. (43 g), f7-hps-1; 2 oz. (57 g), f7- hps-2 and -mhs; 3 oz. (94 g), f7-hss. features combine low cost and reliability with fast, simple installation hermetically sealed reed switches are actuated by magnets permanently bonded inside the float and can be easily adapted to open or close a circuit on rising or falling levels easily reverse switch action by removing the float, rotating it end-for-end and replacing it on the stem vertical models mount internally, oriented within 30° of vertical, or select optional fittings for external mounting switch ratings are suitable for many solid state control systems and monitors or alarms simple relay interfaces can be used for higher current applications temperature : 31: 14 to 176°f (-10 to 80°c). certification : yes type : level switches vertical voltage : 0.08 a @ 240 vac application : compatible liquids brand name : dwyer usa power : 0.08 a @ 240 vac
    ...more
  • Stainless Steel Vertical Float Switch

    Stainless Steel Vertical Float Switch

    Get Price Quote

    Stainless Steel Vertical Float Switch, Pir Motion Senso
    Lalit
    Delhi
    10 yrs
  • Polypropylene Vertical Float Switch

    Polypropylene Vertical Float Switch

    Get Price Quote

    Polypropylene Vertical Float Switch, Dow Membranes, CSM RO Membran
  • Vertical Float Level Switch

    Vertical Float Level Switch

    Get Price Quote

    Description: level sensing switch 1045-s (see figure 1) for vertical mount float switch, it is made of sus304316 , one of our hot sell products. It is robust construction and simple structure, easily install and used, safe and reliable for level. Control device, which has a smaller volume than mechanical switches, high speed, longer life, stronger anti-load impact to compared with the electronic switch. It without complex circuit ,won't be disturbed by electric ,and easy to use to control level. The stainless steel series float switch is designed specifically for liquid level sensing in demanding fluid level sensor applications. This durable stainless steel float switch is the perfect sensor for a wide range of liquids, from high purity to high temperature or high pressure corrosive liquids. Suitable for: storage tank high level alarms pump control machinery protection by signalling lack of coolant or lubricant ideal for small tanks where size is critical model rfs: for use in hot oil tanks, fat fryers specification: materials - stainless steel switch rating - 0.5a240v ac50va temperature - -40 to +120°c (svs) or 200c max (rfs) pressure - 30 bar max (svs) or 10 bar max (rfs) liquid - sg 0.8 min (svs) or 0.7 min (rfs) mounting - 18" bspp from inside tank (svs) or 38" bspp (rfs) leads - 30cm, 2 cores insertion length - 75mm switch level - 50mm abovebelow hole float - ø 28mm (svs) or ø 50mm (rfs)
    ...more
