Magnetic Level Switch
Get Price Quote
Application : Magnetic Use
Voltage : 200VDC, 230VAC
Frequency : 50HZ, 60Hz
Power : 0-5Amp, 10-15Amp, 5-10Amp
Temperature : 0Dig C To + 60Dig C
Hole Diameter : 0-20mm, 20-40mm
Setting Range : 0-1500pF, 1500-3000pF
Malhotra Bros & Co. is a well-known Magnetic Level Switch Manufacturer and Supplier in Delhi. The Magnetic Level Switch goes through several quality-checks, which ensure its top-notch quality. The Magnetic Level Switch is an economical, maintenance free and reliable device used for high, low or intermediate point level switching. The Magnetic Level Switch is for tanks with inaccessible tops or bottoms and where insertion depths of top mounted models are exceeded. Construction & Operation Compact and rugged construction, consisting of a free moving float assembly and a switch enclosure in non-magnetic material to achieve undisturbed magnetic flux. It employs dual magnets- one carried out by the float arm and the other by the contacts carriers, housed in the switch enclosure. A change in the liquid level brings the like poles of the dual magnets opposite to each other, and resulting repulsion force ensures a change-over of contacts, of the switch housing. These Magnetic Level Switches come in various non-magnetic materials and construction styles to suit board range of medias/applications. It is designed to provide high repeatability and to minimize effects of shock, vibration & pressure. Installation Mounted internally or external through a chamber. External mounting is resorted to, where space is a limiting factor or mechanical devices like stirrers operate within the tank. Besides, in applications like boilers, reaction kettles etc., with external mounting, isolation are possible for regular servicing The switch is normally side-mounted; however for applications like slurry, vertical-installation is preferred On no account must a switch be used for the direct starting of burners, heaters, Motor-pumps, alarm, It is essential that the contacts are wired in series with the relay coil (N/V coil) in a contactor starter Applications Manual start & auto off in storage tanks Oil storage tanks to indicate high level, low levels or filling the tanks automatically Condensate receivers to control the operation of an electrically driven condensate pump Main water storage tanks to control the action of the pump used for filling or emptying the tank, automatically In baby boiler auto control of Pump motor & Electric Heater For the control and indication of liquid levels in vessels under vacuum In storage and service tanks on board ship to give indications in the Engine Room when the level in the tank is too high or too low Where a number of level switches are employed they can be supplied together with a suitable indicator and Alarm Panel embodying signal lights and an audible alarm system.
Magnetic Float Level Switch
Get Price Quote
Usage : industrial
Insertion Length : 150mm to 3000 mm
MOC : SS304, PP or PVDF
Max Temp : 80° C
Max Pressure : 10 Kg/cm2
Liquid Density : ≥0.6 g/cm3
Contacts : 40VA (NO), 60VA(C/O)
Enclosure : IP66 or Ex-P Gr IIB or IIC
Options : Intrinsically safe, Small /Large/Multiple Floats, In-Situ Test Device
Magnetic Float Level Switches are applicable for various type of liquid in water treatment, Filtration system, pump house & cooling tower application.Details Our magnetic float level contains hermetically sealed glass encapsulated reed switch. The product is user-friendly and gives various options to customers. User can opt for various models. Also Available for hazardous application. GeneralApart from the above basic features, our Magnetic Float Level Switch for liquids can handle maximum temperature up to 80 degrees Celsius and pressure up to 10 KG per square centimeter. Different options of the product include intrinsically safe small, large, and multiple floats and in-suite test devices. All the products and its parts are under warranty. So, users can choose the same considering their regular or casual needs.Most of the products, including Magnetic Float Level Switch, provided by Jayceetech are multi-purpose. We are well-known Magnetic Float Level Switches manufacturer in India. So, whatever is our customers’ demand, we are duty-bound to fulfil the same in the given time frame. We have efficient staff members as well as technical people who work day and night to facilitate the world in the best possible way. So, users can rely on our products with no element of doubt and tension. We also provide a complete guide along with every product of Jayceetech so that customer can use it with full confidence.In order to make your work simpler, choose the products of jayceetech.com at your doorsteps. Yes, we are also available online. So, buying from anywhere is possible with jayceetech products has become easier. List your requirements and choose the best product in the market by option the best Magnetic Float Level Switches supplier in India.We have a special catalogue section for the different design livers. Customers are requested to check our different design in the catalogue along with the prices before buying magnetic float level switches. Keep jayceetech products around you and use them perfectly to get the best results in your field. We are just here to support and cater your needs with our finest work!Applications High and Low Alarm in Process Tanks. Water Treatment and Filtration Systems. Pump and Cooling Circuit Protection. Salient Features Hermetically sealed glass encapsulated reed switch. Option of Remote or Integral control unit. Option of Remote Counter and Totalizer for volume calculation. Option of Intrinsically Safe Switch.
Best Deals from Magnetic Level Switches
Magnetic Level Switch (Side Mounted)
Get Price Quote
1 Piece (MOQ)
Country of Origin : India
Mounting Options : Side Mounted
Mechanical Life : 1 Year
Surface Finishing : Polished
Media Type : Liquid
Specialities : Rust Proof, Non Breakable, High Tensile
Side mounted level switch used to control liquid level in vessels containing corrosive or non corrosive liquids. It is used to pump control, Alarm, valve control or level indication.Construction It consists of 3 main parts Housing with Micro Switch Mounting Flange Float Assembly Features Easy to install Reliable Available with different flange size Available in different MOC ApplicationWater, Oil, Fuels, Chemical, Solvents, Syrup etc.
Mini Magnetic Float Probe Level Switch
800 Per Piece
Brand Name : LFIA
Usage : Industrial
Switch Contact Rating : 0.5 Amp
Contact Type : No Protential Free Contact
Wire : 5m Each or as per Client Req
Float : PU

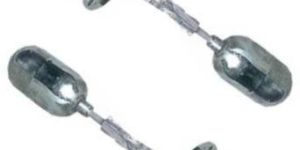

Side Mounted Magnetic Level Switch
5,000 - 15,000 Per Piece
5 Piece (MOQ)
Country of Origin : India
Switch Type : Micro SPDT/DPDT
Design : Up to 60 Kg/cm
Mounting : Side
Switch Rating : 5 Amp, 230 VAC
Design Temperature : Up to 300 Deg. C
Enclosure : Fp, W/P
Connection : Customize
Product Code : LS9900
Liquid Level Switches
3,250 Per Piece
2 Piece(s) (MOQ)
Material : Nylon
Material : SS, P
Type : Liquid Level Switches
Application : Liquid Levelling
Voltage : 230VAC
Frequency : 50HZ
Power : 10-15Amp
Temperature : 0Dig C To + 60Dig C
Hole Diameter : 20-40mm
Item Code : LLS
Pressure upto : 25 bar g
Side Mounted Magnetic Level Switches
Get Price Quote
Process Temperature : Up to 150°C
Material : SS304/SS304L/SS316/SS316L/PP
Density : Above 0.5
Viscosity : Up to 500 cp
Design Pressure : Up to 15 Kg/cm
Connection : Flanged to ASA/BS/DIN Screwed
Warranty : 1 Year
Float mounted at one end of rigid rod moves with change in level, magnetic capsule at other end of rod moves accordingly within fixed limits Switch contacts across the face change accordingly. As the tank fills up the float lifts up due to buoyancy. The other end of the float which is magnetic in nature goes down and during its downward motion, triggers the switch assembly and the contacts get closed, which can be used to operate an alarm or any other audio/visual load.
finetek magnetic float level switch
1,500 Per Piece
1 Piece(s) (MOQ)
Brand Name : FINETEK
Voltage : 300 VAC/350 VDC
Type : Magnetic Float Switch
TEMP : -20'C TO 80'C
CONTACT : 50W
FLANGE : 3
DN.NO : TB1-18040103
FINETEK FDHHM3S210400AP+TA MAGNETIC FLOAT LEVEL SWITCH FDHHM3S210400AP TA TYPE: FDHHM3S210400AP+TA TEMP: -20'C TO 80'C CONTACT: 50W VOLTAGE: 300 VAC/350 VDC FLANGE: 3"X5K DN.NO: TB1-18040103 CONDITION: USED & WORKING QTY: 1 PC AVAILABLE REF: FN
Magnetic Level Switch
7,500 - 12,500 Per Piece
1 Piece (MOQ)
Brand Name : Utsav
Material : SS 304, SS 316, SS 316L, PP
Standard Range : 200 mm to 2000 mm
Temperature : Upto 200 °C
Pressure : Upto 20 KG/CM2
Connection : Flange End/Screwed or to mention
Mounting Type : Top Mounted
Height of the tank or probe length required. No. of points to be controlled with respect to top flange Material of construction of wetted parts. Top nozzle detail which is welded on tank on which you are intenting to mount level switch. Housing enclosure (flame proof/weather proof)
Magnetic Float Pivoted Level Liquid Switch
Get Price Quote
We are the largest manufacturer, exporter and supplier of Magnetic Float Pivoted Level Liquid Switch in Maharashtra, India. This is an economical and maintenance free device used for high, low or intermediate point level switching. It is side mounted and ideal for tanks with inaccessible tops or bottoms. This liquid switch finds application in hydraulic and lubrication systems, waste water, filtration plants, boiler drum level, cooling tower and power plants. We provide the orders in completely safe packages at reasonable price. Details : Economical & maintenance free device used for high, low or intermediate point level switching. It is side mounted and ideal for tanks with inaccessible tops or bottoms. Density - ≥0.6 g/cm3 Wtd Parts - SS304/316, PP or PVDF Max Temp - 350oC Max Pressure - 20 Kg/cm2 Contacts - 5A, 250VAC x SPDT/DPDT Enclosure - Cast Al x IP66, Ex-P IIB/C Applications : Hydraulic & Lubrication Systems, Waste Water, Filtration Plants, Boiler Drum Level, Cooling Tower & Power plants
Magnetic Float Level Switch
2,000 - 10,500 Per Piece
10 Piece(s) (MOQ)
Material : SS
Type : Magnetic Float Switch
Temperature : 0Dig C To + 60Dig C
We are offering magnetic float level switch. The unit consists of a vertical guide pipe (stem) within which are located the sensor switches, magnetic float sliding over the stem according to the level in the tank, switch terminal housing (head) and necessary mounting connection.
Side Mounted Magnetic Level Switches
Get Price Quote
1 Piece(s) (MOQ)
Level Switch : Level Sensor
Magnetic level switch : Side and Top Mounted Level Switch
We are offering side mounted magnetic level switches. “kabir” make magnetic level switches is specially suitable for high and low level signalization or automatic level control (by starting & stopping pumps or opening & closing of valves) in vessels. Horizontal mounting type directly on vessel or on external chamber. Compact & rugged construction consisting of a free moving pivoted float assembly and a switch enclosure in non - magnetic material to achieve undisturbed magnetic flux. It employs dual magnets, one carried by the float arm and other by the contact carriers housed in the switch enclosure. A change in liquid level brings the like poles of dual magnets opposite to each other and resulting repulsion force ensures a changeover of contacts with snap action. The magnetic transmission is glandless, leaving no scope for leakages from vessel into switch housing. These switches are manufactured in various materials, enclosures & special features to suit broad range of media applications. They are designed to provide high repeatability and to minimizes effects of shock, vibration & pressure. Installation:- mounted internally or externally through a chamber. External mounting is resorted to, where space is a limiting factor or mechanical devices like stirrers operate within the tank. Besides, in applications like boilers, reaction kettles etc., with external mounting, isolating is possible for regular servicing. The switch is normally side-mounted, however for applications like slurry, top installation is preferred. The switch can be wired directly "to make or break electrical circuits", of burners, heaters, motor pumps, alarms and other such electrically operated devices. Wetted parts: moc : s.s.316s.s.304 p.p switch : reed switch micro switch having no+nc+c 230 vac connection : flanges , screwed
Side Mounted Magnetic Level Switches
Get Price Quote
Type : Side Mounted Switches
Country of Origin : India
mounted on side of nozzle of the tanks, float position changes with the level which in turns with the help of magnetic coupling changes the switch contacts. we are exporters & suppliers in following states maharashtra: nagpur, nashik, thane, washim, pune, ahmednagar, solapur, amravathi, mumbai, aurangabad, kolhapur,navi mumbai, dhule, chandrapur,etc. gujarat: morbi, porbandar, surat, godhra, veraval, gandhidham, ahmedabad, anand, jamnagar, vadodara, navsari, rajkot, bhavnagar, nadiad, botad, bharuch, ankleshwar etc. madhya pradesh: singrauli, morena, burhanpur, ratlam, bhind, sagar, guna, dewas, satna, jabalpur, bhopal, indore, gwalior, rewa, shivpuri, ujjain, khandwa, vidisha, murwara, chhindwara, etc. andhra pradesh: guntur, nellore, chittoor, rajahmundry, anantapur, kurnool, khammam, ongole, proddatur, adoni, kadapa, mahbubnagar, tirupati, karimnagar, ramagundam, warangal, hyderabad, madanapalle, eluru, vijayawada, telangana, visakhapatnam etc. uttarakhand: bageshwar, tehri-garhwal, roorkee, kashipur, udhamsinghnagar, rishikesh, nainital, rudrapur, dehradun, pithoragarh, rudraprayag, champawat, chamoli, haridwar, uttarkashi, almora, garhwal, etc. tamil nadu : coimbatore, chennai, madurai, tiruchirappalli, tiruppur uttar pradesh : kanpur, lucknow, ghaziabad, allahabad punjab and chandigarh : amritsar, jalandhar, patiala, haryana, ludhiana odisha : bhubaneshwar, cuttack, madurai, sundargarh karnataka : bengaluru rajasthan : jaipur other cities/states: sikkim, asam, tripura, daman and diu, jharkhand, ranchi ,jammu and kashmir,srinagar delhi, new delhi, west bengal, kolkata, darjeeling, jalpaiguri, kerala, kochi, goa etc.
Magnetic Level Switches
5,000 Per Unit
1 Unit (MOQ)
Mounting Options : Top Mount
Switch Type : Potential free
Current Rating : 8 amps
Media Type : Liquid
Features : Efficient electrodes,Detects liquid levels,Ease of installation
Working Pressure : 10 bar
Measuring Range : 2 mtr
Pole And Throw Specification : SPST
Side Mounted Magnetic Level Switch
Get Price Quote
Side Mounted Magnetic Level Switch Linc Type Principle of Operation This system has a side mounted flange. Float is fabricated out of the material suiting the service or fluid in the vessel When the level rises above the actuation point The float buoys up along with the level rise and actuates the magnetic switch which is kept inside the stem. The closure of the switch can operate a contactor or relay to indicate the level rise or decrease. Material specification Customized suiting to the service (fluid) and temperature. Available in SS 304/ SS 316/ pp/ pvc/ hdpe/ pvdf/ ptfe etc Material of the flange cs/ ss/ pp /pvc/ hdpe/ pvdf/ ptfeAvailable with flameproof and weatherproof enclosure
Side Mounted Magnetic Level Switch
Get Price Quote
Be it refrigerator or any other type of cooling equipment, this Side Mounted Magnetic Level Switch is designed by applying the leading-edge technological concepts. Also, this Side Mounted Magnetic Level Switch finds use in diverse types of humidifiers. We are a credible name to get premium Side Mounted Magnetic Level Switch. Construction : Float mounted at one end of rigid rod moves with change in level, magnetic capsule at other end of rod moves accordingly within fixed limits Switches contacts across the face changes accordingly Advantages : Simple and proven DesignOperates in most liquidMinimum maintenance Trouble-free operationLow cost of ownership Applications : High Low level signals for alarm Annuciation Safety interlock circuits Automatic Pump Control Solenoid Value Control Prevention of tank overflows Pump safeguard against dry running Order Details : Minimum Order Quantity : 50 PiecesPrice Range : Ranging From 1500 INR to 50,000 INR
Magnetic Oil Level Switch
13,850 Per Piece
10 Piece (MOQ)
Mounting Options : Top Mount
Switch Type : Electro Magnetic
Current Rating : 0.5A
Media Type : Liquid
Operating Temperature : -150 Degree C
Working Pressure : 15bar
Pole And Throw Specification : SPST
Meter Technology : Ultrasonic
Material/Body : Plastic
AC Voltage : 240 VAC
Length : 190mm
MAGNETIC FLOAT GUIDED LEVEL SWITCH
Get Price Quote
Hermetically sealed glass encapsulated reed switch. Option of remote or integral control unit. Option of remote counter & totaliser for volume application. Option of Intrinsically safe switch with zener barrier. Max. Temp. – 150˚ C Max. Pressure – 25 Kg/cm² Special Features : Intrinsically safe to Ex ib Gr IIA- IIB T6 (with zener barrier 24 VDC/110 mA)
Top Mounted Magnetic Level Switches
Get Price Quote
Owing to our rich industry experience, we are reckoned among the nonpareil Manufacturers, Suppliers and Exporters of Top Mounted Magnetic Level Switches from Maharashtra. The Level Switches we make available detects when a certain predefined level is reached. We maintain a large stock of the Magnetic Level Switches, to cater the bulk and urgent requirements of the buyers. The entire range of the Level Switches is reasonably priced by us.
Side Mounted Magnetic Level Switch
Get Price Quote
We are offering side mounted magnetic level switch. Buoyant force of the liquid on the float is used for movement of the perm anent magnet closer to or further away from reed switch and initiates the switching function of high and low level. The unique feature of reed switch technique is adopted. Product technique, concept, merit, quality and unparallel reliability are the underlying reasons for enviable performance record. Level switches with micro switch and air break type switch is also available.
