Ozone Overseas Bali Nagar, Delhi

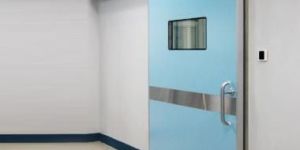

X-Ray Shielding Doors are used in diagnostic & radio therapy centres. As per international safety regulations, diagnostic and radio therapy rooms having X-ray machines should be built in such a way that hospital staff & patients present in the vicinity of harmful  rays radiation source are exposed to the minimum amount of radiation. Sliding doors are designed with lead shielding as inlay for such places.  Ozone provides X-Ray Shielding Doors which become an effective barrier to radiation in all directions. The adequacy of shielding depends on the material and thickness used for this purpose.

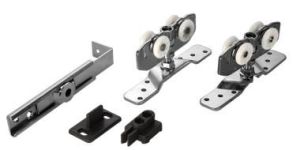

System with Accessories for 140 kg. Framed/Wooden Sliding Door Each set comprises of - 2 Standard Rollers - 2 Stoppers - 1 Floor Guide- 2 Side mounting plates Suitable Track - OZ-ESL-TRACK-E3 (Not included in set) For framed/wooden panel of 140kgs.

We are the main supplier of this product.

Material : Metal

Certification : ISI Certified

Usage : Construction, Fence Mesh

Speaciality : Corrosion Resistance, Easy To Fit, Good Quality

Wire Diameter : 1-5mm

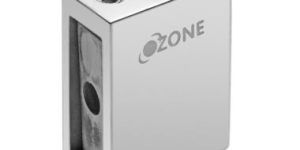

For mounting with wall Rectangular design With two grub screws to prevent relative movement Stainless Steel Grade 304 Finish: PSS

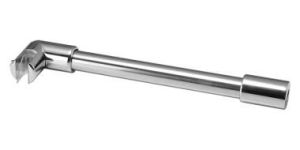

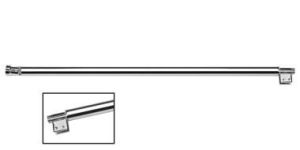

Telescopic Reinforcing Bar with Left Right Adjustment Gaskets to prevent glass damage Telescopic construction Length adjustable from 780mm to 1340mm Left Right adjustment at wall end Firm positioning of the glass panels Stainless Steel Grade 304 Finish: PSS

Gaskets to prevent glass damage Firm positioning of the glass panels Fixed length of 200mm Stainless Steel Grade 304 Finish: PSS

• Suitable for 8mm and 10mm glass • Invisible screws with help of magnetic covers • Secure holding of glass • Small size – 55mm height • Off set plate for better installation • Material SS 304 grade • Finish: PSS/SSS

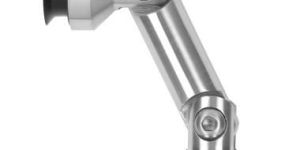

Wall to Glass Connector 90°(Movable) Firm grip Adjustable within +2.5mm No projection from glass Stainless Steel Grade 304 Also available without CSK Head

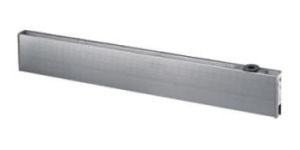

 Upper door strip/shaft sleeve OMPS B-2 Upper door strip (SWING DOOR) with shaft sleeve to accept the top pivot. Casting Material:-Aluminium. Cover Material:-SS-304 Finish:-SSS OMPS-B SYSTEM SPECIFICATION Sliding Parking System Required space for Design/Making parking as per site condition/application feasibilty. Each Panels move linearly into Aluminium top track Channel (75X75) of Aluminium Finish, hung with help of nylon roller fixed with top rail/Profile of SS-304 material and Aluminium Finish. Each Panels would be disintegrated to each-other parked into the designed parking aside. Top track of Aluminium (75X75) and Designed Parking ,hung to MS structure or solid concrete (NOT IN OZONE SCOPE). Bottom rail would be lock into the floor with dust excluding socket of SS-304. Max Height:- 3000mmMax widht:- 1200mmMax Glass Thickness:- 12mm Toughened GlassMax Weight :-120kg

Separate product for Left & Right opening door Maximum door weight by 2 Hinges-60kg. Minimum door thickness 40mm Maximum door width-1000mm Finish: Satin/Nickel Supplied with SS Screws

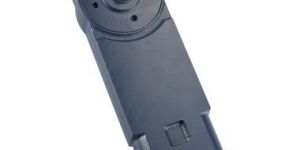

Cam action transom door closer with closing force EN 2 Maximum opening angle 130° both sides Maximum door weight 70Kg. Maximum door width 850mm Suitable for framed door

With gaskets to prevent glass damage Perfect handling design Sleek construction Towel bar out side and door knob inside Stainless Steel Grade 304 Finish: PSS/SSS

Variable Pivot point of 55 or 65mm With SS 304 cover of OCFH-100 Cover secured with small ‘L’ key Finish: PSS / SSS / GOLD / BLACK MATTE / SATIN ANODISED

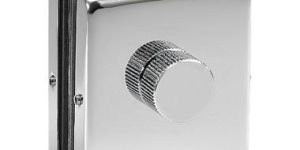

Can also be used for locking door on wall or floor Locking with the help of thumb turn Comes with Strike Plate Dead bolt projection of 10mm (single throw) With SS 304 cover Base Material Casting:-Aluminium Alloy Cover secured with small ‘L’ key Finish: SSS

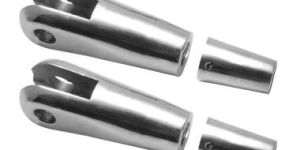

Cable/Rod Connector for OCF-02 OR OCF-03 To be used with OCF-02/03 with a Cable or Rod Recommended with 16mm connecting rod Stainless Steel Grade 316

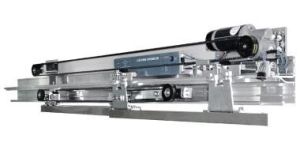

Telescopic Automatic Doors. These systems work on a double pulley mechanism enabling more opening with less parking space. This is an ideal door for areas needing wider openings to control bulk traffic. For a bigger opening space, install 2 piece doors in a space for one. The 2 doors move at the same time at 2:1 speed ratio. Telescopic Door does not have a profile cover so provisions for hiding the system assembly with any paneling material is required.

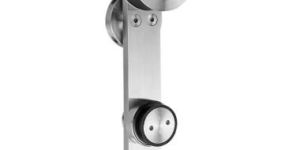

Quantity required per double door system - 1 set (4 nos.) Roller Assembly with slots for passing synchronised cable Suitable for glass thickness 10-12mm Suitable for max. door weight. of 80 kgs. Stainless Steel Grade 304 Rounded design at corners Finish SSS

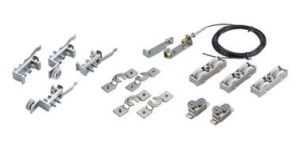

Sliding Roller 4 pcs. Stopper 4 pcs. Wire Assembly & Cable set Floor Guide 2 pcs. Suitable for framed Doors Max. Door Width 800mm per panel Max. Door Weight 60 kg. per panel Compatible track OZ-ESL-TRACK-E4 & Cover OZ-ESL-TRACK-E4-COVER (not included in set)

Stainless Steel 304 Grade Brushed Finish Plate Thickness (Base And Fin) = 10mm Wall Mounted With Fastners Max Glass Size (using 2 fittings)=1800mm X 1100mm Slope = 5° Available along with Laminated Safety Glass of 12.52mm Thickness (Optional) Glass is slided and kept on 1 pair of fitting in center slot

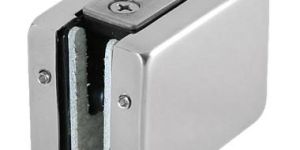

To accept lever of OPL-3A With SS 304 cover Base Material Casting:-Aluminium Alloy Cover secured with small ‘L’ key Finish: SSS

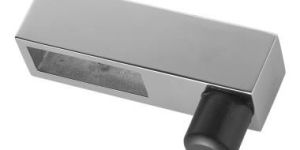

Stopper with bumper Easily Slides in the track and held with grub screw Stainless Steel Grade 304 Finish: PSS

Firm seating with wall / floor Good depth to hold glass Available in standard size in 900mm & 1660mm Stainless Steel Grade 304 Finish: SSS For 10mm & 12mm glass

 Three point holding with each fin part Elongated holes allows installation flexibility Teflon washers to prevent damage to glass Stainless Steel Grade 316 Finish: SSS

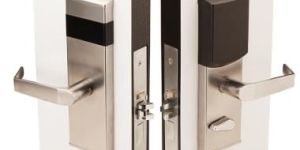

Universal Lever Compatible with HMS Can have multiple guest cards and multiple management cards Two Emergency pass key Hidden Screws 1.5v battery-4 nos. DC-6.5v. +- .5v (Alkaline Batteries) Compatible with data collector reader Low battery indicator Alarm when door not closed properly Dual circuit design Invisible/hidden cylinder Door Thickness 38-45 MM Dead Bolt Low Cost
