Portable Hardness Tester Dealers in Delhi

THE MOST ADVANCED INTEGRATED TESTER   Portable Hardness Tester Revolutionary impact device with single motion load & release mechanism Highly accurate in any impact direction - automaticallyConverts to all common hardness scales (HV, HB, HRC, HRB, HS, Rm) Custom conversions for uncommon alloys Statistics (average, standard deviation, min/max, range) Internal, non volatile data storage of fully tagged readings Instant reading from large, high-contrast LCD Intelligent self diagnostics Virtually unlimited impacts per battery charge cycle Smart recharging of built in Li-Ion batteries while USB connected USB and Software transfer with versatile PC applicationReady for automatic testing. APPLICATION RANGE Good for all materials Ideal for production level testing Best suited for on-site testing of heavy, big or already installed parts Handy for difficult to access or confined test locations Automatic sensing and compensation for impact direction Excellent for material selection and acceptance tests Easy to use and accurate on curved test surfaces (R > 10 mm) PRIMARY INDUSTRIES Metal production & processing Automotive & transportation Machinery & power plants Petro-Chemical, refineries Aerospace & shipyard Metal constructions Testing services & laboratories

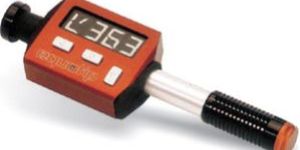

We are a notable Manufacturer, Exporter and Supplier of Equopen Swiss Portable Hardness Tester from Delhi, India. Contact us, if you want to get highly durable and performance oriented hardness testers. Our Equopen Swiss Portable Hardness Tester is made from high-grade components, in compliance with the set industrial norms and standards. We ensure timely delivery of our products all over the world at the most reasonable prices. Features : Simple one-handed operation Fast accurate hardness test Compact, lightweight and portable Self contained no cables Displays directly in Rockwell C scale   Application Range : Ideal for consultants, machinists, quality and production personnel with periodic requirements for quick and easy hardness measurements in HRC Measures 20 - 70 HRC, ± 1 HRC Parts weighing less than 5 kg (11 lbs.) with thin walls must be set on a solid support to prevent vibrations Parts weighing less than 2 kg (4.5 lbs.) must be coupled to a solid support using coupling paste Minimum surface layer thickness: 0.7 mm Minimum test radius of surface curvature: R = 30 mm (1.18 in.) Steel and cast steel, cold work tool steel, stainless steel and high temperature resistant steel

We are Offering Portable Hardness Tester. Model: QH5 D Model: QH5 G Model: QH5 M Portable Harness Tester with reading in HL, HB, HV, HRC, HRB, HS, RM. Resolution of ± 1 HL. Accuracy of ± 4 HL (0.5 % at 800 HL). Storage- No. of readings 32000.

Being an eminent organization, we are engaged in exporting and supplying Portable Hardness Tester. Portable Hardness Testers offered by us are used in variety of applications in different mechanical and engineering industries. Available in different specifications, Portable Hardness Testers are demanded across the market.Features Corrosion resistance High performance Minimal maintenance Specifications Maximum test Height : 110 mm Troat Capacity : 55 mm   Item Code : PR-1

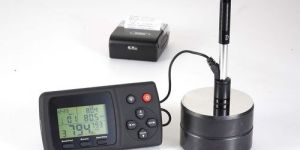

We are offering digital portable metal hardness tester. Technical parameters :- accuracy +- 6 hl scales hrc, hrb, hb, hv, hsd, mpa display bright and clear lcd display with backlight testing directions all direction printer mini thermal printer with irda (cable no need) operating voltage 4.5v (3 aaa batteries) operating environment temperature : 0 ~+40? humidity : 20% ~ 85% storage environment temperature : -30 ~ +80? humidity : 5% ~ 95% dimension 150mm*80mm*30mm weight approx.200g accessories display unit, impact device d, test block, cleaning brush, printer cable

      ' Portable Hardness Tester                                                                                                       Portable Rockwell Hardness Tester model MRP- 1 is able To test part where bench type Model is not useful. This machine is quite handy for product testing of crank shafts, cylinder blocks, industrial knives, liner and assembliese. This can be used for testing the hardnessof both inside and outsite of surface testing of pipes, bushing, ball bearing rings or other complicated parts. This models can be used in any direction Without affecting the accuracy. Technical Data Maximum test height  : 110mmThroat capacity            : 55mmWeight (Approx.)          : 1. 55 kgStanderd Accessories Flat anvil @ 25mm    : 1 No.V- anvil@ 25mm        : 1 No.Test block HRC          : 1 No.Test block HRB          :  No.Diamond indentor      : 1 No.1/ 16” ball indentor     : 1 No.Steel Ball @ 1/16”      : 5 Nos.Carry case                  : 1 No.Portable Rockwell Hardness Tester is developed to meet the demands of a light weight instrument which can be used to carry out by a universally recognised method of hardness testing.Rockwell Method : This hardness tester can be used in variety of applications and is readily adjustable to a wide range of sizes and shapes which are difficult to test in a standard table model hardness tester.The machione os designed for carrying out Rockwell tests comparable to table model hardness tester because, the basic things, such as shape of penetration, measurement and loads are same in both systems.The photograph on the back side gives the general arrangement of the hardness tester.The system carries a weight bar (8) pivoted at central point. When the load is applied by the loading screw (9), at one end of this weigh bar, it is deflected and theother end of this bar carrying penetrator forces down into the testspecimen. This deflection of weight bar which is proportional to the applied load is indication of the loading dial indicator (11). Besides this loading dial indicator, there is one penetration measuring indicator(14) which masures the actual penetration of the penterator into the test specimen. The hardness value of the specimen is read directly on this indicator. The frame carries two adjusting screws and gear train. By roating the knurled knob the distance between the penetrator and the support-anvil can be adjusted. Upper clamp Lower clamp Support anvil Adjusting screws Knurled Knob Penetrator Penetrator tightening screw        ' Portable Hardness Tester                                                                                                       Portable Rockwell Hardness Tester model MRP- 1 is able To test part where bench type Model is not useful. This machine is quite handy for product testing of crank shafts, cylinder blocks, industrial knives, liner and assembliese. This can be used for testing the hardnessof both inside and outsite of surface testing of pipes, bushing, ball bearing rings or other complicated parts. This models can be used in any direction Without affecting the accuracy. Technical Data Maximum test height  : 110mmThroat capacity            : 55mmWeight (Approx.)          : 1. 55 kgStanderd Accessories Flat anvil @ 25mm    : 1 No.V- anvil@ 25mm        : 1 No.Test block HRC          : 1 No.Test block HRB          :  No.Diamond indentor      : 1 No.1/ 16” ball indentor     : 1 No.Steel Ball @ 1/16”      : 5 Nos.Carry case                  : 1 No.Portable Rockwell Hardness Tester is developed to meet the demands of a light weight instrument which can be used to carry out by a universally recognised method of hardness testing.Rockwell Method : This hardness tester can be used in variety of applications and is readily adjustable to a wide range of sizes and shapes which are difficult to test in a standard table model hardness tester.The machione os designed for carrying out Rockwell tests comparable to table model hardness tester because, the basic things, such as shape of penetration, measurement and loads are same in both systems.The photograph on the back side gives the general arrangement of the hardness tester.The system carries a weight bar (8) pivoted at central point. When the load is applied by the loading screw (9), at one end of this weigh bar, it is deflected and theother end of this bar carrying penetrator forces down into the testspecimen. This deflection of weight bar which is proportional to the applied load is indication of the loading dial indicator (11). Besides this loading dial indicator, there is one penetration measuring indicator(14) which masures the actual penetration of the penterator into the test specimen. The hardness value of the specimen is read directly on this indicator. The frame carries two adjusting screws and gear train. By roating the knurled knob the distance between the penetrator and the support-anvil can be adjusted. Upper clamp Lower clamp Support anvil Adjusting screws Knurled Knob Penetrator Penetrator tightening screw  Weight barLoading Screw HandleLoading dial indicatorIndocator seat supportIndicator seat Penetration measuring indicator   1) Select proper penetrator (6) depending upon the material to be tested.2) Take precaution so thet the penetrator does not project beyond the Upper clamp.    (1) For this, the loading screw (9) should be sufficiently taken back.3) place the test specimen securely on suitable anvil(3).4) Clamp test specimen firmly between upper clamp (1) and support anvil     (3) by rotating the knurled knob (5) on the lower clamp     (2) do not apply extra pressure5) Check zero setting load indicator (11) rotate bezel to bring pointer over small black    dot for zero load.6) Apply 10 kgf (98.07 N). major load screw (9) in clockwise direction such that the pointer    on the load indentor (11) comes on set position. 7) Check zero setting of penetrator indicator (14) Rotate bezel to bring pointer to ‘O’ on     the black scale. 8) For ‘C’ scale use diamond penetrator against load of 150 kgf (1471 N) and for ‘A’    scale use same diamond penetrator against a load of 60 kgf (588.4 N). For ‘B’ scale    use 1/16 ball penetrator against a load of 100 kgf (980.7 N). 9) Take off major load by turning the loading screw in anticlockwise direction, such that     only minor load of 10 kgf. (98.07) remains in action – (pointer back to ‘set’ position). 10) Hardness value in Rockwell scale is directly indicated on the penetrator indicator      (14). Read of number on black scale is diamond penetrator.              Read off number on red scale is ball penetrator11) Release load completely by taking back the loading screw 12) Turn the knurled knob (5) in anticlockwise direction to loosen clamp and thus  the test speciman.

Made By : Sanchi Model No. : HardTest 20       PRODUCT FETURES Metal Hardness Tester is a small, light and portable tester and most suitable for testing of heavy, big or outdoor metal parts. It can measure in any direction and also easy to be used and accurate on curved test surfaces. Especially, it canautomatically compensate effect of weight which according to the test direction.It uses wireless IR to communicate with printer, operates with touch screen and test data could be linked into PC. Conforms to the Standard ASTM A956 & DIN 50156 Specifications HL display range : 170~960HLD Repeatability : 6HLD Testing direction : All direction Optional Impact Device : D, DC, DL, D+15, C, G ( Automatic identification ) Display : 3.9" 240*320 ( touch screen ), LCD display with back light Power : 3.6V ( rechargeable Ni - MH battery ) Charger : DC5V / 1 A Printer : Wireless Mini - Printer ( Cable no needed ) Communication : USB to PC for transfer data Operating environment : Temperature : -20oc ~ +50oc; Humidity : 20% ~ 85 % Storage environment : Temperature : -30oc ~ +70oc; Humidity : 5% ~ 95 % Dimensions : 130 mm *86mm*28mm Weight : 300g ( include D type impact device ) Accessories : Display Unit, Impact Device D, Test Block, Mini-printer, Charger, : Little Support Ring, Cleaning Brush, USB Cable, PC Software CD. Options : Impact Device DC; DL; D+15; C; G

Our PXTHT-301 is a smart tablet hardness tester, which is available at reasonable price for supply all over India and overseas. This tabelet hardness tester is a microprocessor operated instrument and features digital display and highly user-friendly keypad interface ensuring fast measurements and accurate results. It is a compact machine and occupies very less bench space. It makes your testing procedure faster by taking maximum 25 tablet samples at one time.

We are offering portable dynamic hardness testers. We are a leading industry offering a wide spectrum of portable dynamic hardness testers. The product offered is an widely used for various measuring application in industrial sector. The construction of these range is very precise and accurate as these products are fabricated under surveillance of experts. features: sleek and handy design comes in a slim briefcase for carrying the machine alpha numeric display which indicates selected material and scale combination hardness value average key to select average of 2 to 10 readings improved electronics with micro controller circuitry and user friendly software 30 hardness scales for different probes selectable by feather touch keys auto detection of probe facility automatic shut down facility is provided when tester is not in use for continuously 10 minutes this model operates on 2 numbers of pencil cells printing is possible with all types of ports up to 100 readings can be stored in memory of the tester for printing purpose low test expenditure five numbers of probes can be given in different combinations such as dl, d2, g1, g2 and c, dl, d2, d3, d4 and d5 and dl, d2, g1 and sh conversion of uts facility is available on display by using side keys the on and off switch is provided with feather touch keyboard on front side in this model both serial and printer interfaces are available on single port automatic calibration facility of probe is available through keyboard date entry and date wise printout facility.

Portable Hardness Tester, TENSILE BRIQUETTE TESTING MACHIN

Portable Metal Hardness Tester with Touch Screen, Rubber Hardness Teste

Our in-depth knowledge and industrial expertise allow us to manufacture and supply a distinct range of Portable Hardness Tester. It is manufactured using superior quality material as per the set industry norms under the guidance of skilled professionals. This product is used to measure the hardness of various metals. Clients can avail this Portable Hardness Tester from us after proper checking at a low price. Features: High operational accuracy Precise measurement Easy to use

Portable Dynamic Hardness Testers, Automatic Bar Cutting Machin

Portable Tablet Hardness Tester with Printer, Karl Fischer Titrato
