Hardness Tester Dealers in Delhi

STATIC LOW-LOAD MEASUREMENT BASED ON THEROCKWELL PRINCIPLE Accurate, rapid, and reproduceable results from measurement of penetration depth under defined forces and therefore Independence of material (no choice of material curves necessary) Independence of body dimensions and geometry Measures from one side - no backing necessary   Excellent sensitivity through small penetration of a few μm and therefore particularly suitable for Scratch-sensitive and polished surfaces Thin parts, profiles and pipes with a wall thickness = 2 mm Hardness profile in heat-affected zone of welding seams

Hardness Tester For Mastic Asphalt-VSLIC4011 Hardness tester for Mastic Asphalt has been fabricated to meet the essential requirements od IS 1195 – 1968 in finding out the Hardness Number of mastic asphalt. Hardness Number is defined as the figure denoting the depth in hundreds of a centimeter, to which a flat ended identation pin in the form of a steel rod 6.35 mm in diameter will penetrate the mastic under a load of 31.7 kg applied for 60 seconds, the temperature being maintained at 35′ +/- 0.5′ C or 45′ +/- 0.5′ C. the unit is complete with load release mechanism. General Descripation & Specifications : The apparatus consists of a frame supported by means of four leveling screws.On the top plate ,a lever with a counter balances weight and a load hanger is fixed .The ration of the lever to weight is such that when the weight is kept on the hanger ,the ultimate load acting on the penetration pin is 31 kg. A thermometer is fixed by a clip ,which records the temperature of the water in the container. The load transfer bar passes through the support bracket and rest on the specimen . The penetration load can be adjusted and locked before the test is conducted .An adjustable ring is provided on the load transfer bar and a rest point.The dial gauge of 0.01 mm accuracy to record the depth of penetration is also provided .The ring can be adjusted and locked in position for initial setting of dial gauge. A cam which is operated by the handle is provided to lock or free the load transfer bar . Hardness Tester For Mastic AsphaltHardness tester for Mastic Asphalt has been fabricated to meet the essential requirements od IS 1195 - 1968. A thermometer is fixed by a clip ,which records the temperature of the water in the container. Hardness Tester For Mastic Asphalt Summary It consist of an internally insulated cabinet to the base of which is fitted a water bath having two taps. The bath is heated by an immersion heater and the temperature is controlled with the thermostat at 35 ° +/- 0.5° C. A 6.5mm dia pin is loaded on the specimen by means of a lever to give a 31.7 Kg weight. A dial gauge 0.01 x 25 mm is provided to record the penetration of pin into the specimen.

Being an eminent organization, we are engaged in exporting and supplying Portable Hardness Tester. Portable Hardness Testers offered by us are used in variety of applications in different mechanical and engineering industries. Available in different specifications, Portable Hardness Testers are demanded across the market.Features Corrosion resistance High performance Minimal maintenance Specifications Maximum test Height : 110 mm Troat Capacity : 55 mm   Item Code : PR-1

The machine is designed with a Hydraulic Power pack and control circuit for effortless loading unloading operation. An adjustable Dwell Time Facility facilitates production testing within tolerance ensuring accuracy and reliability of test results. This facilitates production testing within tolerance limits by comparison method.Standard Supply      Main Machine 3000 Kgf Capacity - 1 No. Testing Table 200 mm ø - 1 pc. Testing Table 200 mm ø with 'V' grove for round jobs - l0 to 80 mm dia     1 pc. Ball holder 5 mm  - 1 pc. Ball holder l0 mm - 1 pc. Test Block HB-5/750 - 1 pc. Test Block HB-l0/3000 - 1 pc. Brinell Microscope - 1 pc. Allen Spanner - 1 pc. Telescopic cover for elevating screw protection - 1 set Instruction Manual - 1 book

Brinell Hardness Test. Rockwell cum Brinell tests consists of forcing an indentor (Diamond Ball) into the surface of a test piece in two steps i.e.first with preliminary test force and thereafter with additional test force and then measuring depth of indentation after removal of addition test force (Remaining preliminary test force active) for measurement of hardness value. These machines are suitable for Rockwell cum Brinell tests. These are motorized digital Hardness Testers having LCD display for easy hardness measurement. The results are displayed in 0.1 Rockwell unit for more accurate measurement. Brinell Hardness measured by using microscope manually. Salient Features This is motorized machine having automatic loading/unloading cycle suitable for production testing. The machine body is having a taper front look and a large size read out in the front. The machine is powder coated for better look. The paint shade do not fade and machine looks like new over years. The elevating screw of machine is guided in a hardened and ground bush, not allowing movement of elevating screw more than 0.05 mm when raised to full height. The accessory is retained for years together due to hardened bush. A hardened and groung stepped bush is fixed on top of main screw for location and rest surface. This guarantees no change in results due to rough handling of test table or test piece. It means a trouble free long life machine accuracy. An antifriction linear bearing with almost no clearance is provided for a perfect vertical movement of loading plunger with minimum friction. This enables testing of small dia. Pin or ball upto 3 mm dia. These models are provided with automatic working cycle and digital LCD display with 0.1 Rockwell resolution. This insures productivity with better accuracy

Specification :   Material Uses: Steel Application: To clean test tube Feature: Accurate Temperature

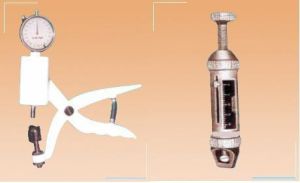

Tablet hardness testing is a kind of laboratory technique, which is employed to test breaking point of a tablet. For pharmaceutical units this process is an important part of medicine production that ensures tablets must be hard enough to withstand mechanical stress during various conditions such as storage and packaging, transportation and handling by the consumer etc.

made by : trusize made in : indian model no. : shore-a       product fetures  rubber hardness tester (durometer) shore-a & d, type 06 trusize manufactures a wide variety of durometers (rubber hardness tester) for checking hardness of polymers, composites, synthetic rubber products, acrylics, acetates, polymers, thermoplastics, pvc, hardboards, wood, fruits and many other non standard materials. dual needle helps to take the reading after removing from the work piece. Rubber hardness confirms to din 53505 and american standard astm 2240 range : 0-100 shore,  shore-a  (for soft rubber & plastic)   range : 0-100 shore, shore –c (for testing winding density of textile cones, bobbins, quills, and packages)   range : 0-100 shore, shore- d (for hard rubber,  plastics, ebonite, graphite, & backlight)   packing - wooden box with test pc warrantee – one year against all manufacturing defects only

We are a leading Manufacturer, Exporter, and Supplier of a quality range of Digital Brinell Hardness Testing Machine. These Hardness Testing Machines provide accurate and precise measurements. The variety offered by us is available to the clients at market leading prices. This range is highly demanded in India and abroad owing to its efficiency and longer working life.

We are among the prominent industry engaged in offering a wide range of digital rockwell hardness tester to our clients at the most reasonable price. These products are widely used in various industrial application which finally results in better productivity. features: motorized system for application and removal of major load minor load setting by led bar graph keyboard entry for scale selection hi-low-ok indication for hardness value easy to read, large size extra bright 7 segment display centronics parallel port for connecting dot matrix printer manual operation available in case of motor failure sufficient error codes for smooth functioning of machines serial interface (optional) indenter is guided in linear bearings facilitates to test small diameter jobs automatic weight selection by thumb wheel the additional test load of 187.5 kg for brinell scale brinell microscope is provided for brinell indentation measurement manual weight selection separate lever is provided for selection of minor load

Used to determine the hardness of any cylindrical element in Degree Shore. • Handy, easy to operate With calibrated precision dial for direct reading in Degree Shore. • Supplied with calibration & inspection certificates.
