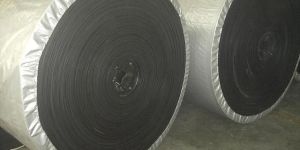

Rubber Conveyor Belt Dealers in Delhi

rubber conveyor belt,preferred by stone crusher machine.cement factory,and any other mill,we also supply india and nepal and bangladesh.we supply as per your requirement 3 ply,4 ply and 5 ply.thickness 8mm to 15 mm.

We are a prominent General Purpose Rubber Conveyor Belt Manufacturer, Supplier and Exporter. General Purpose Conveyor Belts, which we offer, are made from NN, EP or cotton fabric in light duty, medium duty & heavy duty belts in M-24, N-17 & eco grades. General Purpose Rubber Conveyor Belt, available with us, are sturdy, flexible and long lasting. Additional Information Payment Terms : L/C, T/T,Minimum Order Quatity : 1Packaging Details : export worthy hdpe / hessian woven sack packing & wooden / steel drum packing also availableDelivery Time : 1 - 40 days

Length: Open or endless up to 400 meters in single length provided the diameter does not exceed 10 feet. Plies: 1 plies to 8 plies. Type of Fabrics & their features: Nylon/Nylon (NN) Carcass: NN 100, NN 125, NN 150, NN 200, NN 250, NN 300, NN 350, NN 400 and NN 450.  ¤ Lower longitudinal elongation ¤ Higher tensile strength ¤ Good flexibility and trough ability ¤ Good resistance to mildew, moisture and rotting ¤ Good resistance to edge wear ¤ Excellent impact resistance ¤ Unaffected by alkalis and weak acids ¤ Suitable for conveying material over long distances Polyestor/Nylon (EP) Carcass: 100, EP 125, EP 150, EP 200, EP 250, EP 300, EP 350, EP 400 and EP 450 ¤ Besides having the advantages as listed for NN carcass belts, EP belts have the additional advantage of lower longitudinal elongation. Cotton/ Cotton (CC) Carcass: 28 OZ, 32 OZ, 36 OZ, 42 OZ, 48 OZ and 34 OZ. ¤ Suitable for most applications ¤ Good bonding for rubber ¤ Good fastener holding properties Cotton/ Nylon (CN) Carcass: ¤ Good troughability ¤ Resistance to longitudinal tearing and damage due to edge turn up ¤ Improved resistance to impact damage ¤ Lighter in weight ¤ Better mechanical fastener holding properties GRADES: GRADE M-24: Compounded from premium quality natural rubber to provide excellent resistance to cutting gouging, wear & tear and confirms to the maximum abrasion loss value & minimum tensile strength. GRADE N-17: Recommended for medium duty services to handle sized materials like woodchips, lime, fine stones, gravel's etc. GRADE HR(T1): Manufactured with specially formulated rubber compound for handling materials like ash, hot lime, foundry sand etc. having temperature up to 125°C for coarse and 100°C for fines. GRADE SHR(T2): This cover grade is specially formulated with synthetic & natural rubber to provide superior heat & abrasion resistance. Recommended for temperature up to 180°C for coarse and 160°C for fines material. GRADE UHR: Specially made with formulation of S.B.R rubber for providing ultra heat & abrasion resistance. Recommended for temperature up to 180°C for coarse and 160°C for fines material. GRADE FR: This belt is widely used in coal & such type of mines where the ambient temperature may not be high but there is distinct hazard of belts being enveloped in fire. GRADE OR: specially compounded synthetic rubber cover grade is specially designed to give the best possible resistance to mineral, vegetable and animal oils.

We at CCPL offers premium quality Rubber Conveyor Belts, which are used for various industrial purposes. “CCPL-INSTACON” make Conveyor Belts are made from Hi-grade Raw materials that ensure high tensile strength, resistivity to adverse conditions, good trough-ability and flexibility. These Conveyor Belts are suitable for all kind of Critical & Super-Critical Applications which can be customized as per customer requirement & application.

We are counted among the major Abrasion Resistant Rubber Conveyor Belt Manufacturers. We deal in Rubber Conveyor Belts of premium quality rubber compound with better aging characteristics, which are used frequently for various industrial purposes. These are made from high-grade materials that ensure high durability, tensile strength, resistivity to adverse conditions, good trough-ability and flexibility. The Conveyor Belts we deal in are reliable to the greatest extent due to the fact that these have a wide capacity range and very much customizable. Highlights Standard widths up to 2400 mm in ready stock with both cut or sealed edges as desiredFulfils the highest national and international standardsRoutinely quality tested in our in-house belt testing labCovered by a 12 month manufacturer's warranty Available In Variety of gradesCarcass: Both nylon and polyester fabric (EP)

We are recognized as the most reliable Conveyor Belts Manufacturer in India. The Materials used in the manufacturing of the Rubber Conveyor Belts are of optimum quality that ensures noteworthy features like high durability, resistivity to adverse conditions and high tensile property. Further to meet the varied requisites of the clients, the Industrial Rubber Conveyor Belts are available in different grades like Grade M-24, Grade N-17, Grade HR (T1), Grade SHR(T2), Grade UHR, Grade FR and Grade OR and are manufactured using the fabrics mentioned below: Nylon/Nylon (NN) Carcass. Cotton/ Cotton (CC) Carcass. Polyestor/Nylon (EP) Carcass. Cotton/ Nylon (CN) Carcass. Width: Up to 2400 mm. Length: Open or endless up to 400 meters in single length provided the diameter does not exceed 10 feet. Plies: 1 plies to 8 plies. Type of Fabrics & their Features: Nylon/Nylon (NN) Carcass: NN 100, NN 125, NN 150, NN 200, NN 250, NN 300, NN 350, NN 400 and NN 450. Lower longitudinal elongation. Higher tensile strength. Good flexibility and trough ability. Good resistance to mildew, moisture and rotting. Good resistance to edge wear. Excellent impact resistance. Unaffected by alkalis and weak acids. Suitable for conveying material over long distances. Polyestor/Nylon (EP) Carcass: 100, EP 125, EP 150, EP 200, EP 250, EP 300, EP 350, EP 400 and EP 450 Besides having the advantages as listed for NN carcass belts, EP belts have the additional advantage of lower longitudinal elongation. Cotton/ Cotton (CC) Carcass: 28 OZ, 32 OZ, 36 OZ, 42 OZ, 48 OZ and 34 OZ. Suitable for most applications. Good bonding for rubber. Good fastener holding properties. Cotton/ Nylon (CN) Carcass: Good troughability. Resistance to longitudinal tearing and damage due to edge turn up. Improved resistance to impact damage. Lighter in weight. Better mechanical fastener holding properties. Grades: Grade M-24: Compounded from premium quality natural rubber to provide excellent resistance to cutting gouging, wear & tear and confirms to the maximum abrasion loss value & minimum tensile strength. Grade N-17: Recommended for medium duty services to handle sized materials like woodchips, lime, fine stones, gravel's etc. Grade HR(T1): Manufactured with specially formulated rubber compound for handling materials like ash, hot lime, foundry sand etc. having temperature up to 125°C for coarse and 100°C for fines. Grade SHR(T2): This cover grade is specially formulated with synthetic & natural rubber to provide superior heat & abrasion resistance. Recommended for temperature up to 180°C for coarse and 160°C for fines material. Grade UHR: Specially made with formulation of S.B.R rubber for providing ultra heat & abrasion resistance. Recommended for temperature up to 180°C for coarse and 160°C for fines material. Grade FR: This belt is widely used in coal & such type of mines where the ambient temperature may not be high but there is distinct hazard of belts being enveloped in fire. Grade OR: specially compounded synthetic rubber cover grade is specially designed to give the best possible resistance to mineral, vegetable and animal oils. Hygienic: This grade is specially manufactured from suitable non-toxic elastomers & is odorless. Recommended for handling foodstuff like tea, bakery, medicines, confectionery etc. Rough Top Belt: It is designed for transporting light weight goods, either being inclined or being horizontal, also suitable for transporting fragile or deformed materials and packed goods, such as glass, papers, bags, boxes or cartons at angle from 15 to 35 degree. The bareback Rough Top belt makes less friction coefficient, suitable for running over table and flat panel. The design of mesh-like pattern on the top surface cover can generate the relief effect, absorbing any vibrations and impacts exerted on the materials conveyed and simultaneously preventing the material from slip. Type of Edges: Available in cut edges and moulded (protected) edges. Skim Coated: The belts are processed with all its fabric plies skim coated with superior quality rubber compounds Mildew Inhibition: The rubber compounds used in the belts are designed such as to have full protection against mildew Breaker Ply: To with stand extra impact during service the belts are provided with breaker ply on demand. Belt Designation: Available in three types i.e. General Duty (GD), Heavy Duty (HD) and Extra Heavy Duty (EHD). National and International Standards followed: Bureau of Indian Standards (BIS) British Standards (BS) International Organization for Standardization (ISO) German Standards (DIN) Canadian Standards (CAN / CSA) Australian Standards (ASS) France Standards (NF-T47-100/101) Special features of IBC Conveyor Belts: Unique Carcass Design & Assembly. Superior Adhesion Levels. Higher Longitudinal Flexibility. Improved Transverse Flexibility. Higher Tensile Strength. Low Belt Stretch. Outstanding Impact Resistance. Improved resistance to mechanical damages. Higher carrying capacity with low conveyor belt weight. Rot Resistance. Hot & cold splice proven. Superior joint efficiency & increased life. Universal applications.

Patterned conveyor belt is composed of belt carcass and pattern. Pattern shape and height (depth) may be different because of different conveyed material and gradient of conveyor.On surface of the belt, there is chevron pattern higher than the belt body, the pattern may be either open-end or closed. Each kind of pattern includes three types i.e. High, medium and low.It can convey powdered, granulated and small lump materials at the gradient of no more than 400. It can also convey packaged materials.

We specialize in manufacturing technically advanced Rubber Conveyor Belts for transportation of various types of materials. Using quality raw materials, we have developed Conveyor Belts in industry-specific grades and designs. Size Specifications : Width : Up to 2400 mm.Length : Open or Endless up to 400 meters in single length provided the diameter does not exceed 10 feet. Grades Available With Us : M-24 : Compounded from premium quality natural rubber to provide excellent resistance to cutting gouging, wear & tear and confirms to the maximum abrasion loss value & minimum tensile strength.N-17 : Recommended for medium duty services to handle sized materials like woodchips, lime, fine stones, gravel's etc. HR (T1):- Manufactured with specially formulated rubber compound for handling materials like ash, hot lime, foundry sand etc. having temperature up to 125°C for coarse and 100°C for fines.SHR (T2) : This cover grade is specially formulated with synthetic & natural rubber to provide superior heat & abrasion resistance. Recommended for temperature up to 180°C for coarse and 160°C for fines material.UHR : Specially made with formulation of S.B.R rubber for providing ultra heat & abrasion resistance. Recommended for temperature up to 200°C for coarse and 180°C for fines material.FR : This belt is widely used in coal & such type of mines where the ambient temperature may not be high but there is distinct hazard of belts being enveloped in fire.OR : Specially compounded synthetic rubber cover grade is specifically designed to give the best possible resistance to mineral, vegetable and animal oils.HYGIENIC : This grade is specially manufactured from suitable non-toxic elastomers & is odorless. Recommended for handling foodstuff like tea, bakery, medicines, confectionery etc. Special Surface Designs : Rough Top Belt : It is designed for transporting light weight goods, either being inclined or being horizontal, also suitable for transporting fragile or deformed materials and packed goods, such as glass, papers, bags, boxes or cartons at angle from 15 to 35 degree. The bareback Rough Top belt makes less friction coefficient, suitable for running over table and flat panel. The design of mesh-like pattern on the top surface cover can generate the relief effect, absorbing any vibrations and impacts exerted on the materials conveyed and simultaneously preventing the material from slip. Sidewall & Cleated Belts : These Belts are specially made according to the client’s requirement for highly inclined conveyors. The sidewall & cleats fitted on the belt protects the material from falling & slipping of the conveyor belt. Types of Fabrics Used : NylonNylon (NN) Carcass : NN 100, NN 125, NN 150, NN 200, NN 250, NN 300, NN 350, NN 400 and NN 450.PolyesterNylon (EP) Carcass : 100, EP 125, EP 150, EP 200, EP 250, EP 300, EP 350, EP 400 and EP 450CottonCotton (CC) Carcass : 28 OZ, 32 OZ, 34 OZ, 36 OZ, 42 OZ, and 48 OZ.CottonNylon (CN) Carcass Optional Features : Type of Edges : Available in cut edges and moulded (protected) edges.Skim Coated : The belts are processed with all its fabric plies skim coated with superior quality rubber compounds.Mildew Inhibition : The rubber compounds used in the belts are designed such as to have full protection against mildew.Breaker Ply : To with stand extra impact during service the belts are provided with breaker ply on demand.Belt Designation : Available in three types i.e. General Duty (GD), Heavy Duty (HD) and Extra Heavy Duty (EHD). Matchless Features of our Rubber Conveyor Belt : Unique Carcass Design & AssemblySuperior Adhesion LevelsHigher Longitudinal FlexibilityImproved Transverse FlexibilityHigher Tensile StrengthLow Belt StretchOutstanding Impact ResistanceImproved resistance to mechanical damagesHigher carrying capacity with low conveyor belt weightRot ResistanceHot & cold splice provenSuperior joint efficiency & increased lifeUniversal applications Standards : British Standards (BS)Bureau of Indian Standards (BIS)International Organization for Standardization (ISO)Canadian Standards (CAN CSA)German Standards (DIN)France Standards (NF-T47-100101)Australian Standards (ASS)

We are offering rubber conveyor belts. Rapid industrialisation has necessitated the use of conveyor belts which have proved to be the most cost-effective system for transportation of raw material & finished goods in any form, for any application. Jonson belting are manufactured in our most modern, fully automated plant, using the finest raw material inputs, under the strict vigil of qualified technical personnel. Our belts have found satisfactory customers in the domestic and the international export market with our clientele ranging iron & steel plants, coal, copper, gold mines, cement plants, thermal plants, fertilizers plant and ports to name a few. Jonson conveyor belts conform to all relevant indianinternational standards and are manufactured in a wide range to suit all applictaions.

We offer rubber conveyor belts. Our belts have found satisfactory customers in the domestic and the international export market with our clientele ranging iron & steel plants, coal, copper, gold mines, cement plants, thermal plants, fertilizers plant and ports to name a few. Jonson conveyor belts conform to all relevant indianinternational standards and are manufactured in a wide range to suit all applictaions.

Rubber Conveyor Belts, PU Conveyor Belts, PVC Sidewall Cleated Conveyor Bel

Salient Features of Rubber Conveyor Belts, Rubber Conveyor Belt

Forech india limited is a leading manufacturer of fabric and steel cord re-enforced rubber conveyor belts that offers a complete package of products including conveyor accessories, to operate a conveyor system efficiently and economically. Our management team has over 40 years of experience in delivering quality conveyor products, both in the domestic as well as in export market globally.
