Cylindrical Grinder Dealers

We provide one of the finest cylindrical grinder which is known for its ribbed design that provides high rigidity. Our cylindrical grinder is available for both production as well as tool room applications. The wheel head of cylindrical grinder has a very rigid spindle, running in hydro-dynamic and multi point bearings. It wheel spindle is made of alloy steel, which is heat treated specially to achieve high accuracy & stability for life. advantages with us : we have done more than 5000 installationour cylindrical grinder is best known for accuracies in its class.

TOS BHU32 Cylindrical Grinder 1500X350 mm Cylindrical Grinder TOS BHU 32 used machine Used Machine TOS BHU 32 1500×350 mm TOS BHU 32 Cylindrical Grinder machine for sale  Cylindrical Grinder TOS BHU 32 used machine, TOS BHU 32 Cylindrical Grinder, TOS BHU32 Cylindrical Grinder 1500X350 mm, Used Machine TOS BHU 32 1500x350 mm

We are offering simple grind cnc 2-axis economical production cylindrical grinder. Backed by a team of highly experienced professionals, we are involved in providing a wide range of simple grind cnc 2-axis economical production cylindrical grinder

We use CNC Angular Wheel Head Grinder for Finish grinding of Diameters & shoulders on Shaft type gears. We focus on dimensional & geometrical accuracies such as roundness, squareness, flatness & surface finish. Our machine is ideally suited for grinding of Pump gears where Diameter & gear width is controlled precisely using in process gauges.Make Micromatic GrindingModel eGrind 200 CNCSwing Diameter 200mmAdmit Between Centers 250mmWheel Speed 45M/sWheel Dia x Length 500 x 50mmSpecial Features Angular wheel head to suit shoulder grinding   In process gauging for precise control of outside diameters   Lateral flagging device for precise control of linear dimensions

FEATURES:- HYDRAULIC CYLINDRICAL GRINDER- HIGH PRECISION FULLY HYDRAULIC CYLINDRICAL GRINDING

  This is a high precision production tool room universal cylindrical grinder. The machine is made using quality casting stress relieved by vibration "Formula 62" and in normalizing oven. Some of the prominent features are as under:· Tail stock, wheel & work spindles are heat treated.· Assembly of precision bearings within dust free environment.· Tail stock spindle acting in close tolerance & super finish bore.· All rotating parts are dynamically balanced.· Table & wheel slide faced with anti-friction material TURCITE-B.· Independent lubrication system to the guide ways of table and grinding wheel head.The machine is supplied complete with standard accessories including all electricals, control panel, coolant pump with tank and splash guards, grinding wheel with flange dressing tool holder and set of spanners.The machine is available in various sizes: 400 grinding length x 130 center height in mm, and likewise 600 x 130 mm, 800 x 130 mm, 1000 x 155 mm & 1200 x 155 mm.This machine is available both in mechanical drive model as well as hydraulic drive. Many optional attachments are available such as internal grinding attachment, radius truing device, machine lamp, self centering chucks etc.

This machine is suitable for grinding medium size work pieces in High production volumes. Ideally suited for precision grinding of shaft type components with single or multiple diameters ground in high volumes. Machine is also available with Linear motion guideways in the Wheel Head Axis for precise response up to 0.1 µ. The machine is available in both Straight & Angular Wheel Head Configurations.

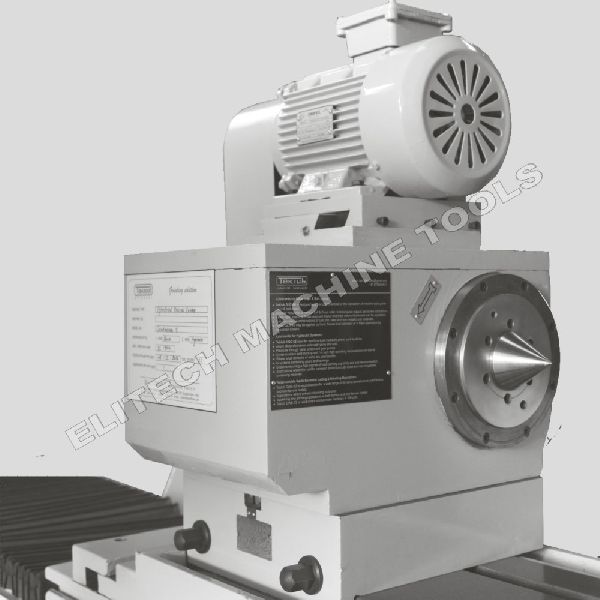

Workhead:The workhead spindle is made of nickel chrome EN-24 hardened and ground. It runs in gunmental bush bearings. The drive to the workhead spindle which has MT-3, is by a step ‘V’ pulley. The speed obtained through this pulley can be reduced by another bigger size pulley provided in the workhead housing. The workhead is built for grinding operation both with stationary centre and revolving spindle. Oil holes are provided for lubrication.   Wheelhead:The rigid wheelhead spindle is made of nickel chrome steel EN-24 hardened and ground. It runs in white metal adjustable type bush bearings. The drive to the wheelhead is transmitted by two V-belts. Automatic wheelhead traverse in cross direction is on precision hand-scrapped ‘V’ and flat guideways, and is hydro-mechanical type. The spindle is tapered (5o) at the front to receive the wheel flange. Oil holes are provided for lubrication of the bearing surfaces. Rapid approach is available in U-127 series and it is up to 40 mm.   Tailstock: The tailstock travels smoothly all along the length of table right upto the workhead.    Hydraulic/Electrical System: All standard equipments are used in both system.   Swivel Table: Table is arranged to swivel for taper grinding. For fine connections to be applied by the screw adjustment.   Internal Grinding Attachment: The hinged type Internal Grinding Attachment with its independent motor is conveniently located on the wheelhead. It has fast grinding action and it can be quickly swung into a grinding position. The work piece can be externally and internally ground in one setting. Taper hole can be ground by swivelling either workhead or table. There are so many standard and special accessories that can be added to the machine as per requirement.

Highly rigid trunnion table supports high-accuracy 5-axis machining The indexing accuracies that take 5-axis machining to higher accuraciesIndexing accuracy ▪ A-axis indexing accuracy/Indexing return accuracy: ±0.68 sec/±0.40 sec▪ C-axis indexing accuracy/Indexing return accuracy: ±0.78 sec/±0.14 sec Fast operatio (Actual data) ▪ A-axis/C-axis 90°clamp/unclamp indexing time: 1.0 sec/1.2 sec High quality machined surfaces with the high following of 5-axis machiningHighly-rigid trunnion table supports both endsWith ball-screw cooling (Std), reduced following error is achieved while maintaining highly accurate machining. Trunnion table High accuracy maintained over long times in 5-axis machining The synergistic effect between two intelligent technologies—5-Axis Auto Tuning System and the Thermo-Friendly Concept—maintains high-accuracy 5-axis machining over the long term.

Designed for high rates of stock removal for batch production requiring fine tolerance limits with finest surface finish. Available in universal and production models, having infinitely variable table traverse, with a dwell and automatic infeed at table reversals. The universal models are equipped with swivelling wheel head and built-in provision for internal grinding. A single lever controls table traverse, work rotation, coolant flow and rapid approach of wheel head during production runs.

We present you quality Cylindrical Grinders, CNC Cylindrical Grinders and all kinds of grinders. Our products like cylindrical grinders, CNC cylindrical grinders and others have surpassed all the tests taken as per international set standards. Our products can perform in any extreme condition as they are made of high duty cast iron. In addition our products are duly seasoned, rigid and strong enough to prevent any sort of distortion & wear. We claim that our unmatchable products are highly durable that will allow you to use our product for long time. Our best quality cylindrical grinders successfully meet the need for "Fast Production & Better Accuracy". Our products� unlimited usability has made us one of the apex cylindrical grinder manufacturers in India.

Pick from our wide range of cylindrical grinders. Each model is different to suit individual production need. For higher productivity and greater profit, it is essential you pick a machine suitable for you. WorkheadThe work head spindle is made of nickel chrome EN-24 hardened and ground. It runs in gunmetal bush bearings. The drive to the workhead spindle which has MT-3, is by a step ‘V’ pulley. The speed obtained through this pulley can be reduced by another bigger size pulley provided in the workhead housing. The workhead is built for grinding operation both with stationary centre and revolving spindle. Oil holes are provided for lubrication. WheelheadThe rigid wheelhead spindle is made of nickel chrome steel EN-24 hardened and ground. It runs in white metal adjustable type bush bearings. The drive to the wheelhead is transmitted by two V-belts. Automatic wheelhead traverse in cross direction is on precision hand-scrapped ‘V’ and flat guide ways, and is hydro-mechanical type. The spindle is tapered (5o) at the front to receive the wheel flange. Oil holes are provided for lubrication of the bearing surfaces. Rapid approach is available in U-127 series and it is up to 40 mm. Tailstock The tailstock travels smoothly all along the length of table right upto the workhead.  Hydraulic/Electrical System All standard equipments are used in both system. Swivel Table Table is arranged to swivel for taper grinding. For fine connections to be applied by the screw adjustment. nternal Grinding Attachment The hinged type Internal Grinding Attachment with its independent motor is conveniently located on the wheelhead. It has fast grinding action and it can be quickly swung into a grinding position. The work piece can be externally and internally ground in one setting. Taper hole can be ground by swivelling either workhead or table. There are so many standard and special accessories that can be added to the machine as per

The Universal Cylindrical Grinding Machine ideally suited to performing repetitive grinding operations or small quantity reduction with equal ease. Features of our existing range of machines. All models have hydraulic and mechanical able traverse. Wheel Head rapid approach for the operating conveniently. In all models variable speed of work head and internal grinding spindles facilities are available if required on all models. We use antifriction turcite "B" slid-way material on the slides in all our models. Hand - operated lubrications pump for sufficient lubrication of slides. Surface finish 2 microns (improved values can be obtained by using selected grades of grinding wheel applicable to material to be ground). Standard attaehments : A coolant pump fitted on a tank, Diamond Dresser 2 nos., Oil can, Dead Center 2 nos., Tool kit. Additional attachment extra cost : Internal Grinding Attachment, Balancing Stand, Balancing Mandrel, Three Points Steady Rest, Two points Steady Rest, Radius Truing Device, Spare wheel Flange, Independent Four Jaws Chuck, Magnetic Coolant Pump, Grinding Gauge.

Casting are stress relieved by vibration “FORMULA 62” and in normalizing oven.Tail stock, wheel & work spindles are heat treated to achieve dimensional stability.Independent lubrication system to the guideways of table and grinding wheel head.

The Precision Cylindrical Grinder is designed and manufactured to achieve high accuracies of roundness and cylindricity of Jobs. These facilities are available for both production as well as tool room applications. The other features of the machine are as Longitudinal Slide, In-feed System, Wheel Head, Work Head, Tail Stock, Internal Grinding Head and many more. The quality of our Grinder guarantees the highest accuracy in working and provide “comprehensive warranty protection” from our Company. The Machines are available in different sizes, capacities and specifications to suit the varied necessities of the customers. For the facilitation of the customers. The detailed Technical Specifications of the Grinder are given below:

Sharda - possess long and outstanding experience. In producting high precision Cylindrical Grinding Machines, their endeavour is put up dedicated efforts concentrating the latest technology available and to offer result oriented product to the user which can yield the reward.  These machines are emerged out of Proven design, use of selected materials and implementation of    proper manufacturing techniques and skill.  These machines are capable to achieves a very high degree of accuracy of roundness and cylindricity on    job.They are suitable for tool room and production jobs to carry out cylindrical, face internal grinding  operations.

A unique range of sophisticated cylindrical grinders with unmatched levels of precision and efficiency. Cylindrical Grinding Machines are versatile and reliable and have started a revolution of accuracy and advanced automation across the globe. electric motor and machine tool manufacturers to automotive and gear manufacturers are benefited from this machine.

We are offering hydraulic cylindrical grinder. specifications model (rew) 300450/600/1000max. Grinding length 300 mm 450/600/1000max. Height of center 100 mm 125 mm range of table feed per min 0.05 / 1.5 0.05 / 1.5 max. Table swivel 7+2 = 9 6 + 2 = 8 hydraulic power motor 1 h.p. / 0.75 1 h.p. / 0.75work head swivel on 45 towards wheel head -work head speed range (3) 75, 150, 350 (3) 60, 120, 250 work head motor 0.5 h.p. / 0.37 0.5 h.p. / 0.37 size of grinding wheel 350x25x127350x38x127min. Dia. Of worn out wheel 250 mm 250 mmr.p.m.of grinding wheel 19001900/2100wheel head motor 2 h.p. / 1.5 3 h.p. / 2.25
