Cylindrical Grinder Dealers in Ludhiana

(8 products available)

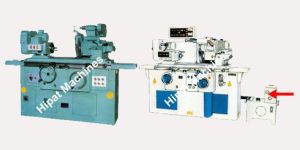

  • Cylindrical Grinder

    Cylindrical Grinder

    Get Price Quote
    • Work Head Speeds r.p.m. 3 Steps (SGI 305/455/600/800 mm)50 to 350
    • Morse Taper CenterNo. 3
    • Work Head Speeds r.p.m. 4 steps (SGI 1000-1250/1500-2000 mm)35 to 350
    • Morse Taper CenterNo 4 to 5
    • Work Head Swivel90 degree
    • TABLE
    • Traverse speeds 4 steps (Mechanical)80 to 385 mm/min.
    • Traverse speed step-less (Hydraulic)50 to 1000 mm/min
    • WHEEL HEAD
    • Rapid approach to all machines50 mm
    • Wheel head with a hand wheel (305/455/600/800)80 mm
    • Wheel head with a hand wheel (1000/1250)100 mm
    • Wheel head with a hand wheel (1500/2000)170 mm
    • Increments of feed dial0.005 mm
    • Swivel of wheel head45-45 degree
    • Wheel speeds (SGI 305/455/600/800 mm)1800-2000
    • Standard size of wheel355 x 25.4 x 127 mm or 355x 38 x 127 mm
    • Wheel speeds (SGI 1000/1250 mm)1500-1800
    • Standard size of wheel406 x 38 x 127 mm
    • Wheel speeds (SGI 1500/2000 mm)1200-1500
    • Standard size of wheel508 x 50.80 x 254 mm
    • Power
    • Wheel head (SGI 305/455/600/800/1000/1250 mm)3 H.P. / 5 H.P.
    • Wheel Head (SGI 1500/2000 mm)5 H.P. / 7.5 H.P.
    • Work Head (SGI 305/455/600/800 mm)0.5 H.P.
    • Work Head (SGI 1000/1250 mm)1 H.P.
    • Work Head (SGI 1500/2000 mm)1.50 H.P.
    • Mechanical Table (SGI 305/455/600/800/1000/1250)0.5 H.P.
    • Mechanical Table (SGI 1500/2000)1 H.P.
    • Hydraulic1/2 H.P.
    • Coolant Pump0.10 H.P.
    • Internal Grinding Attachment1 H.P.
    • The Universal Cylindrical Grinding Machine ideally suited to performing repetitive grinding operations or small quantity reduction with equal ease. Features of our existing range of machines. All models have hydraulic and mechanical able traverse. Wheel Head rapid approach for the operating conveniently. In all models variable speed of work head and internal grinding spindles facilities are available if required on all models. We use antifriction turcite “B†slid-way material on the slides in all our models. Hand – operated lubrications pump for sufficient lubrication of slides. Surface finish 2 microns (improved values can be obtained by using selected grades of grinding wheel applicable to material to be ground).Standard attaehments :A coolant pump fitted on a tank, Diamond Dresser 2 nos., Oil can, Dead Center 2 nos., Tool kit.Additional attachment extra cost :Internal Grinding Attachment, Balancing Stand, Balancing Mandrel, Three Points Steady Rest, Two points Steady Rest, Radius Truing Device, Spare wheel Flange, Independent Four Jaws Chuck, Magnetic Coolant Pump, Grinding Gauge.
    ...more

    Hipat Machine Tools

    G. T. Road, Ludhiana
    10 yrs

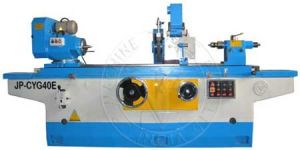

  • Cylindrical Grinder

    Cylindrical Grinder

    Get Price Quote
    We are into Manufacturing and Exporting of Cylindrical Grinder that is widely demanded due to its high performance & better accuracy. By offering the clients with best quality Cylindrical Grinder, we have carved distinct position in the international market. Features High productivityAccurate resultsLonger working lifeLow maintenance cost Used for Die makingTool makingSpine grindingBroach making. Technical Specifications MODELJP-CYG-12JP-CYG-18JP-CYG-24JP-CYG-30JP-CYG-40 MAXIMUM GRINDING LENGTH3054576097601000 MAXIMUM HEIGHT OF CENTER5:"51/2"51/2"51/2"61/2 MAXIMUM SWING OVER TABLE10"1 1"1 1"1 1"1 1" MAXIMUM GRINDING DIAMETER40 MM76101101101 NO. OF TABLE FEEDS333 RANGE OF TABLE FEEDS PER MINUTES100-175-275100-175-275100-175-275 MAXIMUM TABLE SWIVEL7Ã…Ÿ7Ã…Ÿ7Ã…Ÿ7Ã…Ÿ ELECTRIC MOTOR FOR TABLE DRIVE1H.P. 14400 RPM1H.P.1440 RPM1 H.P. 1440 RPM1 H.P. 1440 RPM1440RPM. WORK HEAD SWIVEL ON EITHER SIDE9090909090 WORK SPINDLE SPEEDS33333 WORK SPINDLE SEEDS RANGE60-90-11060-90-11060-90-110 WORK HEAD MOTOR WITH 1440 RPM.0.5 H.P.0.5 H.P.0.75H.P.1H.P.1H.P. MORSE TAPERMT-3MT-3MT-3MT-3MT-3 TRAVERSE MOVEMENT OF WHEEL HEAD MAX.8888888888 SIZE OF GRINDING WHEEL355X38X127355X38X27355X38X27406X38X127406X38X127
    ...more

    J. P. Machine Tools Pvt. Ltd.

    Dholewal, Ludhiana
    19 yrs
  • Cylindrical Grinders

    Cylindrical Grinders

    Get Price Quote
    Cylindrical Grinders, Bolt Threading Machine, Capstan Lath

    Sewmac Industries

    Industrial Area B, Ludhiana
    16 yrs
  • Cylindrical Grinders

    Cylindrical Grinders

    Get Price Quote
    Cylindrical Grinders, Center Less Grinders, Crank Shaft Grinder

    H. R. Industries

    Sangowal, Ludhiana
    12 yrs
  • Cylindrical Grinder

    Cylindrical Grinder

    Get Price Quote
    Surface Grinder, Tractor Part

    J.s. & Sons

    Giaspura, Ludhiana
    11 yrs
  • Universal Cylindrical Grinder

    Universal Cylindrical Grinder

    Get Price Quote
    Universal Cylindrical Grinder, Boring Machines, Grinding Machine

    Amandeep Engineering Works

    Janta Nagar, Ludhiana
    13 yrs 4.0 (1)
  • Cylindrical Grinder

    Cylindrical Grinder

    Get Price Quote
    Universal Grinde

    Jaswinder Products

    Kot Mangal Singh Nagar, Ludhiana
    12 yrs
  • Cylindrical Grinder

    Cylindrical Grinder

    Get Price Quote
    Center Less Grinder, Shaft Grinder, Universal Cylindrical Grinding Machin

    H.R. Machine Tools

    Kot Mangal Singh Nagar, Ludhiana
    12 yrs
