Cylindrical Grinder Dealers in Mumbai (12 products available)

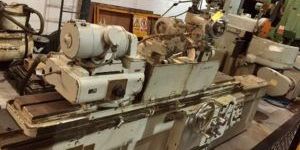

Stanko Cylindrical Grinder Length 1500mm Center height 150mm Only external   Stanko Cylindrical Grinder 4000 Mm Cylindrical Grinder, Cylindrical Grinder, Cylindrical grinder Stanko 4000mm, Stanko Cylindrical Grinder 4000 Mm for sale  Cylindrical Grinder, Cylindrical grinder Stanko 4000mm, Stanko Cylindrical Grinder 4000 Mm Cylindrical Grinder, Stanko Cylindrical Grinder 4000 Mm for sale

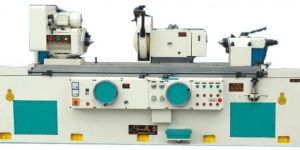

  This is a high precision production tool room universal cylindrical grinder. The machine is made using quality casting stress relieved by vibration "Formula 62" and in normalizing oven. Some of the prominent features are as under:· Tail stock, wheel & work spindles are heat treated.· Assembly of precision bearings within dust free environment.· Tail stock spindle acting in close tolerance & super finish bore.· All rotating parts are dynamically balanced.· Table & wheel slide faced with anti-friction material TURCITE-B.· Independent lubrication system to the guide ways of table and grinding wheel head.The machine is supplied complete with standard accessories including all electricals, control panel, coolant pump with tank and splash guards, grinding wheel with flange dressing tool holder and set of spanners.The machine is available in various sizes: 400 grinding length x 130 center height in mm, and likewise 600 x 130 mm, 800 x 130 mm, 1000 x 155 mm & 1200 x 155 mm.This machine is available both in mechanical drive model as well as hydraulic drive. Many optional attachments are available such as internal grinding attachment, radius truing device, machine lamp, self centering chucks etc.

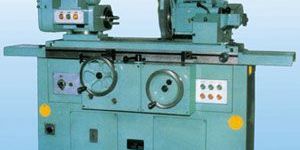

Sharda - possess long and outstanding experience. In producting high precision Cylindrical Grinding Machines, their endeavour is put up dedicated efforts concentrating the latest technology available and to offer result oriented product to the user which can yield the reward.  These machines are emerged out of Proven design, use of selected materials and implementation of    proper manufacturing techniques and skill.  These machines are capable to achieves a very high degree of accuracy of roundness and cylindricity on    job.They are suitable for tool room and production jobs to carry out cylindrical, face internal grinding  operations.

This is a high precision production tool room universal cylindrical grinder. The machine is made using quality casting stress relieved by vibration "Formula 62" and in normalizing oven. Some of the prominent features are as under: · Tail stock, wheel & work spindles are heat treated. · Assembly of precision bearings within dust free environment. · Tail stock spindle acting in close tolerance & super finish bore. · All rotating parts are dynamically balanced. · Table & wheel slide faced with anti-friction material TURCITE-B. · Independent lubrication system to the guide ways of table and grinding wheel head. The machine is supplied complete with standard accessories including all electricals, control panel, coolant pump with tank and splash guards, grinding wheel with flange dressing tool holder and set of spanners. The machine is available in various sizes: 400 grinding length x 130 center height in mm, and likewise 600 x 130 mm, 800 x 130 mm, 1000 x 155 mm & 1200 x 155 mm. This machine is available both in mechanical drive model as well as hydraulic drive. Many optional attachments are available such as internal grinding attachment, radius truing device, machine lamp, self centering chucks etc.

Pick from our wide range of cylindrical grinders. Each model is different to suit individual production need. For higher productivity and greater profit, it is essential you pick a machine suitable for you. WorkheadThe work head spindle is made of nickel chrome EN-24 hardened and ground. It runs in gunmetal bush bearings. The drive to the workhead spindle which has MT-3, is by a step ‘V’ pulley. The speed obtained through this pulley can be reduced by another bigger size pulley provided in the workhead housing. The workhead is built for grinding operation both with stationary centre and revolving spindle. Oil holes are provided for lubrication. WheelheadThe rigid wheelhead spindle is made of nickel chrome steel EN-24 hardened and ground. It runs in white metal adjustable type bush bearings. The drive to the wheelhead is transmitted by two V-belts. Automatic wheelhead traverse in cross direction is on precision hand-scrapped ‘V’ and flat guide ways, and is hydro-mechanical type. The spindle is tapered (5o) at the front to receive the wheel flange. Oil holes are provided for lubrication of the bearing surfaces. Rapid approach is available in U-127 series and it is up to 40 mm. Tailstock The tailstock travels smoothly all along the length of table right upto the workhead.  Hydraulic/Electrical System All standard equipments are used in both system. Swivel Table Table is arranged to swivel for taper grinding. For fine connections to be applied by the screw adjustment. nternal Grinding Attachment The hinged type Internal Grinding Attachment with its independent motor is conveniently located on the wheelhead. It has fast grinding action and it can be quickly swung into a grinding position. The work piece can be externally and internally ground in one setting. Taper hole can be ground by swivelling either workhead or table. There are so many standard and special accessories that can be added to the machine as per

Description: Hydraulic Universal Cylindrical Grinding Machine Hydraulic table traverse with infinitely variable speed range Work head swivel of ±90º with rapid approach for easy operation Wheel head swivels ±45º, allowing conical and angular grinding The slides are coated with “Turcite-B” linear bearing material to give stick slip free movements, reduce vibration and improve repetitive positioning accuracy Hand-operated lubrications pump for sufficient lubrication of Slides Specifications: (In mm unless specified otherwise) Accuracy: As per IS Standard 2368 Surface finish 0.002 mm/100 mm True Run Out of Spindle Taper: 0.005 mm   Applications: Face grinding, Transverse grinding, Taper grinding, Plunge grinding, Angle grinding, Internal grinding Automobile components, Bearings, Rollers, Fasteners, Tool Room, Dies & Punches   Accessories:Internal Grinding Attachment, Balancing Stand with Mandrel, Steady Rest, Radius Truing Device, 4-Jaw Chuck, Magnetic Coolant Pump, Grinding Gauge

The Universal Cylindrical Grinding Machine ideally suited to performing repetitive grinding operations or small quantity reduction with equal ease. Features of our existing range of machines. All models have hydraulic and mechanical able traverse. Wheel Head rapid approach for the operating conveniently. In all models variable speed of work head and internal grinding spindles facilities are available if required on all models. We use antifriction turcite "B" slid-way material on the slides in all our models. Hand - operated lubrications pump for sufficient lubrication of slides. Surface finish 2 microns (improved values can be obtained by using selected grades of grinding wheel applicable to material to be ground). Standard attaehments : A coolant pump fitted on a tank, Diamond Dresser 2 nos., Oil can, Dead Center 2 nos., Tool kit. Additional attachment extra cost : Internal Grinding Attachment, Balancing Stand, Balancing Mandrel, Three Points Steady Rest, Two points Steady Rest, Radius Truing Device, Spare wheel Flange, Independent Four Jaws Chuck, Magnetic Coolant Pump, Grinding Gauge.
