Drilling Rig Dealers in Hyderabad

The GPR3-04SA drill rig is ideal for water well drilling application in rock formation. Thanks to its simple and compact design, excellent performance, high accessibility and reliability at afford cost in its class. The GPR3-04SA rig’s flexibility means it can be mounted on single truck version, two truck versions and on local truck matching the rig to the terrain it will be used. Optional: Skid mounting Key features: Proven technology ensures easy maintenance and more productive. The rig can be customize as per customer requirement All the actuators are operated by proportional control valves Rig platform horizontal swing ±120º Rig platform horizontal slide 900mm Mast swing and sliding Key specification: Drill rod handling 8.2 feet (2.5 meter) Drilling depth up to 10 feet (3 meters) Drilling diameter 10 inch (254mm) - 15 inch (381mm) Pull up force 8,600 kgf Drill head torque 600 kg.m Air compressor 1,100 cfm/300 psi Contact us for higher drilling depth and drilling diameter. Optional: Auger drilling

Hydraulically operated multi purpose Mini crawler Mounted Rigs are specially designed for fast & cost effective drilling by air, mud or foam drilling methods using down-the-hole hammers & bits, core barred and tools, rotary tricone bits and other conventional tools as per customer’s choice, Hydraulic system powered by Deck engine is operated by fixed displacement pump with proportional valve, which regulates track motors, rotary head speed, feed etc., Centralized control panel located close to the drilling point ensures convenience of operation, Getech Rigs require minimum maintenance and easy to operate.

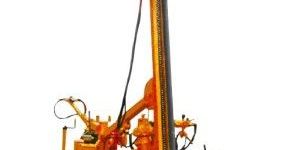

Wagon Drill JRD-120(DTH) : JRD - 120 Wagon Drill, capable for Drilling 90-115mm dia holes to a depth of 36mts. Used in open Cast mines for drilling and blasting purposes. Pneumatic Drifter can be mounted to carry out Drifter Drilling. Mounted on Rugged Box Frame, Fitted on wheels for easy shifting from hole to hole can drill holes from Vertical to Horizontal. The drills are available to handle 76mm dia x 2 mtrs. (6 1/2 ft) & 3 mtrs.(10 ft) drill pipes. Special Features : Stable drilling capabilities Structurals designed for extra rigidity Base frame in box - construction Anchoring arrangement ensures perfect stability during drilling Rear wheel swivelable by 90o to prevent movement during toe hole drilling Effectively braked wheels with telescopic adjustable stabilizers in the front, holding the unit firmly Locking arrangement between mast and boom provides extra rigidity Easy maneuverability - both in manual and self propulsion modes Centralized sensitive controls with Auto feed arrangement ensure easy operation and reduction of operators fatigue Rotation and winch units modified to provide additional power for faster drilling and rapid withdrawals, longer tool life etc. Heavy duty steel castings & Forgings Precision machined components Durable alloy Bronze bush bearings supported by sturdy retaining rings Heavy duty rotation gear box with involute profile gear tooth, duly corrected to prevent failure Rigid out-put shaft with extra bearings support and thicker thread profile Specially designed fluid seal to prevent Air leakages

Drill Collars (Slick and Spiral) are processed from AISI 4145 H Chromium Molybdenum Alloy Steel and are fully heat treated to a Brinell Hardness range of 285-341 BHN and have a minimum Charpy V-notch Impact strength of 40 ft-lbs. at 70° F and a minimum elongation of 13%. The mechanical properties meet or exceed API 7-1 requirements. The physical properties are guaranteed one inch below the surface at ambient room temperature. Mechanical Properties (4145 H Chromium Molybdenum Alloy Steel) Drill Collar OD (in.)Minimum Yield Strength (psi)Minimum Tensile Strength (psi)Minimum Hardness(BHN) 3 1/8 to 6 7/8 110,000 140,000 285 7 to 11 100,000 135,000 285 Drill Collars are precision trepanned to close bore tolerance and all bores are drifted to API 7-1. The connections are cut on CNC Machines. All API connections comply with dimensional requirements specified in API 7-1 and guidelines presented in API RP 7G. Spiral Drill Collars:To avoid differential pressure sticking in the hole, the surface of drill collars can be provided with three spiral grooves reducing the contact area with the wall of the hole. The spiral grooves let mud circulate freely around the Drill Collar to equalize pressure and prevent a seal from forming. Loss of weight is approximately 4%, compared to Slick Drill Collars. API Stress Relief Features and API Bore Back Box decrease the frequency of fatigue failures by improving the bending strength of pin and box connections, thereby, reducing high stress concentrations. Stress relief features are machined in compliance with API 7-1. Connections NC23, NC 26 (2 3/8 IF) and NC 31 (2 7/8 IF) do not have sufficient metal to accommodate stress relief features. Slip and Elevator recesses improve handling efficiency and safety. The upper radius of the elevator recess is cold-rolled. Slip and Elevator recesses can be used together or separately. Slip and Elevator Recesses are machined in compliance with API RP 7G guidelines. On enquiries and orders, please specify:Outside Diameter, Bore, Length, Connection Size and Type, API Stress Relief Features on Pin and Box ends, Slick or Spiral, Hard banding (band location and width), Slip or Elevator Recesses, Pressed or Cast Steel Thread Protectors, and any special features. Quality Control:Drill Collars are inspected to comply with API standards. The inspections include visual dimensional checks as well as Ultrasonic Inspection on each bar over its full length and section. Thread Profile, Lead, Taper, Pitch and Gage Standoff are 100% inspected on each Drill Collar to all applicable API Specifications and recorded.

Drilling Capacity Drill hole size Max. Remaining Size (in steps) Max. Depth Drill rod size, Rotary Head 0 to 120 rpm 434 Kgf, Hydraulic System:220 bar 10 microns 750 ltrs CompressorRod changerHoistWater pump with drive are offered as the per the requirement of the customer technical specifications, built models in various configurations, Mounting features to suit all special requirements and Technical specifications can be offered accordingly.

Prime Hitech Engineering Limited is a largest Factory and accredited as a quality manufacturer of Drilling rigs, Tankers, Boom Trucks, Crane Trucks with many years of experience. We are glad to announce the following special price for our esteemed customers � Normal Rig Mounting with Standard Quality at very special price of PDTH-150: Rs. 14,75,000 /- PDTH-200: Rs. 16,75,000 /- PDTH-300: Rs. 17,50,000 /- PDTH-450: Rs. 18,50,000 /- � Compressor Mounting on support truck at a special price of Rs. 3,75,000/- � 2 years Warranty � Free inspection of the Rig � We also offer Complete services/modification at a very special prices In case of any further indications please contact our Marketing team Thanking You with Best Regards, 1. Mr. Surya Kiran Kumar, Manager (Sales & Marketing) Mob: +91 9010978656 E-mail: surya@prime-phel.com 2. Mr. Manoj Sai Narayana.N, Sr Engineer (Sales & Marketing) Mob: +91 9666439541 E-mail: manoj@prime-phel.com Our Websites: www.Prime-phel.com www.primegroupindia.com www.primedrillingrigs.com

Beaver Tracks Pvt. Ltd. is dealing with the best Truck Mounted Drilling Rig India. Our exporters deal with outstanding and premium quality truck mounted drilling rig in India. We deal with supplying our products to many states and many countries as well. We are the well connected exporters to all dealers. Our trucks are available in standardise form as well as in customised form. Truck mounted drilling rig suppliers are assisted by highly qualified specialists, they have enough experience to produce quality based truck mounted rigs. We are the global dealers for our trucks which are expanded year to year as per the demand is increased. Our truck mounted drilling rigs consume less energy and possess low maintenance and hence are appreciated by our valuable clients.

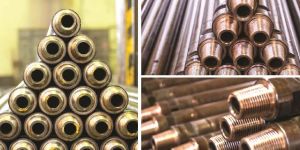

Drill collars Drill Pipes Heavy Weight Drill Pipes Drill Collars, Casing Pipes (API & Premium Connections),Coupling, Pup-Joints & Cross Overs,Repair Reconditioning of Drill Pipes Premium Connections.

  DTH cum rotary drilling rig Diameter: 6 1⁄2" to 20"; Depth: up to 1000 Mtrs Pull up force: 31,000 kgf; Pull down force: 22,000 kgf Top head rotary drive: 1170kgs- mtr torque, 0-100 rpm Optional high-pressure engine-driven Duplex double-acting mud pump Suitable compressor: 1500 cfm / 400 psi, 1200cfm / 350 psi

We offer earth hole drilling rig. Top drive drill rig is capable of drilling in different formations such as medium to hard rock by dth up to a depth of 20 meters, in 180 degrees fro electrical pole hole drilling
