Electric Cables Dealers

We supply low tension cables according to national and international standards and to individual specifications for our customers. In the 0.65 kv - 1.1 kv range, the most commonly required cables are always in stock or production, guaranteeing availability. Cables with aluminium or copper conductors

FOR CONNECTING TRANSFORMER BUSBAR AND MELTING ELECTRODES MULTILAYERS STRANDED ANNEALED BRIGHT BARE COPPER ELECTROLYTIC WIRES INSULATED WITH POLYESTER TAPES VARNISHED CAMBRIC DOUBLE INSULATION having effective thickness of 20 mils duly impregnated with highly polymerised thermosetting varnish suitable to withstand 400 volts. OVERALL ASBESTOS BRAIDED WITH HEAT PROOF FLAME PROOF BLACK COMPOUNDED EFFECTING OVERALL STRENGTH OF ASBESTOS AS HARD & AS FLEXIBLE TO SUIT TRAILING AND HIGH AMBIENT TEMPERATURE CONDITIONS GENERALLY MANUFACTURED IN 400 SQ. MM. CROSS SECTIONAL AREA ANY OTHER SIZE AS PER CUSTOMER'S DESIGN MAY BE FABRICATED.

XLPE Insulation of Voltage grade upto 1.1 Kv conforming to Indian and various International Standards.Cross Linked Polyethylene (XLPE) :XLPE means crosslinked Polyethylene. The compound is based on high molecular weight polymer. High degree of crosslinking is attained in the processed form and thus attains excellent electrical and mechanical properties. Higher current rating allows to select lower size of XLPE cable compared to PVC cable, Higher short circuit rating 250°C compared to 160°C that for PVC cables, Resistant to heat deformation while PVC is prone to heat deformation.

We bring forth the finest range of high tension and low tension Cables which are highly conductive. These HT and LT Cables are manufactured form the superior quality raw materials and are available in different types. Our HT and LT Cables have high endurance and are fit for safe long term usage.

Manufactured by using ec grade aluminium wire rod, All Aluminium Conductor is highly acclaimed among core customer for its high strength and optimum current carrying capacity. It is adopted by many clients for distribution and transmission lines.

AB CABLE APPLICATIONS Aerial Bunched Cable (ABC cable) is an innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It uses several insulated phase conductors bundled tightly together, usually with a bare neutral conductor. This contrasts with the traditional practice of using uninsulated conductors separated by air gaps demanded by changes in urban development plan.The main objections to the traditional design are that the multiple conductors are considered messy, and external forces (such as high winds) can cause them to touch and short circuit. The resultant sparks have been a cause of bushfires in drier climates. With ABC, a simultaneous disconnection of all conductors is more likely.In moister climates, tree growth is a significant problem for overhead power lines. Aerial bundled cables will not arc over if touched by tree branches. Although persistent rubbing is still a problem, tree-trimming costs can be reduced.It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost. This system is ideal for rural distribution and it is especially perfect for installation in difficult terrains such as hilly areas, forest areas, coastal areas etc. ABC is also considered to be ideal for power distribution in congested urban areas with narrow lanes and by-lanes.     Advantages • Less maintenance.• Simpler installation, as crossbars and insulators are not required.• Less cluttered appearance.• Electricity theft is made harder and more obvious to detect.• Relative immunity to short circuits caused by external forces (wind, fallen branches), unless they abrade the insulation.• Can be installed in a narrower right-of-way.• At junction poles, insulating bridging wires are needed to connect non-insulated wires at either side.    ABC can dispense with one of these splices.• It improves the safety and reliance of electrified wire netting.• Less risk of a neutral-only break from tree or vehicle damage, increasing safety with TNC-s systems.• Can stand in close proximity to trees and will not generate sparks if touched.

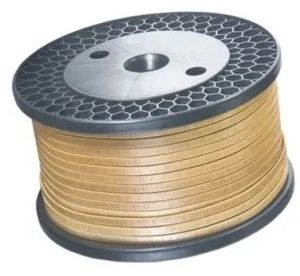

Product area application transformers, dry type transformer, stabilizers, welding transformers product range paper covered conductor : cross section area 10 mm to 75 mm nomex covered conductor : cross section area 10 mm to 75 mm packing : 50 kgs to 200 kgs.

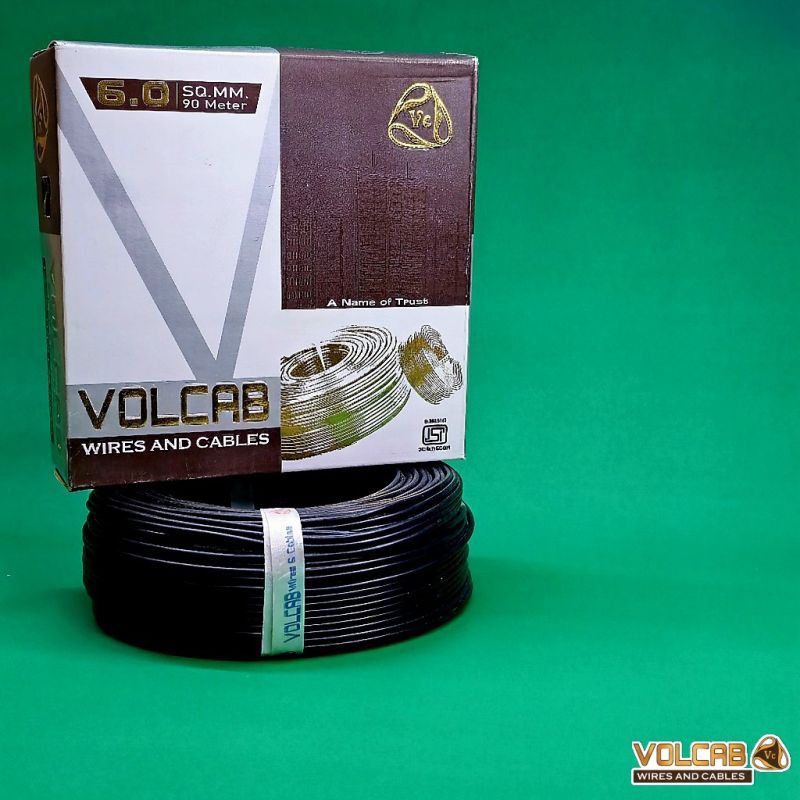

Approved : Cable is approved by Indian Standard IS 694 1990 with all latest Ammendent. Voltage Grade : Suitable only for 1.1 K.V Grade (1100V) Where To Use : This Cable can be used everywhere like – High Rise Building / Hotels / Theater / School / Hospital / Industry / Etc. Temperature : Only Up to 70 Degree C Conductor : Electrolytic Grade Annealed Copper. Why To Use : Cheaper in cost, Ready Stock. Packing : Available in 100 Mtr. Coil Up to 4 sq mm in box packing from 6 sq mm & above size in Plastic / Gunny Packing.Above 70 / 500 / 1000 sq mm Coil in Drum packing. Colors: Available in Outer Sheath in black & grey color, White & other colors on request with MOQ. Sizes : 5 sq mm / 2.5 To 24 core & 4 sq mm120 sq mm To 4 core balance are available on request with MOQ.

Copper / Aluminium conductor XLPE Insulated, unarmoured / Armoured, HR- PVC, FRLS sheathed cables IS : 7098/P-1 1c × 1000 SQ.MM 4c × 400 SQ.MM 61C × 2.5 SQ.MM   Copper / Aluminium conductor Type-A PVC insulated (General purpose - 70C unarmored /armored, ST-1 PVC sheathed cables IS : 1554/P-1 1c × 1000 SQ.MM4c × 400SQ.MM 61c × 2.5SQ.MM   Copper / Aluminium conductor HR-PVC insulated, unarmoured/armored, ST-1/ST-2 FRLS PVC sheathed cables IS : 1554/P-1 4c × 400 SQ.MM61c × 25SQ.MM   Copper / Aluminum conductor Type A/HR-PVC insulated, unarmored/armored, ST-1/ST-2, FRLS PVC Sheathed Cables IS : 1554/P-1 1c × 1000 SQ.MM4c × 400 SQ.MM61c × 2.5 SQ.MM

Armoured Optic Fiber Cable Standards        ISO : 11801IEC : 60793-1 / 60794 -1-2ITU-T : REC G.652DTelecordia : GR-20 Core        Mechanical & environmental Characteristics          Operating Temperature : -20 deg C   to +60 deg CStorage Temperature : -40 deg C   to +60 deg CJacket Material : LSZH  / HDPE    Outer Diameter : 9mm to 9.5 mm  +/-   0.3 mmJacket Thickness : 1.8  mm   +/-  0.2 mmPulling Tension     Short term : 2000 NLong Term : 1000NCrush Load : 3000 N/100mmBend Radius    Short term : 20DLong Term : 10D

PVC Coated GI Wire offered by us, is known for its qualitative features such as durability and high strength among the clients. This PVC Coated GI Wire has the coating that resists the heat from sunlight and helps the creepers like vanilla to grow better. We are the trusted Manufacturer and Supplier of PVC Coated GI Wire.

Control Cables:Control Cable which is mostly of copper conductors solid as well as stranded. The size of such conductors are upto 6mmsq. These are used for panel wiring relay protection, control of machines and equipment and myriad of other varieties. These are tailored made application as per specific customer need.   SPECIFICATIONS: - Control Cables can be manufactured as per IEC, other overseas specification and Indian Standards. - Control Cable may be either PVC or XPLE Insulated.

Thickness of PVC insulation (Nom.)4.0, Nominal Dimensions of Aluminium Flat Strip 4x0.8, Nom. Thickness of PVC Outer Sheath 2.04, Overall Diameter Approx.44.0, Nominal Dimensions of Armour wire 1.4.

We are offering aerial bunched cable. Aerial bunched cable (abc cable) is an innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It uses several insulated phase conductors bundled tightly together, usually with a bare neutral conductor. This contrasts with the traditional practice of using uninsulated conductors separated by air gaps demanded by changes in urban development plan.

These conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 7, 19, 37 and 61 wires. The diameters of steel and aluminium wires c an be the same, or different.
