Shielded cable ensures signal integrity and provides confidence in audio and video transmissions, preventing downtime and maintaining sound and picture clarity. Among the shield types available are braid shield, foil shield, combination shields and lapp shields. Braid Shield provides superior structural integrity, while maintaining good flexibility and flex life. These shields are ideal for minimizing low frequency interference and have lower DC resistance than foil. Braid shields are effective at audio, as well as RF ranges. Foil Shield provides 100% cable coverage, necessary for electrostatic shield protection. Because of their small size, foil shields are commonly used to shield individual pairs of multi pair data cables to reduce crosstalk. Drain wires are used with foil shield to make termination easier and to ground electrostatic discharges. Combination Shields provides maximum shield efficiency across the frequency spectrum. The combination foil/braid shield combines the advantage of 100% foil coverage plus the strength and low DC resistance of the braid.

Advanced transportation facilities, efficient workforce, on time delivery of the products make us stand out from the crowd. We are backed by a well-structured and capacious storehouse that assists us in furnishing urgent and quick requirements of the clients. Moreover, we ensure complete safety of the stored items.

The company is a well-reckoned Electrical Cables Exporter and Supplier from Maharashtra, India. The Electrical Cables are available with us in a wide range of specifications in order to meet the varied requirements of the clients. These Electrical Cables are known for their excellent quality, good conductivity, and reliability.

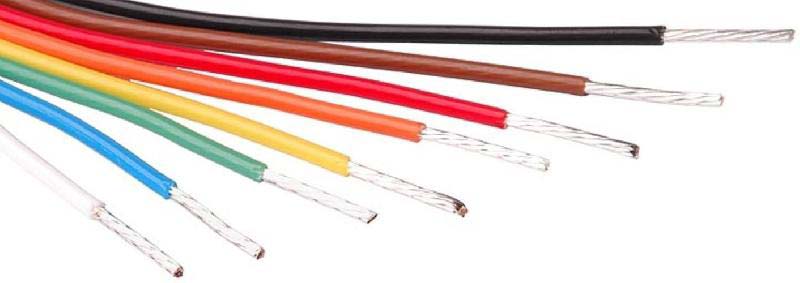

Get in touch with us for placing small as well as bulk orders, timely deliveries will be straight to your doorstep! Supported by an industrious network, our organization is able to serve to patrons all over Pune(India) and other marketplaces without problem.   Our Offerings : Spiral wrapped and fused PTFE insulated wires. Sizes : AWG 06 to AWG 30 or as per customers requirements. Voltage grades : 250 V, 600 V, 1000 V. Conductors : Silver plated, Nickel plated & bare copper or as required by the customer. Broad range of colors available : Red, Yellow, Blue, Brown, Violet, Black, White, Orange,Green, Grey, Pink. Advantages of PTFE wires : Excellent insulation properties like : High dielectric strength, Low dissipation factor, low dielectric loss, low dielectric constant & unaffected by exposure to moisture, humidity or liquid conditions. High efficiency in extreme temperatures. Wide working temperature range from -65oC to +260oC. Unaffected by virtually all the chemicals. Complete insolubility in all known solvents below 300oC. Excellent chemical, thermal and electrical stability. Does not break at very high or very low temperatures. Excellent resistance to UV radiation, Fungus growth and stress-cracking. Extremely space saving. Areas of Applications/ End use : High temperature areas such as Furnace & oven wiring, Foundries, Industrial Furnaces, Lead cells & pressure transducers, high performance electrical machines.  Low temperature areas such as : Refrigeration equipment wirings, Cold storage equipments etc. Other industrial applications such as : Textile machinery, Paint shop line technology, Chemical industry, Power supplies and inverters, Polymer processing, Food processing etc. Steel mills, Wind mills, Material handling equipments, EOT cranes, Airport lighting etc.

We, at Elcab Conductors are a trusted name among manufacturers of electric cables and wires. We deal in manufacturing and supplying quality Uninyvin Cables with varying temperature resistances and varying insulation properties. Brand: Elcab Conductors Detailed Description Uninyvin Cables Elcab manufactures Uninyvin Cables. These are made from HR (Heat Resistant) PVC insulation. These are then braided with fiberglass and Nylon yarns and lacquered. These are efficient wires which can withstand temperatures upto 105 deg C and capable of carrying 20% higher current than standard PVC wires. These cables are economical and efficient to use as UPS Battery Cable, DG Sets, Battery bank interconnections, Panel Board wirings, interconnection wires apart from various other applications. These cables are suitable for use in continuous service. Good resistance to fuels, oils and alkalis. Uninyvin cables also extensively used in defense applications. We manufacture the following styles under this type:Uninyvin/ Nyvin cablesNyvinmet cablesNyvinmetsheath cablesDuninyvin cablesTrinyvin cabes

We are Offering Aerial Optical Fibre Cables. construction Details: Multiloose Tube Cables (2f - 96f) number of Elements (2f to 72f) 6 Nos ( 96f ) 8 Nos tube/fibre Identification Colour Coded central Strength Member Fibre Reinforced Plastic (frp) fibre Protection (tubes) Polybutylene Terephthalate (pbt) fillers as Required water Blocking Thixotropic Gel (tubes) / Jelly (interstices) core Wrapping Polyester Tape sheath Polyethylene peripheral Strength Member aramid Yarns * Option Available for Unitube Adss Cables construction Details: Multiloose Tube Cables ( 2f - 96f) number of Elements (2f to 72f) 6 Nos ( 96f ) 8 Nos tube/fibre Identification Colour Coded central Strength Member Fibre Reinforced Plastic (frp) fibre Protection (tubes) Polybutylene Terephthalate (pbt) fillers as Required water Blocking thixotropic Gel (tubes) / Jelly (interstices) core Wrapping Polyester Tape sheath Polyethylene suspension Strand 7 Wire Galvanized Steel Strand * Option Available for Unitube Fig-8 Aerial Cables specifications : Iec 60794 for Mechanical & Environmental Testing.

We are offering power cables to the esteemed clients. We offer a range of two core power cables. We have in house capacity of cable extrusion, cable pin molding and terminal crimping for developing the power cables range. We offer the power cables range at market leading rates to the clients.

We offer all types of Aluminium Armoured Cables which are also called as "Power Cables". It comes in both PVC and XLPE outer sheathing. It is generally PVC inner sheathed & core is formed with standard Aluminium conductor from 10 Sqmm & above. Core is formed with solid conductor below 10 Sqmm. We are authorized distributor for "Polycab, Havells, HMT, DiaCabs" brands and also, can make available any other brand if you require for Als Cables. The Cable range is from 1 Core x 1000 Sqmm upto 4 Core x 630 Sqmm. Normal running cable sizes are 10, 16, 25, 35,..., 185, 240, 300, 400 Sqmm with 3/3.5/4 Cores The standard voltage is upto 1.1 KV (1100V).
