Power Cables Dealers in Kolkata

Thickness of PVC insulation (Nom.)4.0, Nominal Dimensions of Aluminium Flat Strip 4x0.8, Nom. Thickness of PVC Outer Sheath 2.04, Overall Diameter Approx.44.0, Nominal Dimensions of Armour wire 1.4.

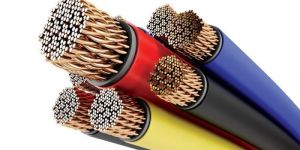

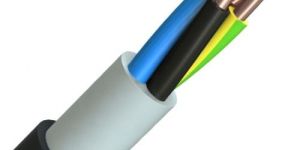

Backed by 45+ years of industry experience, we are presenting an excellent quality of Power and Control Cables. There are more than dozens of cables varieties developed. The offered cables are manufactured using the latest technology. At our manufacturing unit, our professionals ensure to adhere to industry standards and quality norms for developing high-Quality cables. Further, clients can opt to get the customized cables meeting specific business needs. Besides, we provide better cost-effective rates on the bulk cable orders. Cable Structure generally conforms to IS 1554-1, IEC 60502-1, BS 6346 Conductor: Material – Copper According to VDE 0295 class 1 or 2 (IEC 60228, IS 8130) Insulation: PVC Type A as per IS:5831 Inner Sheath: PVC Outer Sheath: PVC TYPE ST-1 OF IS: 5831   Application PVC Unarmoured CablesPower cables for energy supply are installed outdoors, in the underground, in water, indoors, in cable ducts, power stations, for industry and distribution boards as well as in subscriber networks, where mechanical damages are not to be expected. Standard length cable packing: Coils 100, 200, 300, 500, 1000 m. in wooden reels

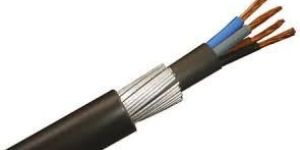

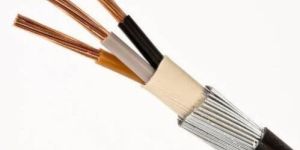

We are offering armoured pvc control cable. Construction: solid stranded annealed copper conductor & tinned bare general purpose hr pvc insulation cores laid up (filled if needed) frls general purpose pvc inner sheath

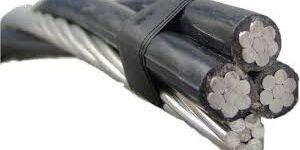

Trend is moving towards using ABC cables in place of underground cable in power distribution network. ABC are much lighter, economically feasible and higher current rating of at least 10 % more than underground armoured cables. ABC are either Low Tension or High Tension Grade.ABC aluminium conductors are mainly XLPE insulated and each core are twisted round a aluminium alloy bare stranded conductors called MESSENGER. The Messenger conductor facilitates suspension of the cable on hooks and clamps in street lighting poles.   Hooking and pilferage of power is prevented. There is also vast advantage of continuous power supply in the event of storms and blizzards.Installation of AB Cable is simpler and much cheaper than the underground cables. Cable accessories are also cheap.The installation time is much less. ABC Cables are manufactured as per Indian Standards and Overseas Specification.

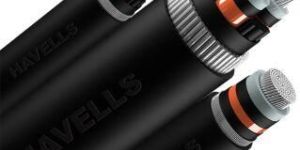

We bring forth the finest range of high tension and low tension Cables which are highly conductive. These HT and LT Cables are manufactured form the superior quality raw materials and are available in different types. Our HT and LT Cables have high endurance and are fit for safe long term usage.

These conductors are formed by several wires of aluminium, stranded in concentric layers. All the wires have the same nominal diameter. Most common constructions consist of 7, 19, 3 7 and 61 wires.

In our online hot dip galvanising plant, we also producing Galvanised Steel Formed Wire also known as Galvanised Steel Flat Cable Armour Wire, which is primarily used by the Power Cable manufacturers and Telephone Cable manufacturers for armouring of cables. Manufacturing is under the license of Bureau of Indian Standards (BIS) All physical, mechanical and chemical tests are carried out by expert quality control work force ensuring superior quality of the products. Packing is done with utmost care to ensure no damages to the surfaces or the edges of the strips. Packing is mainly done by plastic wraps or else specifically specified by our customers. Size :: 4.0 X 0.80 mm Size :: 6.1 X 1.40 mm

manufacture and supply 800 KV Transmission towers successfully to Powergrid Corporation of India Ltd (PGCIL - India's Central Transmission Utility). The organization is also amongst the few manufacturers in the country that have the capability to manufacture 1,200 kV towers and Transmission Monopoles, which are being deployed for the first time in India.

FOR CONNECTING TRANSFORMER BUSBAR AND MELTING ELECTRODES MULTILAYERS STRANDED ANNEALED BRIGHT BARE COPPER ELECTROLYTIC WIRES INSULATED WITH POLYESTER TAPES VARNISHED CAMBRIC DOUBLE INSULATION having effective thickness of 20 mils duly impregnated with highly polymerised thermosetting varnish suitable to withstand 400 volts. OVERALL ASBESTOS BRAIDED WITH HEAT PROOF FLAME PROOF BLACK COMPOUNDED EFFECTING OVERALL STRENGTH OF ASBESTOS AS HARD & AS FLEXIBLE TO SUIT TRAILING AND HIGH AMBIENT TEMPERATURE CONDITIONS GENERALLY MANUFACTURED IN 400 SQ. MM. CROSS SECTIONAL AREA ANY OTHER SIZE AS PER CUSTOMER'S DESIGN MAY BE FABRICATED.

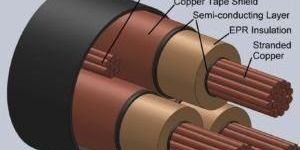

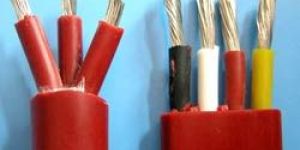

ATC conductor elastomer (rubber) insulated, elastomer (rubber) sheathed cables, (VIR, TRS, EPR, CSP& PCP) IS : 9968 (P-I) 4c × 240 SQ.MM61c × 2.5 SQ.MM   Trailing cables TC conductor elastomer (rubber) insulated, nylon cord refiner, elastomer (rubber) inner sheathed, over cotton/synthetic yarn braided elastomer (rubber) sheathed cables IS : 9968 (P-I) 4c × 240 SQ.MM61c × 2.5 SQ.MM

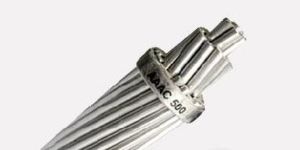

These are made from high strength Aluminium Magnisium Silicon Alloy . The All Aluminium Alloy Conductor are having lighter weight, high strength and high current carry capacity, lower electrical losses and superior corrosion resistance.

LT control cables A Steel Major mandated buyjunction for the procurement of 300 types (A, B & C category items) of Low Tension (LT) power and control (PVC, XLPE and EPR insulated) cables. The quantity requirement was 600 km per annum.

1KV cables are designed and manufactured based on the national (IS) & international (IEC, BS) standards and project based customer specifications. Following are the standard stages of cable design & manufacturing.

Aerial Bunched Cable (ABC cable) is an innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It uses several insulated phase conductors bundled tightly together, usually with a bare neutral conductor. This contrasts with the traditional practice of using uninsulated conductors separated by air gaps demanded by changes in urban development plan.

Aerial Bunched Cable (ABC) Is A Very Novel Concept For Overhead Power Distribution. ABC Provides Higher Safety And Reliability Compared To Bare Conductor Overhead Distribution System. The Other Advanctages Are Lower Power Losses And System Economy By Reducing Installation, Maintenance And Operation Cost. This System Is Ideal For Rural Distribution And Specially Suitable In Difficult Terrains Like Hilly Areas, Forest And Coastal Areas Etc. ABC Is Also Considered As A Better Choice For Power Distribution In Densely Populated Areas Where Laying Of Underground Cable Is Either Difficult Or Extremely Expensive. This Is Attributed By Narrow Lanes And By-lanes Of Congested Urban Areas. Needless To Mention That ABC Is A Better Choice Due To The Flexibility Of Re-routing Demand, Should There Be Any Changes In Urban Development Plan.

Elastomeric Cables are used in various sectors due to their excellent properties with standing harsh operating environments. These cables find applications in almost every sector of the economy like railways, wind farms, industrial infrastructure, petrochemical, Etc. Nishant has the capability to manufacture cables of varied elastomeric compounds like VIRTRS, EPDM, Silicone, CSP, PCP, NBR, EVA, Fluoroelastomers, Etc.

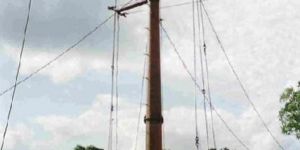

Traditional over head transmission lines have been built on lattice type structures. For years, this has been found structurally stable and time tested solutions and there was hardly any reason for change. However, of late, significant ROW and aesthetic issues have stalled construction of new transmission line corridors and replaced them with transmission monopole. With rapid urbanization and spread of industrialization over existing agricultural lands, solutions with narrow corridors and smaller footprints is the crying need of the day for completion of critical transmission corridors. Replacement of traditional structures with monopole kind of structures is a significant step in this direction. Advantages of transmission monopole ◊Less right-of-way ◊Small foundations take less land and hence reduce the foot-print ◊Efficiently erected along highways and railway lines ◊Significant wind-loading capacity ◊Less components, fast installation Material Testing, Dimension Testing, Crack Detection, Galvanizing Testing ◊Better reliability under extreme conditions  ◊Flexibility in design Testing & Validation •CPRI (Central Power Research Institute) •SERC (Structural Engineering Research Centre) •Richardson and Cruddas

Aerial Bunched Cables are used for distributing to individual consumers by utility service providers like Electricity Boards, electricity distributing authorities. The cable is kept supported on poles.

Aerial Bunched Cable (ABC cable) is an innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It uses several insulated phase conductors bundled tightly together, usually with a bare neutral conductor. This contrasts with the traditional practice of using uninsulated conductors separated by air gaps demanded by changes in urban development plan.The main objections to the traditional design are that the multiple conductors are considered messy, and external forces (such as high winds) can cause them to touch and short circuit. The resultant sparks have been a cause of bushfires in drier climates. With ABC, a simultaneous disconnection of all conductors is more likely.

The quality of the cable is extremely important for the efficiency of cathodic protection system, specially the anode cables. Commonly use cathodic protection cables are PVCPVC, PEPVC, EPRCSP, XLPEPVC, XLPEPVCSWAPVC, PVDFHMWPE etc. Cables used for cathodic protection systems must be highly corrosion resistant and capable of withstanding adverse environments to which they are exposed. High Molecular Weight Polyethylene (HMWPE) is suitable for most environments. In saline environment, we recommend KYNARHMWPE or HALARHMWPE cables, which are dual extruded highly chlorine resistant power cables.
