Power Cables Dealers in Delhi

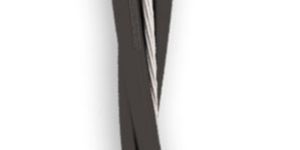

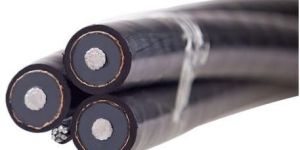

Construction of abc xlpe/hdpe insulated power conductors of aluminium (neutral conductor and street lighting conductor if and when necessary) are laid together (twisted) around a high tensile standard and galvanized steel (aluminium alloy may be used) insulated or bare messenger wire to form the aerial bunched cable. This assembly is directly strung on to distribution pole/towers by means of standard hardware available in the market but care shall be taken to render the messenger wire completely insulated from earthing at any point of distribution in case of ht abc. the xlpe (cross-linked polyethylene) insulation is black in colour and is stabilized against deterioration caused by exposure to direct sunlight and ultraviolet radiation. Xlpe is cross-linkable low-density polyethylene, which is made thermo set by special formulation from base polymer of thermoplastic low-density polyethylene. Xlpe combines the best electrical properties of ldpe and superior thermo mechanical properties. materials aluminium conductors conform to is:8130(class-ii)standard high tensile galvanized steel messenger wire conforms to is:398 (part – 2). Alternatively aluminum alloy messenger wire conforms to is:398 (part – 4)xlpe and hdpe insulation of power conductors specify is:7098 (part – I & ii) and is:6474 respectively. since, the tension from the current carrying conductor is totally removed by introduction of messenger wire the operating temperature of the conductor is 90 c as against 75 c of the bare conductor of the same size. stringing: no difficulty is envisaged during stringing of aerial bunched cables in the conventional method but care shall be taken that insulated conductors do not get damaged during installation. Dragging the abc on the ground is to be avoided. Tension to be applied during stringing shall be 25% of the breaking load of the messenger wires. This will allow line to have sag within specified limit of 1.5% of the span at the lowest ambient temperature. jointing: while mid-span jointing permissible for lt abc system by conventional technique, our recommendation will be to draw the line in such a way as to bring the joints at the supports. Mid - span joining is not at all recommended in the case of ht lines our recommendation is for outdoor type hv terminations only. Under unavoidable circumstances, line tapping at the support points may be allowed through suitably designed clamp connectors /pg clamps. The semi conducting screen continuity shall be maintained at all joints as far as possible to avoid fluctuations during system disturbances. The 3-phase screens may be shorted and earthed through suitable non-liner surge arrestor. Attempting to make a tap off from power conductors in the region where catenary is under tension in not recommended. application: aerial bunched cables can be conveniently used:as replacement of bare lines in rural areas, in woods and in other localities & narrows streets where the space limited.as replacement of bare lines where reliability of supply is of prime importance.as replacement of bare lines where high degree of stability of supply voltage is of importance.in hilly terrains where cost of erection of overhead lines or under ground cable becomes very high.as reinforcement of existing system without increasing voltage.for temporary supplies. advantages: in comparison to bare overhead power distribution lines, abc has very high reliability in maintaining services because power and neutral conductors are insulated with the best dielectric medium, resulting in the following advantages: less fault rate on account of good protection against line and ground fault by high winds or falling trees or birds especially in hilly areas & forests as encountered in rural distribution networks.high insulation resistance to earth in all seasons and polluted atmospheres. Negligible leakage currents and low losses.multiple circuits of power and telephone cables could be strung in the same set of poles or any other supports like walls etc.better adaptability to run concurrently with existing overhead bare conductor system without any interference.high capacitance and low inductance leading to low impedance of lines.lower voltage drop, higher current capacities. Vis-à-vis better voltage regulation.longer spans and longer distance lines are possible with better system stability.abc cables are much safer than bare conductors.it can be over hung in dense vegetation and forests.additional connections can be easily and quickly made with hot – line connectors.total lines costs are reduced.maintenance is very easy. quality setup conductors are generally the only means to transport current or signal with required safety norms. Therefore the material of its construction, purity and other important aspects of metallurgy are the critical factors to source the wire rods. We have latest 3 – d profile die checking and refurbishment system. The sourcing of wire drawing, lubricant in form company like houghton italy and intensive testing conductor to ensure quality. at capcab india, we do; qa in planning: customer requirements, along with the orders are taken into quality planning with due care for designing, manufacturing, testing and performance aspects. qa in planning: the raw materials are produced from the best sources from the domestic and global market. These sources are selected on the based on the company’s stringent quality vendor evaluation/continuous assessment and testing. testing each consignment of conductor & wire is exhaustively tested before dispatch clearance, by highly qualified, experienced and dedicated testing team. the testing setup is broadly classified as follows:r.m. Testing labs.routine testing for conductor, lt wires & cables.type testing labs include fr/fs/frls testing.all the laboratories are equipped with the modern testing instruments. All the instruments are under strict calibration and environment control. qa in planning the company has online computerized control system on all its critical processes and a team of online testing engineers to ensure the consistency in quality.

We are offering ht cable / lt cable. we offer the most authentic and effective fire fighting equipment. We provide fire extinguishers, fire alarms, helmets etc. You can avail a wide gamut of fire fighting products from us at a competitive market price.

We introduce ourselves as one of the trustworthy Manufacturers, Suppliers and Exporters of the N2XH Power and Control Cable. N2XH Power and Control Cables are being manufactured using the sophisticated technology. The N2XH Power and Control Cables are tested on various parameters to ensure the quality, reliability and performance. Specifications Power and control cable according to DIN VDE 0276 part 604Temperature range during installation from -5oC to +50oC; fixed from -40oC to +90oCNominal voltage : Uo/U 0,6/1 kVTest voltage : a.c. 4000 VMinimum bending radius for single core approx. 15 x cable diameter, multicore approx. 12 x cable diameter

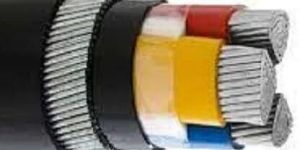

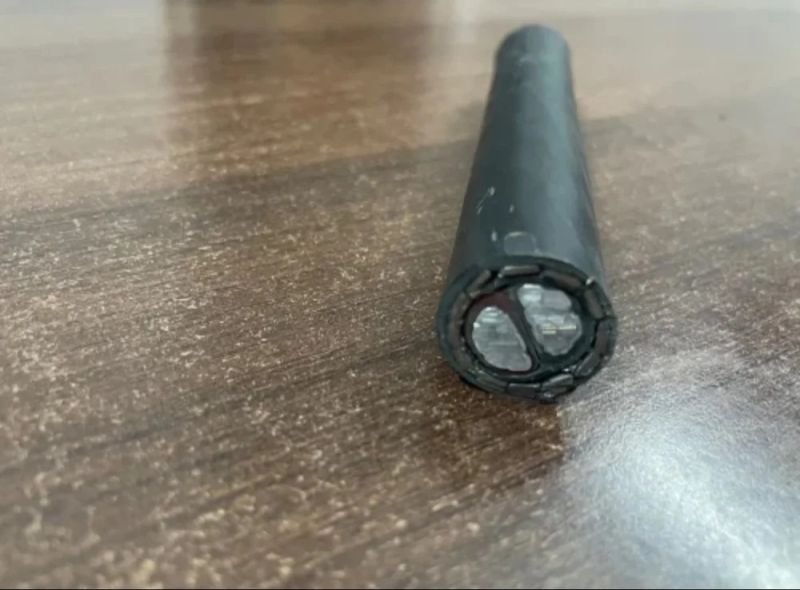

The steel wire armoured cable (swa cable) is well adapted to underground use with an additional mechanical protection.  Design Rated voltage: 0.6/1kVConductor: Hard drawn aluminum(2core, 3core, 4core, 5core, 3+1core, 4+1core, 3+2core)Insulation: Cross-linked polyethylene (XLPE)Filler: Polypropylene ropeWrap tape: Non-woven fabric or Polypropylene tape Inner sheath: Extrude PVCArmour: Steel-wire armouredOuter sheath: Polyvinyl chloride (PVC)Nominal section-area: 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2,                                           70mm2,  95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2

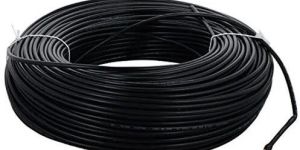

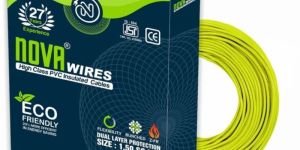

GENERAL WIRING CABLE the quality you deserve. Our General Wiring Cable and other specially formulated & designed Building Wire Cable for extra sensitive places like- Hospitals, Malls, Multi Plexes whereas the product liability Insurance cover and ensuring extra high safety norms to safeguard your life & property. PVC Insulate Flexible Electrical Cables up to 1100 Volts is the range of electrical wires. We generally used the bright electroliting grade Annealed Bunch Copper insulated with PVC/HR PVC/FR Zero Halozen compound. The wire having the ISI Certification mark IS 694 - 1990. Advantages to use RAYHON make Cables. • 99.97 % pure Electrolytic grade Bright Annealed Copper is used. • 100 % conductivity reduces the power consumption. • Multi-strands fine wire reduces the Cable diameter for conduit wiring. • Voltage fluctuation does not affects. • Resistant to fire hazards. • Weather proof insulation material used. • Immune to fluctuation in temperature. Product range of RAYHON Electrical Cable • Single Core PVC Insulated and Sheathed Copper/Alluminium Conductor up to and including 240 sq mm • Multi Core 2 to 4 Cores round PVC Insulated & Sheathed Copper Conductor up to 25 sq mm • Flat 2 & 3 Core PVC Insulated & Sheathed Copper Conductor up to and including 16 sq mm RAYHON General Wiring Cable(House Wiring) PVC Insulated Cable Single Core, 1100 Volts as per IS 694 - 1990 Nominal Cross sectional area of conductor Number/Nom. Dia of wires(Nom.) Number/mm Thickness of insulation (Nom) mm Overall diameter max. mm Conductor resistance max. Ohms/Km at 20 C Current carrying capacity in conduit/Trunking Amp SAA PVC HR PVC FRLS PVC 0.75 24/0.20 0.60 2.80 26.00 7 8 7 1.00 14/0.30 0.70 3.20 18.10 11 13 11 1.50 22/0.30 0.70 3.40 12.10 13 16 13 2.50 36/0.30 0.80 4.20 7.41 18 20 18 4.00 56/0.30 0.80 4.80 4.95 24 26 24 6.00 84/0.30 0.80 5.60 3.30 31 36 31

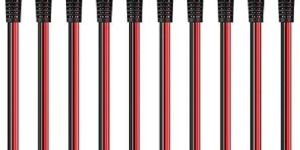

Manage your power more efficiently with this brand new 1 to 4 power splitter Simply plug the female jack into an AC to DC power adapter to power multiple electronic devices Use this power splitter cable instead of other extra cords

We are the best manufacturer of our products. We are manufacturing all type of LT Power and Control Cables, FR, FRLS, Zero Halogen and other Special type of cable as per BIS standard, International Specification and Customer’s additional Requirement.

Aerial Bunched Cables (Aerial Bundled Cable or simply ABC) are Overhead Power Lines. Usually, in this cable several insulated phase conductor are bundled together tightly with a bare neutral conductor. This thing makes a slight difference between normal uninsulated conductor, which have an air gap, and ABC. In Air Bunched Cable, type of overhead transmission, the principle is same as of bundled conductor. In Air Bunched Cable, these conductors are very close to their point of touching but conductors are surrounded by Insulator layer. Though, in case of neutral conductor it is not covered with an insulator.

We are offering lt power cables. lt power cables with pvc/xlpe insulation for power transmission. Voltage grade 650/1100 volts (uo/u) provided with isi marking is:1554(pt-1),with or without hr/frls properties. Screening can be provided if desired. Conforming to standard specifications like: is 1554 (pt.1),iec 502,bs 6436/87.

The X Ray HT Cables, provided by us, is acclaimed for its make & durability. Based in New Delhi(India), we have garnered wide acclaim for making available quality and cost effective products to the lengths and breadths of the country. Assistance of warehouse management software helps in minimizing the efforts of the personnel and ensures the safe storage of the lot. Moreover, our experts keep a stringent check over the same.

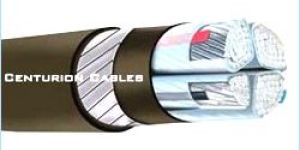

We provide the valued clients with xlpe cables in various dimensions. These xlpe cables are designed for standard operating conditions in india that takes under consideration geographical, climatic conditions, general applications and distribution. We are a renowned manufacturer, supplier and exporter of xlpe cables that are suitable for diverse industrial applications.

Electrolyte Grade Annealed bare copper option – Tinned of IS : 8130 1984, PVC Type A of IS: 5831 OPTION : HR PVC ( Type -C of IS -5831) Nominal insulation thickness – 0.80mm Cores identification : Up to 5Cores by colour coding & more than 5 cores 5cores : By colour coding Nos. printing on cores as per IS: 15547098
