Power Cables Dealers in Alwar

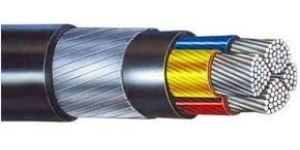

Cable Structure Class : 2 Stranded Aluminium Wire As Per IS:8130 Insulated : XLPE AS Per IS:7098 Core Identification : 1 Core : Black / Red / White 2 Core : Black,Red 3 Core : Black,Yellow,Blue 4 Core : Black,Yellow,Blue & Black Inner Sheath : PVC (Polyvinyl chioride) ST2 Grade as IS:5831 Armouring : H.D.Aluminium / G.I. wire as per IS:3975 Outer Sheath : PVC ST2 Grade as per IS:5831 Standard References IS:7098/Pt. 1/1988 Special Features Good Thermal Properties Than PVC Variant Light Weight Good Strength than PVC variant Low Current Leakage Than PVC Variant Variants : FR FRLS Application Range General And Industrial Application Plant Wiring Under And Ground Cables Which Require High Physical Strength Technical Data Temperature Range : -15°C to +90°C Test Voltage : a.c.3 KV (rms) Insulation Resistance : 1 x 1014 ohm-CM Min. Bending Radius : 12 x OD (OD = Overall Diameter of Cable) Short Circuit Temperature: 250°C Voltage Rated : 650 / 1100 Volts     DIMENSIONAL TABLES,POWER CABLES-ALUMINIUM / XLPE/ STRIP ARMOURED / PVC TABLE – 1 SINGLE CORE ALUMINIUM CONDUCTOR XLPE INSULATED & PVC SHEATHED H.D.AL.STRIP  ARMOURED CABLES ACCORDING TO IS : 7098/PT. 1/1988

Cable Structure Class : 2  Stranded Aluminium Wire As Per IS:8130 Insulated : PVC (Polyvinyl Chioride) As per IS:5831 Core Identification: 1 Core : Black / Red / White 2 Core : Black,Red 3 Core : Black,Yellow,Blue 4 Core : Black,Yellow,Blue & Black Inner Sheath : PVC (Polyvinyl chioride) ST2 Grade as IS:5831 Armouring : H.D.Aluminium / G.I. wire as per IS:3975 Outer Sheath : PVC ST2 Grade as per IS:5831

Armored Cables, Battery Coupler, Telephone Cable, Welding Cabl

Elastomer Cable, Welding Cable, Flexible Trailing Cable, Mining Cabl

We provide an ample range of superior quality flexible power cables in various sizes and dimensions. We are counted among the chief rubber based power cables exporters from India. Our rubber coated power cables are manufactured from the high quality raw materials using advanced technology machines. Our rubber coated power cables are of high strength and can endure wear and tear. We are also engaged in the business of wholesale power cables and are providing profitable deals to the eminent clients. Following types of Cable can be manufactured by us :- PVC based flexible Cable .5 Sq mm – 10 Sq mm (Single / Multi Core) Rubber based Flexible Cable .5 Sq mm – 10 sq mm (Single / Multi Core) Silicon Based Cables PVC based Single Core Power Cable 10 Sq mm – 300 Sq mm upto 1.1 KVA (Single & Multi Core / Armored & Un Armored) Elastomeric Power Cable 10 Sq mm – 300 Sq mm upto 1.1 KVA (Single & Multi Core/ Armored & Un Armored) XLPE based Single and Multi Core Cables up to 1.1 KVA Submersible Cables Mining Cables Trailing Cables Special Cables – FR, FRHR, FRLS, 105 Degree, Instrumentation Cables TPR Grade Cables Following Construction can used in Cable :- Conductor -> Bare Copper / Tinned Copper / Aluminium in both solid and flexible form, duely annealed and Stranded / Bunched. Insulation -> PVC / XLPE / HR / FR / Rubber (Elastomer) Sheathing -> PVC / XLPE / HR / FR / FRLS / Rubber (Elastomer) TPR Armoring -> If required cable can be armoured with G.S. Wire / Flat Strip , Aluminum Wire / Strip. Sizes can be from 0.5 sq mm to 300 sq mm Single Core / Multi Core

House Wiring Cable, Copper Cabl
