Power Cables Dealers in Jammu (9 products available)

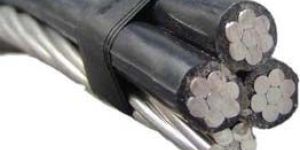

Aerial Bunched Cable (ABC) is a very novel concept for overhead Power distribution. ABC provides higher safety and reliability compared to bare conductor overhead distribution system. The other advanctages are lower power losses and system economy by reducing installation, maintenance and operation cost. This system is ideal for rural distribution and specially suitable in difficult terrains like hilly areas, forest and coastal areas etc. ABC is also considered as a better choice for power distribution in densely populated areas where laying of underground cable is either difficult or extremely expensive. This is attributed by narrow lanes and by-lanes of congested urban areas. Needless to mention that ABC is a better choice due to the flexibility of re-routing demand, should there be any changes in urban development plan. Application Easier Installation particularly in congested, forest or Hilly areas. Saving in cost of Poles, Insulators, cross-arms etc. Human Safety in case of accidental contacts. Water proof system, no corrosion.Syatem reliability hence customer satisfaction. Reduced clearance.

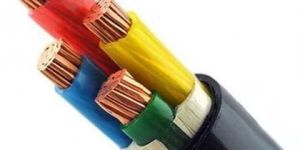

• Brand: Havells
• Country of Origin: Made in India
• Conductor Material: Copper
• Size of Conductor: 6 sq mm
• Core: 3 Core
• Overall Diameter (Strip/Wire): 17.4 mm
• Current Rating: 55 Amp
• Thickness of PVC Insulation: 0.7 mm
• Min.thickness of pvc inner sheath: 0.3 mm
• Nominal Dimensions of Armoui (Strip / Wire): 1.4 mm
• Min. Thickness Of PVC Outer Sheath (Strip / Wire): 1.24 mm
• Max DC Resistance ohm: 3.08 Ohm
• Max. AC Resistance ohm: 3.94 Ohm
• Approx. Reactance at 50Hz Ohms/Km: 0.0884
• Capacitance mFd/Krr: 0.25
