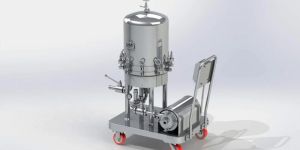

APE - Zero Hold up Filter Press is used for achieving clear filtration quality for high value liquids. Meeting GMP & FDA norms, these filter presses can be made available with support of different pumps like Centrifugal, Gear, Lobe and Roto as per the specific process application demands. Further, the cartridge assembly comprises perforated screens, plates, spacers as well as fitter media to provide for optimum process support.
The Zero Hold Up filter press is used for achieving clear filtration quality for high-value liquids. The press has the cake filter aid and solids enclosed which conveniently allows the filtration of toxic, hazardous, and explosive liquids. It has a dome structure that enables quick removal of the cartridge assembly and cleaning of the cake. The plates are flexible enough to be increased as the toxic levels of input increase. It features high quality due to its substantial flow rate and quality output. Since there is a reverse flow of liquid there is zero hold up in the filter press that helps in the complete filtration of the batch. The filters are most suited for filtration of products in the chemical, distillery, beverage, ink, oil, and other allied industries. It provides a single pass clarity, a uniform distribution of cake on each plate, and the cake can easily be dried by air and nitrogen.
Comes with interlocking spacers.
Unfiltered liquid is centrally delivered under pressure through the bottom input, allowing liquid to distribute uniformly over each plate that is equipped with filter media.
Can be combined or used alone with any type of filtering material to reach the requisite micron efficiency.
APE - Zero Hold up Filter Press is used for achieving clear filtration quality for high value liquids. Meeting GMP & FDA norms, these filter presses can be made available with support of different pumps like Centrifugal, Gear, Lobe and Roto as per the specific process application demands. Further, the cartridge assembly comprises perforated screens, plates, spacers as well as fitter media to provide for optimum process support.
The Zero Hold Up filter press is used for achieving clear filtration quality for high-value liquids. The press has the cake filter aid and solids enclosed which conveniently allows the filtration of toxic, hazardous, and explosive liquids. It has a dome structure that enables quick removal of the cartridge assembly and cleaning of the cake. The plates are flexible enough to be increased as the toxic levels of input increase. It features high quality due to its substantial flow rate and quality output. Since there is a reverse flow of liquid there is zero hold up in the filter press that helps in the complete filtration of the batch. The filters are most suited for filtration of products in the chemical, distillery, beverage, ink, oil, and other allied industries. It provides a single pass clarity, a uniform distribution of cake on each plate, and the cake can easily be dried by air and nitrogen.
Comes with interlocking spacers.
Unfiltered liquid is centrally delivered under pressure through the bottom input, allowing liquid to distribute uniformly over each plate that is equipped with filter media.
Can be combined or used alone with any type of filtering material to reach the requisite micron efficiency.
The APE Vibro Sifter machine works on the principle of gyratory vibrations. According to the size of the particles, the material is separated. When the motor is turned on, vibration in the screen or sieve causes the material to move across the sieves in accordance with its particle size.
Utilizing a specifically created vibratory motor that satisfies varied output criteria, the development of vibration along the vertical axis is achieved in three different planes. It creates a 100% rotating motion, dispersion, stirring, stratification, and sifting of the material. On the vibro screen, feed material moves horizontally while following a loop pattern.
Modular Design of Decks with Easily Fitted Clamps
Suitable for Widest Range of Material
Less Power Consumption, Variable Flow Pattern
Dust Free Arrangement, Lead Free Sieves
Easy Dismantling and Cleaning
Output 20 to 200 Kgs/hr depends upon the characteristics of material.
M.O.C SS 304/316/316L
Rubber Moulded Sieves as optional
Ball Tray Arrangement (for Chocking of Sieves) as optional
Freed Tray Arrangement (For Smooth Flow Materials)
The APE Vibro Sifter machine works on the principle of gyratory vibrations. According to the size of the particles, the material is separated. When the motor is turned on, vibration in the screen or sieve causes the material to move across the sieves in accordance with its particle size.
Utilizing a specifically created vibratory motor that satisfies varied output criteria, the development of vibration along the vertical axis is achieved in three different planes. It creates a 100% rotating motion, dispersion, stirring, stratification, and sifting of the material. On the vibro screen, feed material moves horizontally while following a loop pattern.
Modular Design of Decks with Easily Fitted Clamps
Suitable for Widest Range of Material
Less Power Consumption, Variable Flow Pattern
Dust Free Arrangement, Lead Free Sieves
Easy Dismantling and Cleaning
Output 20 to 200 Kgs/hr depends upon the characteristics of material.
M.O.C SS 304/316/316L
Rubber Moulded Sieves as optional
Ball Tray Arrangement (for Chocking of Sieves) as optional
Freed Tray Arrangement (For Smooth Flow Materials)

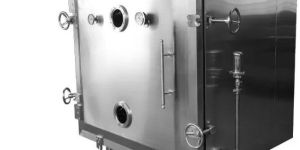

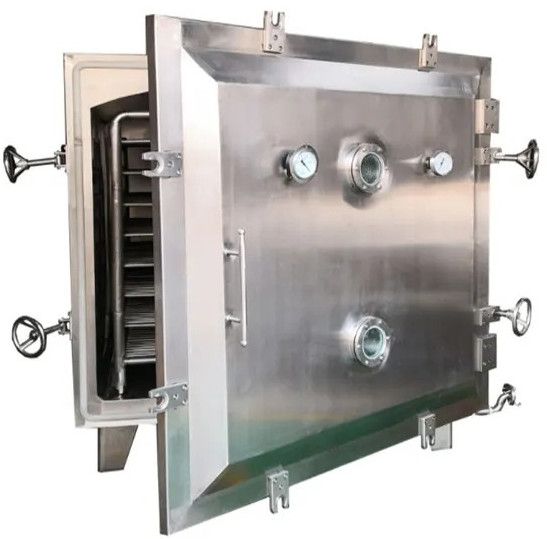

The operation of a vacuum drying oven involves substantially lowering the ambient pressure to decrease the boiling point of the liquid in the substance via the use of a vacuum pump. A considerable reduction in boiling point increases the rate of evaporation of the liquid and hence fastens the drying rate of the substance. Moreover, lowering the boiling point indicates that operating temperatures could be much lower as compared to regular air oven. Hence, heat sensitive substances could be dried with minimal effect to their physical or chemical properties. Additionally, lack of air (or oxygen) during the drying process significantly reduces the chances of substance oxidation.
Significant Features
Gauges for temperature and Vacuum are available.
Condenser and receiver of the right size for collecting condensate in stainless steel 316/304.
Condenser level may be seen on the receiver through a view glass.
Specially designed locking system all across the door to avoid leakages.
The operation of a vacuum drying oven involves substantially lowering the ambient pressure to decrease the boiling point of the liquid in the substance via the use of a vacuum pump. A considerable reduction in boiling point increases the rate of evaporation of the liquid and hence fastens the drying rate of the substance. Moreover, lowering the boiling point indicates that operating temperatures could be much lower as compared to regular air oven. Hence, heat sensitive substances could be dried with minimal effect to their physical or chemical properties. Additionally, lack of air (or oxygen) during the drying process significantly reduces the chances of substance oxidation.
Significant Features
Gauges for temperature and Vacuum are available.
Condenser and receiver of the right size for collecting condensate in stainless steel 316/304.
Condenser level may be seen on the receiver through a view glass.
Specially designed locking system all across the door to avoid leakages.

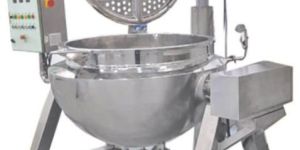

APE-Starch Paste kettle resembles a bowl with a sprout on top. A steam or electric jacket is included. To remove the material from the bowl, a manual tilting mechanism is included. The entire apparatus is installed on an appropriate S.S. tubular stand. An appropriate slow speed stirrer with a geared motor set on top is included with the kettle. A hemispherical kettle with a jacket made for starch paste.
An anchor-style beater with variable speed settings is included with the kettle to mix the paste and binder.
Significant Features
Models Range from 50 Liters to 500 Liters.
Provided with steam accessories i.e pressure gauge. Safety valve and vent cock.
A small cylindrical top shell with a spout for pouring out binder mass.
M.O.C S.S 304 / 316 Quality.
APE-Starch Paste kettle resembles a bowl with a sprout on top. A steam or electric jacket is included. To remove the material from the bowl, a manual tilting mechanism is included. The entire apparatus is installed on an appropriate S.S. tubular stand. An appropriate slow speed stirrer with a geared motor set on top is included with the kettle. A hemispherical kettle with a jacket made for starch paste.
An anchor-style beater with variable speed settings is included with the kettle to mix the paste and binder.
Significant Features
Models Range from 50 Liters to 500 Liters.
Provided with steam accessories i.e pressure gauge. Safety valve and vent cock.
A small cylindrical top shell with a spout for pouring out binder mass.
M.O.C S.S 304 / 316 Quality.

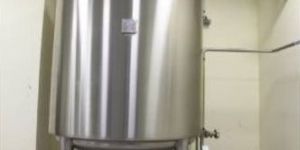

APE-WFI storage tank is an essential device in the pharmaceutical industry. The main activities of these products include the production, storage and distribution of purified water for various uses.These storage tanks have the capacity to hold the purified water at the required temperature. We provide a DM water storage tank to store the demineralised water efficiently. They consist of a type 316L stainless steel vessel and Standard sanitary clamp-type connections include an outlet connection, inlet connection, vent connection, pressure gauge connection, upper and lower level connection, temperature thermo well connection, and a spare connection. An aseptic man way, and a spray ball for interior CIP/SIP. The vessel and all components are fabricated to the requirements of Cgmp. Custom fabrication is also available as per client’s requirement.. Interior surfaces are mechanically polished and then electro polished to maintain optimum sanitary conditions. Custom fabrication is also available as per client’s requirement.
Significant Features
Tanks are Fully Drainable & Cleanable
Vertical & Horizontal shapes
M.O.C S.S 304 / 316 Quality.
APE-WFI storage tank is an essential device in the pharmaceutical industry. The main activities of these products include the production, storage and distribution of purified water for various uses.These storage tanks have the capacity to hold the purified water at the required temperature. We provide a DM water storage tank to store the demineralised water efficiently. They consist of a type 316L stainless steel vessel and Standard sanitary clamp-type connections include an outlet connection, inlet connection, vent connection, pressure gauge connection, upper and lower level connection, temperature thermo well connection, and a spare connection. An aseptic man way, and a spray ball for interior CIP/SIP. The vessel and all components are fabricated to the requirements of Cgmp. Custom fabrication is also available as per client’s requirement.. Interior surfaces are mechanically polished and then electro polished to maintain optimum sanitary conditions. Custom fabrication is also available as per client’s requirement.
Significant Features
Tanks are Fully Drainable & Cleanable
Vertical & Horizontal shapes
M.O.C S.S 304 / 316 Quality.

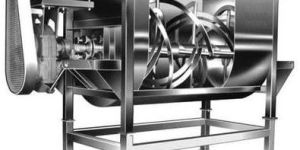

APE- Ribbon Blender / Mixers are a specific type of powder blenders that consist of 2 parts mounted on a central shaft . The mixing medium often consists of inner and outer helical ribbons that are designed to move material both inwards and outwards. The external helical ribbons pull product from the sides of the mixer into the middle and the internal ribbons push the product back to the sides. The back-and-forth folding motion of the materials to be blended creates a convective mixing pattern.
Food Industry: Mixing of dry powders, spices, seasoning, baking mixes, and food additives.
Pharmaceutical Industry: Blending of granules, powders, and APIs.
Chemical Industry: Mixing of dry chemicals, pigments, dyes, fertilizers, and plastics.
Cosmetics Industry: Mixing of powders, creams, lotions, and gels.
Animal Feed Industry: Mixing of animal feed, pet food, and birdseed.
Construction Industry: Blending of cement, mortar, and plaster.
Environmental Industry: Mixing of waste materials, compost, and soil.
APE- Ribbon Blender / Mixers are a specific type of powder blenders that consist of 2 parts mounted on a central shaft . The mixing medium often consists of inner and outer helical ribbons that are designed to move material both inwards and outwards. The external helical ribbons pull product from the sides of the mixer into the middle and the internal ribbons push the product back to the sides. The back-and-forth folding motion of the materials to be blended creates a convective mixing pattern.
Food Industry: Mixing of dry powders, spices, seasoning, baking mixes, and food additives.
Pharmaceutical Industry: Blending of granules, powders, and APIs.
Chemical Industry: Mixing of dry chemicals, pigments, dyes, fertilizers, and plastics.
Cosmetics Industry: Mixing of powders, creams, lotions, and gels.
Animal Feed Industry: Mixing of animal feed, pet food, and birdseed.
Construction Industry: Blending of cement, mortar, and plaster.
Environmental Industry: Mixing of waste materials, compost, and soil.
APE-Rapid mixture granulator works on agitation and tumbling. The impeller is responsible for uniformly mixing wet granules, and the chopper helps in breaking or reducing particle size. At the starting process or during binder addition, the impeller and chopper generally operate at low speed. Then after the formation of wet mass, they are operated at high speed to make the desired granule size. Dry mixing is done at high speed after adding all dispensed materials into RMG. During batch validation, all the dry and wet mixing time parameters are set and applied in the batch manufacturing records (BMR). All the parameters are set differently for every product, although it takes 3-5 minutes to mix the dry granules and 5-10 minutes for wet mixing to get the desired 0.5 mm to 1.5 mm sized granules.
Process for Dry and Wet product at a time.
Impeller and Chopper with Dual Speeds.
Suitable For Quick & Efficient Mixing of Ingredient Granulation.
For loading of material, a material handling system is provided.
Option - Arrangement for Binding Spray.
Process control and interlock through by PLC with touch touch screen display HMI-Optional.
APE-Rapid mixture granulator works on agitation and tumbling. The impeller is responsible for uniformly mixing wet granules, and the chopper helps in breaking or reducing particle size. At the starting process or during binder addition, the impeller and chopper generally operate at low speed. Then after the formation of wet mass, they are operated at high speed to make the desired granule size. Dry mixing is done at high speed after adding all dispensed materials into RMG. During batch validation, all the dry and wet mixing time parameters are set and applied in the batch manufacturing records (BMR). All the parameters are set differently for every product, although it takes 3-5 minutes to mix the dry granules and 5-10 minutes for wet mixing to get the desired 0.5 mm to 1.5 mm sized granules.
Process for Dry and Wet product at a time.
Impeller and Chopper with Dual Speeds.
Suitable For Quick & Efficient Mixing of Ingredient Granulation.
For loading of material, a material handling system is provided.
Option - Arrangement for Binding Spray.
Process control and interlock through by PLC with touch touch screen display HMI-Optional.

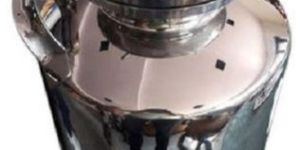

APE-Pressure vessels are designed to work by reaching the level of pressure required to make an application function, like holding air in a scuba tank. They can deliver pressure either directly through valves and release gauges, or indirectly via heat transfer. Pressure vessels are used in many different industries, but 3 industries cover most of the market. These industries are the oil and gas industry, chemical industry, and energy industry.
An Agitator can be provided optionally.
The Accessories like Load cell, Level Transmitter, Temperature controller, pH Controller and the conductivity meter can be provided optionally too.
APE-Pressure vessels are designed to work by reaching the level of pressure required to make an application function, like holding air in a scuba tank. They can deliver pressure either directly through valves and release gauges, or indirectly via heat transfer. Pressure vessels are used in many different industries, but 3 industries cover most of the market. These industries are the oil and gas industry, chemical industry, and energy industry.
An Agitator can be provided optionally.
The Accessories like Load cell, Level Transmitter, Temperature controller, pH Controller and the conductivity meter can be provided optionally too.
APE- Octagonal Blender is useful for Dry Mixing / Lubrication of the powder in Tablets, Capsules, Dry-Syrups etc. Sections. The design of the Blender with the central rectangular portion, top and bottom Polygonal Frustums’ and removable central baffles ensure efficient mixing of product. Charging of product is by Bins or Under Vacuum as per customer’s requirement. Both the operating speed and the power usage is less.
Drive Unit provided with standard motor, heavy duty gear box and chain sprocket arrangement for jerk free, smooth movement. Safety guard is provided with limit switch so that Blender cannot be operated without closing it. For Bin Charging universal joint with wheel for opening / closing the Butterfly Valve is provided to ensure dust free charging. Internal Parts are mirror finished while external are matt finished as per customer’s requirements.
Significant Features
A Complete Range of Powders, Particulate, And Granular Materials Can Be Mixed Quickly and Efficiently with This Equipment.
Easy Material Charging with SS Bins.
Discharge output via butterfly valve.
Capacity obtainable from 50 L to 10000 L (Higher capacity up to 20000 L on demand).
Pneumatically actuate valves for dust free transfers.
Slow speed mixer with gentle amalgamation of Dry granule.
PLC touch screen color Display-Optional.
APE- Octagonal Blender is useful for Dry Mixing / Lubrication of the powder in Tablets, Capsules, Dry-Syrups etc. Sections. The design of the Blender with the central rectangular portion, top and bottom Polygonal Frustums’ and removable central baffles ensure efficient mixing of product. Charging of product is by Bins or Under Vacuum as per customer’s requirement. Both the operating speed and the power usage is less.
Drive Unit provided with standard motor, heavy duty gear box and chain sprocket arrangement for jerk free, smooth movement. Safety guard is provided with limit switch so that Blender cannot be operated without closing it. For Bin Charging universal joint with wheel for opening / closing the Butterfly Valve is provided to ensure dust free charging. Internal Parts are mirror finished while external are matt finished as per customer’s requirements.
Significant Features
A Complete Range of Powders, Particulate, And Granular Materials Can Be Mixed Quickly and Efficiently with This Equipment.
Easy Material Charging with SS Bins.
Discharge output via butterfly valve.
Capacity obtainable from 50 L to 10000 L (Higher capacity up to 20000 L on demand).
Pneumatically actuate valves for dust free transfers.
Slow speed mixer with gentle amalgamation of Dry granule.
PLC touch screen color Display-Optional.
The principle involves variable force, rotating blades having both knife and sharp edges with validated screen size to reduce particles in a controlled manner. The mechanism involves the pulverization process (Pulverization is the grinding and crushing of materials into small particles). knife blades are used to cut the large particles into small size particles, that are generated during the FBD drying process. The hummer process is also used to break large particles into small sizes.
Significant Features
Direction of beaters can be changed by reversible switch from knife to impact towards and vice versa
All Contact Parts can be easily and quickly dismantled for cleaning.
Machine is designed for continuous operations
Castor Wheel are provided for mobility of the machine
Flame Proof Electrical can be provided.
M.O.C. S.S. 304/316/316L.
The principle involves variable force, rotating blades having both knife and sharp edges with validated screen size to reduce particles in a controlled manner. The mechanism involves the pulverization process (Pulverization is the grinding and crushing of materials into small particles). knife blades are used to cut the large particles into small size particles, that are generated during the FBD drying process. The hummer process is also used to break large particles into small sizes.
Significant Features
Direction of beaters can be changed by reversible switch from knife to impact towards and vice versa
All Contact Parts can be easily and quickly dismantled for cleaning.
Machine is designed for continuous operations
Castor Wheel are provided for mobility of the machine
Flame Proof Electrical can be provided.
M.O.C. S.S. 304/316/316L.
Storage TypeVertical, Cylindrical, Round, Conical Bottom, Loose Top Lid
IPC Bins are the widely recognized industry standard for applications requiring containment in the handling and processing of powders. Cleaning is made simple, containment is offered, work-in-progress is stored and tested, batches are changed quickly, and homogeneous blending is repeatedly done. Vertical, cylindrical, round, conical bottom, loose top lid are good ways to store dry powder or granules and transport them to other equipment. Design complies with CGMPs, or current good manufacturing practices.
Significant Feature
Models range from 150 to 1200 liters.
Suitable for Inline Process with Milling, RMG & Sifter.
M.O.C S.S 304 / 316 Quality.
IPC Bins are the widely recognized industry standard for applications requiring containment in the handling and processing of powders. Cleaning is made simple, containment is offered, work-in-progress is stored and tested, batches are changed quickly, and homogeneous blending is repeatedly done. Vertical, cylindrical, round, conical bottom, loose top lid are good ways to store dry powder or granules and transport them to other equipment. Design complies with CGMPs, or current good manufacturing practices.
Significant Feature
Models range from 150 to 1200 liters.
Suitable for Inline Process with Milling, RMG & Sifter.
M.O.C S.S 304 / 316 Quality.

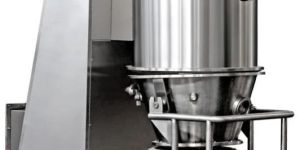

In a APE- Fluid Bed Dryer, to dry the materials a perforated bed of moist solid particles is passed through by hot, high-pressure air. Particles start to suspend in the air because hot air travels at a speed greater than their speed of settling. The moisture content of solid particles decreases when the moist particle suspends in heated air to produce the appropriate loss on drying (LOD). Away from the moist solid particles, the vaporized liquid is carried by the drying vapors. In some cases, the leaving gas is recycled to conserve energy.
Significant Features
Fully automatic operation under PLC control or without PLC control.
The product container that lifts and tilts to make handling easier.
For uniform and effective product drying, very versatile process equipment.
Heating Mode: Steam Heated or Electric Heated Blower.
More hygienic and with Less Handling.
MOC S.S. 304/ 316/ 316L with capacity 5kg to 600kg.
Quick Dismantling of Dutch Sieves and Perforated Screen in.
Exhaust Blower Provided.
In a APE- Fluid Bed Dryer, to dry the materials a perforated bed of moist solid particles is passed through by hot, high-pressure air. Particles start to suspend in the air because hot air travels at a speed greater than their speed of settling. The moisture content of solid particles decreases when the moist particle suspends in heated air to produce the appropriate loss on drying (LOD). Away from the moist solid particles, the vaporized liquid is carried by the drying vapors. In some cases, the leaving gas is recycled to conserve energy.
Significant Features
Fully automatic operation under PLC control or without PLC control.
The product container that lifts and tilts to make handling easier.
For uniform and effective product drying, very versatile process equipment.
Heating Mode: Steam Heated or Electric Heated Blower.
More hygienic and with Less Handling.
MOC S.S. 304/ 316/ 316L with capacity 5kg to 600kg.
Quick Dismantling of Dutch Sieves and Perforated Screen in.
Exhaust Blower Provided.

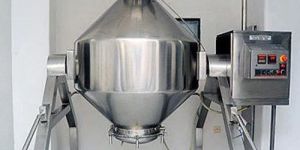

The pharmaceutical, food, chemical, and cosmetic industries all frequently utilize the double cone blender to create uniform blends of dry powders and granules for tablets and capsules. The double cone blender's distinctive operating theory is based on the mechanical mixing that results from tumbling action. The two cone-shaped parts are joined at their bases to a central cylindrical section to form the double-cone blender.
Perfect for Mixing Powders & Homogenous Lubrication of Granules.
Well Balanced to avoid any excessive load on gear box motor.
All Moving Parts are enclosed with guards.
It comes with S.S. baffles.
Easy Material Charging with SS Bins.
Butterfly Valve for charging and discharging
The pharmaceutical, food, chemical, and cosmetic industries all frequently utilize the double cone blender to create uniform blends of dry powders and granules for tablets and capsules. The double cone blender's distinctive operating theory is based on the mechanical mixing that results from tumbling action. The two cone-shaped parts are joined at their bases to a central cylindrical section to form the double-cone blender.
Perfect for Mixing Powders & Homogenous Lubrication of Granules.
Well Balanced to avoid any excessive load on gear box motor.
All Moving Parts are enclosed with guards.
It comes with S.S. baffles.
Easy Material Charging with SS Bins.
Butterfly Valve for charging and discharging

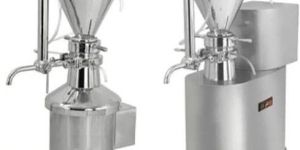

A colloidal mill is used to break down a mixture that contains Suspended solid particles to make a homogeneous mixture. The liquid containing Solid particles is put into the hopper. A suspension or liquid passes through the moving part (Rotor) and Non-Moving (Stator), which causes a high shearing force between the two narrow gaps. Shear stress force can be reduced or increased by changing the gap (50 to 1000 mm) and by changing rotor speed (1000 to 25000 rpm), but in most cases, the speed is (2000 to 18000 rpm). The liquid mixture continuously flows through these two-part and makes it homogeneous, then finally drains out through the outlet.
Significant Features
Unique for Grinding, Homogenizing, Emulsifying, Dispersing, Mixing and Extracting.
Homogenising and Milling Up to 5 to 10 Micron Particle with Versatile Machine.
The Rotor and Stator's Semi-Concave Teeth's Modified Design Reduces Motor HP and Provides Better Performance in Size Reduction without Endangering the Products.
Three-way Cock System for Standard Liquid Draining and Circulation of the Fluids. As a Standard for Viscous Products, Extra Discharge Sprout is Provided.
Contact Parts Can Easily Dismantled for Cleaning.
M.O.C. S.S. 304/316/316L.
A colloidal mill is used to break down a mixture that contains Suspended solid particles to make a homogeneous mixture. The liquid containing Solid particles is put into the hopper. A suspension or liquid passes through the moving part (Rotor) and Non-Moving (Stator), which causes a high shearing force between the two narrow gaps. Shear stress force can be reduced or increased by changing the gap (50 to 1000 mm) and by changing rotor speed (1000 to 25000 rpm), but in most cases, the speed is (2000 to 18000 rpm). The liquid mixture continuously flows through these two-part and makes it homogeneous, then finally drains out through the outlet.
Significant Features
Unique for Grinding, Homogenizing, Emulsifying, Dispersing, Mixing and Extracting.
Homogenising and Milling Up to 5 to 10 Micron Particle with Versatile Machine.
The Rotor and Stator's Semi-Concave Teeth's Modified Design Reduces Motor HP and Provides Better Performance in Size Reduction without Endangering the Products.
Three-way Cock System for Standard Liquid Draining and Circulation of the Fluids. As a Standard for Viscous Products, Extra Discharge Sprout is Provided.
Contact Parts Can Easily Dismantled for Cleaning.
M.O.C. S.S. 304/316/316L.

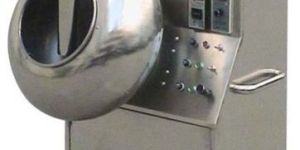

In the production of pharmaceutical products, a coating pan is a device that coats a tablet in an aqueous or organic film. The coating masks the taste of the tablets and shields them from physical and chemical harm..
Significant Features
Suitable For Coating of Tablets & Confectioneries (Sugar / Film Coat).
Models are available in sizes ranging from 12" to 72".
45-degree angle with adjustability to meet requirements.
Easy to replace polishing pan with different size pan.
Spraying system with peristaltic pump and solution tank (Optional)
A suitable exhaust blower available. Heaters and the blower motor are electrically interlocked
MOC S.S. 304 / 316 / 316L.
Reduction gearbox and drive unit are provided.
Stainless steel building with a good opening for easy maintenance.
In the production of pharmaceutical products, a coating pan is a device that coats a tablet in an aqueous or organic film. The coating masks the taste of the tablets and shields them from physical and chemical harm..
Significant Features
Suitable For Coating of Tablets & Confectioneries (Sugar / Film Coat).
Models are available in sizes ranging from 12" to 72".
45-degree angle with adjustability to meet requirements.
Easy to replace polishing pan with different size pan.
Spraying system with peristaltic pump and solution tank (Optional)
A suitable exhaust blower available. Heaters and the blower motor are electrically interlocked
MOC S.S. 304 / 316 / 316L.
Reduction gearbox and drive unit are provided.
Stainless steel building with a good opening for easy maintenance.
APE- Air Try Dryer is used in many industries to dry powders, granules in pharmaceuticals, Masalas, seeds, fruits in Food & Beverages, various chemicals like dyes and pesticides in Chemical Industries and many more industries.
Air Tray Dryer is based on the process of convection drying. Hot air is used in convection drying to evaporate moisture from the object being dried. The heated air circulates around the drying chamber, drying the materials on the trays as it passes over them. To guarantee that the materials are dried at the proper rate, the temperature and humidity inside the chamber are controlled. In order to dry out the solid spread out in trays, hot air is continuously calculated inside the chamber and forced convection heating occurs.
Air Tray Dryer is double-walled construction with glass wool insulation and fitted with ‘U’ tube heaters. The Unit is provided with air-inlet, air filter, adjustable air outlet, self-locking insulated door. Air is passed through totally enclosed type strip heaters and is circulated in the dryer by the means of fan fitted on the side of the Tray Dryer by suitable electric motor. The temperature is controlled by means of thermostat and unit is supplied completely with electrical panel box having indicating lamps, temperature indicator relay, motor, contactor etc. The trolley can be supplied as per customer’s requirements. The unit can also be supplied with steam heating system.
Significant Features
Available in 12,24, 48, 96 & 192 Trays..
Design is cGMP - Current Good Manufacturing Practices compliance.
All contact parts SS316/304 & non contact parts SS304/ .
Highly effective uniform air recirculating system.
Inlet air filter and damper at inlet and exhaust air damper for air flow controls.
Control panel with Digital temperature controller and process timer controller.
Mobile trolleys are provided which are used to load and unload the trays into the dryer.
APE- Air Try Dryer is used in many industries to dry powders, granules in pharmaceuticals, Masalas, seeds, fruits in Food & Beverages, various chemicals like dyes and pesticides in Chemical Industries and many more industries.
Air Tray Dryer is based on the process of convection drying. Hot air is used in convection drying to evaporate moisture from the object being dried. The heated air circulates around the drying chamber, drying the materials on the trays as it passes over them. To guarantee that the materials are dried at the proper rate, the temperature and humidity inside the chamber are controlled. In order to dry out the solid spread out in trays, hot air is continuously calculated inside the chamber and forced convection heating occurs.
Air Tray Dryer is double-walled construction with glass wool insulation and fitted with ‘U’ tube heaters. The Unit is provided with air-inlet, air filter, adjustable air outlet, self-locking insulated door. Air is passed through totally enclosed type strip heaters and is circulated in the dryer by the means of fan fitted on the side of the Tray Dryer by suitable electric motor. The temperature is controlled by means of thermostat and unit is supplied completely with electrical panel box having indicating lamps, temperature indicator relay, motor, contactor etc. The trolley can be supplied as per customer’s requirements. The unit can also be supplied with steam heating system.
Significant Features
Available in 12,24, 48, 96 & 192 Trays..
Design is cGMP - Current Good Manufacturing Practices compliance.
All contact parts SS316/304 & non contact parts SS304/ .
Highly effective uniform air recirculating system.
Inlet air filter and damper at inlet and exhaust air damper for air flow controls.
Control panel with Digital temperature controller and process timer controller.
Mobile trolleys are provided which are used to load and unload the trays into the dryer.
We are a professional, transparent team in Vasai, Maharashtra India with an experience since 2005 in building Pharmaceutical, Food & Beverages, Chemical, Agricultural, Cosmetic Equipment’s manufacturing company. With effort and courage, we gained the knowledge necessary to design and build stainless steel equipment, provide technical project engineering for multiple industries production lines, and give advisory design services in addition to designing and developing machinery.
Reviews & Ratings
Write a Review
Post Free Ad
